[Lifetime Warranty] WH01X27954 Washer Lid Lock Switch 290D1580P004 290D1580P001 290D1580P002 EG-380843M WH01X26114 WH01X24114 - For GE GTW220ACK1WW GTW220ACK2WW GTW220ACK3WW GTW220ACK4WW

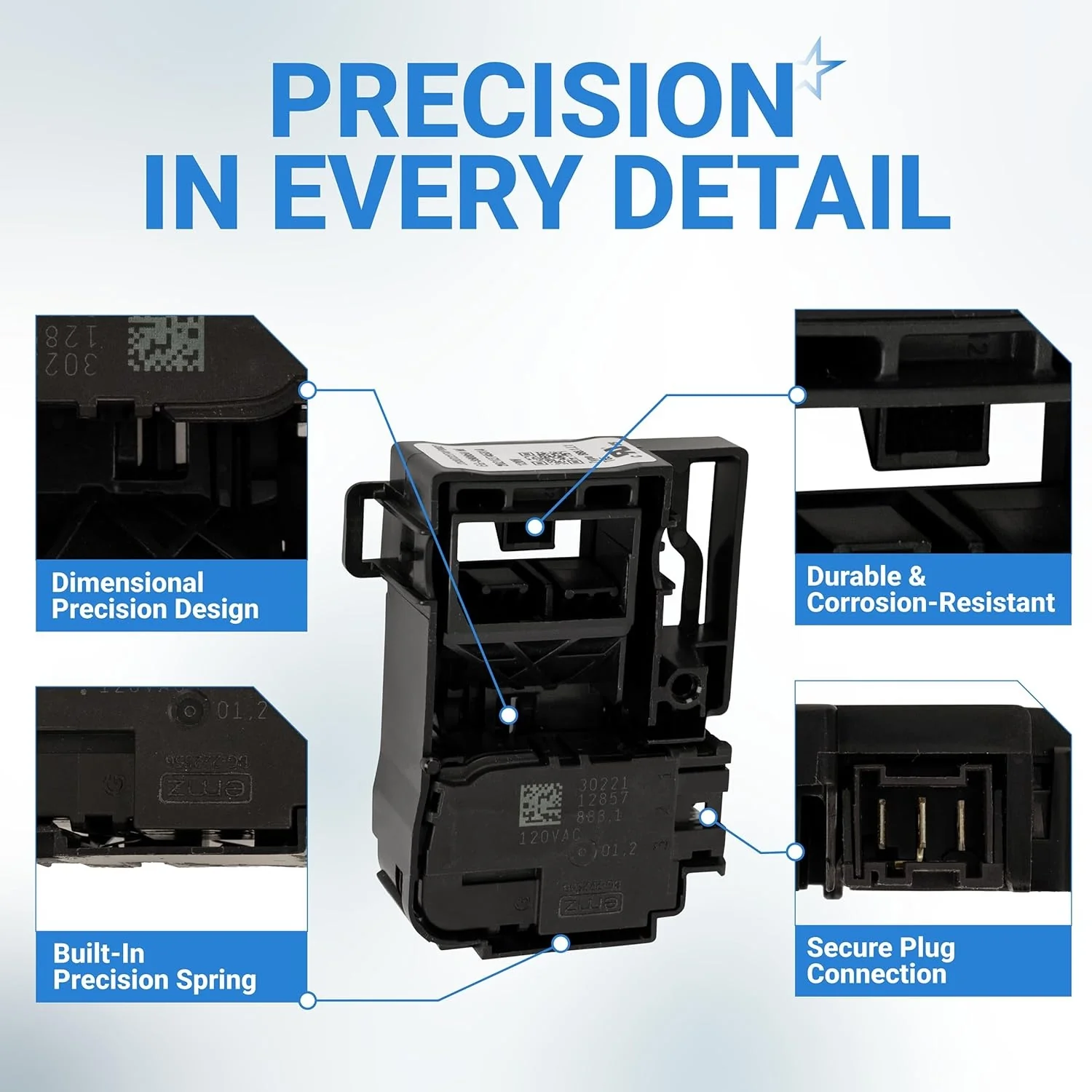

WH01X27954 Washer Lid Lock Switch Assembly
Key Features
- Safety Locking Mechanism: Ensures the washer lid is securely locked during high-speed spin cycles to prevent injury.
- Direct Replacement: Designed to meet original equipment specifications for fit, form, and electrical connectivity.
- Integrated Sensor: Communicates the open/closed status of the lid to the main control board to allow the cycle to proceed.
- Enhanced Durability: Constructed with reinforced plastic and high-conductivity electrical contacts to withstand high-moisture environments.
Replaces / Cross-Reference Part Numbers
- WH01X27954
- 290D1580P004
- 290D1580P001
- 290D1580P002
- WH01X26114
- WH01X24114
- EG-380843M
Compatibility & Fitment
This lid lock switch is compatible with various GE (General Electric) and Hotpoint top-load washing machines, including:
- GE GTW Series: GTW220ACK1WW, GTW220ACK2WW, GTW220ACK3WW, GTW220ACK4WW, GTW220ACK5WW, GTW330ASK0WW, GTW330ASK1WW, GTW330ASK2WW.
- GE MTW Series: MTW200AMW0WW, MTW200AMW1WW.
- GE HTW Series: HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW240ASK0WS.
- Hotpoint: Compatible with select HTW and MTW top-load models utilizing the 290D1580P series switch.
When to Replace
- Washer Won't Start: The lid is closed, but the "Lid Locked" light flashes or the machine fails to begin the cycle.
- Fails to Spin: The machine fills and agitates but will not enter the spin phase because the lock cannot engage.
- Error Codes: The control panel displays fault codes related to lid lock failure (e.g., E23).
- Broken Plastic: The strike plate or the receiver on the switch housing is physically cracked or snapped.
- Intermittent Operation: The lock engages and disengages repeatedly or requires several tries to lock.
Installation Tips
- Safety First: Unplug the washing machine and turn off the water supply before beginning the repair.
- Accessing the Switch: Use a putty knife to release the clips between the top console and the main cabinet to flip the top panel up.
- Connector Security: Ensure the wire harness is fully seated and the locking tab on the electrical connector clicks into place.
- Alignment: Align the switch body accurately with the mounting holes on the underside of the top panel to ensure the lid strike enters the port correctly.
- Verification: Once installed, run a "Drain & Spin" cycle to verify that the locking solenoid engages and the status light stays solid.
