W10906683 Dryer Door Seal with Glue gel

Key Features

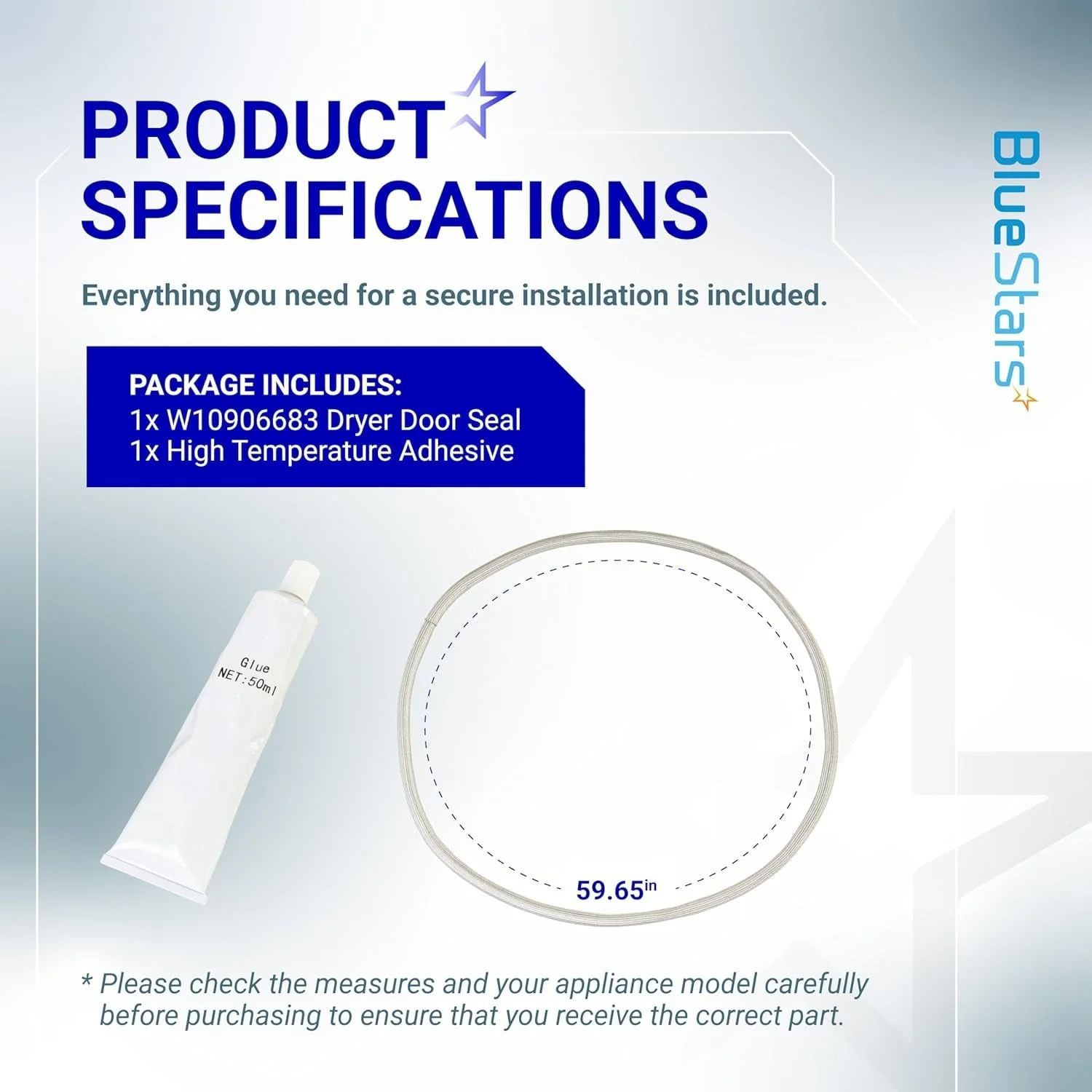

• Includes one dryer door gasket and a 1 fl oz. tube of high-temperature adhesive.
• Constructed from durable, high-quality nylon material for effective sealing and insulation.
• Forms a tight seal to prevent heat loss and improve drying efficiency.
• Approximate length: 59.65 inches.

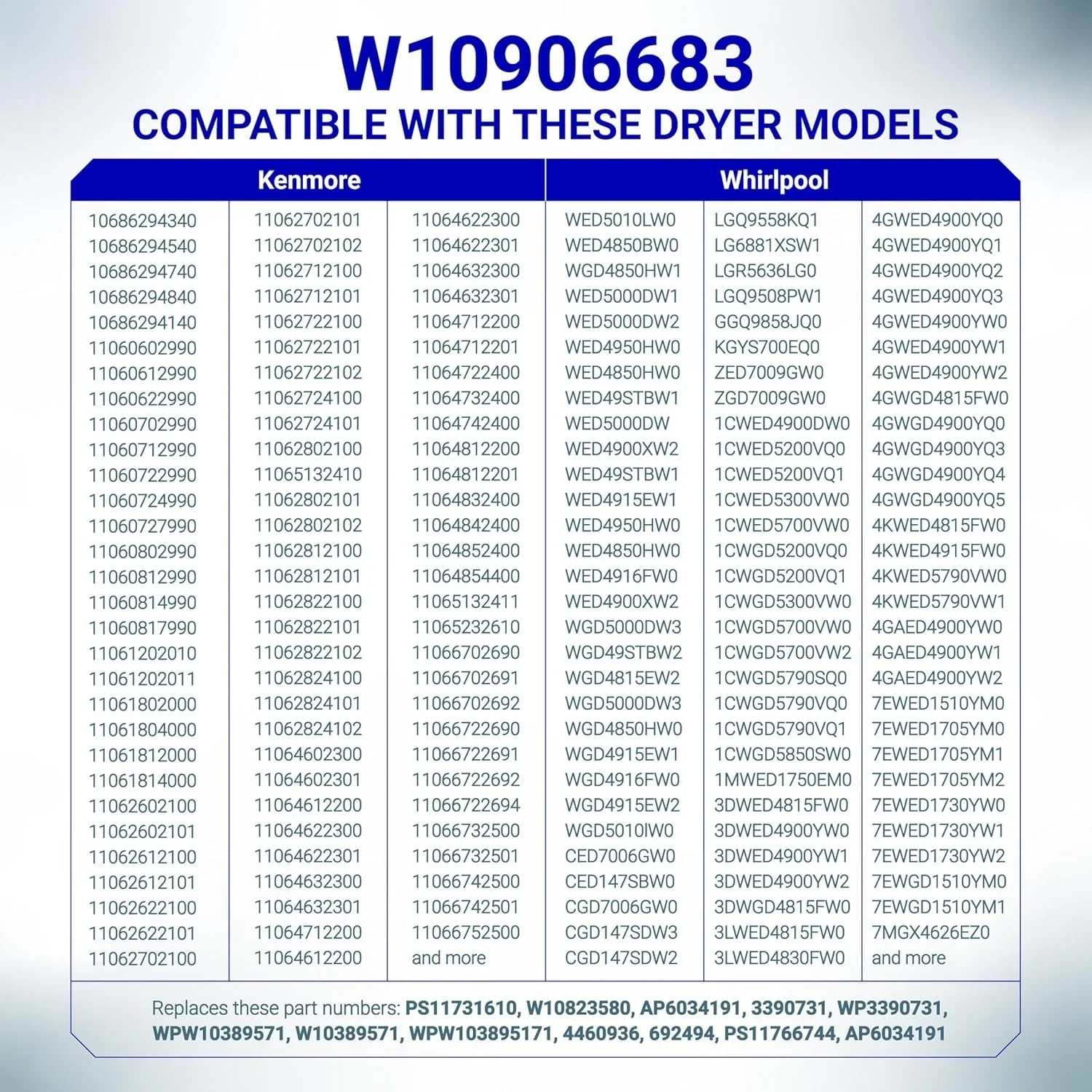

Replaces / Cross-Reference Part Numbers

• W10906683
• W10823580
• W10389571
• 3390731
• AP6034191

Compatibility & Fitment

• Designed for select dryers manufactured by Whirlpool.
• Confirm fitment by cross-referencing your appliance's original part number.

When to Replace

• The existing seal is cracked, torn, brittle, or has missing sections.
• Clothes are taking longer than usual to dry due to heat escaping from the door.
• The dryer door does not close securely or feels loose.
• Excessive lint is found around the exterior of the dryer door.

Installation Tips

• Disconnect the dryer from its power source before beginning the repair.
• Completely remove the old seal and scrape away all residual adhesive from the door channel.
• Clean the channel surface thoroughly to ensure proper adhesion.
• Apply a continuous bead of the supplied adhesive into the channel.
• Press the new seal firmly into the adhesive-lined channel.
• Allow the adhesive to cure for the manufacturer-recommended time before operating the dryer.
