Dryer Maintenance & Roller Repair Kit for LG and Kenmore Elite

Key Features

• Precision-Engineered Drum Rollers: The 4581EL2002C rollers feature high-grade polyurethane tires for quiet operation and a lubricated internal bearing that resists high heat and friction during long drying cycles.
• Heavy-Duty Reinforced Belt: The 4400EL2001A drive belt is manufactured with premium rubber and high-tensile internal cords to prevent stretching, cracking, and snapping under the weight of heavy laundry loads.
• Upgraded Idler Pulley Assembly: The 4561EL3002A pulley includes a smooth-spinning bearing designed to maintain constant belt tension, reducing motor strain and preventing belt slippage.

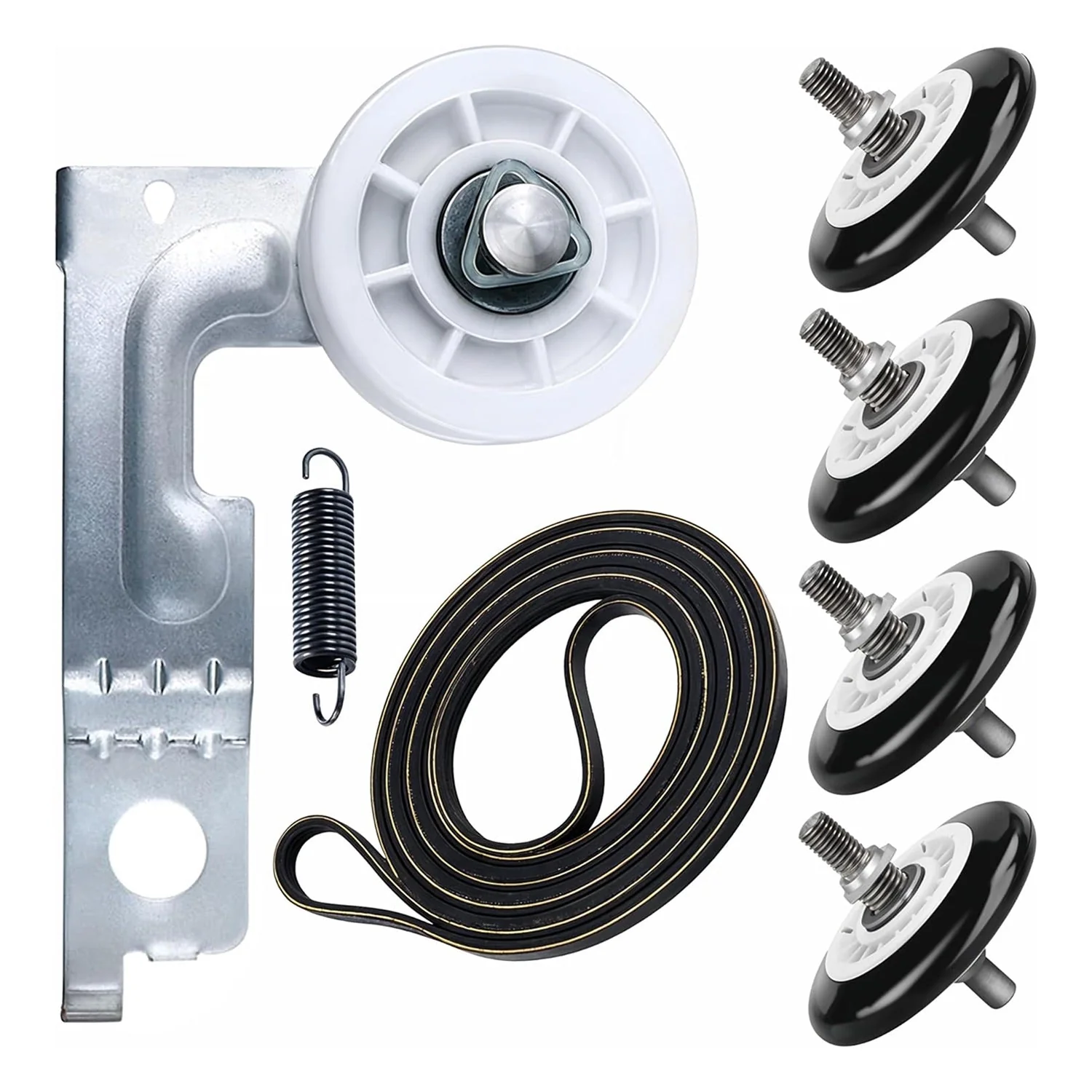

• Complete Restoration Kit: A comprehensive 7-piece set that addresses all major wear components of the dryer's drum-drive system, providing a "like-new" mechanical overhaul in one package.
• High-Temperature Resistance: All components are manufactured from materials specifically chosen to withstand the extreme thermal environment inside modern high-efficiency dryers.

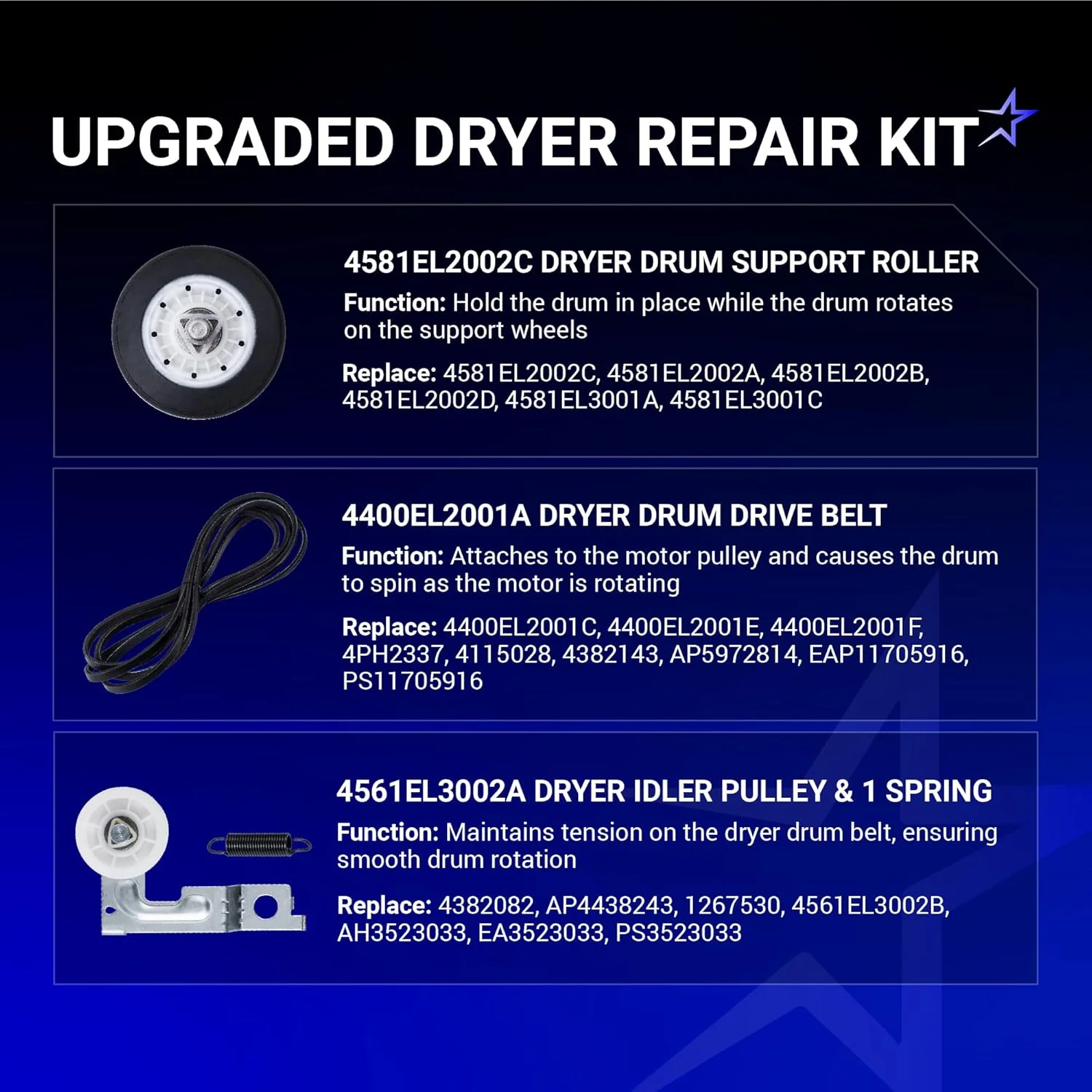

Replaces / Cross-Reference Part Numbers

• Drum Rollers: 4581EL2002C, 4581EL2002A, 4581EL3001C, 3131EL2001B.
• Idler Pulley: 4561EL3002A, PS3523000, 1266855.
• Drive Belt: 4400EL2001A, 4400EL2001J, 1266839.

Compatibility & Fitment

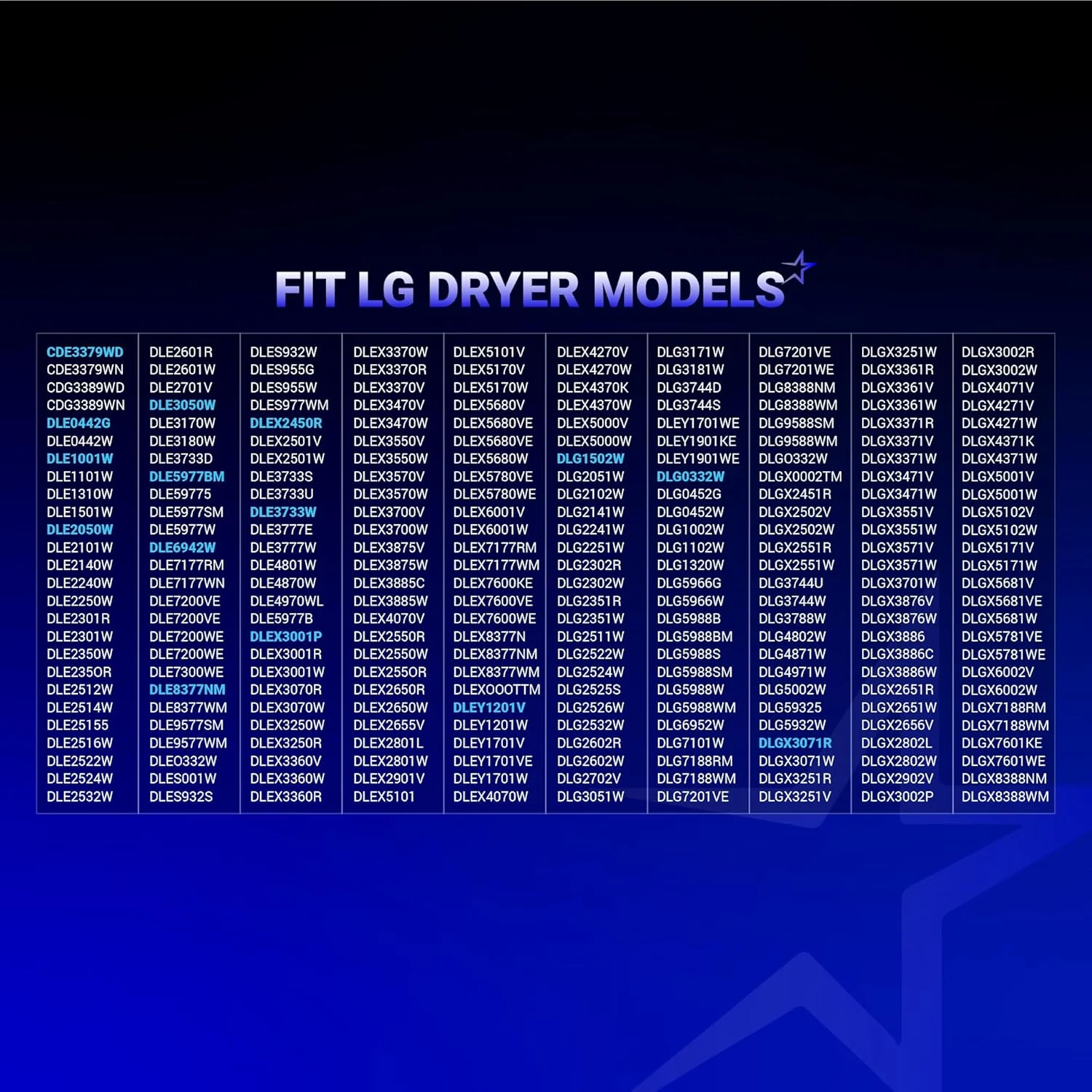

This kit is the primary repair solution for LG-manufactured dryers, including many Kenmore Elite models. Key compatible models include:

• LG DLE Series (Electric): DLE0442W, DLE5977W, DLE2516W, DLE2301R, DLE5955W, DLE3733W, DLE7177WM.
• LG DLGX Series (Gas): DLGX3371W, DLGX2501W, DLG5988W, DLG2522W, DLG3711W.

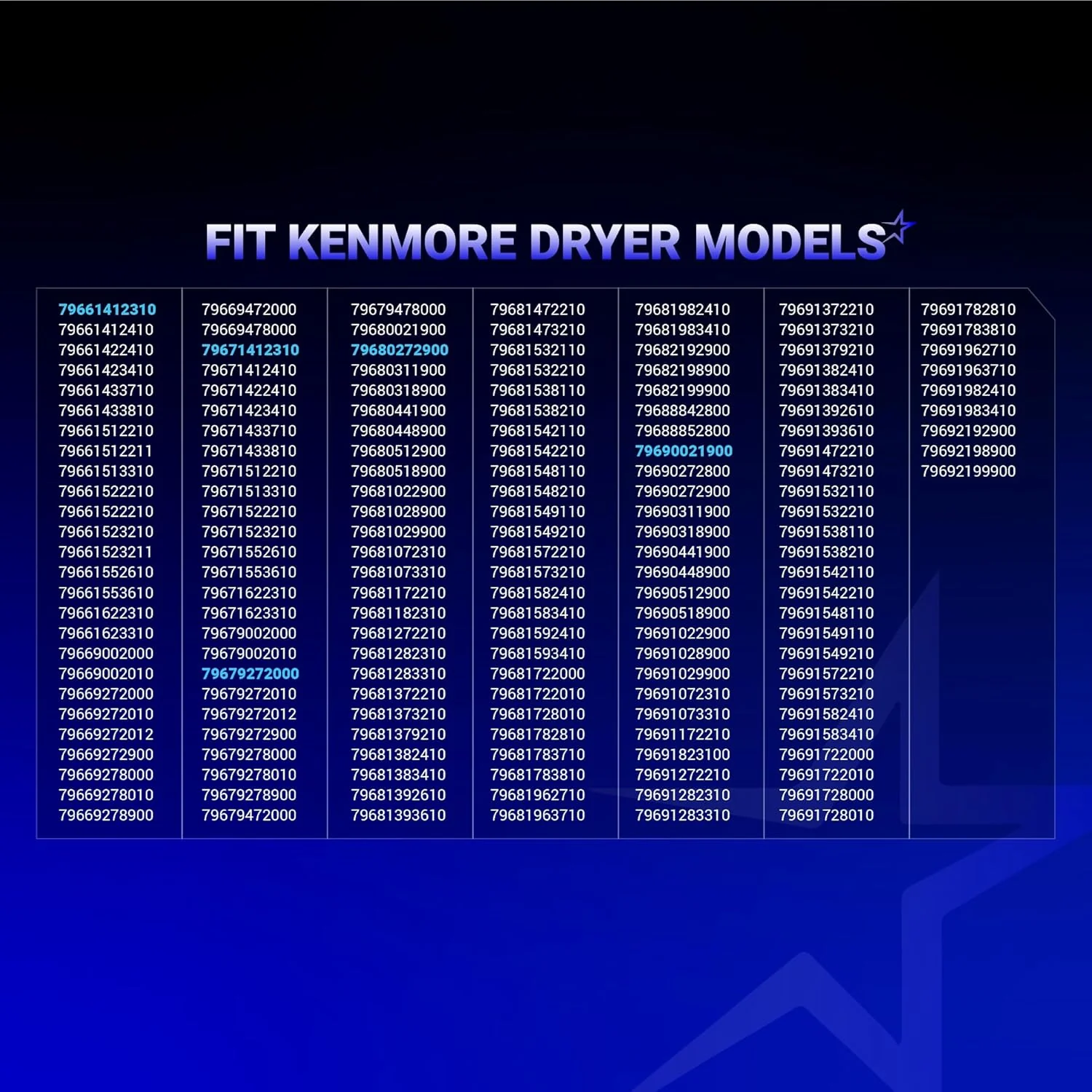

• Kenmore Elite (796 Series): 796.69002, 796.79002, 796.80021, 796.90021.

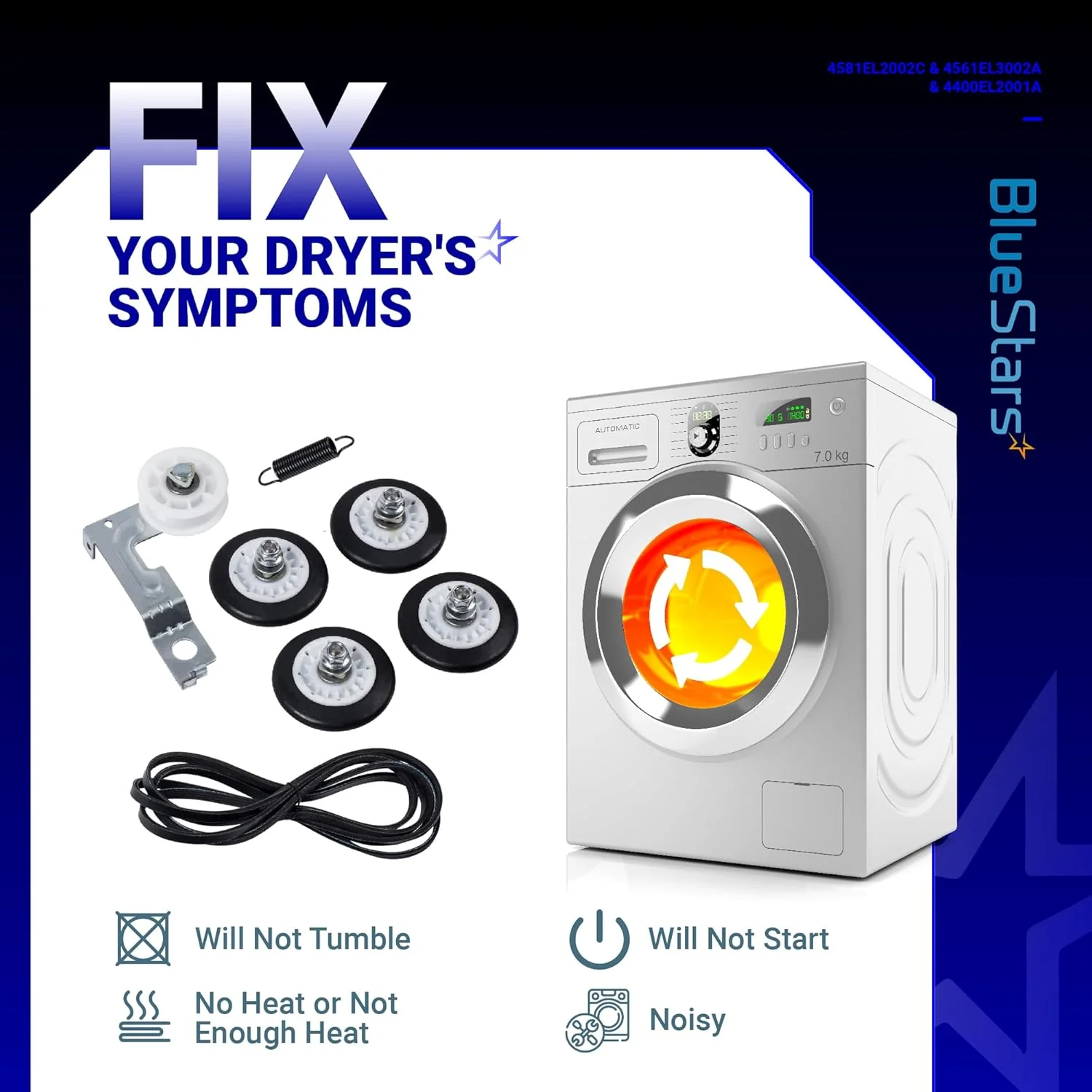

When to Replace

• Loud Squealing or Chirping: Usually indicates a dry or seized bearing in the drum rollers or the idler pulley.
• Thumping or Rhythmic Banging: Occurs when the polyurethane on a roller has developed a "flat spot" due to the dryer sitting idle with a heavy load inside.
• Dryer Not Spinning: Often the result of a snapped drive belt or a collapsed idler pulley that has lost tension.
• Burning Rubber Smell: A sign that the belt is slipping against a seized pulley or that the motor is overheating due to excessive drag from worn rollers.
• Excessive Vibration: Worn rollers can cause the drum to sit unevenly, leading to cabinet vibration and premature wear on the front felt seal.

Installation Tips

• Safety First: Always unplug the dryer and turn off the gas supply (if applicable) before beginning disassembly. The internal sheet metal edges are sharp—wear work gloves.
• Clean the Chassis: While the drum is removed, use a vacuum to clear all lint from the bottom of the dryer cabinet and the blower wheel. This significantly reduces fire risk and improves drying efficiency.
• Inspect the Shafts: Before installing new rollers, wipe down the metal axles (shafts) with a clean cloth. If a shaft is scored or deeply grooved, it should be replaced along with the roller.
• Belt Orientation: When installing the new belt, ensure the "grooved" side of the belt is facing down against the drum and the motor pulley.
• Avoid Excessive Grease: These bearings are designed to be run dry or with very minimal lubrication. Applying heavy grease can attract lint, which will eventually gum up the bearing and cause premature failure.
