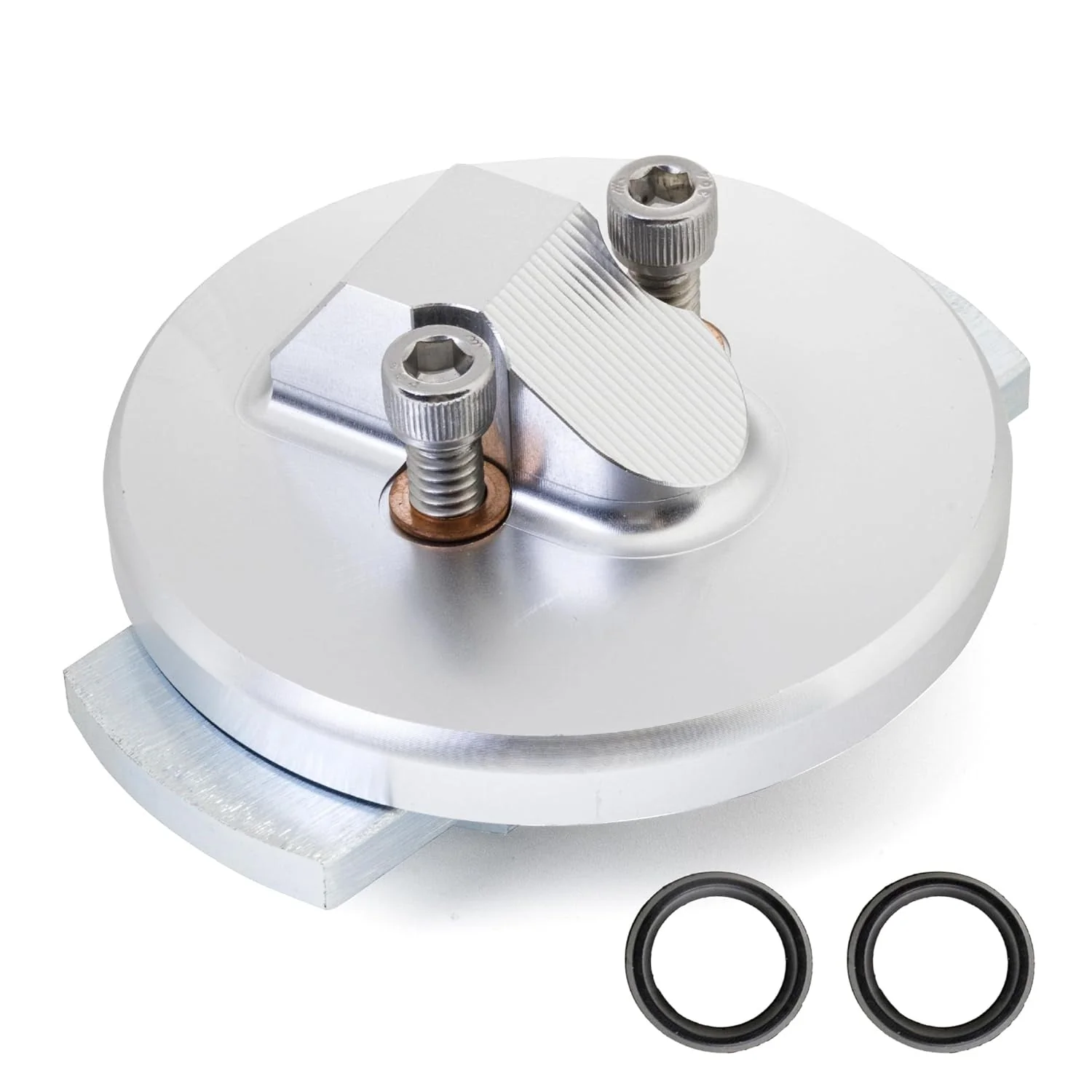

Dipstick Adapter Repair Kit F4TZ-6753-A

Key Features

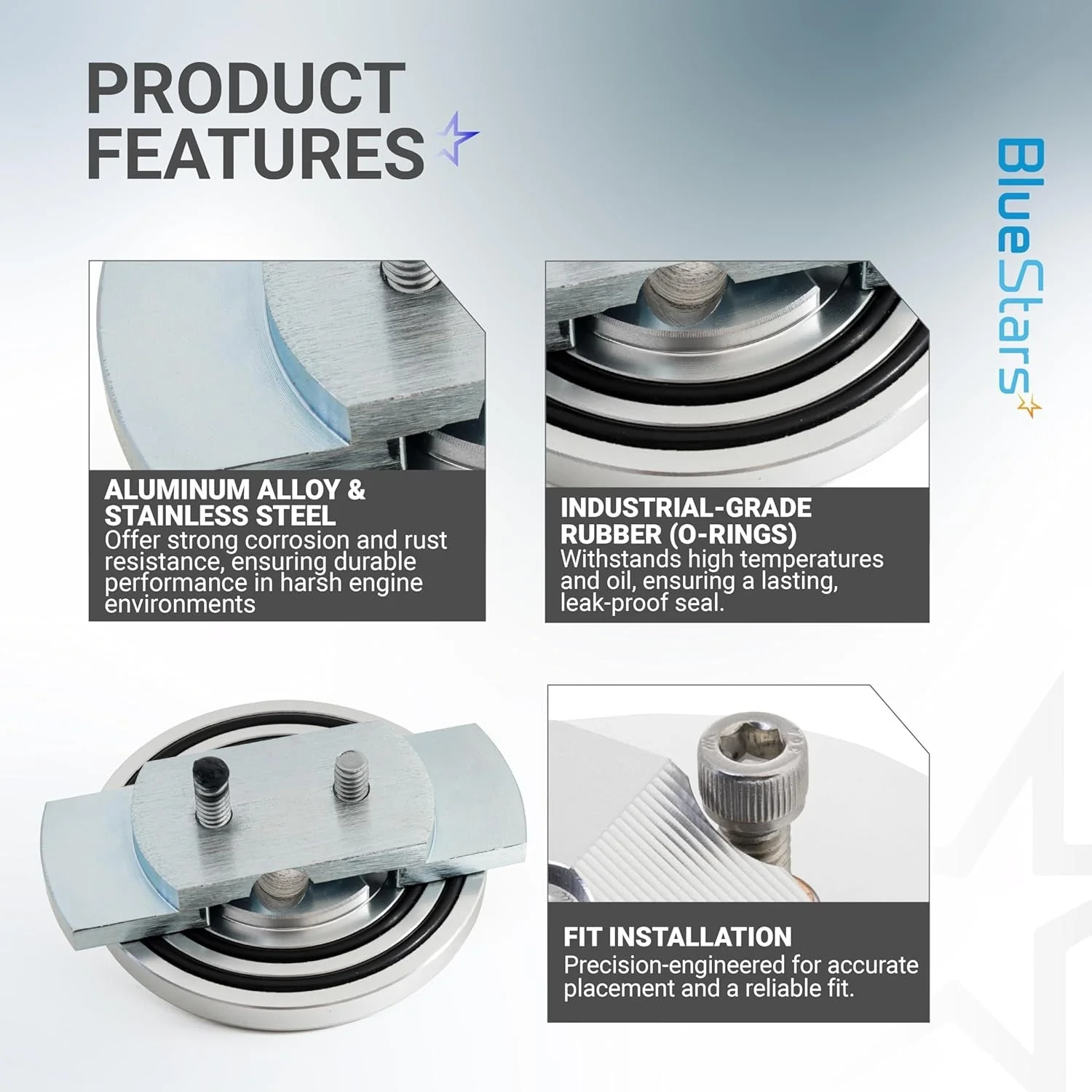

• Repairs common oil pan leaks at the dipstick tube entry point.
• Features a double O-ring seal design for a secure, leak-free fit.
• Constructed from durable, high-quality materials for long service life.
• Direct-fit replacement for the original factory component.

Replaces / Cross-Reference Part Numbers

• F4TZ-6753-A
• F4TZ-6751-A
• F4TZ-6751-B

Compatibility & Fitment

• Engine: Ford 7.3L Powerstroke Diesel
• Model Years: 1994.5 - 2003
• Models: Ford F-250, F-350, Excursion, and E-Series vans equipped with the 7.3L Powerstroke engine.

When to Replace

• Visible engine oil leakage or seepage around the base of the dipstick tube.
• Oil residue on the side of the engine oil pan.
• Noticeable oil drips on the ground beneath the engine.
• The original adapter O-ring is cracked, hardened, or visibly deteriorated.

Installation Tips

• Thoroughly clean the oil pan mounting hole and surrounding area before installation.
• The original adapter may be difficult to remove and might require careful extraction.
• Lubricate the new O-rings with clean engine oil prior to insertion to prevent damage.
• Ensure the new adapter is pressed in evenly and fully seated in the oil pan.
