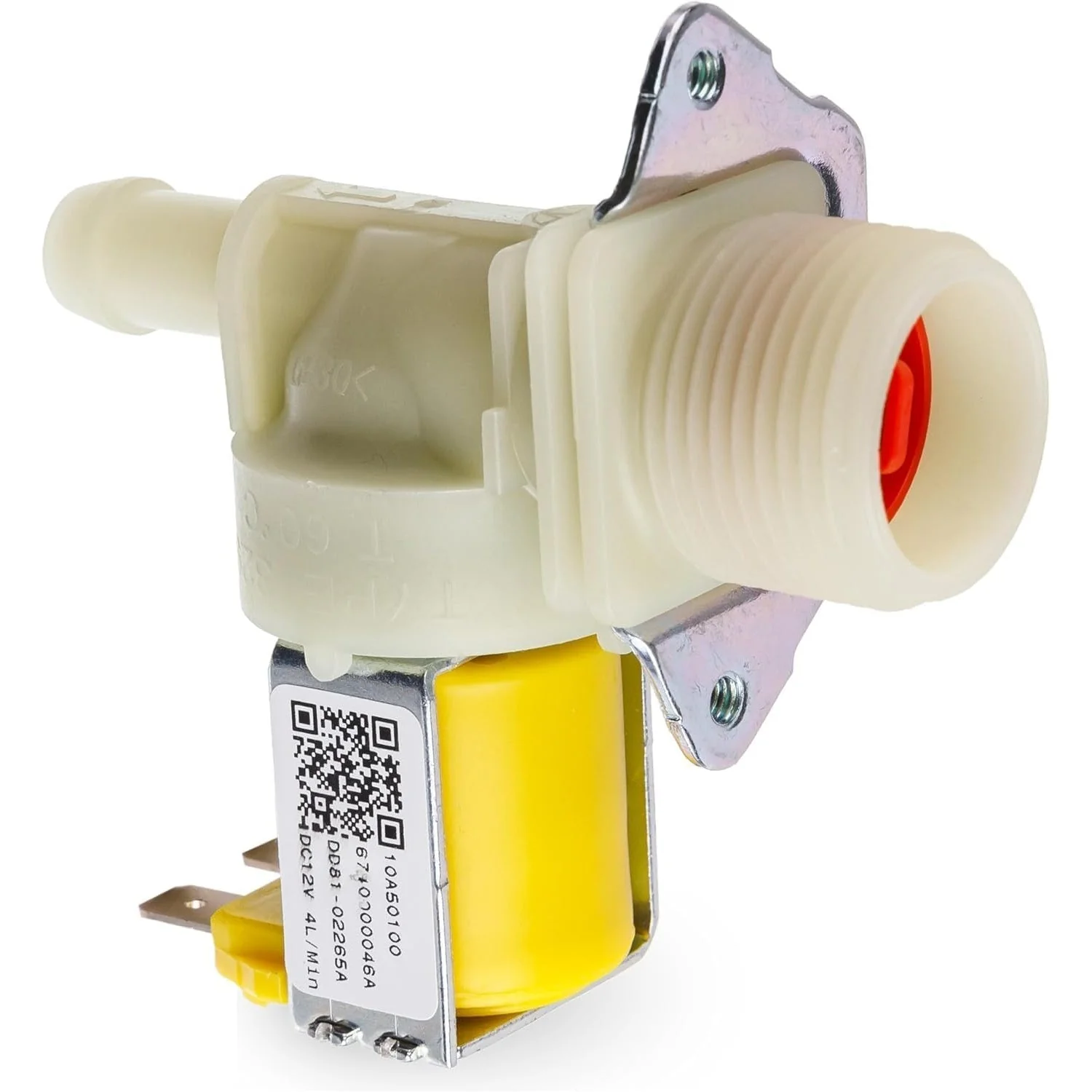

DD81-02265A Dishwasher Water Inlet Valve

Key Features

• Precision Flow Control: Specifically calibrated to manage the precise water volume required for Samsung’s high-efficiency wash and rinse cycles.
• Quiet Operation: Designed with an anti-vibration solenoid to minimize "water hammer" noise when the valve opens and closes.

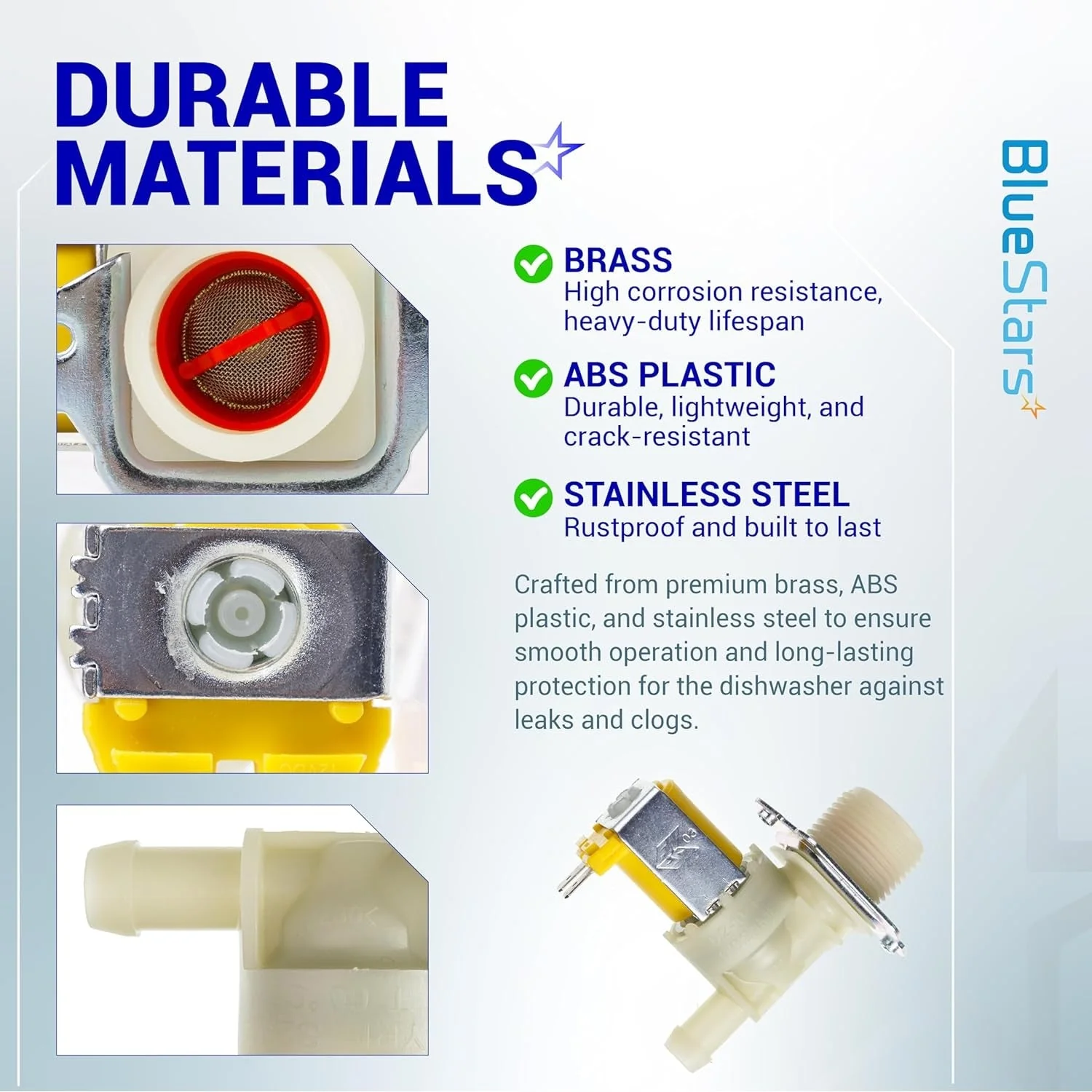

• High-Temperature Resistance: Constructed with food-grade, heat-stabilized polymers to withstand the high-temperature water utilized in sanitize cycles.
• Debris Protection: Features an integrated stainless steel mesh filter to catch sediment and pipe scale, protecting the internal spray arms from clogging.

Replaces / Cross-Reference Part Numbers

• DD81-02265A
• 6740000046A
• 10A50100
• PD00044305
• AP6244375
• PS12085633
• EAP12085633

Compatibility & Fitment

This water inlet valve is compatible with modern Samsung dishwasher platforms, including both standard and smart-capable models:

• DW80M Series: DW80M2020US, DW80M2020UB, DW80M2020UW.
• DW80N Series: DW80N3030US, DW80N3030UB, DW80N3030UW.
• DW50T Series: DW50T6060US, DW50T6060UG.
• Other Models: Fits select DW80R and DW60 series units utilizing the DD81-02265A part specification.

When to Replace

• Dishwasher Not Filling: The cycle starts and the drain pump runs, but no water enters the tub, often triggering a "4C" or "4E" error code.
• Persistent Leaking: Water trickles into the bottom of the dishwasher while it is off, causing the leak sensor to trigger the drain pump automatically.
• Poor Cleaning Performance: Low water levels in the tub prevent the spray arms from spinning at the correct speed, leaving dishes dirty or gritty.
• Loud Buzzing: A loud humming or buzzing noise during the fill portion of the cycle, indicating a failing electromagnetic solenoid.
• Overflowing: The valve fails to shut off, leading to water leaking from the bottom of the door.

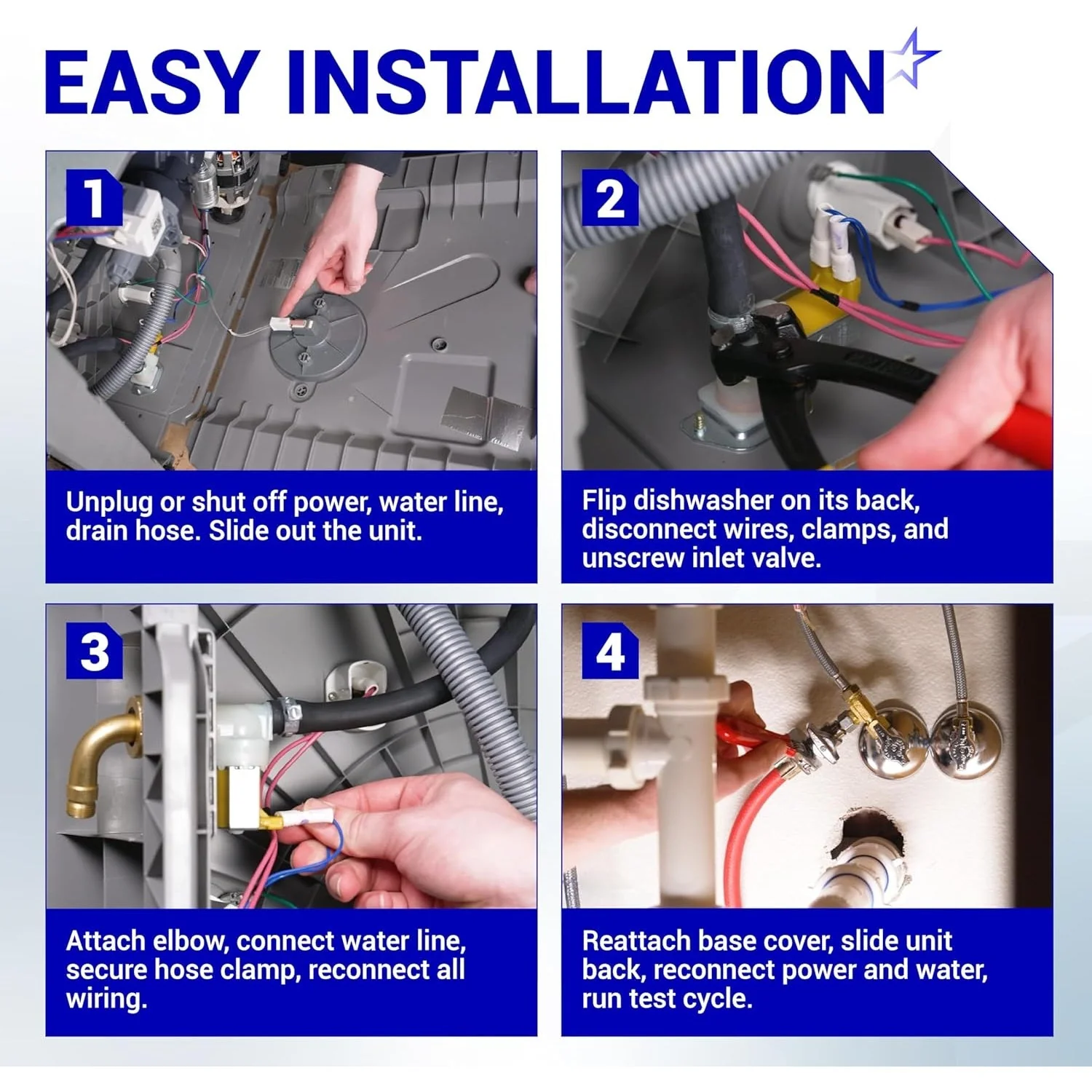

Installation Tips

• Safety First: Turn off the circuit breaker for the dishwasher and shut off the dedicated water supply valve under the sink.
• Accessing the Valve: This valve is located behind the bottom kickplate (toe kick) on the lower-left or lower-right side of the machine.
• Hose Connection: Use a brass 90-degree elbow fitting (usually 3/4" GHT to 3/8" compression) if your existing water line requires it. Apply thread seal tape only to the brass-to-brass connections, not the plastic valve threads.
• Electrical Plug: Ensure the wire harness is pushed firmly onto the solenoid terminals. Samsung valves use a specific keyed connector that should click into place.
• Leak Test: After installation, turn the water on and check for leaks at the fitting before sliding the dishwasher back and replacing the kickplate.
