DC97-15459G Washer Water Inlet Valve Assembly

Key Features

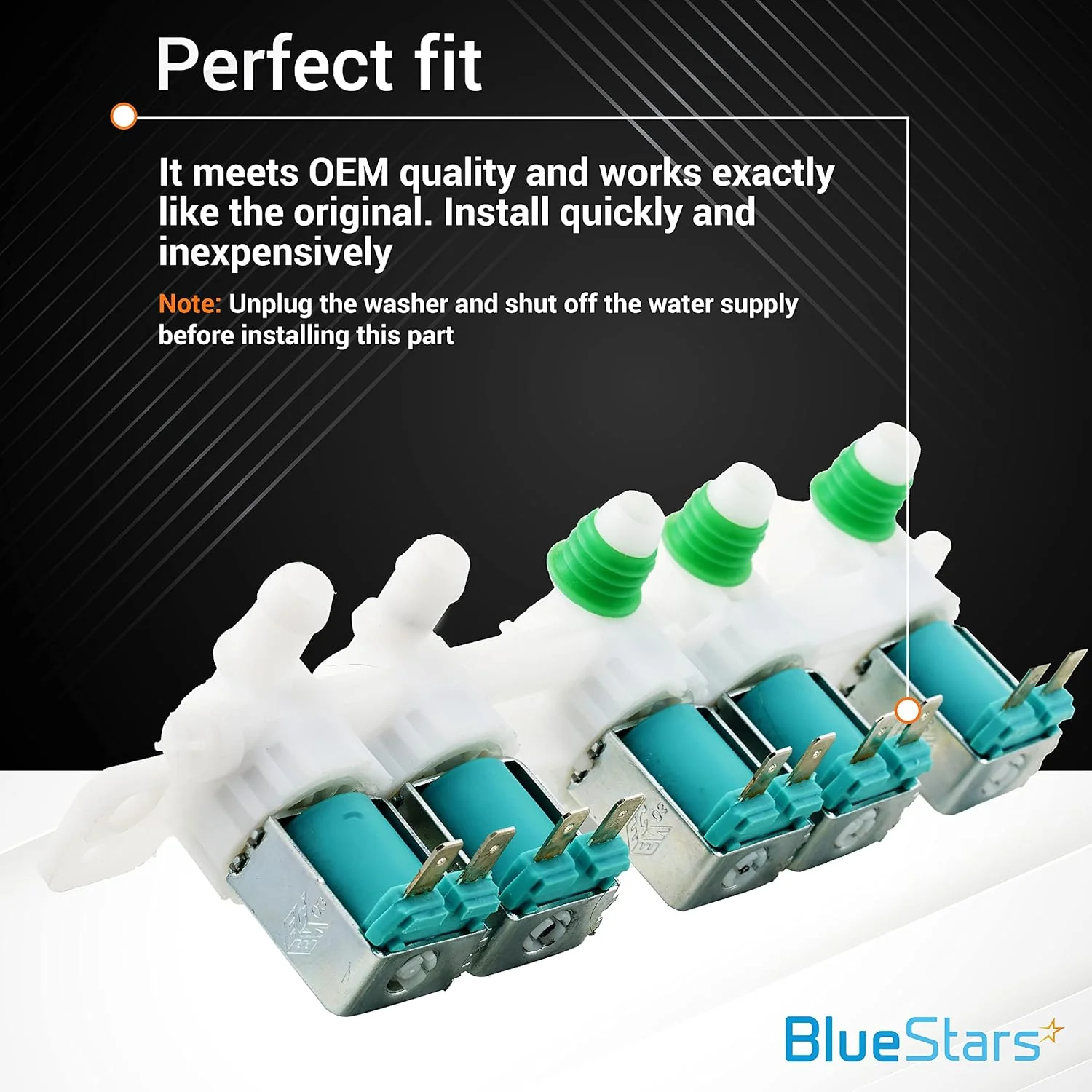

• Multi-Solenoid Configuration: Features a four-valve manifold designed to precisely control water flow for the main wash, pre-wash, bleach, and fabric softener dispenser compartments.
• Optimized Flow Control: Engineered to provide the exact water pressure required for Samsung's high-efficiency wash cycles, ensuring thorough detergent dissolution.

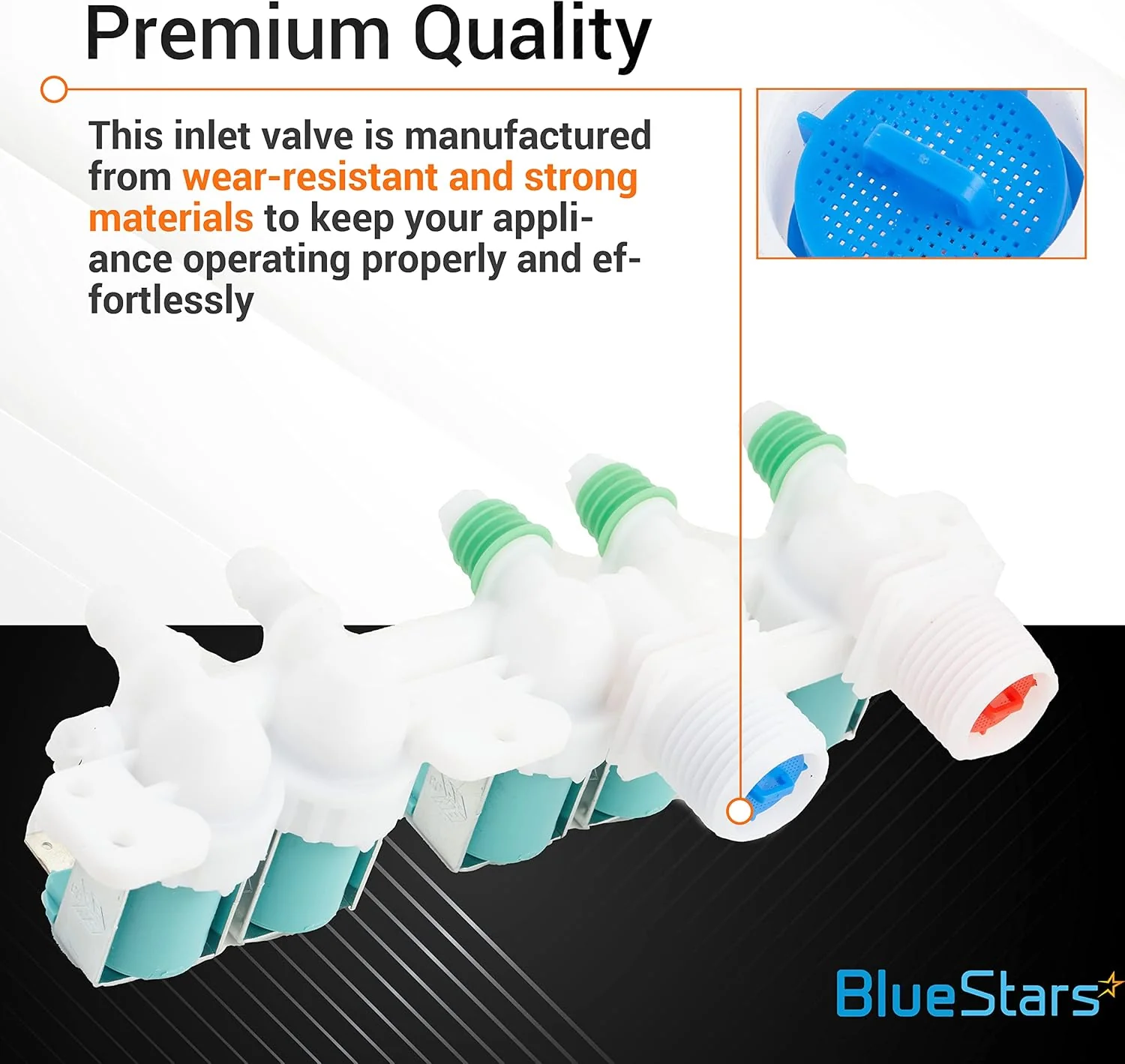

• Internal Filtration: Equipped with fine-mesh stainless steel or plastic screens at the inlet ports to prevent sediment, pipe scale, and sand from entering the machine.
• Reinforced Housing: Constructed from high-temperature resistant polymers to prevent warping and leaks under standard residential water pressure.

Replaces / Cross-Reference Part Numbers

• DC97-15459G
• 3276197
• AP5623056
• PS4220861
• EAP4220861
• DC62-00311G

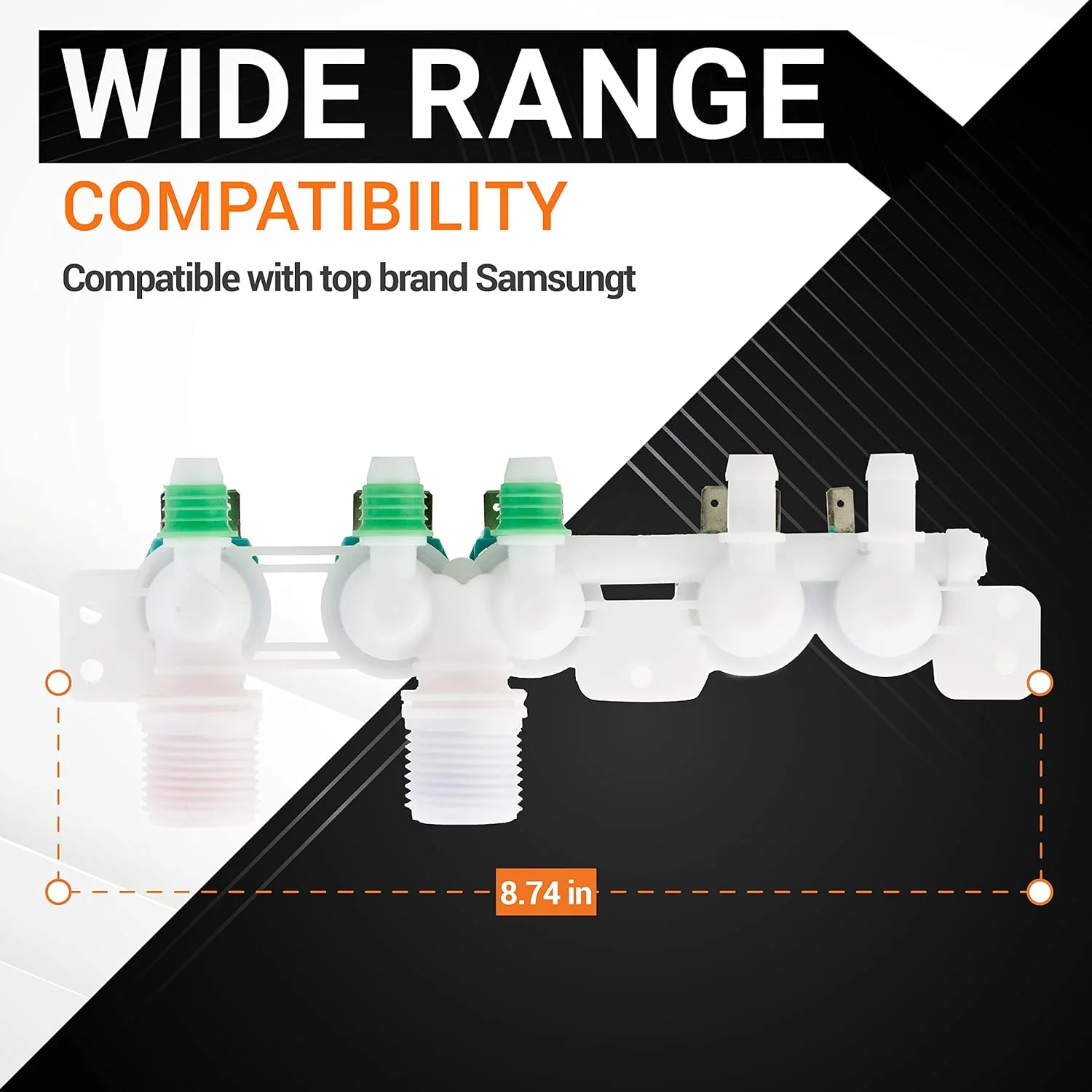

Compatibility & Fitment

This water inlet valve is specifically designed for Samsung high-efficiency top-load washing machines. Key compatible models include:

• WA45H Series: WA45H7000AW, WA45H7000AP, WA45H7200AW.
• WA48H Series: WA48H7400AW, WA48H7400AP.
• WA50F Series: WA50F9A6DSW, WA50F9A7DSW, WA50F9A8DSP.
• WA52J Series: WA52J8700AW, WA52J8705AW.

When to Replace

• No Fill / Error Codes: The machine displays an "4C" or "nF" error code, and water fails to enter the tub despite the faucets being turned on.
• Detergent Not Dispensing: Water flows into the tub, but the bleach or fabric softener compartments remain full, indicating a specific failed solenoid on the manifold.
• Water Leaks: Water continues to trickle into the drum when the machine is turned off, which can lead to overfilling or a flooded laundry room.
• Vibrating/Humming Noise: A loud buzzing or vibrating sound during the fill cycle, often caused by a failing electromagnetic coil.
• Slow Filling: The internal screens are clogged with mineral deposits, causing the machine to take an excessively long time to fill.

Installation Tips

• Safety First: Unplug the washer from the electrical outlet and shut off both the hot and cold water supply valves before beginning.
• Console Access: For these top-load models, you will typically need to remove the screws at the back of the top console and tilt it forward or remove the top panel to reach the valve.
• Hose Identification: Before disconnecting the internal rubber hoses from the valve manifold, label them (e.g., Pre-wash, Main, Bleach, Softener) to ensure they are reconnected to the correct ports.
• Electrical Plugs: Samsung uses color-coded or keyed connectors; ensure each wiring harness is snapped firmly onto the corresponding solenoid.
• Flush the Lines: Briefly run water through your external supply hoses into a bucket before connecting them to the new valve to clear out any debris.
