DA61-06796A Refrigerator Clip Drain Evaporator

Key Features

• Prevents the defrost drain tube from freezing by transferring heat from the defrost heater.
• Resolves issues of ice buildup on the interior back panel and water pooling under crisper drawers.
• Constructed from durable, heat-conductive metal for reliable, long-term operation.
• Direct replacement designed for precise fit and function.

Replaces / Cross-Reference Part Numbers

• DA61-06796A
• AP5579885
• 2683162
• PS4145120

Compatibility & Fitment

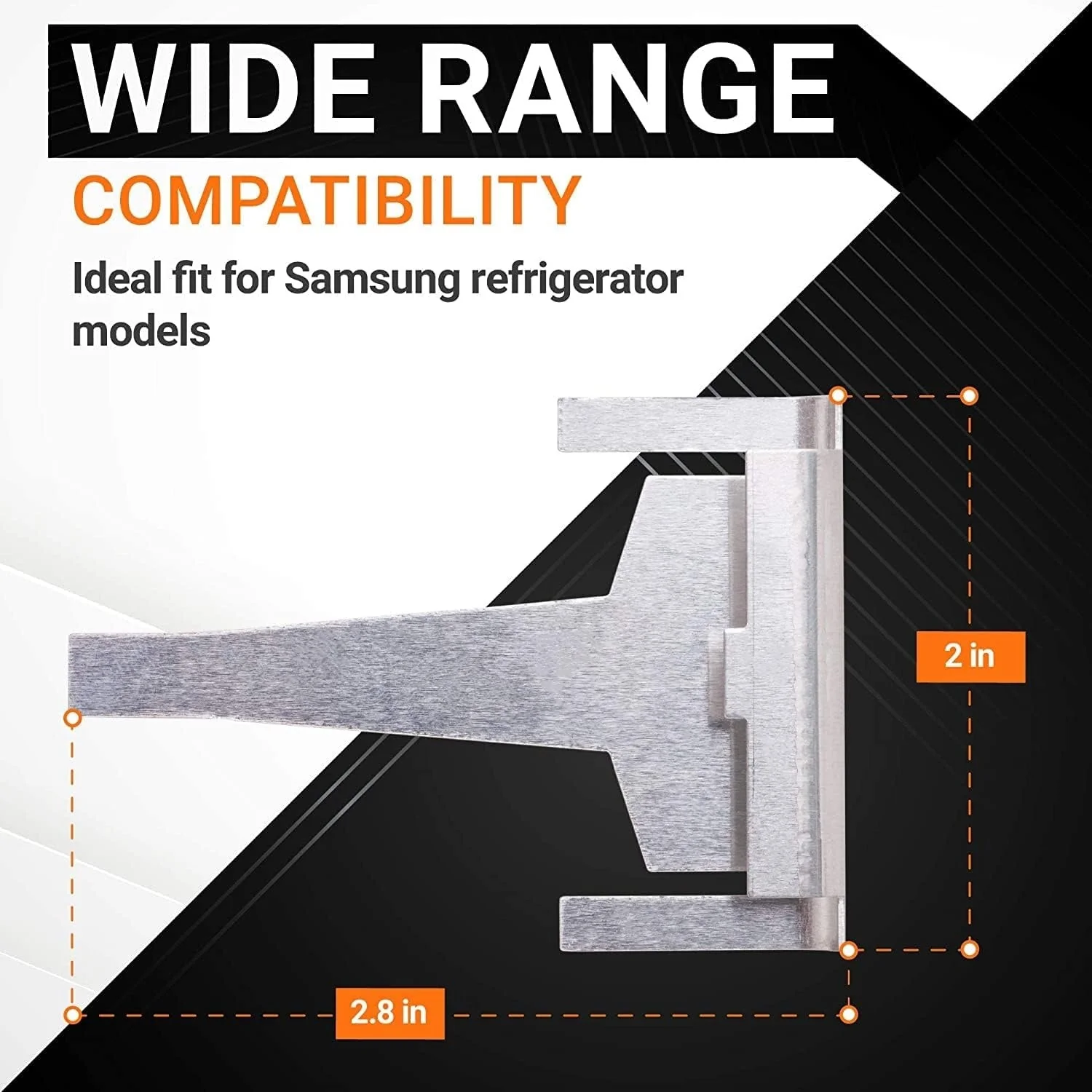

• Engineered for a wide range of Samsung refrigerator models, including French door and bottom-freezer styles.
• Example compatible model: RF26HFENDSR.
• Verify fitment by checking your appliance's service manual or original part number.

When to Replace

• Water is leaking inside the fresh food compartment.
• A sheet of ice forms on the bottom of the fresh food section or along the evaporator cover.
• The defrost drain hole is visibly frozen or clogged.
• The original clip is missing, broken, or heavily corroded.

Installation Tips

• Disconnect the refrigerator from the power supply before starting the installation.
• Remove all shelving and the evaporator cover panel to access the drain trough.
• Completely clear any ice from the drain area using a steamer or warm water.
• Securely attach the clip to the defrost heater element, ensuring the extended probe sits inside the drain hole.
