[Lifetime Warranty] [UL Listed] CBB60 60 uF MFD ±5% 250 VAC 50/60 Hz Round Run Start Capacitor - Fits Air Conditioner, Heat Pump, Pool Pump

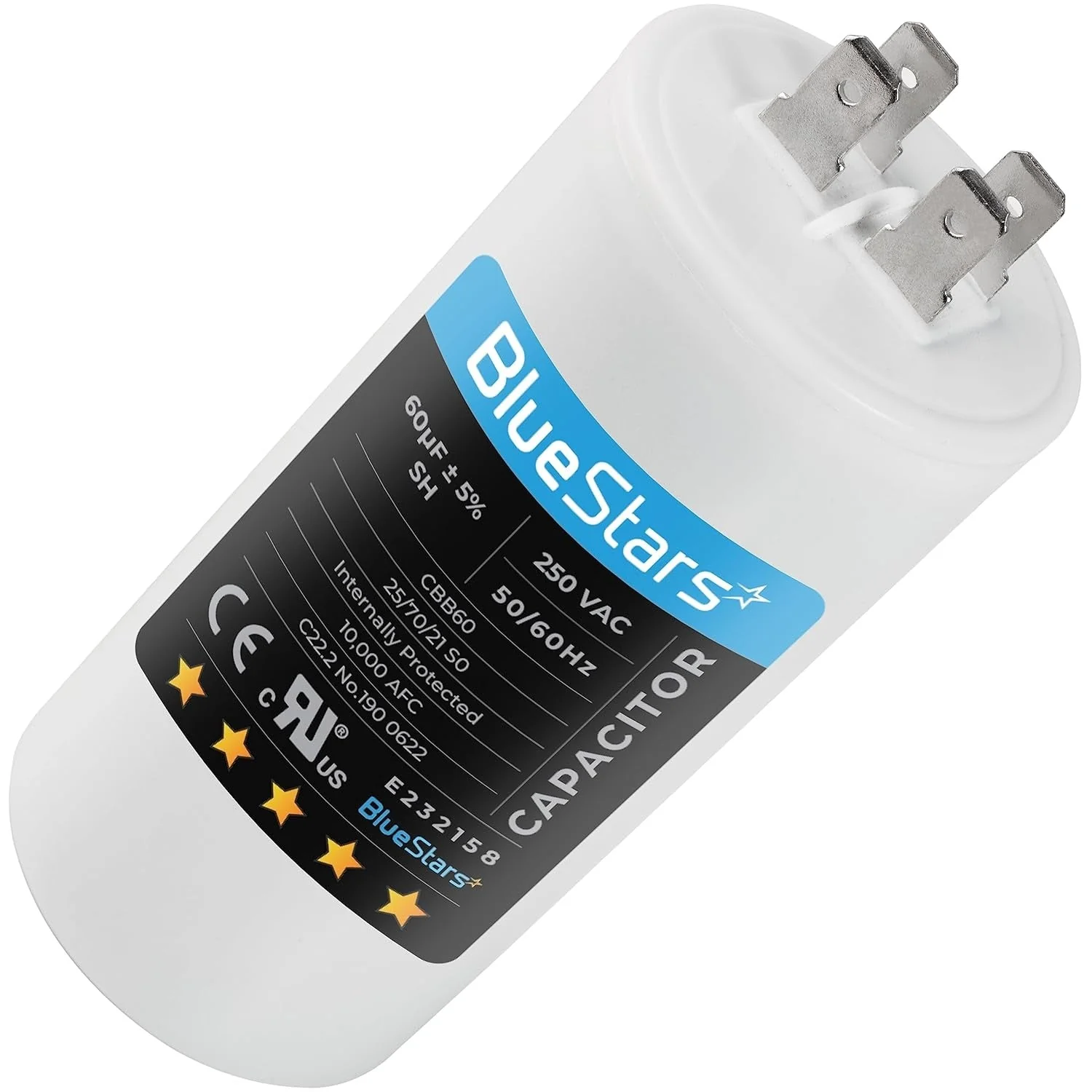

CBB60 60 uF/MFD/Microfarad 250 VAC Volts 50Hz/60Hz Run Capacitor
Key Features
- Model: CBB60
- Capacitance: 60 µF (MFD)
- Tolerance: ±5%
- Rated Voltage: 250V AC
- Rated Frequency: 50/60Hz
- Maximum Operating Temperature: 70°C
- Climate Type: 40/70/21
- Certifications: UL Listed
Replaces / Cross-Reference Part Numbers
- Direct replacement for any CBB60 series capacitor with matching 60 uF capacitance and 250 VAC voltage specifications.
- Verify physical dimensions and terminal type for proper fitment.
Compatibility & Fitment
- For starting and running single-phase AC motors.
- Suitable for applications including:
- Air conditioners
- Compressors
- Water pumps
- Pressure washers
- Washing machines
- Fans and blowers

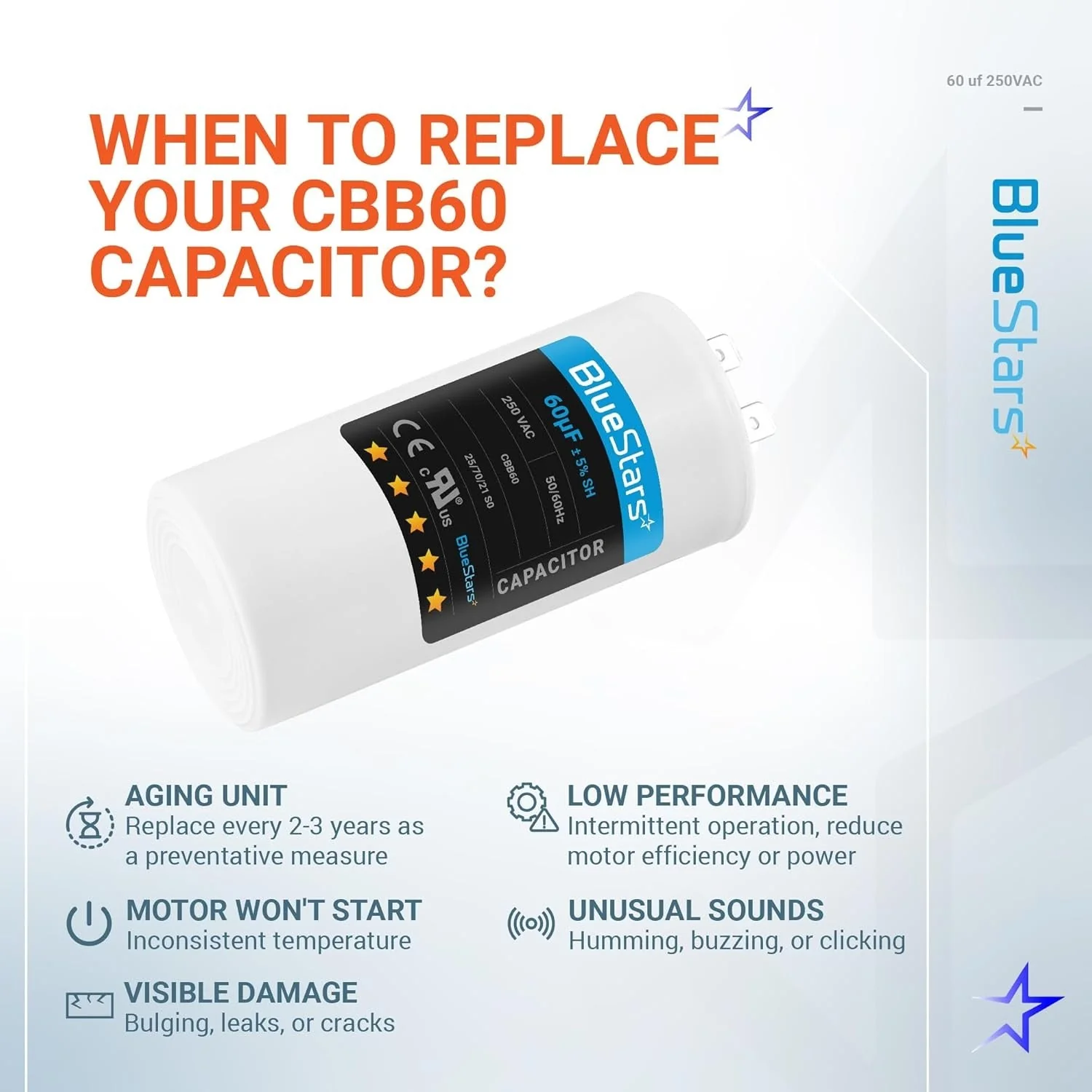

When to Replace
- Motor hums or buzzes but fails to start.
- Motor starts slowly or does not reach full operating speed.
- Equipment shuts off intermittently during operation.
- Capacitor casing is visibly swollen, cracked, or leaking fluid.
- Capacitance measures outside the specified tolerance (±5%).
Installation Tips
- Disconnect all electrical power to the unit before servicing.
- Safely discharge the existing capacitor by shorting its terminals with an insulated tool.

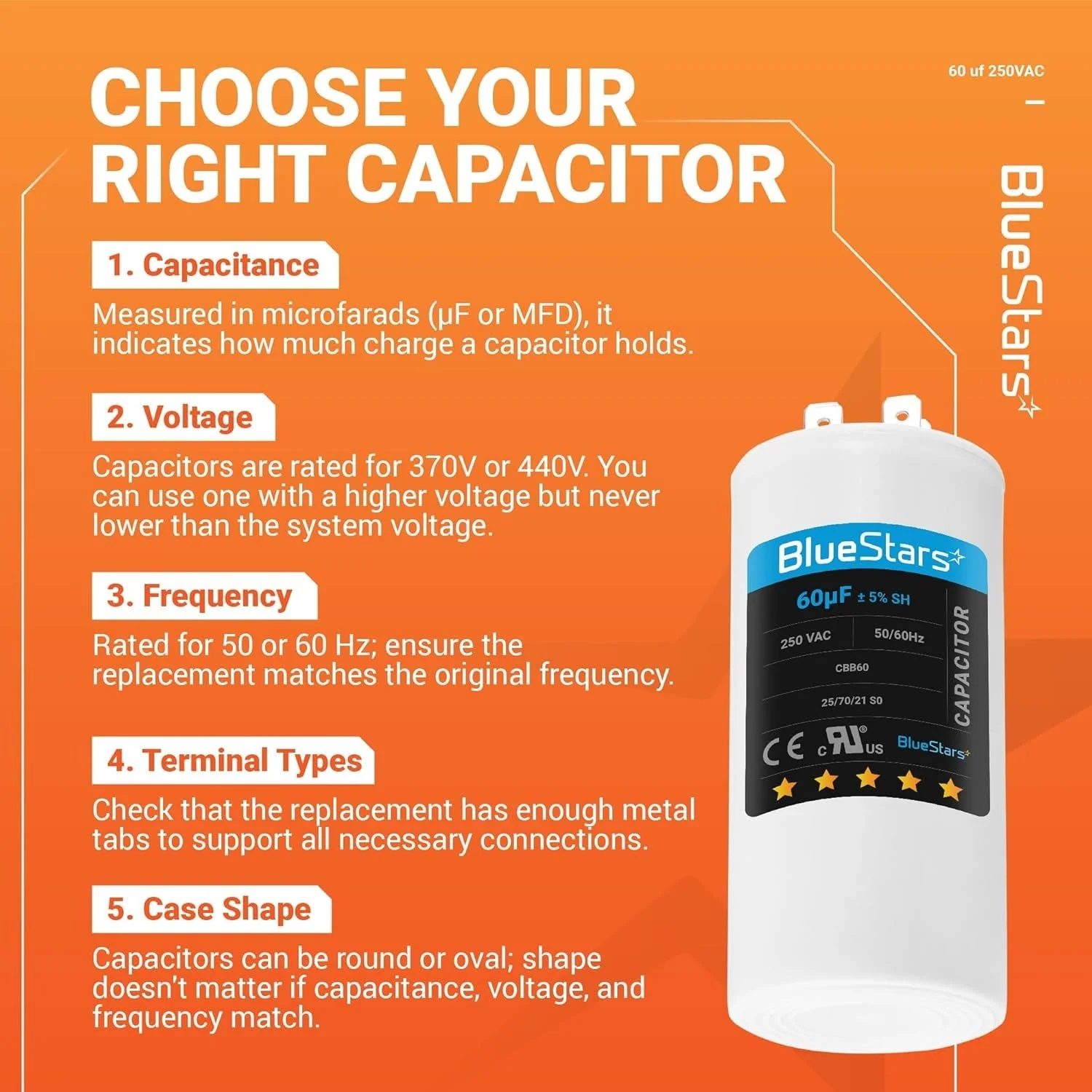

- Verify the capacitance (uF) and voltage (VAC) ratings match the original part.
- Note the wire positions before disconnecting the old capacitor to ensure correct installation.
- Secure the new capacitor in the mounting bracket and ensure all electrical connections are tight.
