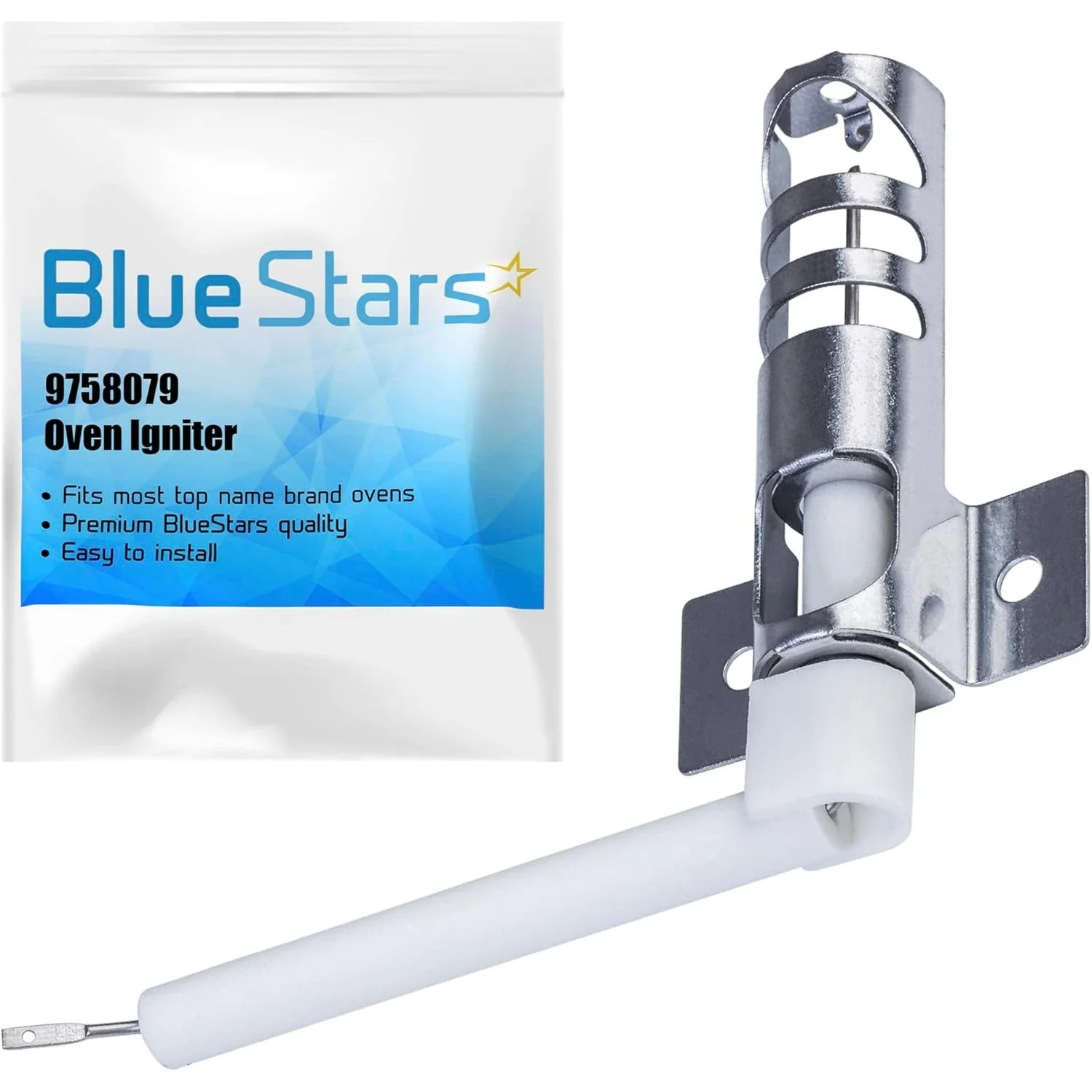

9758079 WP9758079 Bake Oven Spark Igniter Replacement

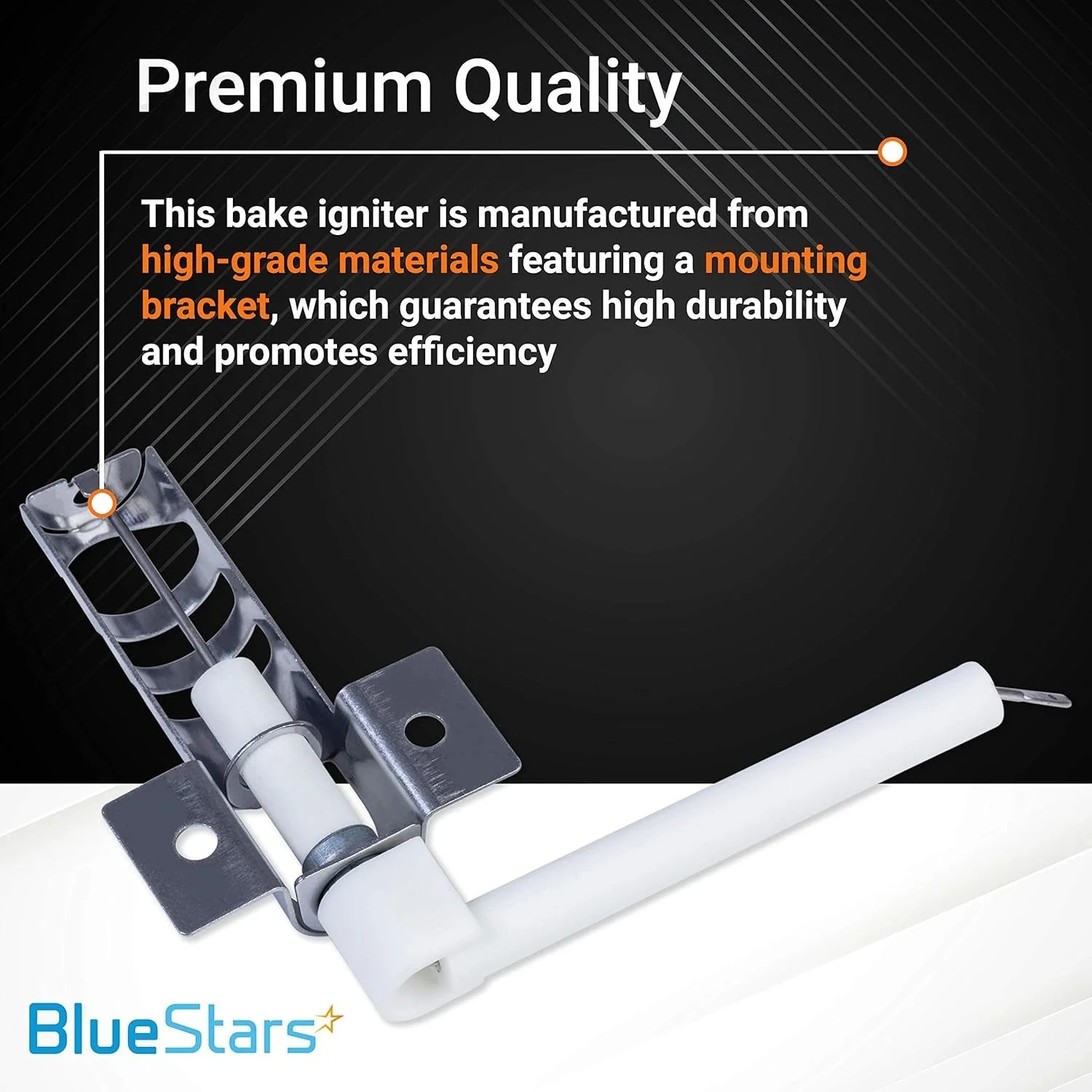

Key Features

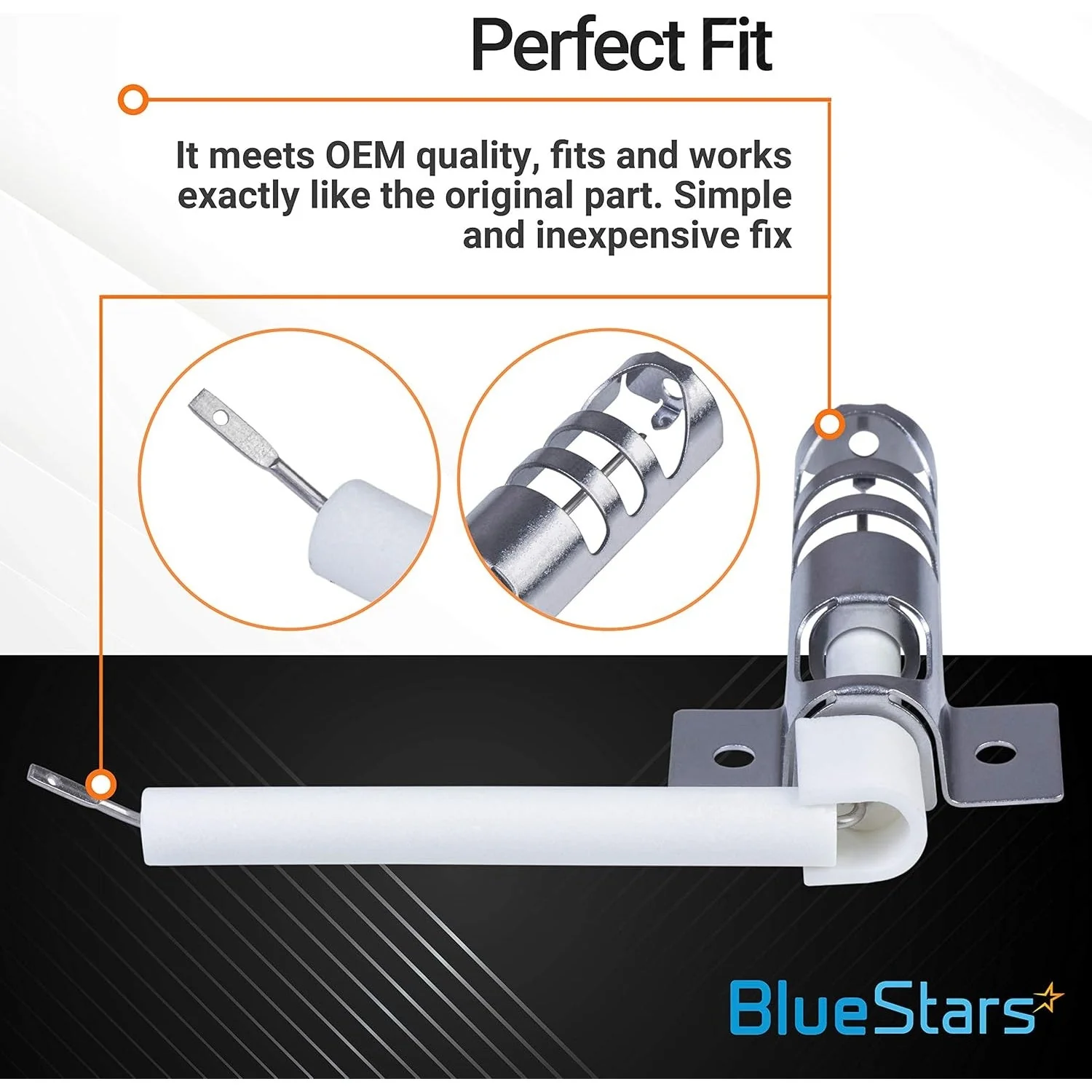

• Precision spark electrode designed for rapid and reliable gas ignition in bake burner assemblies.
• High-grade ceramic insulator provides thermal stability and prevents electrical grounding leaks.
• Equipped with a standardized female spade terminal for quick and secure electrical connection.
• Engineered to maintain a consistent spark gap for efficient fuel-to-air ignition.
• Durable metal mounting bracket designed for direct fitment on compatible burner tubes.

Replaces / Cross-Reference Part Numbers

• WP9758079
• 9758079
• PS11747217
• AP6013984
• WP9758079VP
• EAP11747217
• 1177158

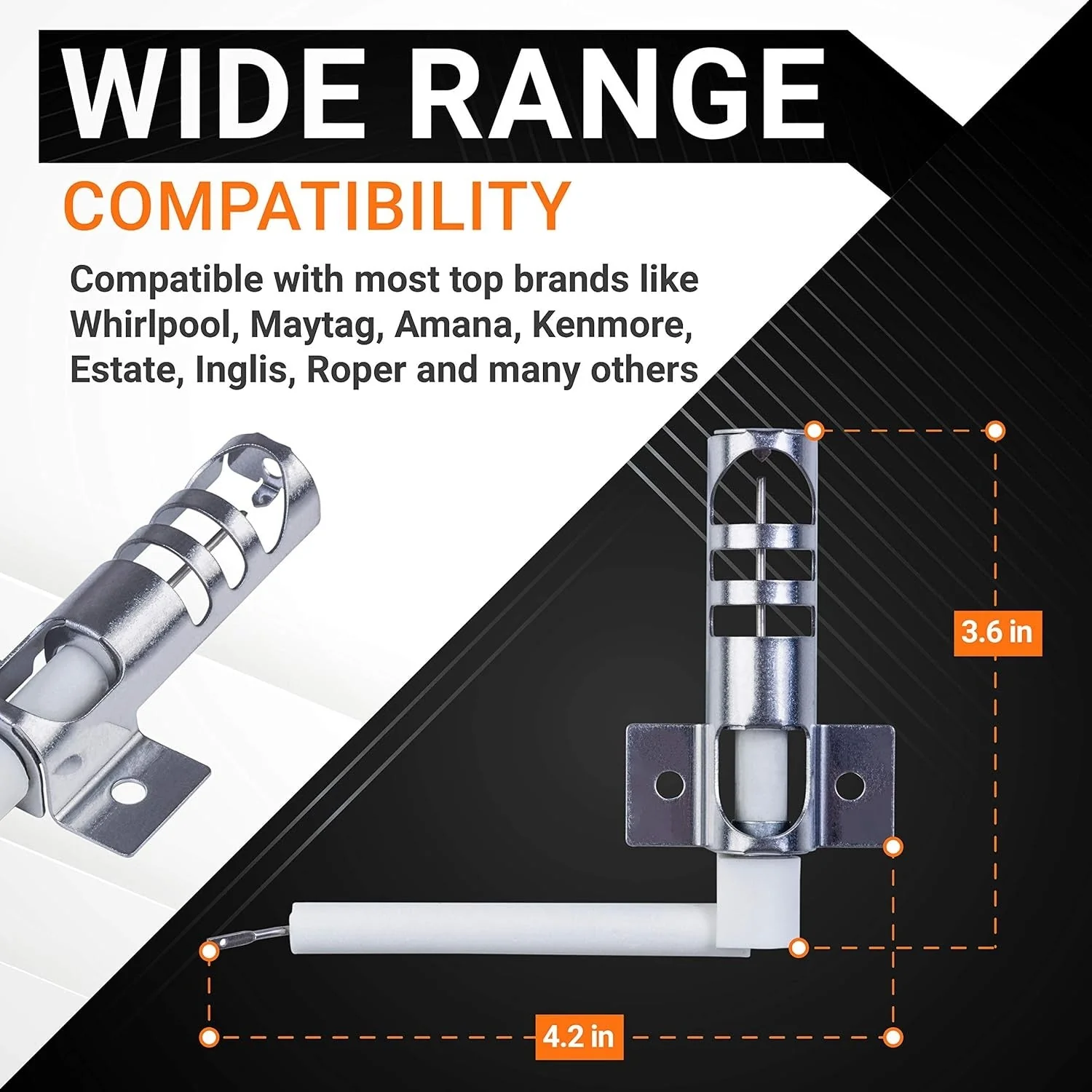

Compatibility & Fitment

• Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Roper, and Estate gas ranges.
• Fits various freestanding gas ranges, built-in wall ovens, and slide-in units.
• Specifically designed for the lower bake burner ignition system.

When to Replace

• The oven fails to ignite although gas is present and flowing.
• No audible clicking sound is heard when the oven control is set to a bake cycle.
• The ceramic insulator is cracked, charred, or broken, causing the spark to arc prematurely.
• The electrode tip is heavily corroded, bent, or covered in carbon buildup.
• The igniter clicks continuously but fails to produce a spark at the burner port.

Installation Tips

• Ensure the appliance is disconnected from both the power source and the gas supply before beginning.
• Remove the oven racks and the bottom floor panel to access the bake burner assembly.
• Unscrew the mounting screw securing the igniter to the burner tube.
• Carefully pull the lead wire through the insulation or from the spark module and disconnect the spade terminal.
• Clean the burner port area near the electrode tip with a wire brush to ensure a clear path for the spark.
• Install the new igniter, ensuring the electrode tip is aligned correctly with the gas flow ports.
• Reconnect the wiring and verify that the lead is not in direct contact with sharp metal edges or high-heat zones.
