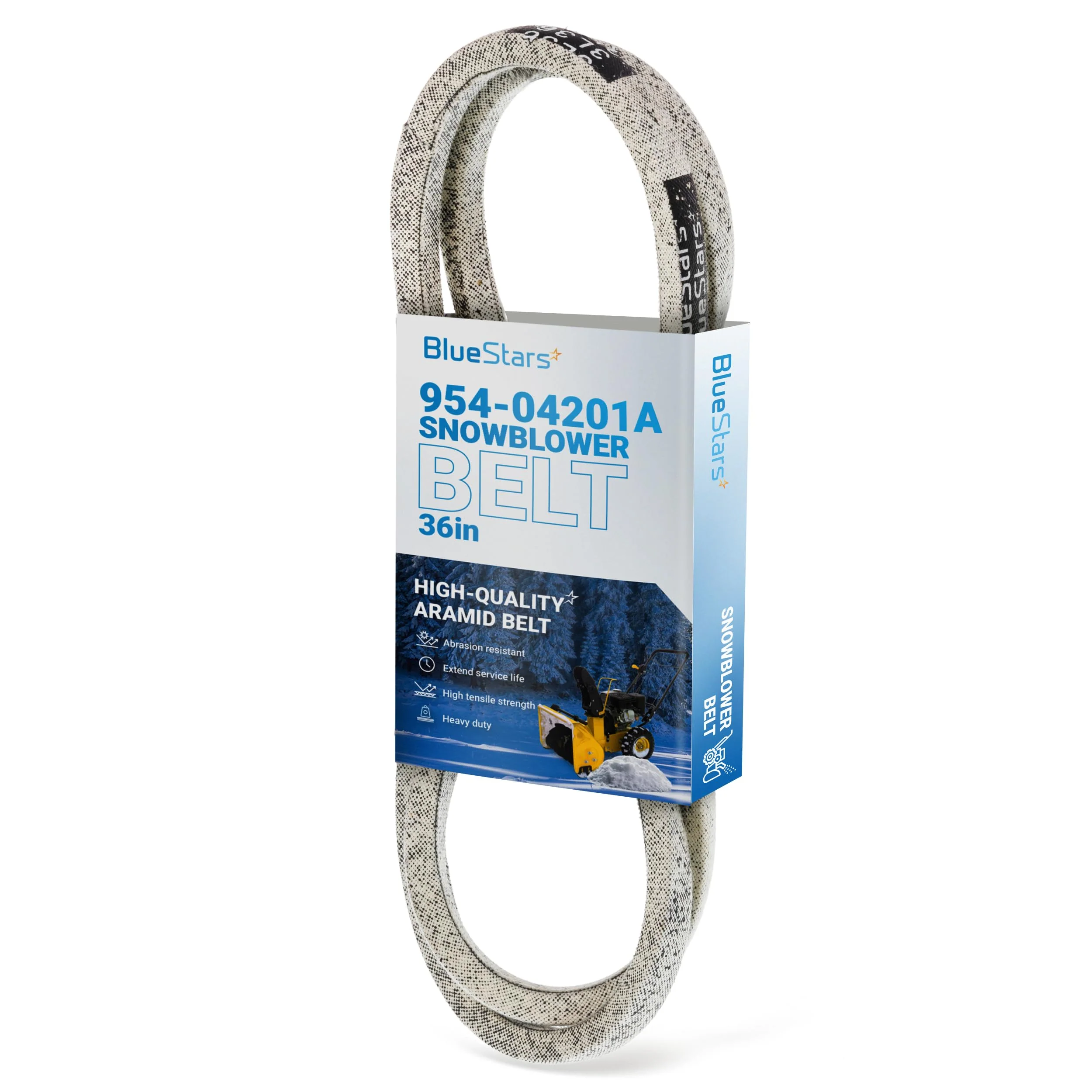

954-04201A Drive Belt Replacement | 3/8" x 36”

Key Features

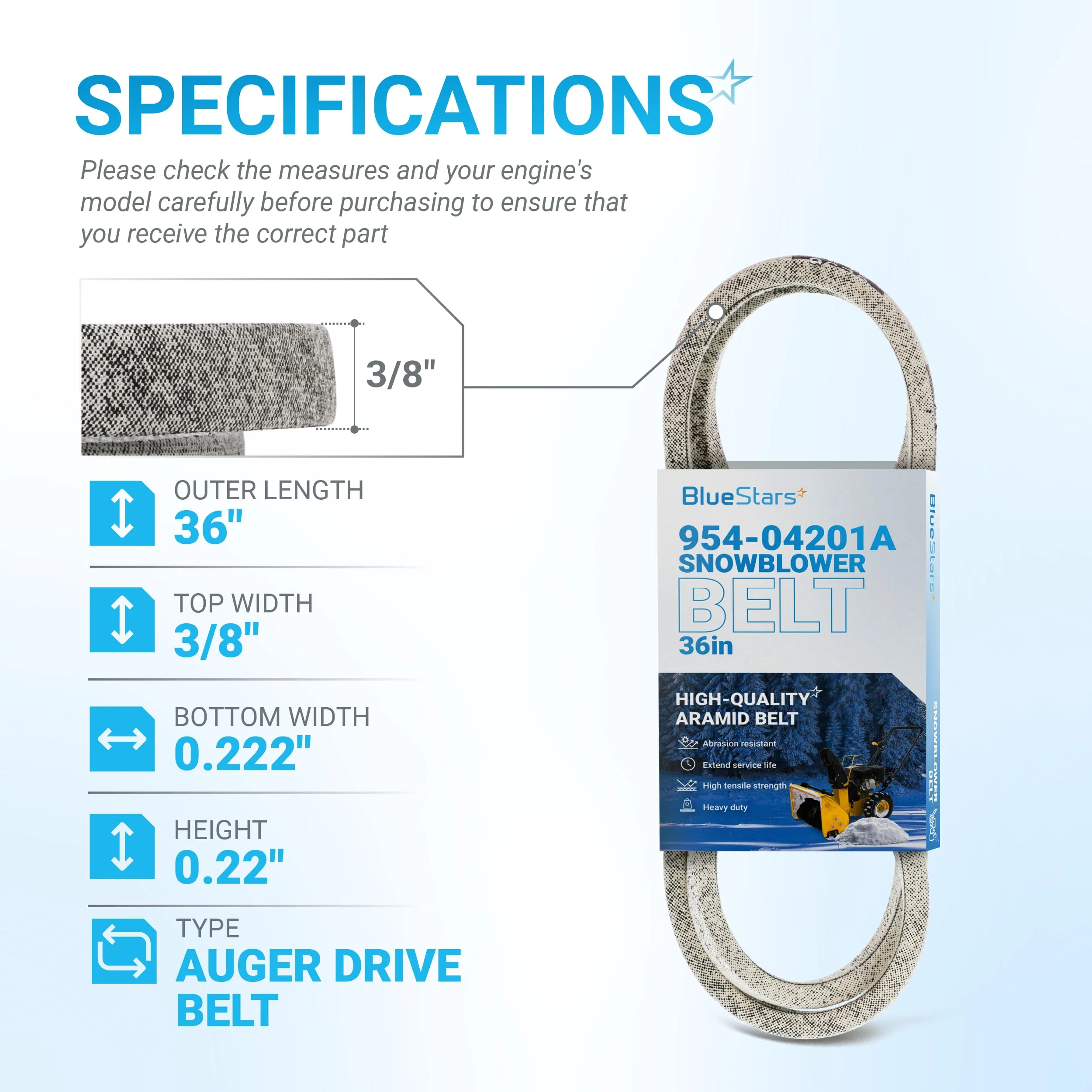

• Dimensions: 3/8 inch width x 36 inch length
• Function: Connects engine pulley to transmission pulley for self-propel drive

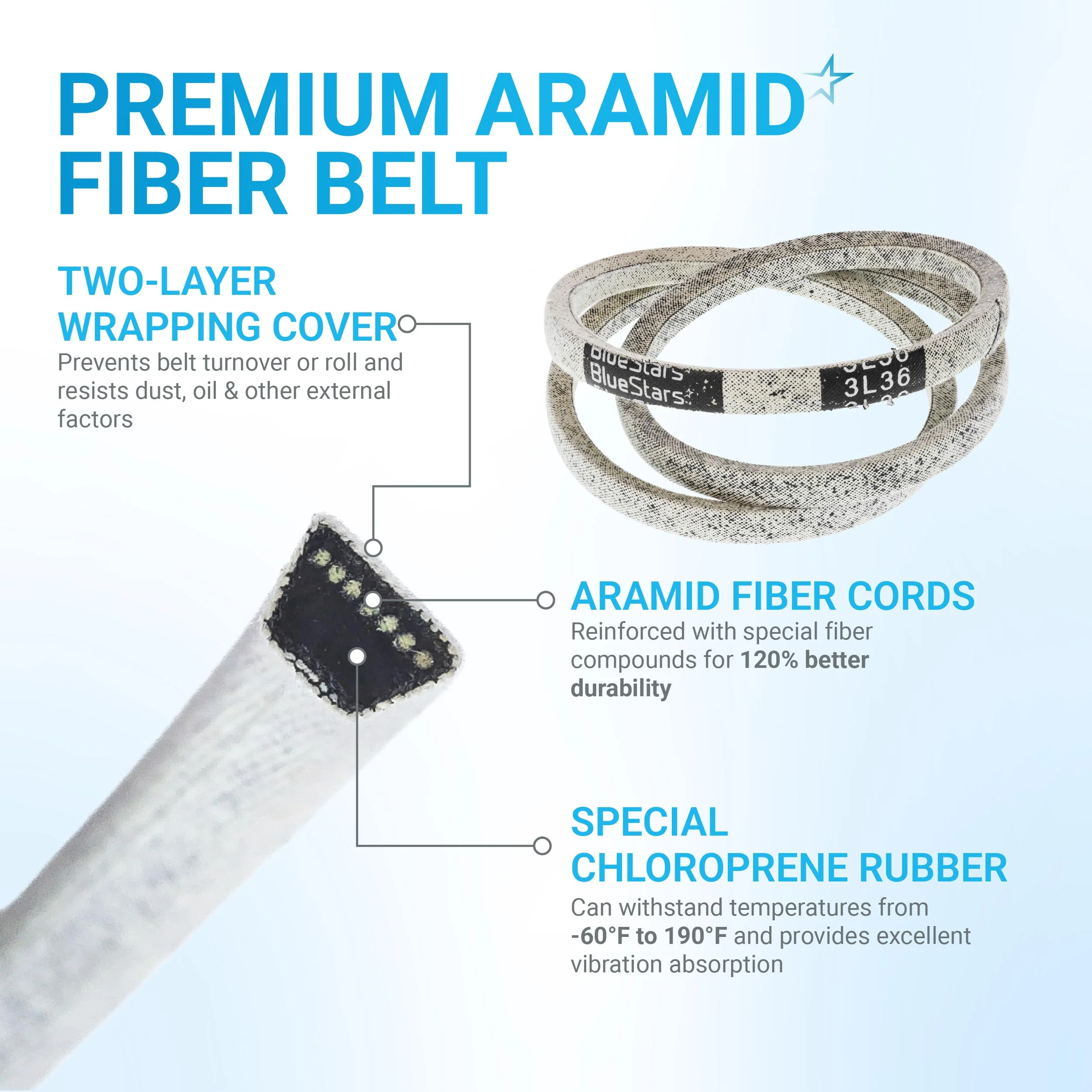

• Material: Constructed from durable rubber composite for cold-weather flexibility and wear resistance

Replaces / Cross-Reference Part Numbers

• 754-04201
• 754-04201A
• 954-04201
• 954-04201A

Compatibility & Fitment

• Fits select snowblower models from MTD, Cub Cadet, and Troy-Bilt
• Known to fit Troy-Bilt Storm models: 2410, 2620, 2840, 3090
• Note: Always verify the part number from your owner's manual or the original equipment to ensure proper fitment.

When to Replace

• Snowblower fails to propel forward or drive wheels slip under load
• Visible signs of wear on the existing belt, such as cracking, fraying, glazing, or exposed cords
• Audible squealing or slipping sounds originating from the belt housing during operation

Installation Tips

• Disconnect the spark plug wire before starting any repairs for safety
• Remove the lower frame cover to access the drive pulleys and belt
• Observe the original belt's routing path before removal
• Ensure the new belt is correctly seated in the pulley grooves and that proper tension is applied as per the equipment's service manual
