8206232A Dimmable LED Light Bulb 5W

Key Features

• Power Consumption: 5W
• Incandescent Equivalent: 40W

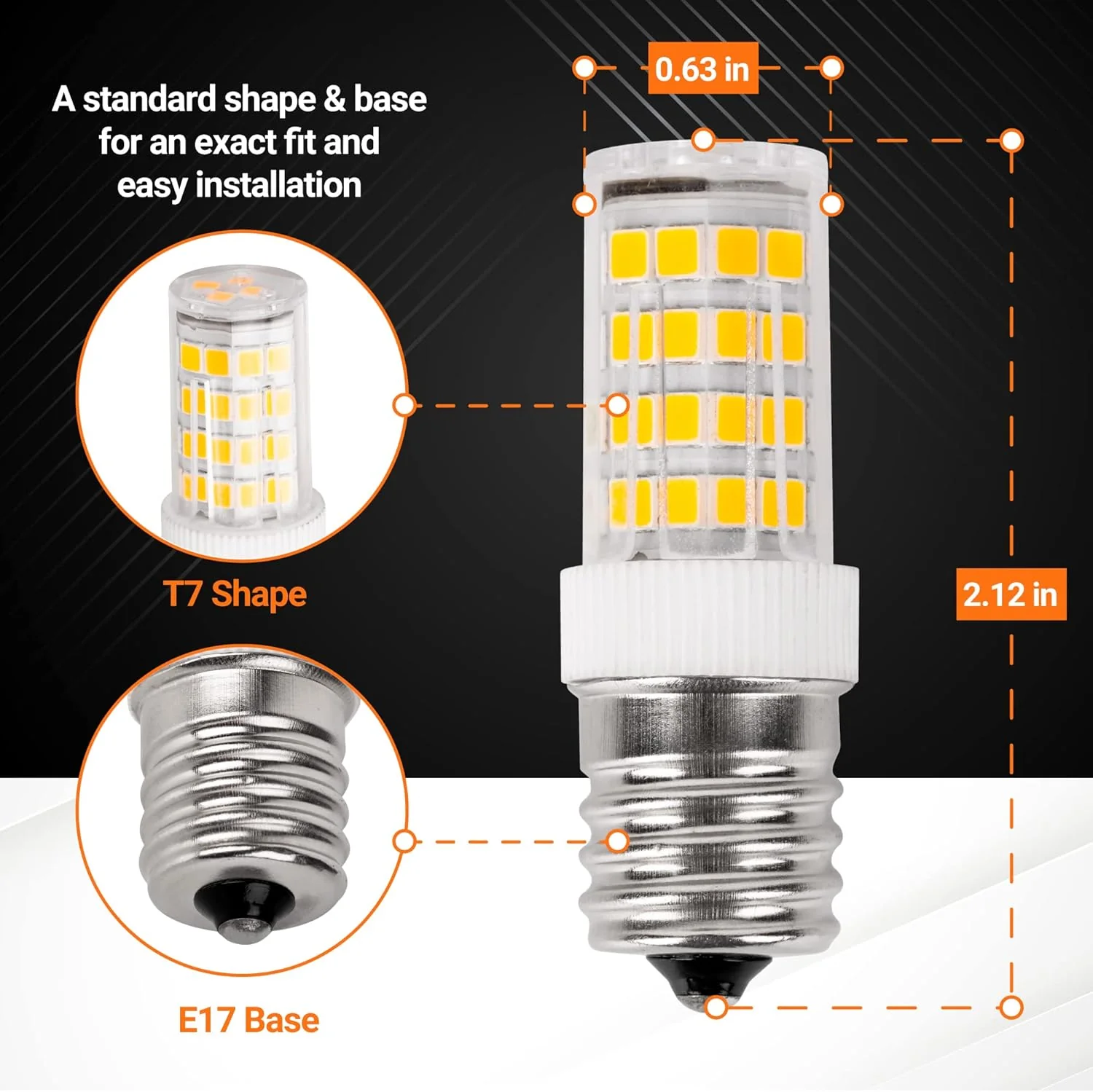

• Base Type: E17 Intermediate Screw
• Voltage: AC 75V-130V
• Luminous Flux: 400 lumens
• Color Temperature: 3000K Warm White
• Dimmable: Yes
• Beam Angle: 270 degrees
• Construction: Ceramic body for heat dissipation
• Projected Lifespan: Up to 30,000 hours

Replaces / Cross-Reference Part Numbers

• 8206232A

Compatibility & Fitment

• Application: Microwave oven surface light (cooktop illumination) or interior cavity light.
• Fits appliance models from Whirlpool, Maytag, GE, Kenmore, LG, and others that require an E17 base bulb.
• Verify fitment by checking your appliance service manual or the markings on the original bulb.

When to Replace

• Existing bulb is burned out, dim, or flickering.
• Upgrading from a standard incandescent or halogen bulb to a more energy-efficient LED.

Installation Tips

• Disconnect the appliance from the power supply before installation.
• Allow the previous bulb to cool completely before handling.
• Remove the light lens or cover, which may be secured by a screw.
• Unscrew the old bulb and screw the new LED bulb into the socket. Do not overtighten.
• Re-secure the cover and restore power to test functionality.
