70+7.5 MFD uf 370 or 440 Volt VAC Round Dual Run Capacitor - Pack of 2

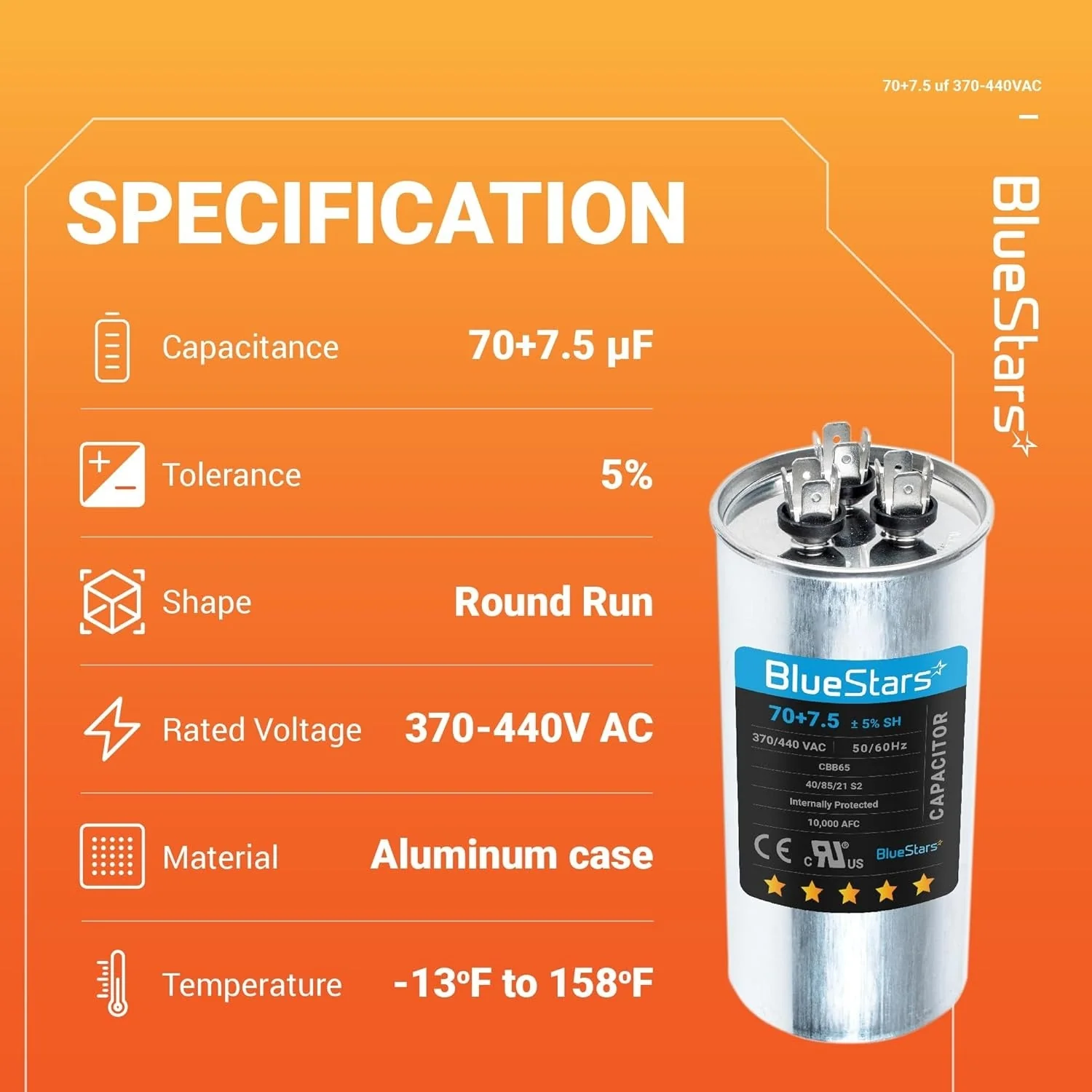

Key Features

• Package Contains: Two (2) dual run capacitors
• Capacitance Rating: 70 + 7.5 Microfarad (MFD)
• Capacitance Tolerance: +/- 5%
• Voltage Rating: 370 or 440 Volts AC (VAC)
• Frequency: 50 / 60 Hz
• Shape: Round

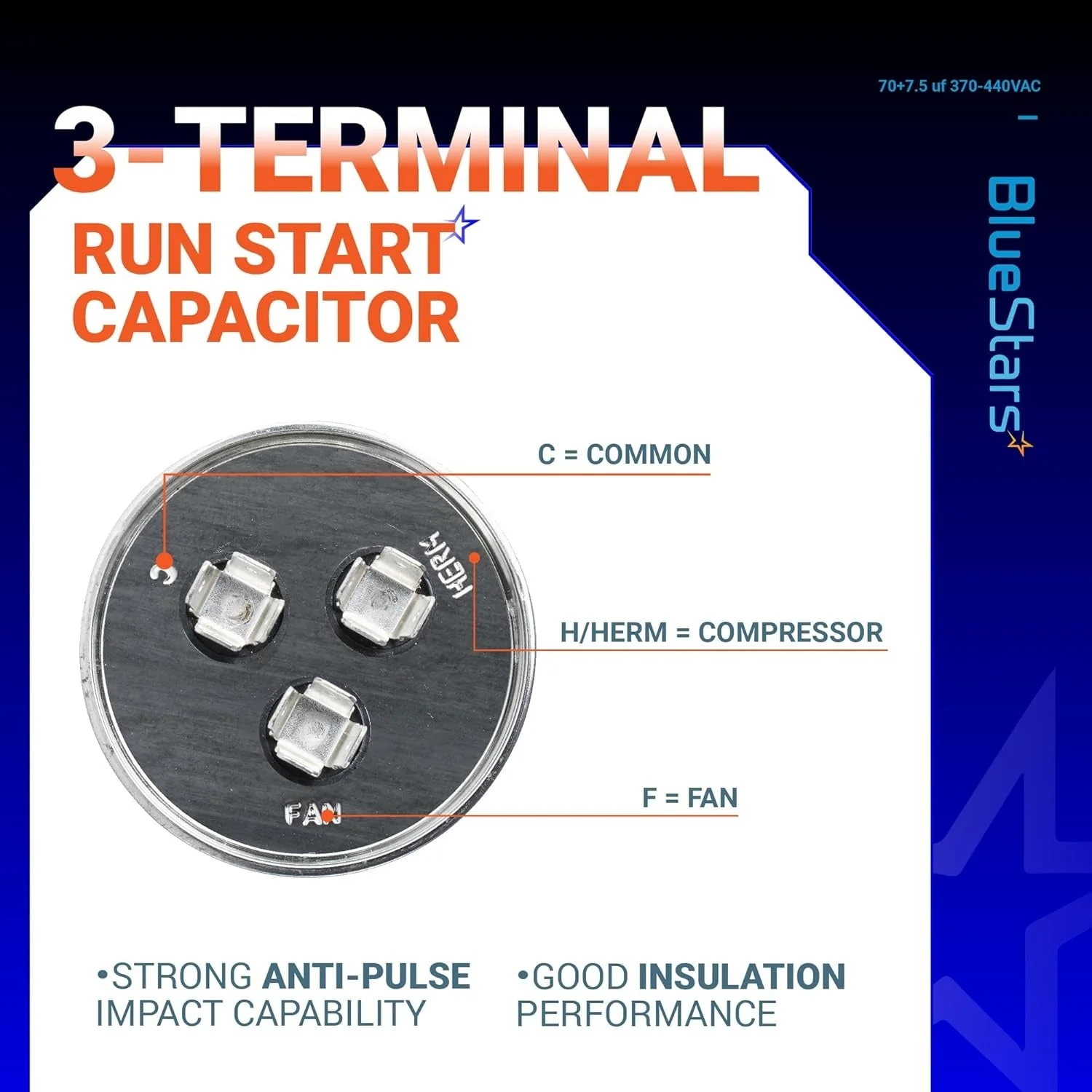

• Terminals: 3 (Common, Fan, Hermetic Compressor)

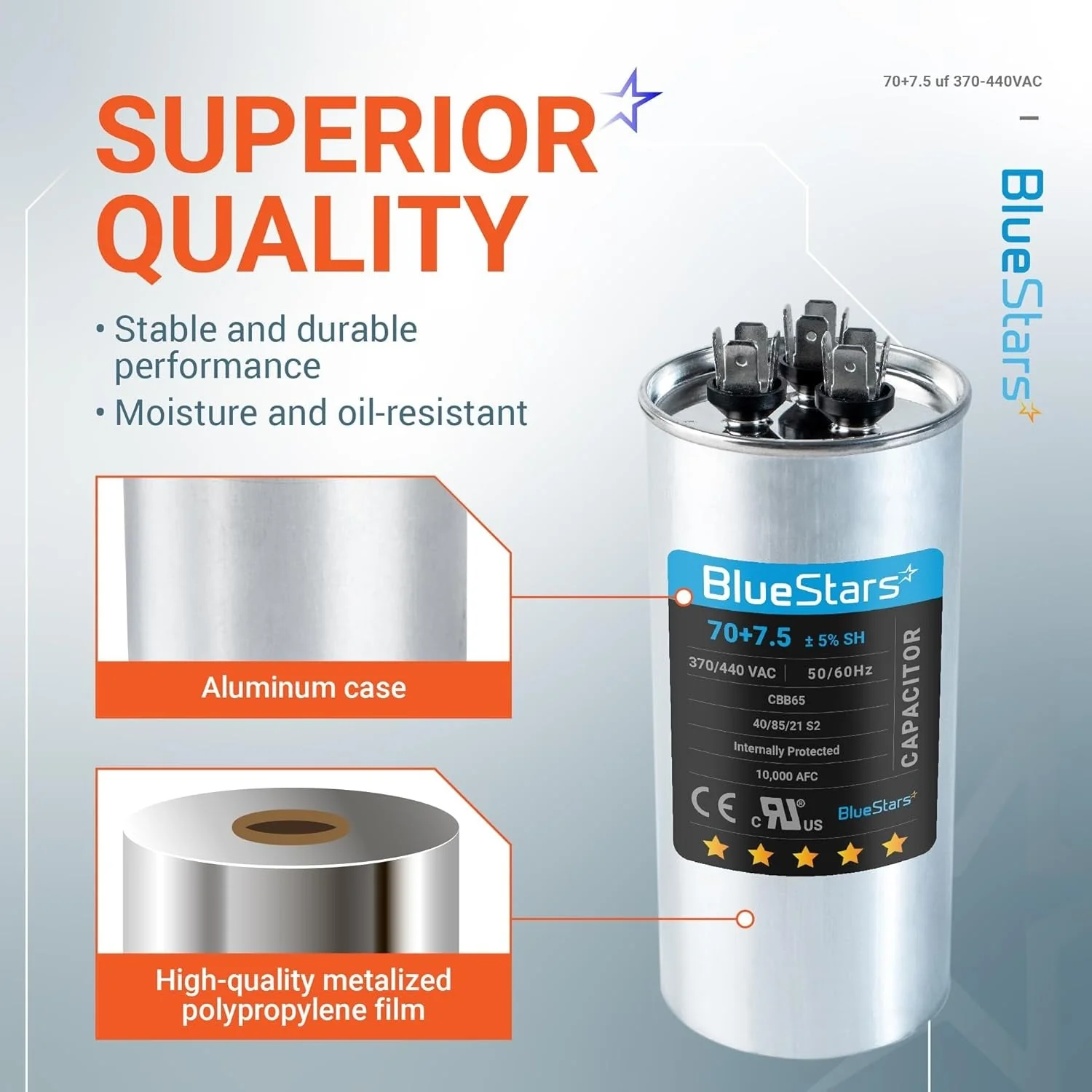

• Construction: Oil-filled, metal case
• Operating Temperature Range: -40°C to +70°C
• Meets EIA-456-A industry standards

Replaces / Cross-Reference Part Numbers

• USA2222A
• Jard 12954
• P291-7074R
• C37075R
• C47075R
• PRCFD707.5A
• Replaces any round dual run capacitor with matching 70/7.5 MFD and 370V or 440V specifications.

Compatibility & Fitment

• Designed for HVAC applications including air conditioners, heat pumps, and condenser units.
• Functions as a direct replacement for capacitors with identical capacitance (MFD) and voltage ratings.
• A 440V rated capacitor can safely replace a 370V capacitor; do not replace a 440V capacitor with a 370V unit.
• Verify physical dimensions (diameter and height) to ensure proper fit in the mounting bracket.

When to Replace

• AC unit or fan motor will not start or is slow to start.
• A humming noise comes from the unit during attempted startup.
• The capacitor case is visibly swollen, bulging, or leaking oil.
• The compressor starts, but the condenser fan does not spin.

Installation Tips

• Disconnect all electrical power to the HVAC unit before beginning work.
• Carefully discharge the old capacitor by shorting the terminals with an insulated screwdriver.
• Note or photograph the wire placement on the C (Common), FAN, and HERM (Hermetic) terminals before disconnecting.
• Connect wires to the corresponding terminals on the new capacitor.
• Securely mount the new capacitor in the unit's bracket.
• Professional installation is recommended if you are not familiar with HVAC electrical systems.
