[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA

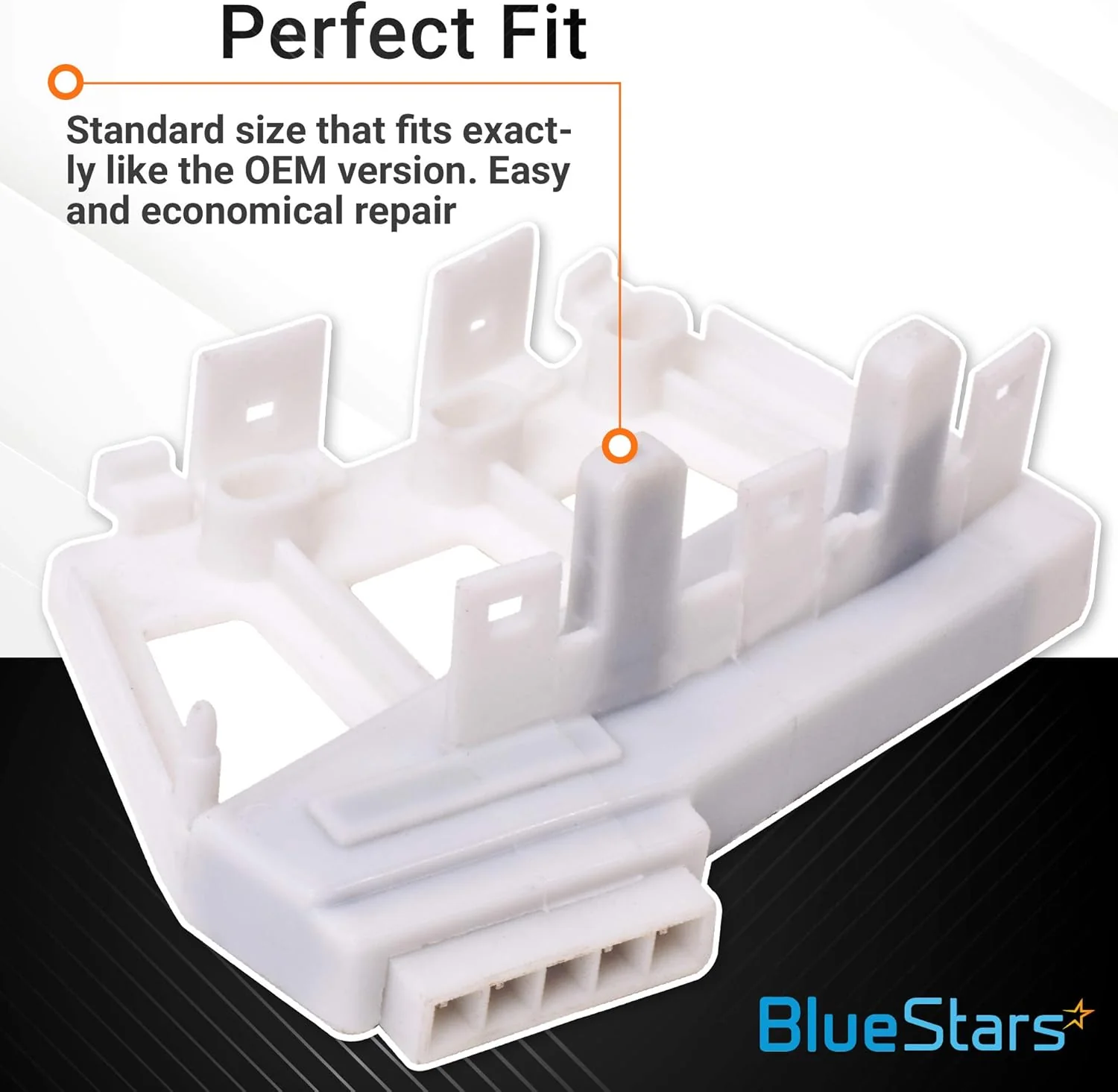

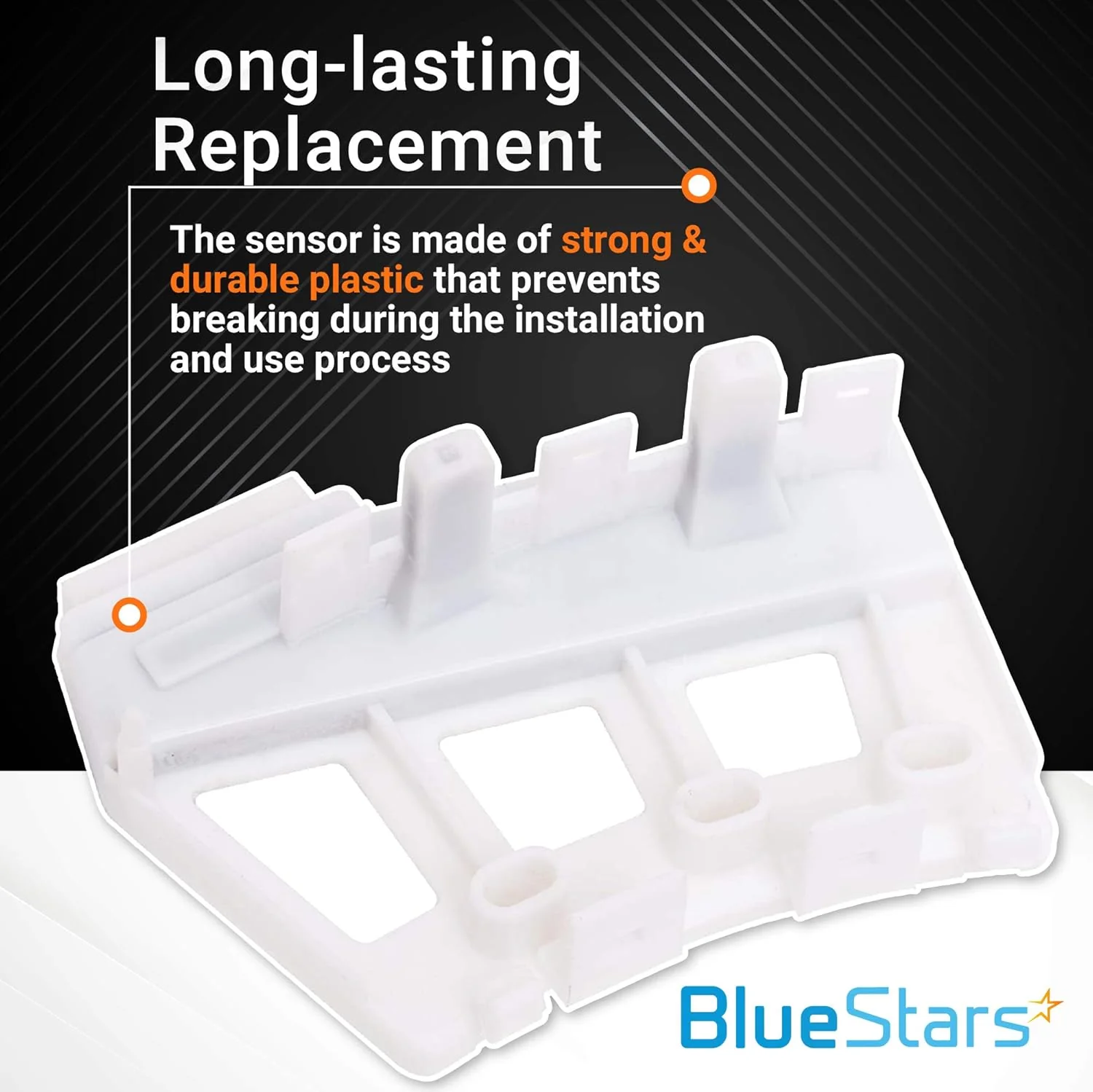

6501Kw2002A Washer Rotor Position Sensor
Key Features
- Monitors the direction and speed of the motor's rotor
- Communicates rotor position data to the main electronic control board
- Enables the appliance to sense load size and adjust operation
- Also known as an RPS or hall sensor
Replaces / Cross-Reference Part Numbers
- 6501KW2002A
- 6501KW2002B
- 6501KW2002J
- AP4440680
- LP2002A
Compatibility & Fitment
- Fits select LG and Kenmore washing machine models
- Compatible with certain top-load and front-load configurations
When to Replace
- Washer displays an LE error code
- The drum will not spin or agitate
- The drum moves slightly then stops
- Washer operates erratically or makes unusual noises during the spin cycle
Installation Tips
- Disconnect the appliance from power and water sources before beginning installation
- The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
- Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
- Ensure the new sensor is securely clipped into place on the stator before reassembly
Product Information
Product Information
Shipping & Returns
Shipping & Returns
[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA
[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA
6501Kw2002A Washer Rotor Position Sensor
Key Features
- Monitors the direction and speed of the motor's rotor
- Communicates rotor position data to the main electronic control board
- Enables the appliance to sense load size and adjust operation
- Also known as an RPS or hall sensor
Replaces / Cross-Reference Part Numbers
- 6501KW2002A
- 6501KW2002B
- 6501KW2002J
- AP4440680
- LP2002A
Compatibility & Fitment
- Fits select LG and Kenmore washing machine models
- Compatible with certain top-load and front-load configurations
When to Replace
- Washer displays an LE error code
- The drum will not spin or agitate
- The drum moves slightly then stops
- Washer operates erratically or makes unusual noises during the spin cycle
Installation Tips
- Disconnect the appliance from power and water sources before beginning installation
- The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
- Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
- Ensure the new sensor is securely clipped into place on the stator before reassembly
$20.40
[Lifetime Warranty] 6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Replaces 6501KW2002B PS3529186 4962510 AP4440680 - Compatible with LG Kenmore Washers WM2016CW WM3170CW WM3370HWA—
$20.40
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
6501Kw2002A Washer Rotor Position Sensor
Key Features
- Monitors the direction and speed of the motor's rotor
- Communicates rotor position data to the main electronic control board
- Enables the appliance to sense load size and adjust operation
- Also known as an RPS or hall sensor
Replaces / Cross-Reference Part Numbers
- 6501KW2002A
- 6501KW2002B
- 6501KW2002J
- AP4440680
- LP2002A
Compatibility & Fitment
- Fits select LG and Kenmore washing machine models
- Compatible with certain top-load and front-load configurations
When to Replace
- Washer displays an LE error code
- The drum will not spin or agitate
- The drum moves slightly then stops
- Washer operates erratically or makes unusual noises during the spin cycle
Installation Tips
- Disconnect the appliance from power and water sources before beginning installation
- The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
- Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
- Ensure the new sensor is securely clipped into place on the stator before reassembly
