[Lifetime Warranty] 5 uF MFD ±5% 370/440 VAC Oval Run Start Capacitor - Fits AC Motor Run, Fan Start, Heat Pump - Replaces 97F5705
5uF mfd ±5% 370-440VAC Oval Run Start Capacitor
Key Features
- Capacitance: 5 MFD / uF
- Tolerance: ±5%
- Voltage Rating: 370V / 440V AC
- Frequency: 50 / 60 Hz
- Shape: Oval

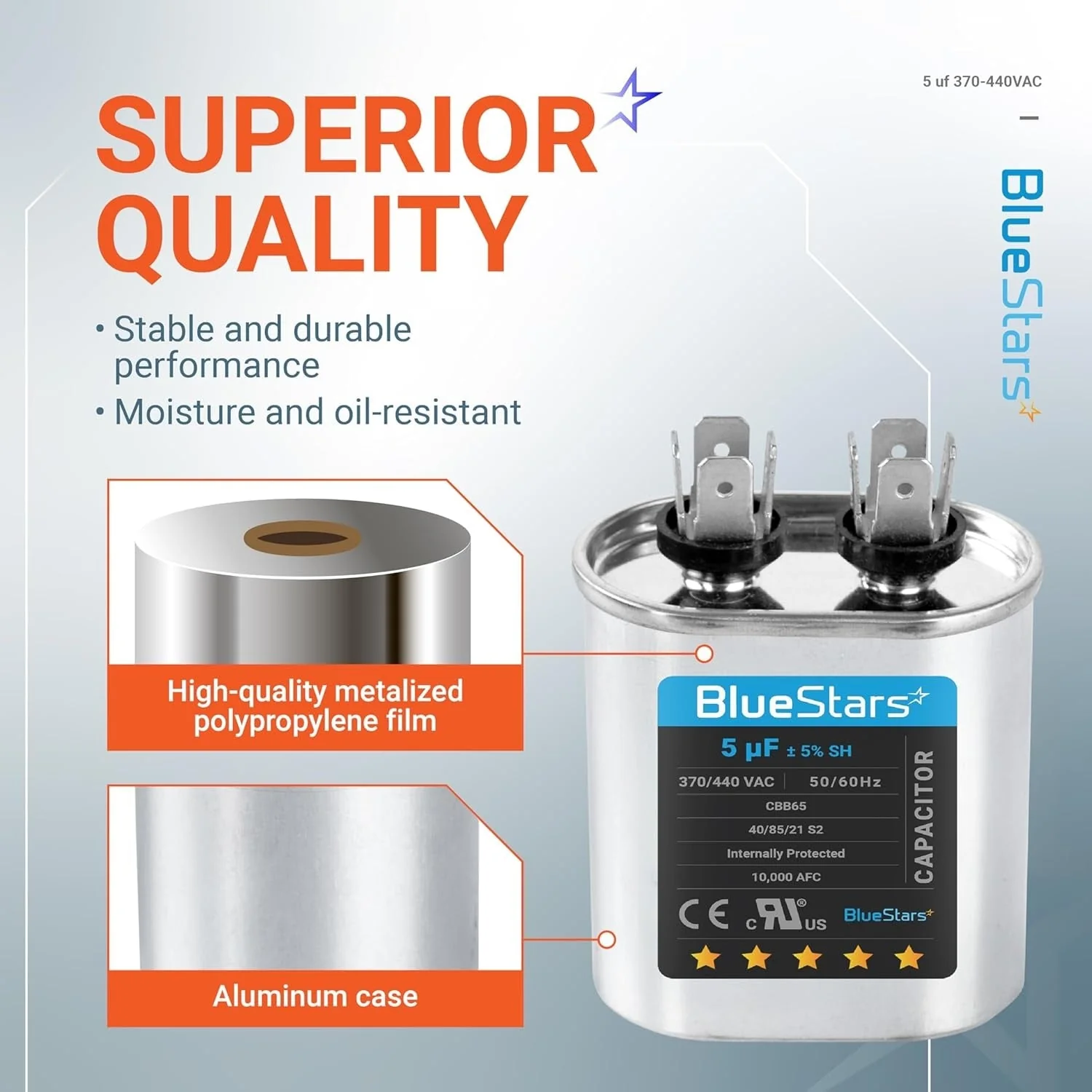

- Construction: Metal case, oil-filled for heat dissipation

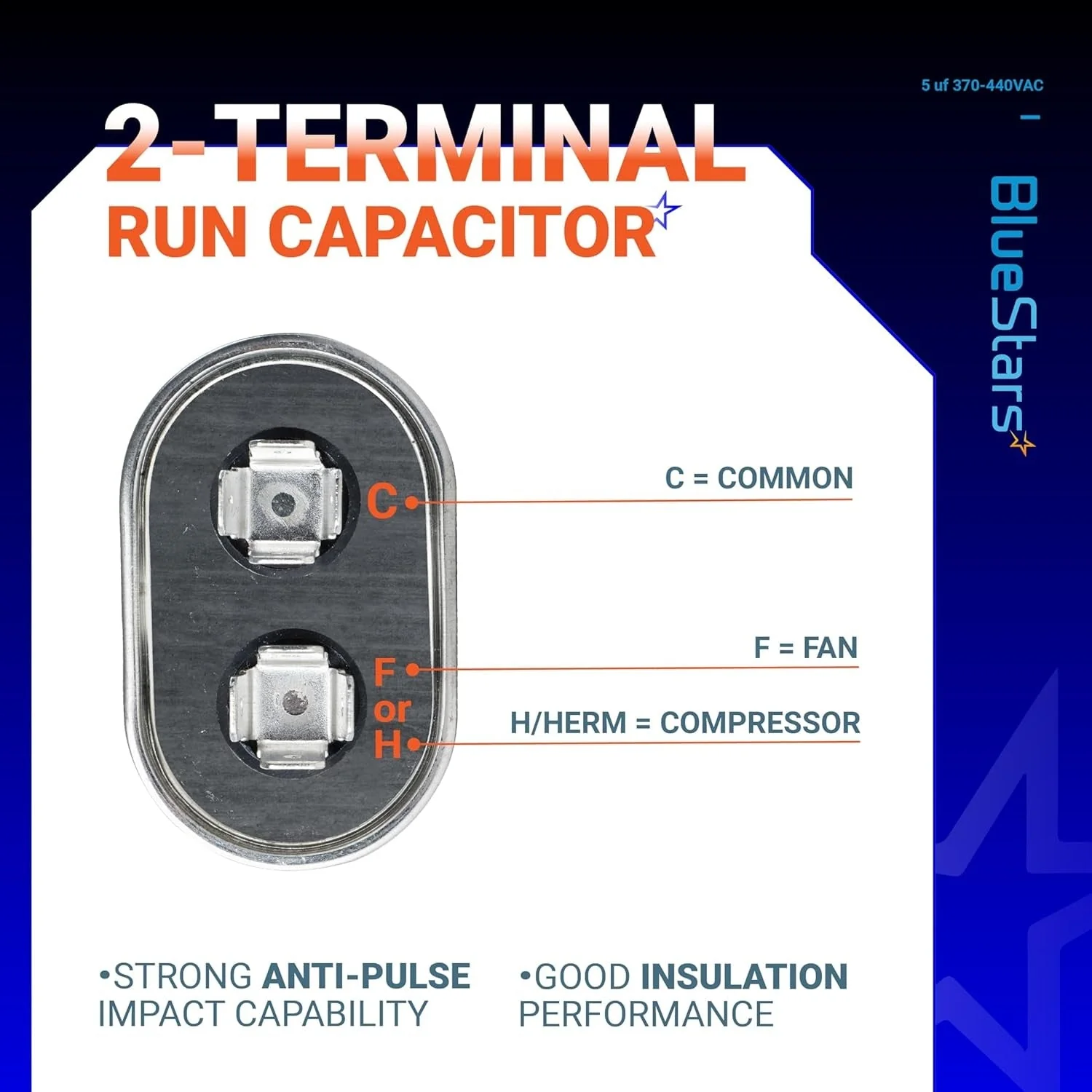

- Terminals: 1/4 inch male quick-connect
- Safety Standard: UL recognized
- Operating Temperature: -40°C to +70°C
Replaces / Cross-Reference Part Numbers
- Replaces any oval-shaped 5 MFD capacitor with either a 370VAC or 440VAC rating.
- Compatible replacement for CBB65 type capacitors with matching specifications.
- Interchangeable with capacitors from brands such as Aerovox, TEMCo, ClimaTek, and others meeting the same MFD and voltage ratings.
Compatibility & Fitment
- Designed for continuous duty in single and three-phase AC motor applications.
- Commonly used in:
- Air conditioner condenser fan motors
- Furnace blower motors
- Heat pumps
- Pool and spa pumps
- Compressors

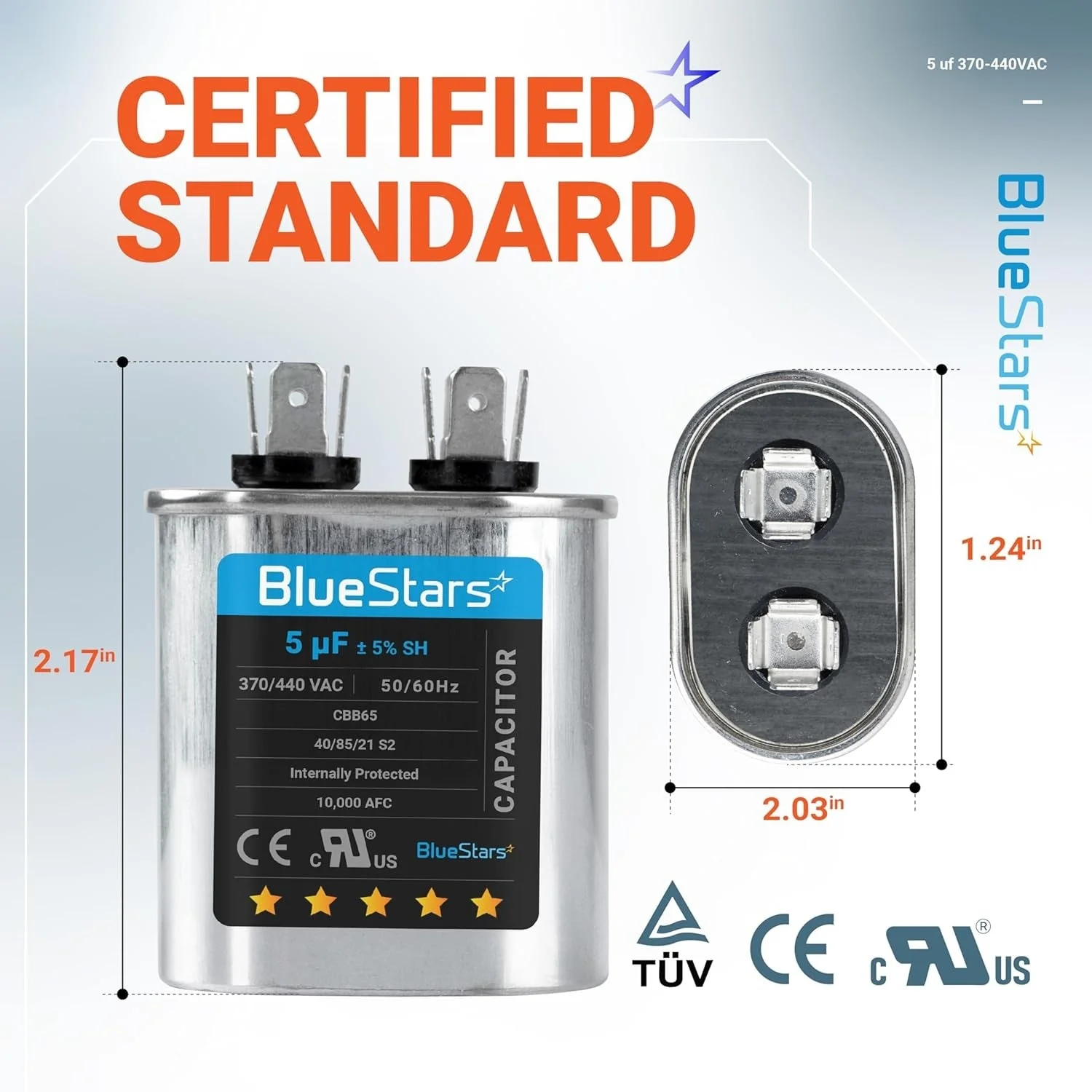

- Physical Dimensions: 2.0 in Width x 2.5 in Height x 1.25 in Depth (approximate case size).

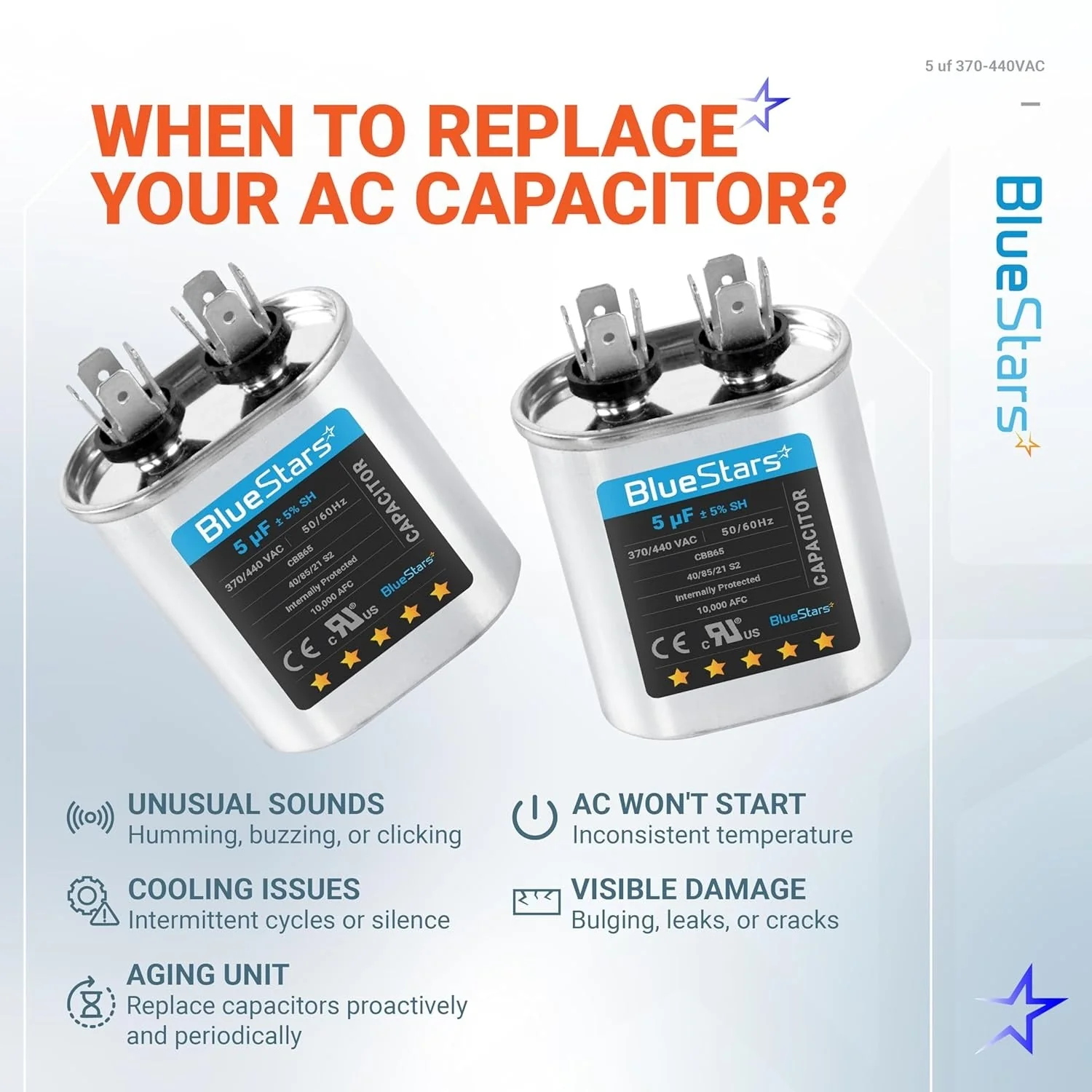

When to Replace
- Motor produces a humming sound but fails to start.
- The capacitor case is visibly swollen, bulging, or leaking fluid.
- Capacitance measures outside the rated tolerance (below 4.75 uF or above 5.25 uF) when tested with a multimeter.
Installation Tips
- Disconnect all electrical power to the equipment before beginning work.
- Safely discharge the existing capacitor by shorting the terminals with a resistor or an insulated tool.

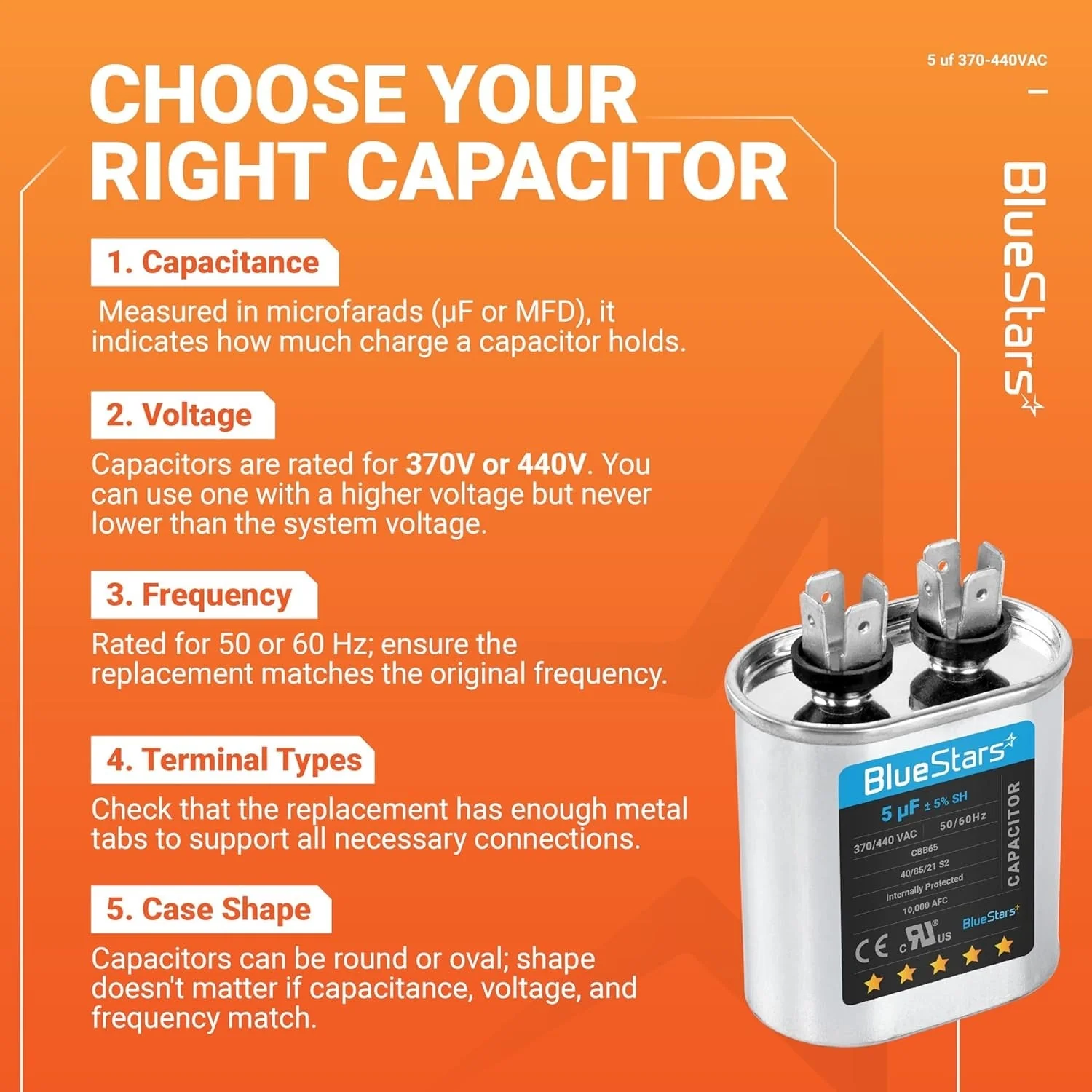

- Confirm the uF (MFD) rating and voltage of the new capacitor match the component being replaced.
- Note the wiring configuration before disconnecting the old part.
- Ensure all electrical connections are tight and secure after installation.
