590-708 mfd uF 110-125VAC ±20% Volts Round Motor Start Capacitor 50/60 Hz AC

Key Features

• Capacitance: 590-708 uF (Microfarad)
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Tolerance: +/- 20%
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Shape: Round

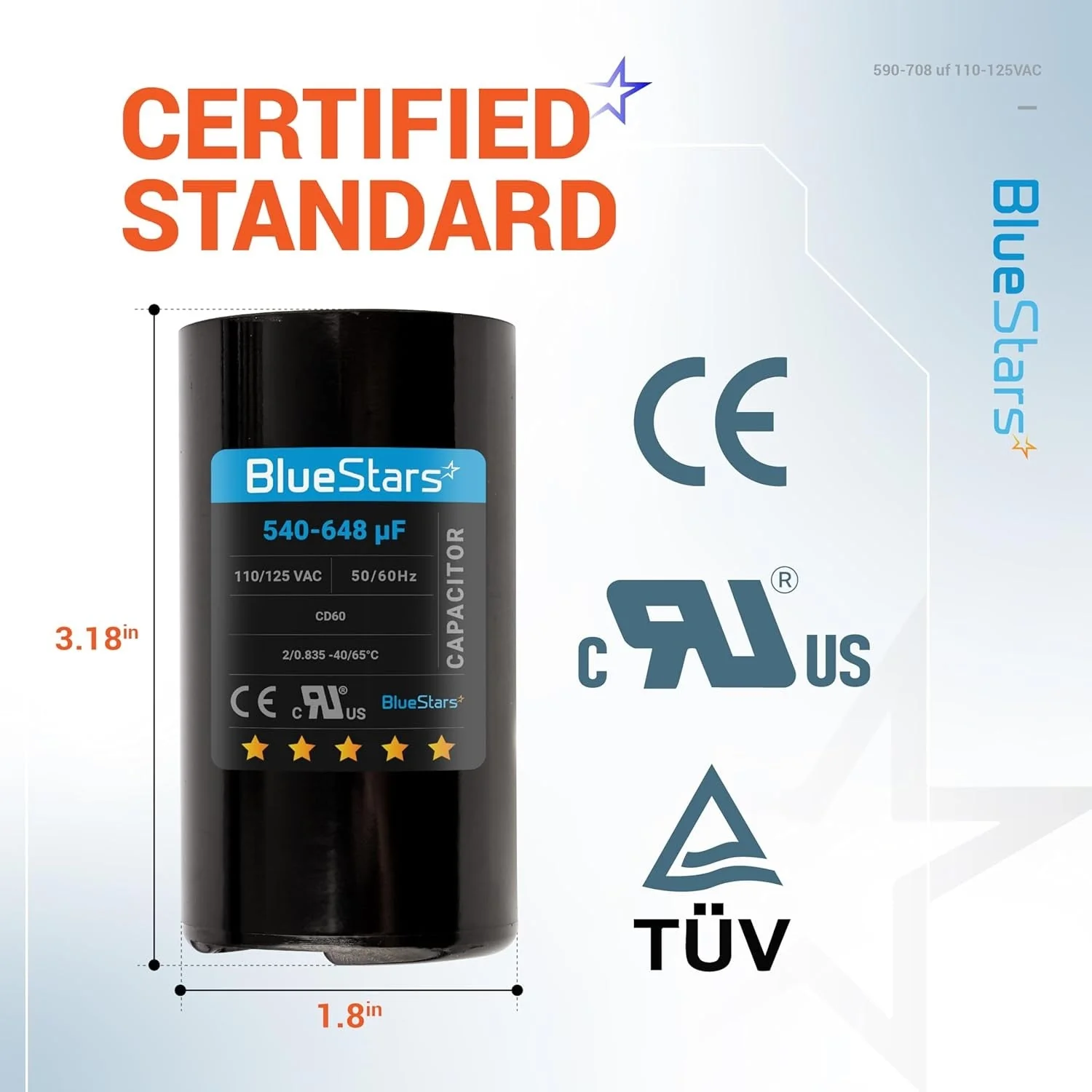

• Dimensions: 1.81 in x 3.35 in (46mm x 85mm)
• Terminals: Four 1/4 inch spade terminals
• Case Material: Moisture and oil-resistant housing
• Contains no Polychlorinated Biphenyls (PCBs)

Replaces / Cross-Reference Part Numbers

• Capacitor Model Type: CD60
• Part Number: 590-708
• Vanguard: BC-590-S

Compatibility & Fitment

• Universal replacement for start capacitors with matching electrical specifications and physical dimensions.
• Suitable for single-phase electric motors in applications such as air conditioners, compressors, pumps, and fans.
• Verify your original capacitor's uF/MFD rating, VAC rating, and physical dimensions for proper fitment.

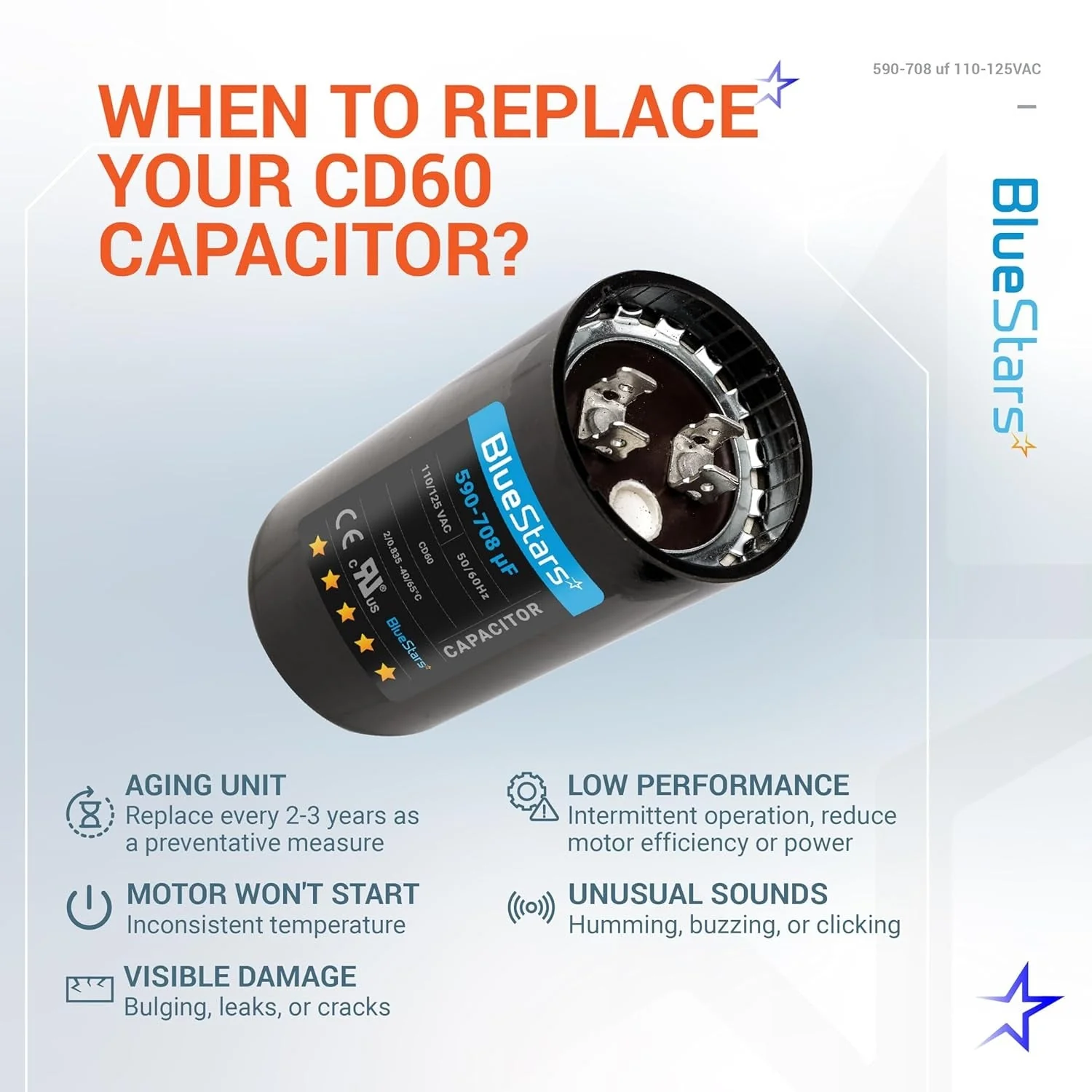

When to Replace

• Motor hums but fails to start or starts slowly.
• Circuit breaker trips or fuse blows upon motor startup.
• Visible signs of damage on the old capacitor, such as bulging, cracking, or leaking fluid.

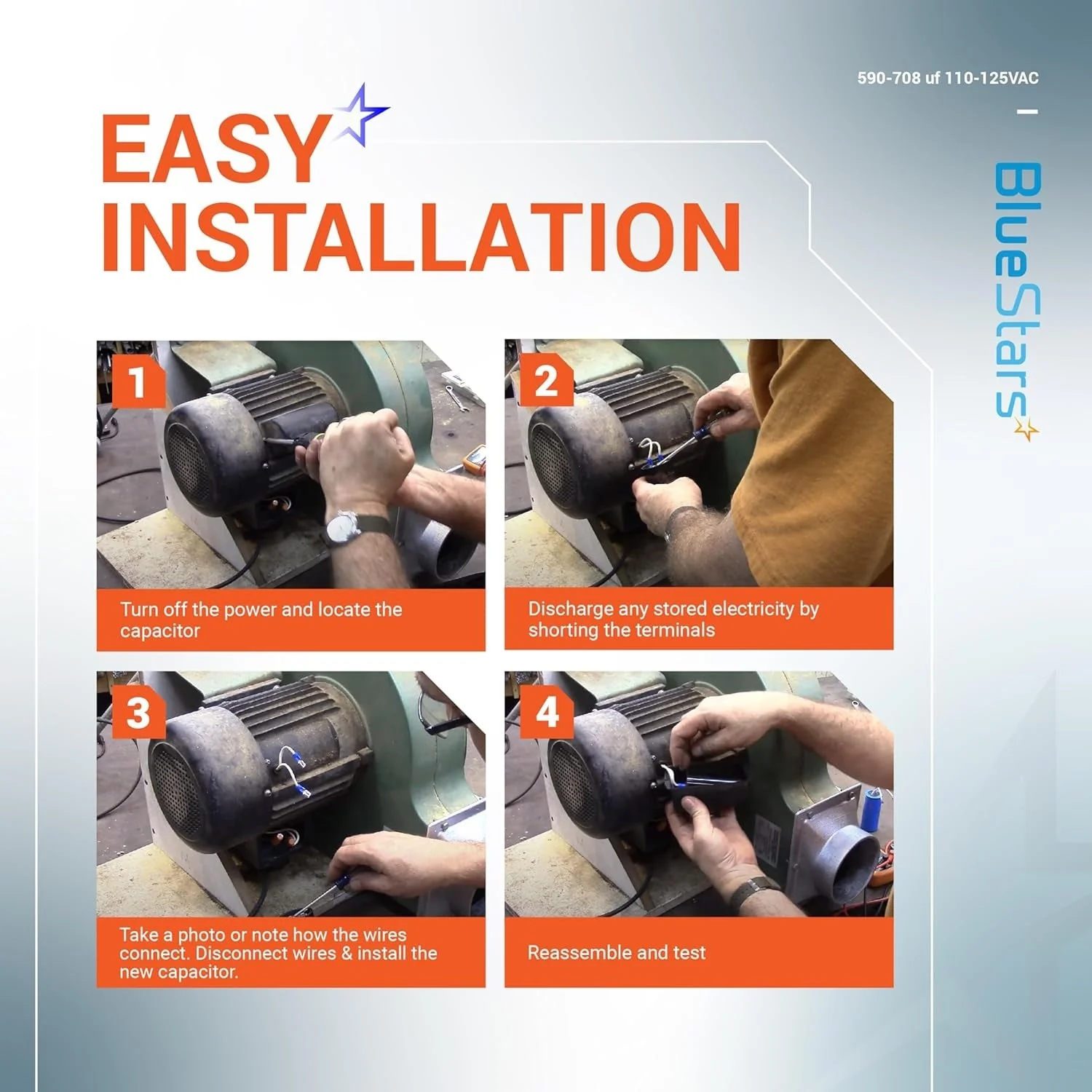

Installation Tips

• Disconnect all electrical power to the unit before performing installation.
• Safely discharge the old capacitor by shorting the terminals with a resistor or an insulated tool.

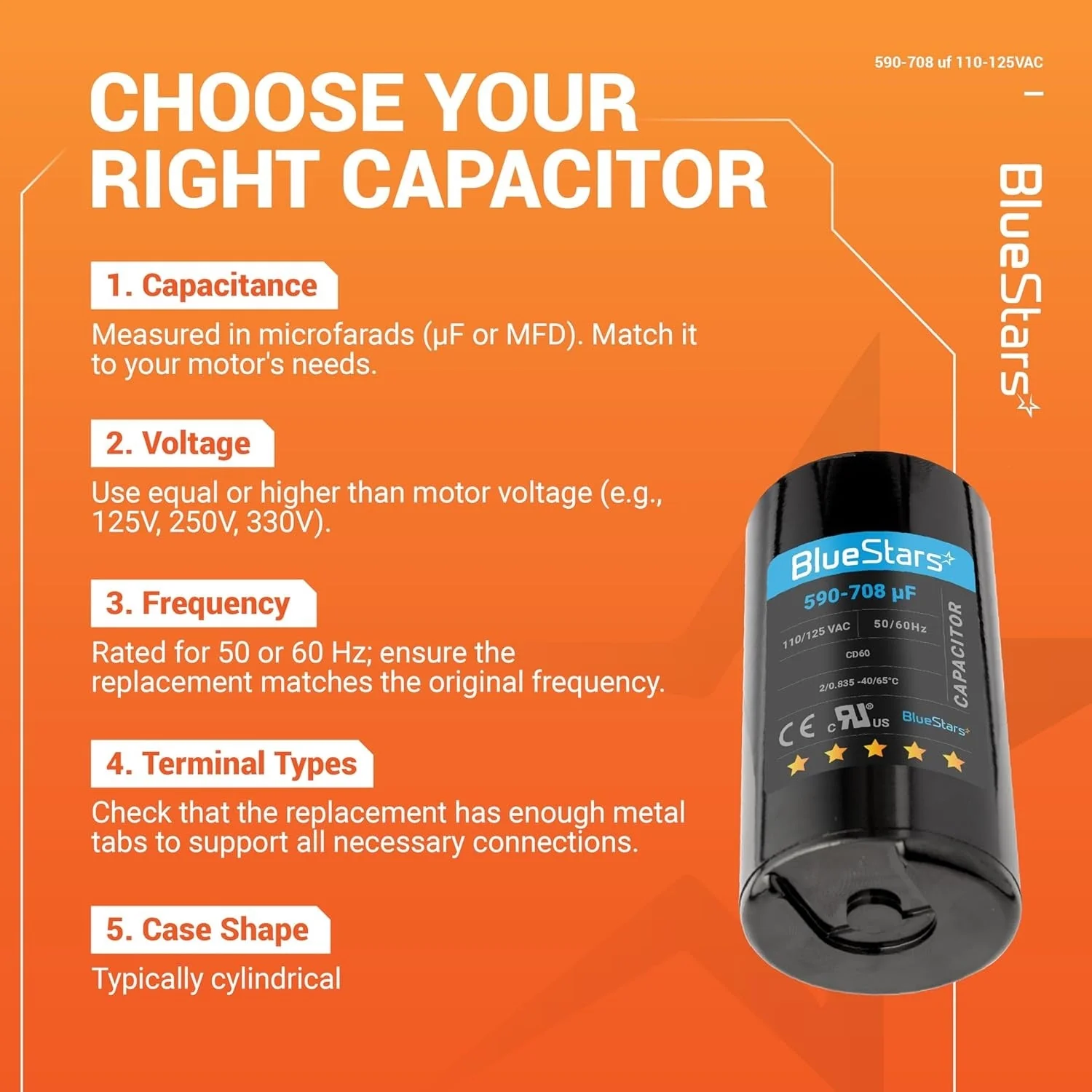

• The voltage rating of the replacement capacitor must be equal to or greater than the original.
• Capacitance (uF/MFD) rating should match the original component's specification.

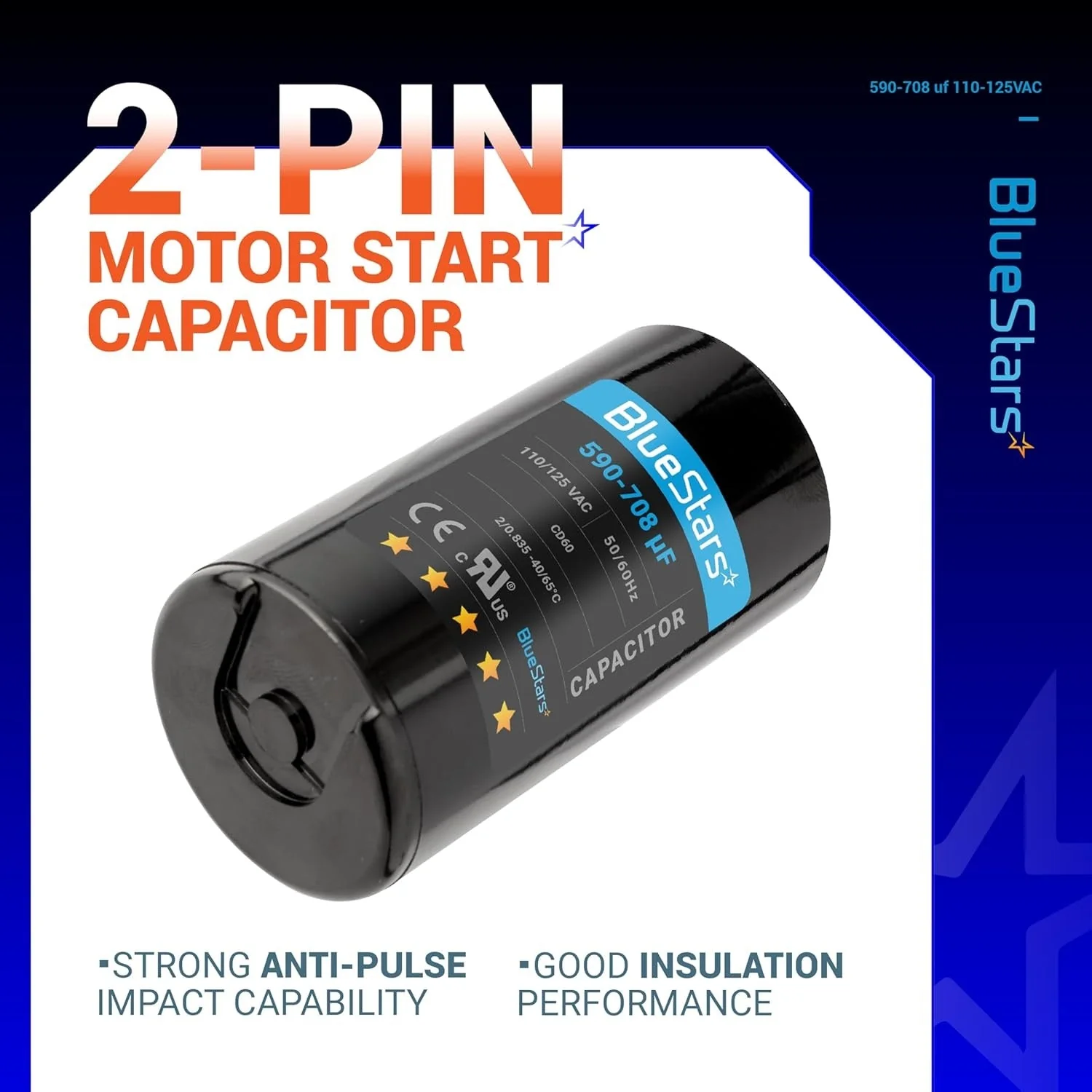

• This is a non-polarized capacitor; wires can be connected to either terminal.
