[Lifetime Warranty] 52100100 Snow Blower Shear Pins and Nuts - Pack of 10
52100100 Snow Blower Shear Pins and Nuts - Pack of 10

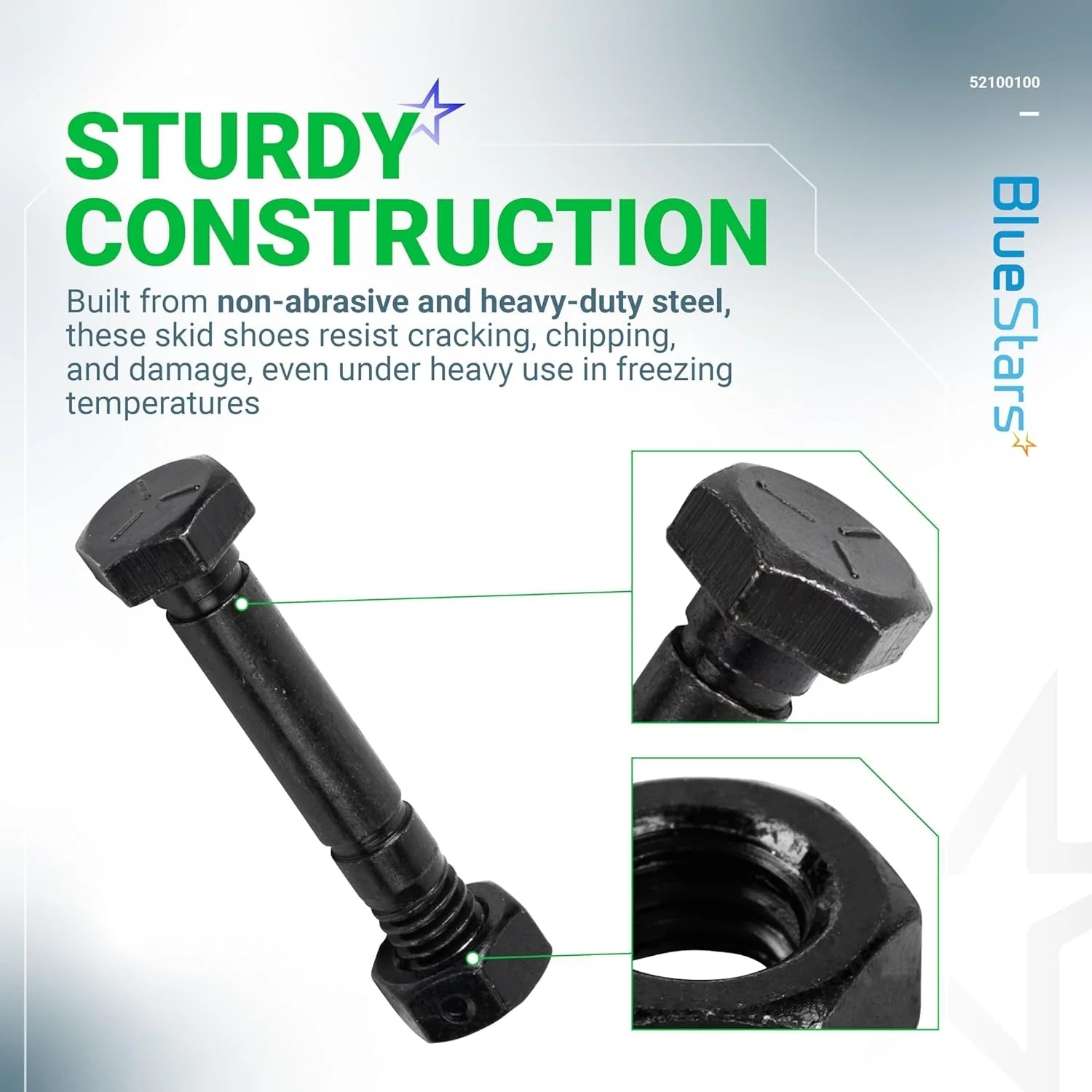

Key Features
- Quantity: 10 shear pins and 10 lock nuts
- Pin Dimensions: 2 inches length x 5/16 inches diameter
- Thread Specification: 5/16 inch - 18 TPI
- Required Tool: 1/2 inch wrench
- Material: Steel with a protective coating

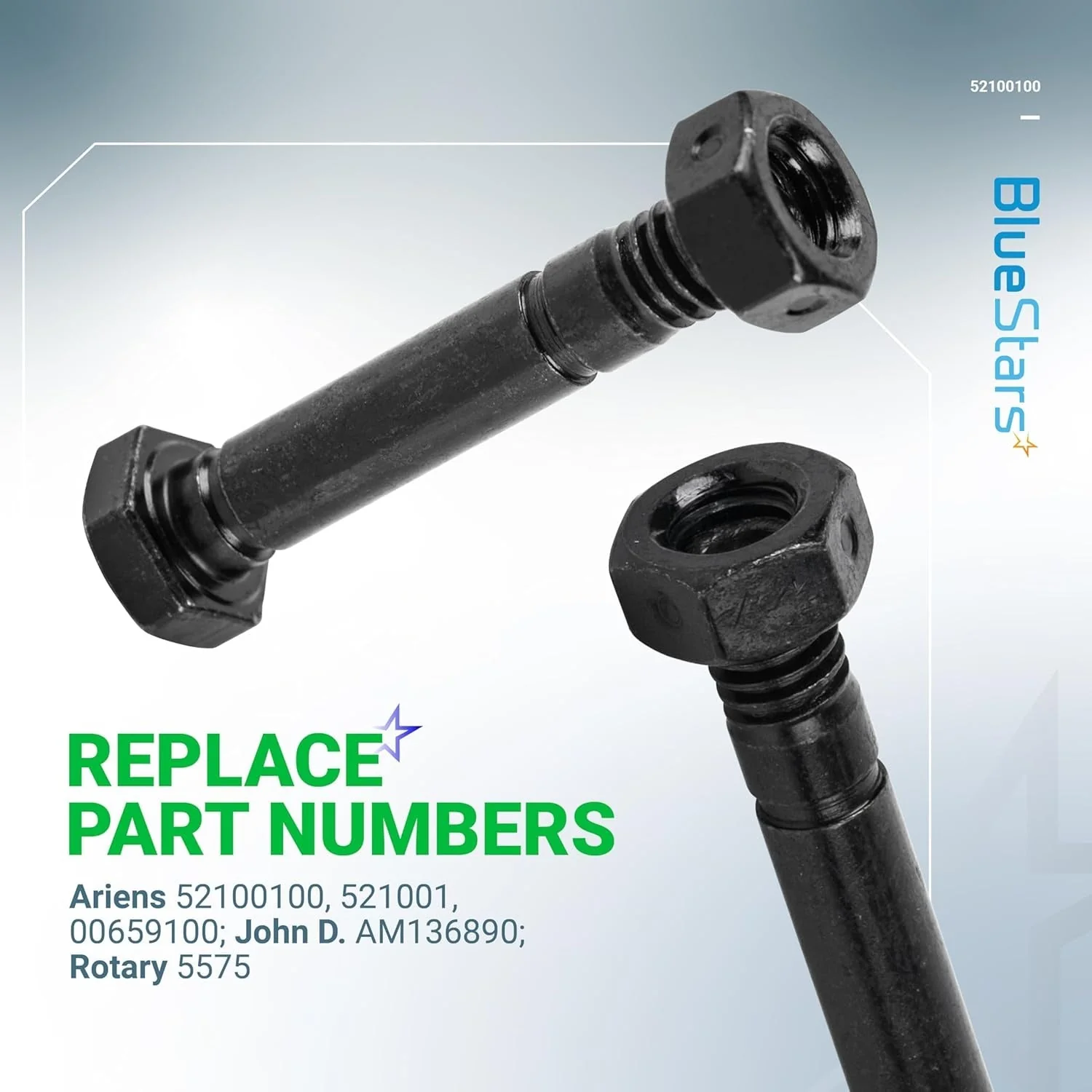

Replaces / Cross-Reference Part Numbers
- Ariens: 52100100, 521001, 00659100
- John Deere: AM136890
- MTD: 706-9561
- Rotary: 5575
Compatibility & Fitment
- Fits most Ariens snow blowers manufactured from 2007 onwards.
- Ariens Deluxe Series: 24”, 28”, 50”
- Ariens Platinum Series: 24”, 28”, 30”
- Select Ariens Models including: ST824E, ST24E, ST924DLE, ST1027LE
- Compatible with select John Deere and MTD models requiring the cross-referenced part numbers.
When to Replace
- Immediately replace when an existing pin breaks or shears to prevent gearbox damage.
- Replace pins that are bent, corroded, or show signs of excessive wear.
- It is recommended to keep spares on hand for quick replacement during use.
Installation Tips
- Disconnect the spark plug wire before starting installation to ensure safety.
- Align the holes on the auger and the gear shaft.
- Insert the shear pin through both holes.
- Secure the pin by threading on the lock nut. Do not over-tighten.
- Only use correct shear pins; never substitute with a standard bolt.
