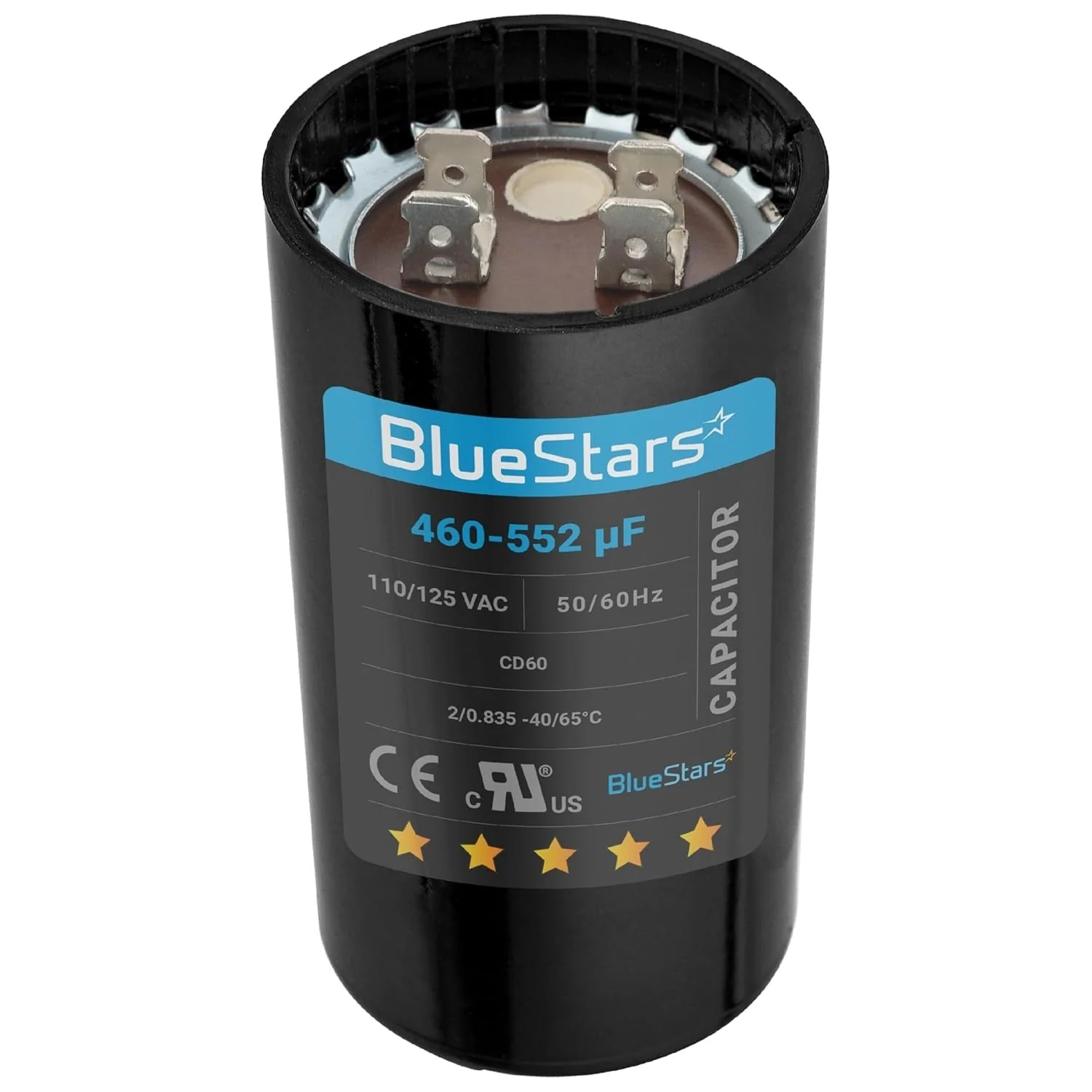

460-552 uf MFD 50/60 Hz 110-125 VAC Volts Round Start Capacitor

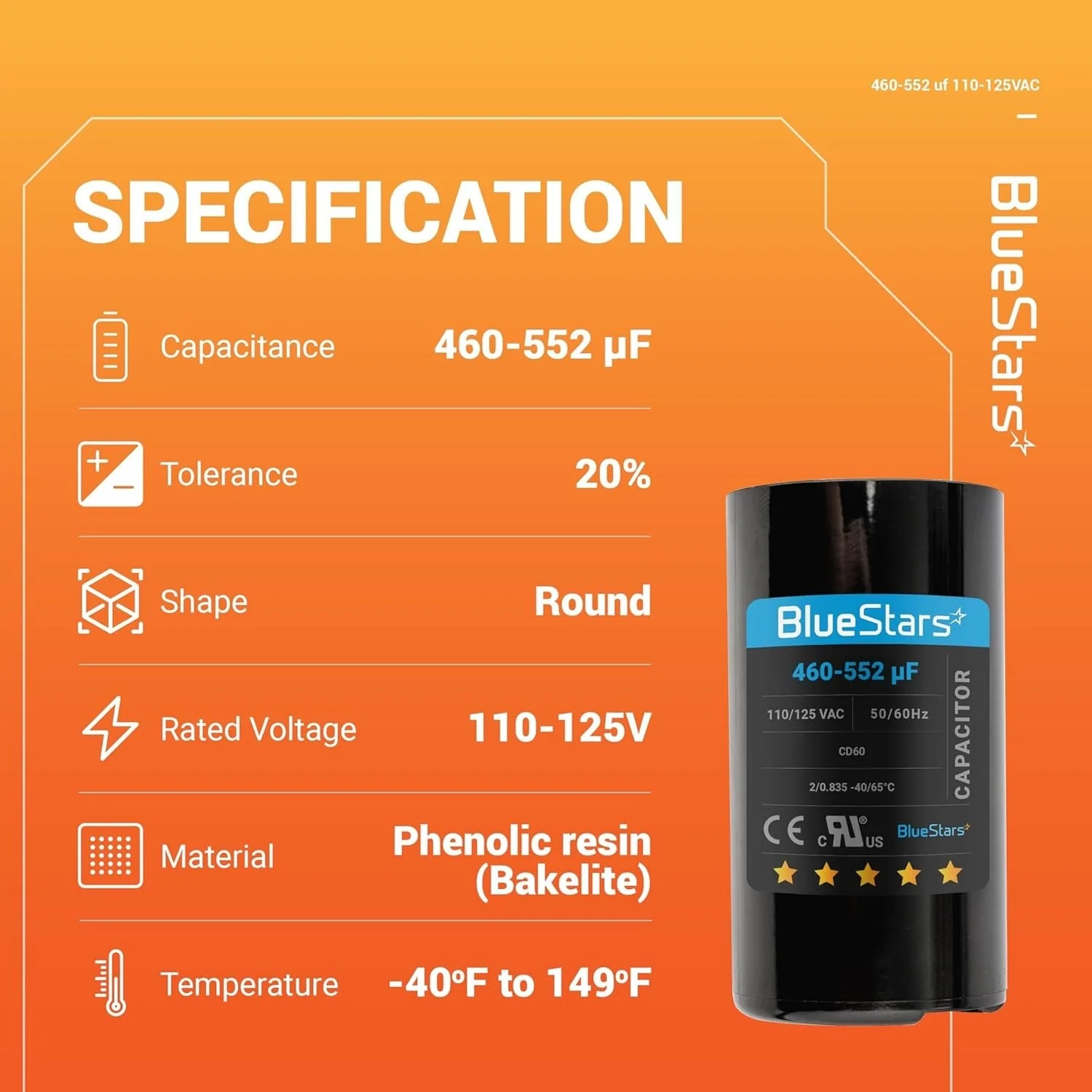

Key Features

• Capacitance: 460-552 MFD / uF
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Shape: Round

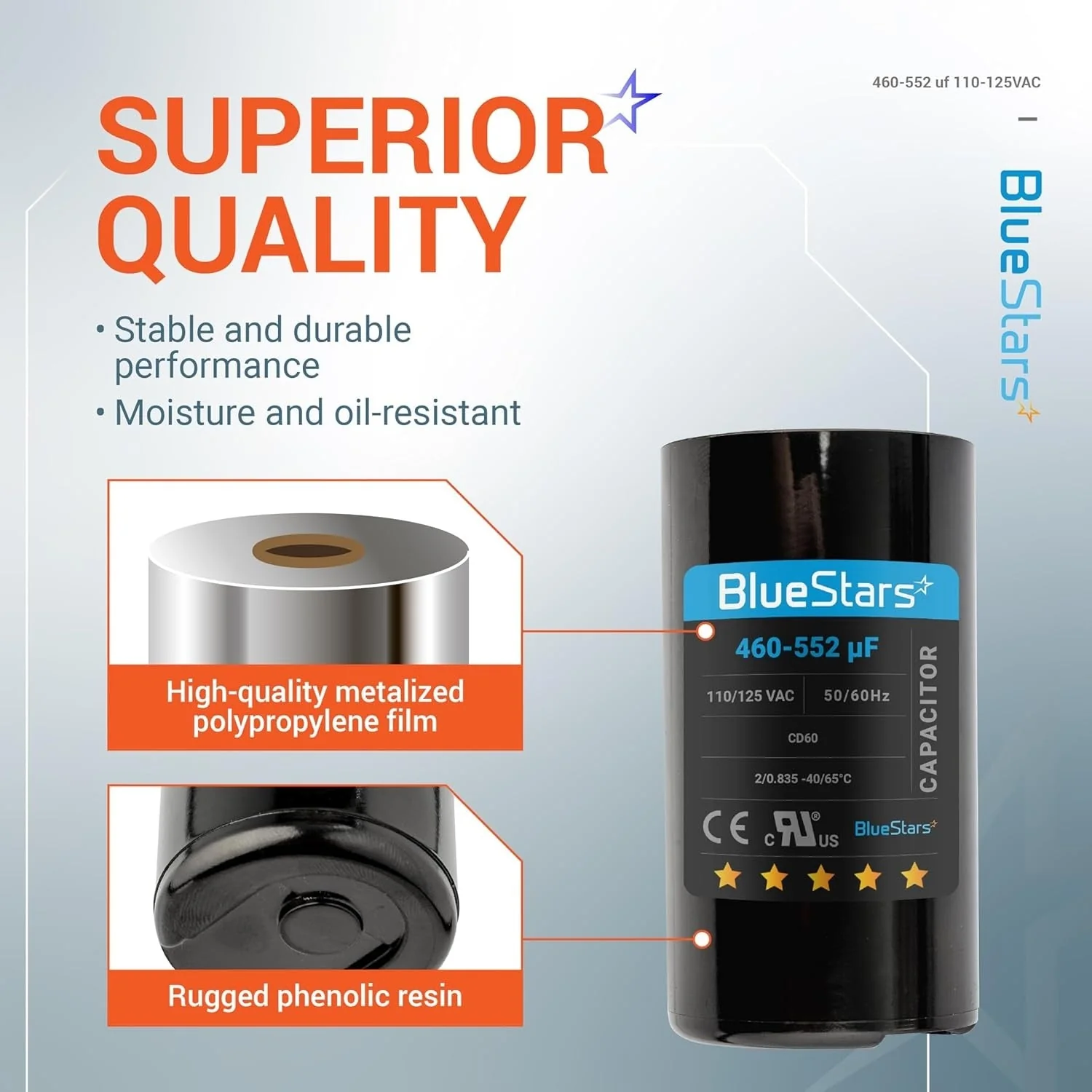

• Case Material: Moisture and oil-resistant plastic
• Terminals: 1/4 inch male quick-connect
• Operating Temperature Range: -40° C to 65° C (-40° F to 149° F)
• Capacitance Tolerance: +/- 20%
• Dimensions: 36mm Diameter x 85mm Height (1.42 in x 3.35 in)

Replaces / Cross-Reference Part Numbers

• This capacitor replaces any round motor start capacitor with the same capacitance (460-552 MFD) and voltage (110V, 115V, 125V) ratings.

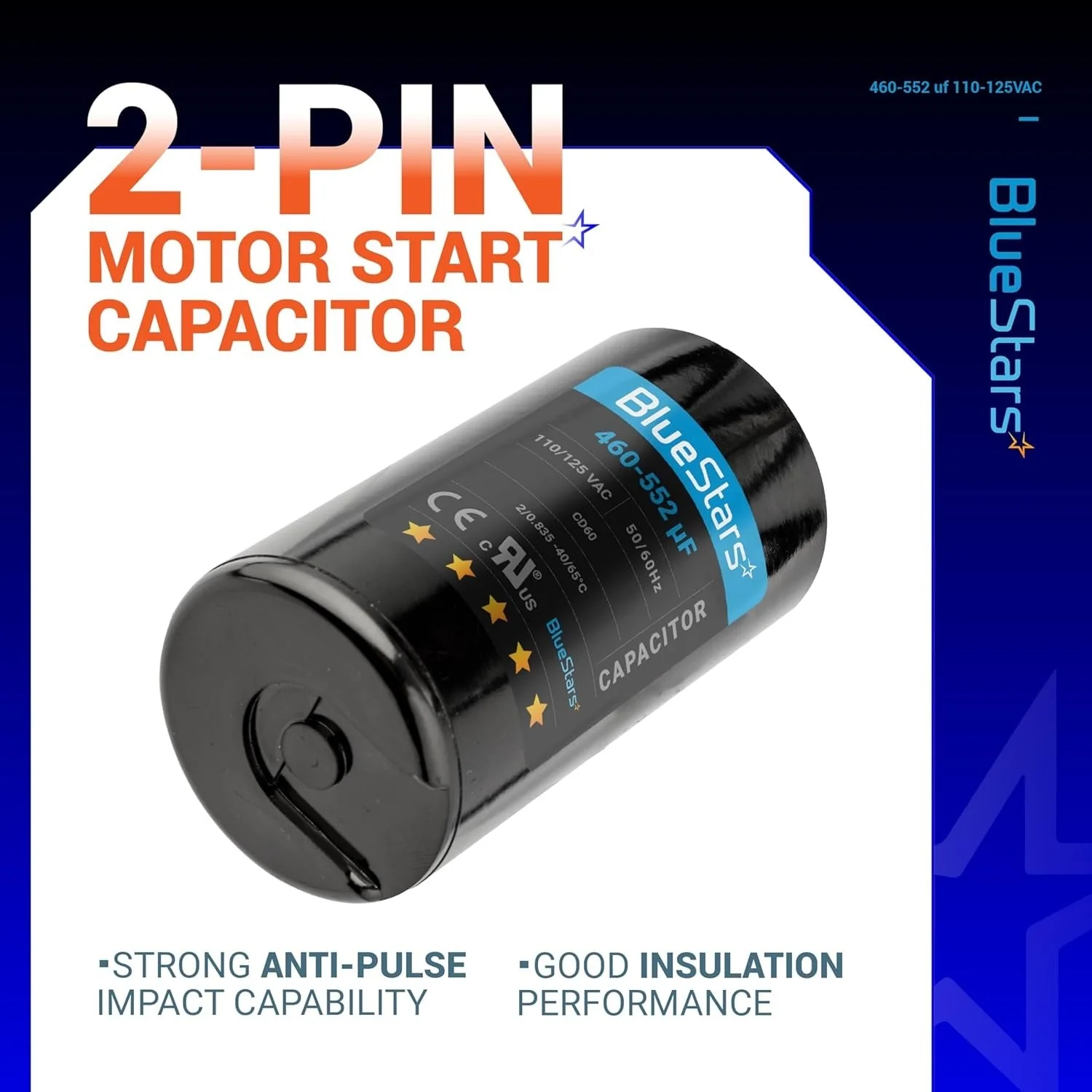

• Commonly identified as a CD60 type start capacitor.

Compatibility & Fitment

• Universal fit for single-phase AC electric motors.
• Suitable for motor starting applications including:
• Air conditioners
• HVAC compressors and fan motors

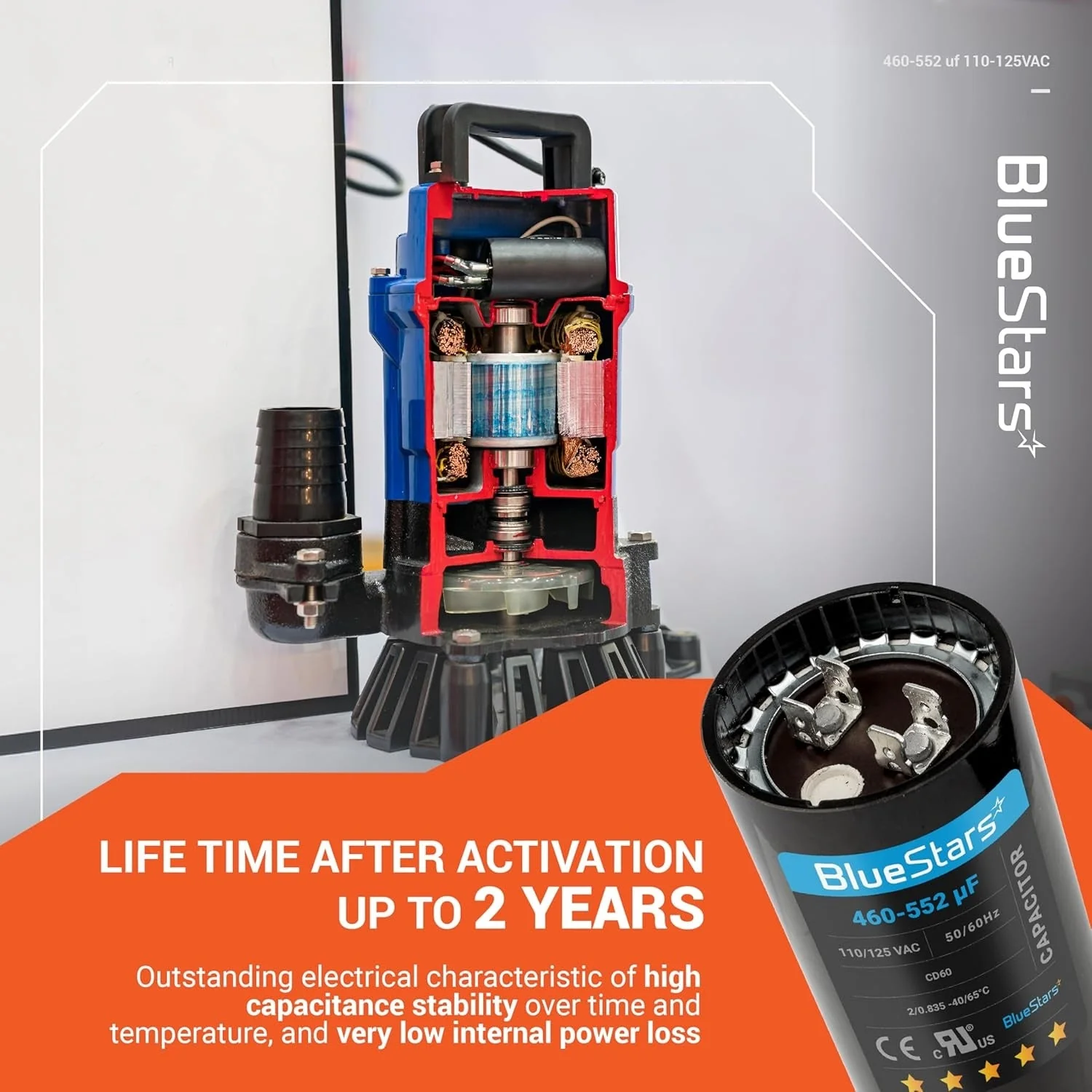

• Pumps (well, pool, sump)
• Refrigeration units
• Air compressors

When to Replace

• Motor hums but will not start or turn over.
• Motor starts slowly or requires manual assistance to start.
• The original capacitor is visibly bulging, cracked, or leaking fluid.
• The motor trips the circuit breaker upon startup.
• Capacitance measures outside of the rated 460-552 MFD range when tested with a multimeter.

Installation Tips

• Disconnect all electrical power to the equipment before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver.

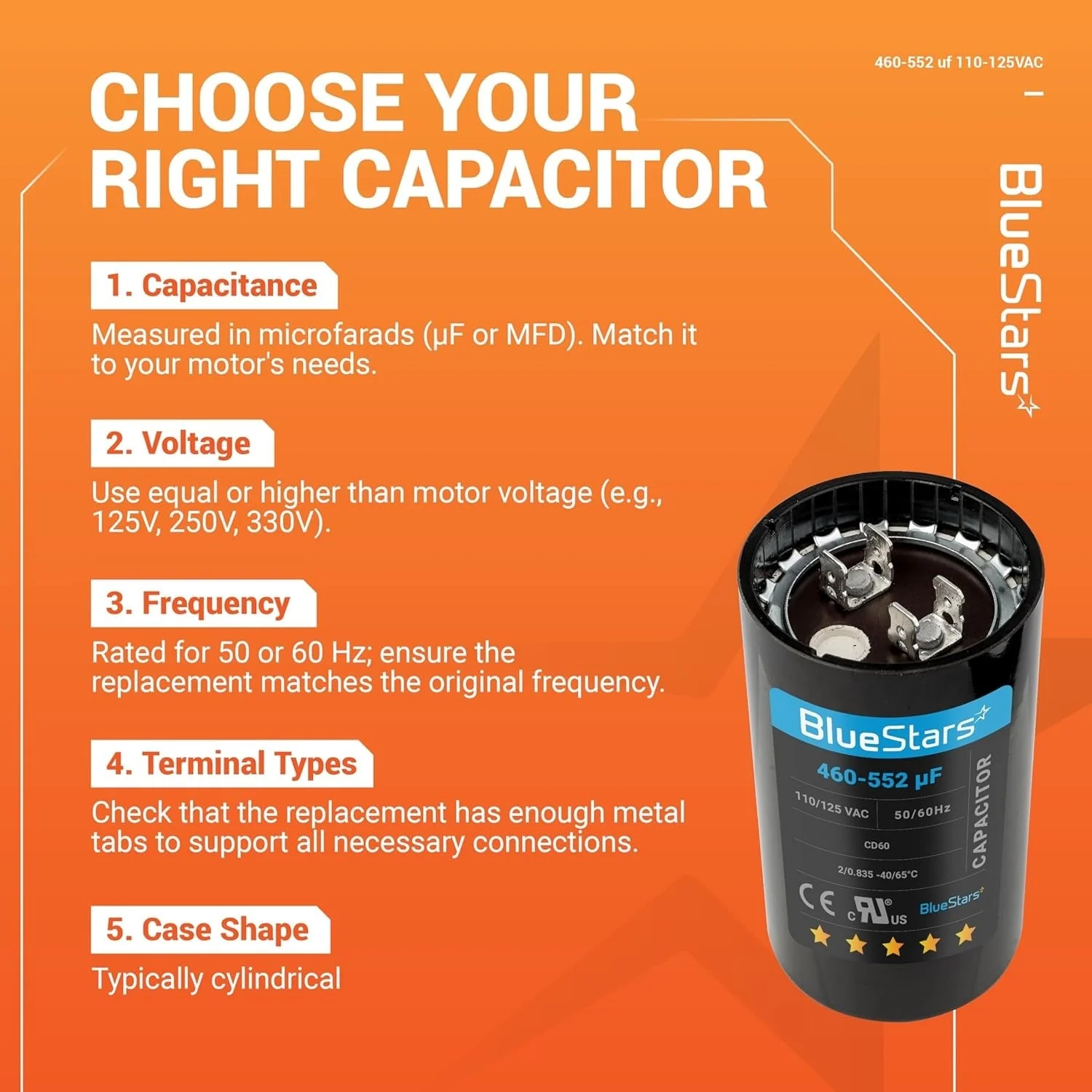

• Confirm the MFD and VAC ratings of the new capacitor match the original part.
• Start capacitors are non-polarized; wires can be connected to either terminal.
• Ensure a secure physical mounting and clean electrical connections.
