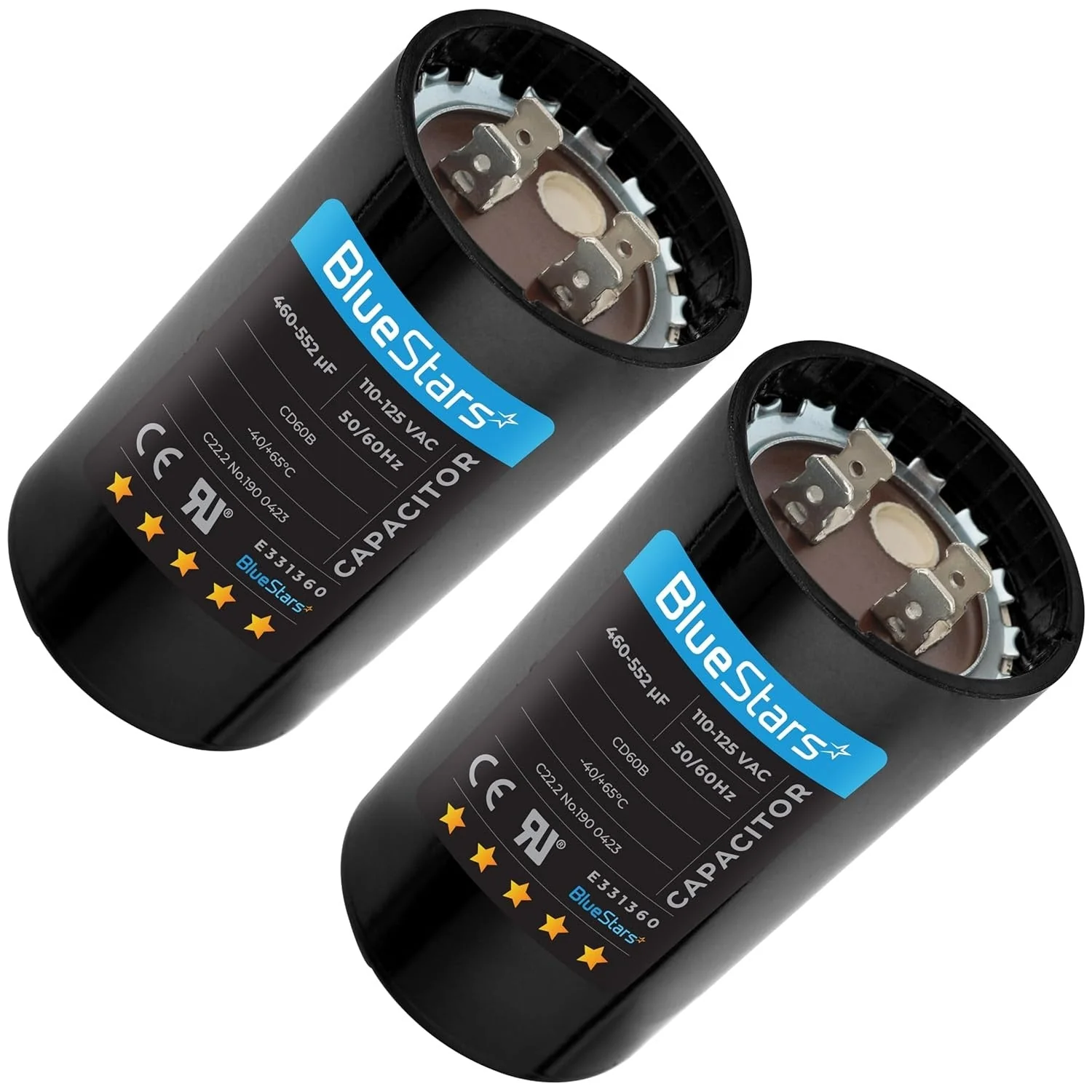

460-552 uf MFD 50/60 Hz 110-125 VAC Volts Round Start Capacitor - Pack of 2

Key Features

• Capacitance: 460-552 uF/MFD
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: +/- 20%
• Operating Temperature Range: -40°C to +65°C (-40°F to +149°F)
• Shape: Round

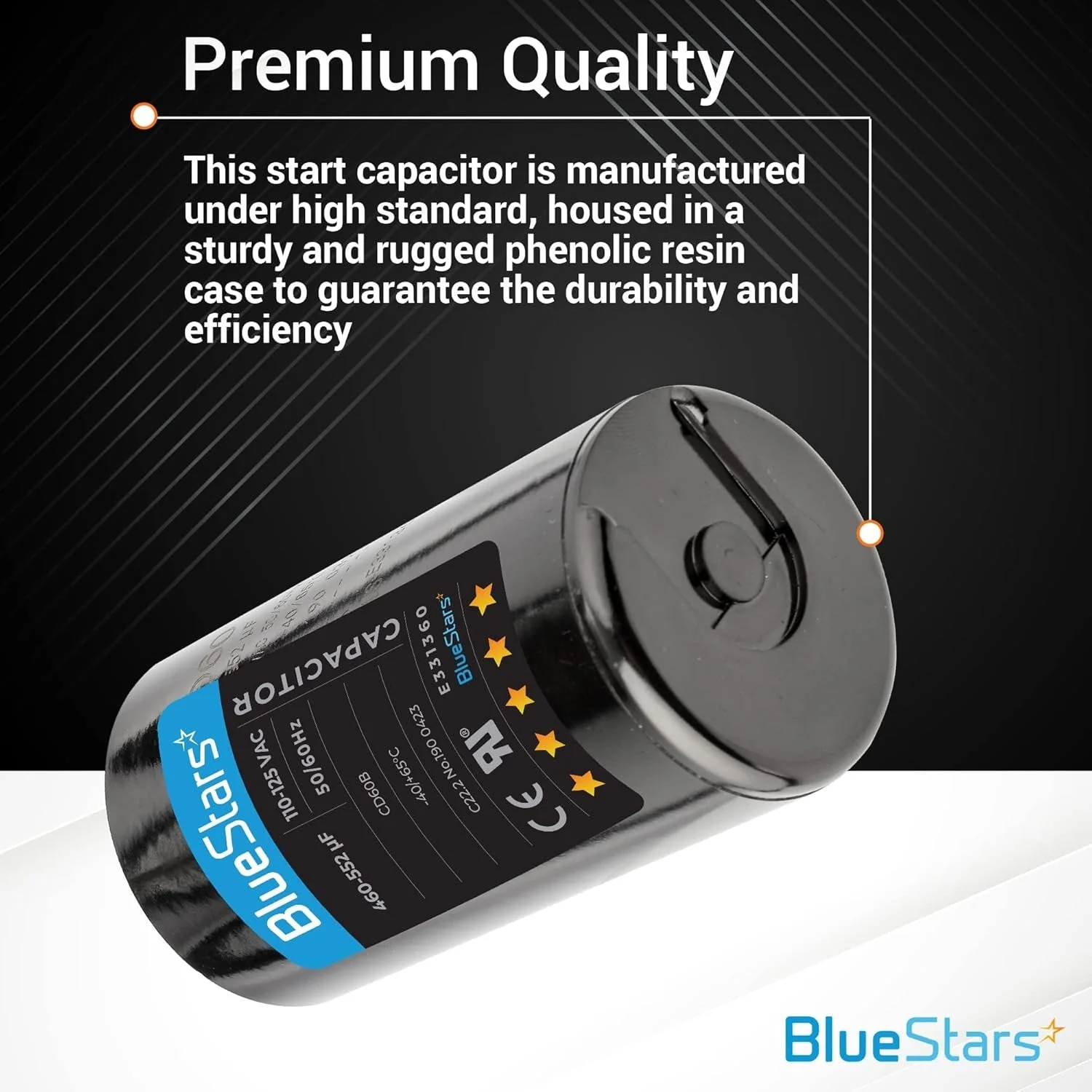

• Construction: Dry, non-PCB, phenolic resin case

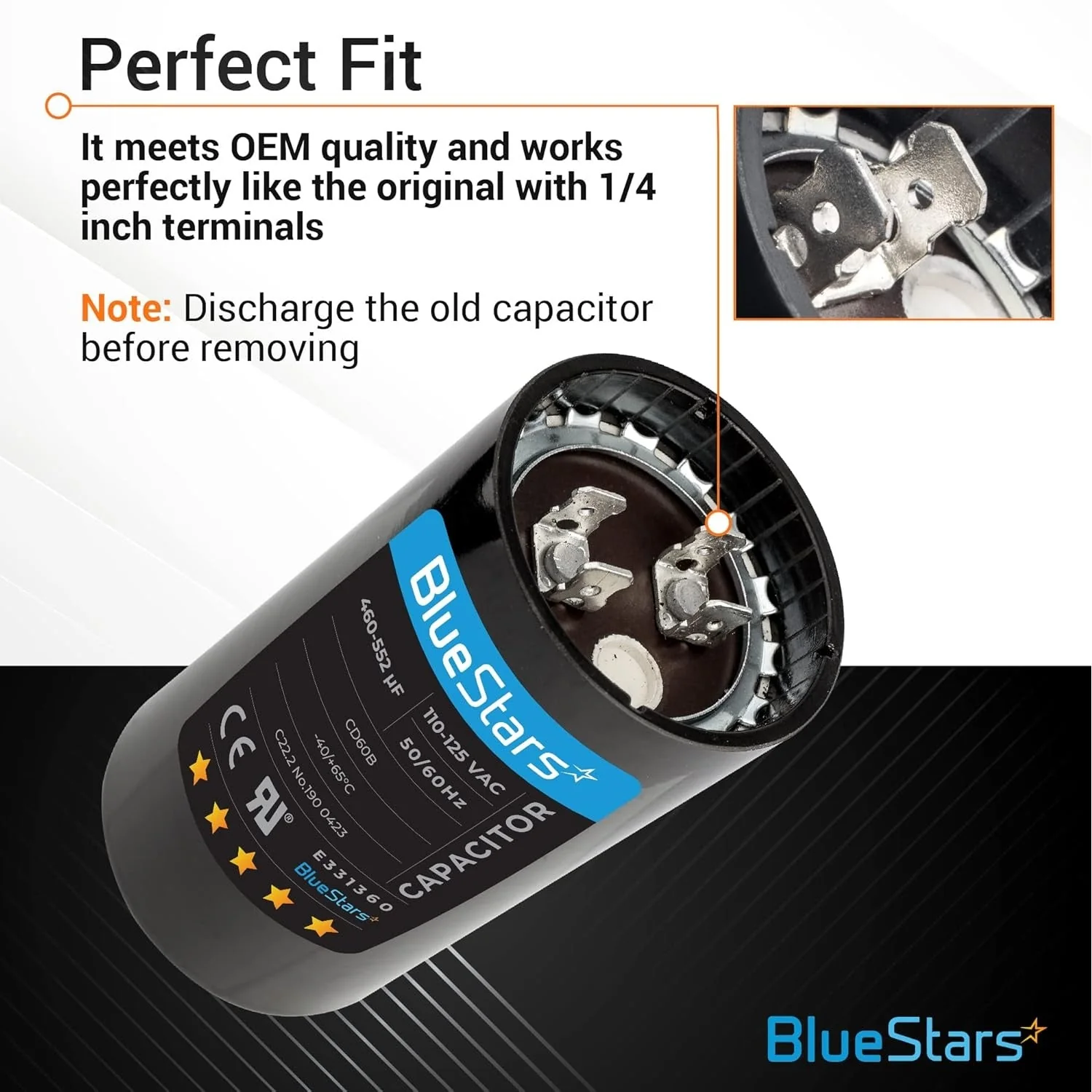

• Terminals: 1/4 in male quick-connect

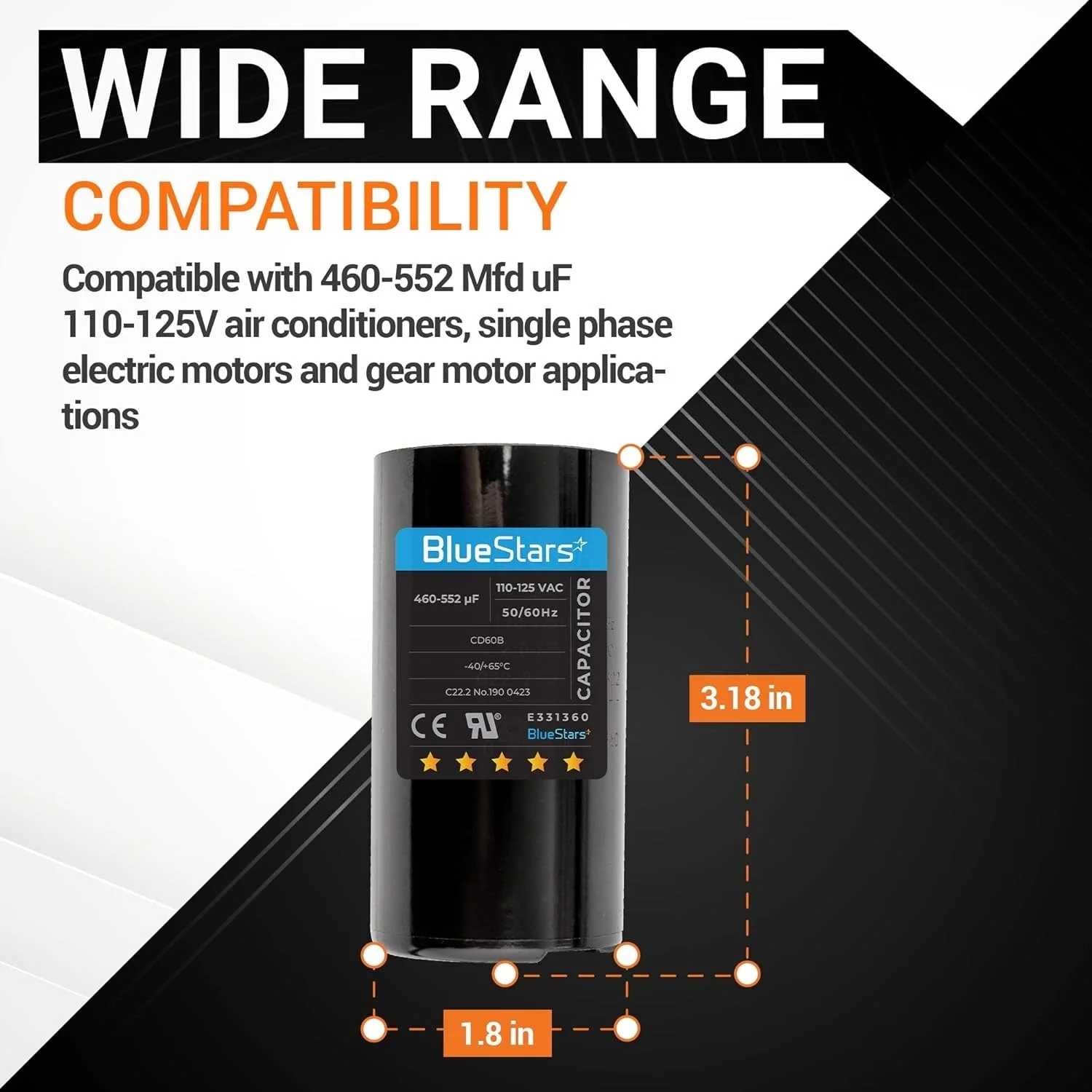

• Dimensions: 1.81 in Diameter x 3.37 in Height (46 mm x 86 mm)

Replaces / Cross-Reference Part Numbers

This capacitor is a universal replacement for any start capacitor with matching capacitance, voltage, and frequency specifications. It is commonly designated as a CD60 type motor start capacitor.

Compatibility & Fitment

Designed for intermittent duty motor starting applications. Always verify that your original capacitor's specifications match this part. Common applications include:

• HVAC units (compressors, blowers, fan motors)
• Water pumps (well pumps, pool pumps)
• Air compressors
• Refrigeration units
• Other single-phase AC electric motors

When to Replace

A failing or failed start capacitor can cause the following symptoms:

• Motor hums but does not start
• Motor requires a manual push to start turning
• Motor starts slowly or with difficulty
• Circuit breaker trips when the motor attempts to start
• Visible damage to the capacitor, such as bulging, cracking, or leaking fluid

Installation Tips

• Disconnect all electrical power to the equipment before beginning work.
• Safely discharge the old capacitor by shorting the terminals with a resistor or an insulated-handle screwdriver.
• Confirm the voltage rating and MFD/uF capacitance of the replacement part match the original capacitor. The replacement voltage rating can be equal to or higher than the original, but not lower.
• Note the position of the wires on the old capacitor terminals before disconnecting.
• Ensure the new capacitor is mounted securely and that all electrical connections are tight.
