430-516 uF/MFD 220-250 VAC ±20% Volts Round Start Capacitor - Pack of 2

Key Features

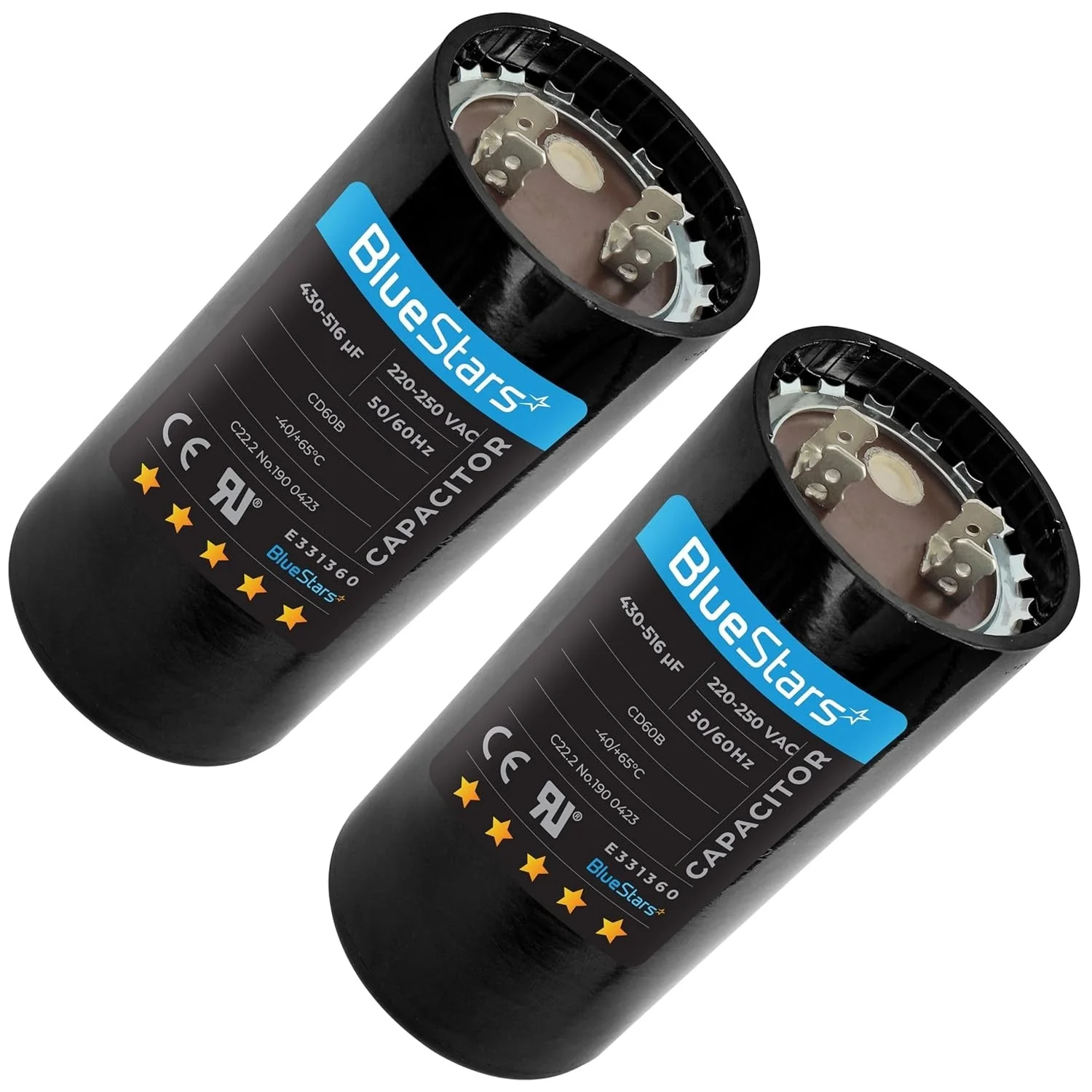

• Package includes two (2) start capacitors

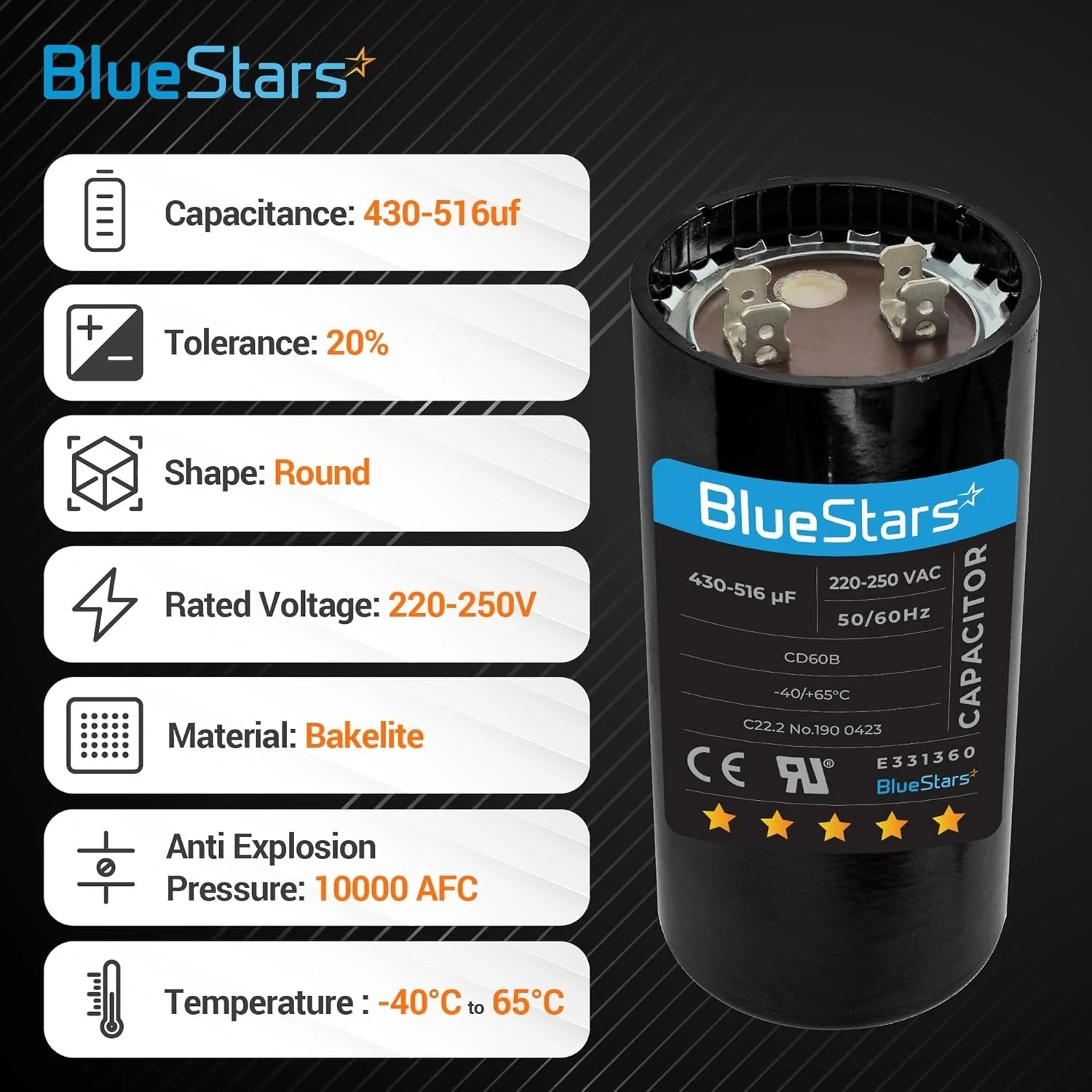

• Capacitance Range: 430-516 uF (Microfarad)
• Voltage Rating: 220-250 Volts AC
• Frequency: 50/60 Hz
• Tolerance: ¬±20%
• Type: Dry, electrolytic, non-polarized
• Terminal Type: 1/4 inch male quick-connect
• Shape: Round

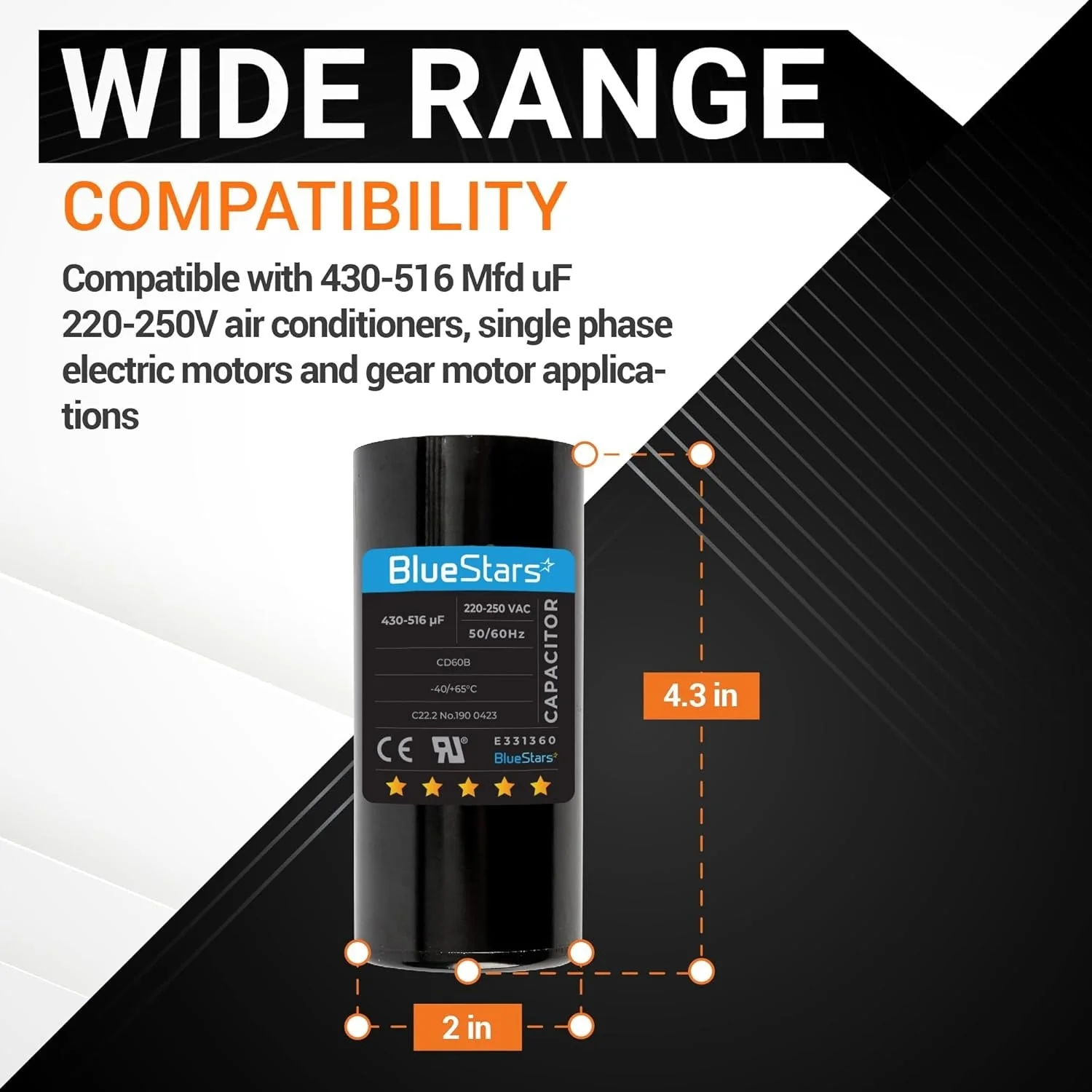

• Dimensions: 2-1/8 inch diameter x 4-3/8 inch height

Replaces / Cross-Reference Part Numbers

• Replaces any round motor start capacitor with matching capacitance (uF/MFD) and voltage (VAC) ratings.
• Common generic type: CD60
• Industry Part Number: 2-430

Compatibility & Fitment

• Designed for starting single-phase electric motors
• Common applications include HVAC units, air compressors, well pumps, and other fractional horsepower motors

When to Replace

• Motor hums but does not start or turn
• Motor starts slowly or requires manual assistance
• Start winding circuit trips the breaker or blows a fuse
• Capacitor case is visibly bulging, cracked, or leaking fluid

Installation Tips

• Disconnect all electrical power to the unit before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver or appropriate discharge tool.
• Verify the capacitance (uF/MFD) and voltage (VAC) ratings of the new capacitor match the original part's specifications.
• A replacement capacitor with an equal or higher voltage rating is acceptable.
• Ensure capacitance is within the motor manufacturer's recommended range.
• Note the wire positions before disconnecting the old capacitor.
