[Lifetime Warranty] 3-pack 150Amp Circuit Breaker
3-pack 150Amp Circuit Breaker
Key Features
- Quantity: 3 circuit breakers per pack
- Current Rating: 150 Amps
- Voltage Compatibility: 12V - 48V DC
- Type: Thermal, Type III manual reset
- Mounting: Surface mount design
- Terminals: 3/8 inch - 16 stainless steel studs
- Housing: High-temperature, waterproof plastic housing for use in harsh environments
- Operation: Push-button reset also functions as a master disconnect

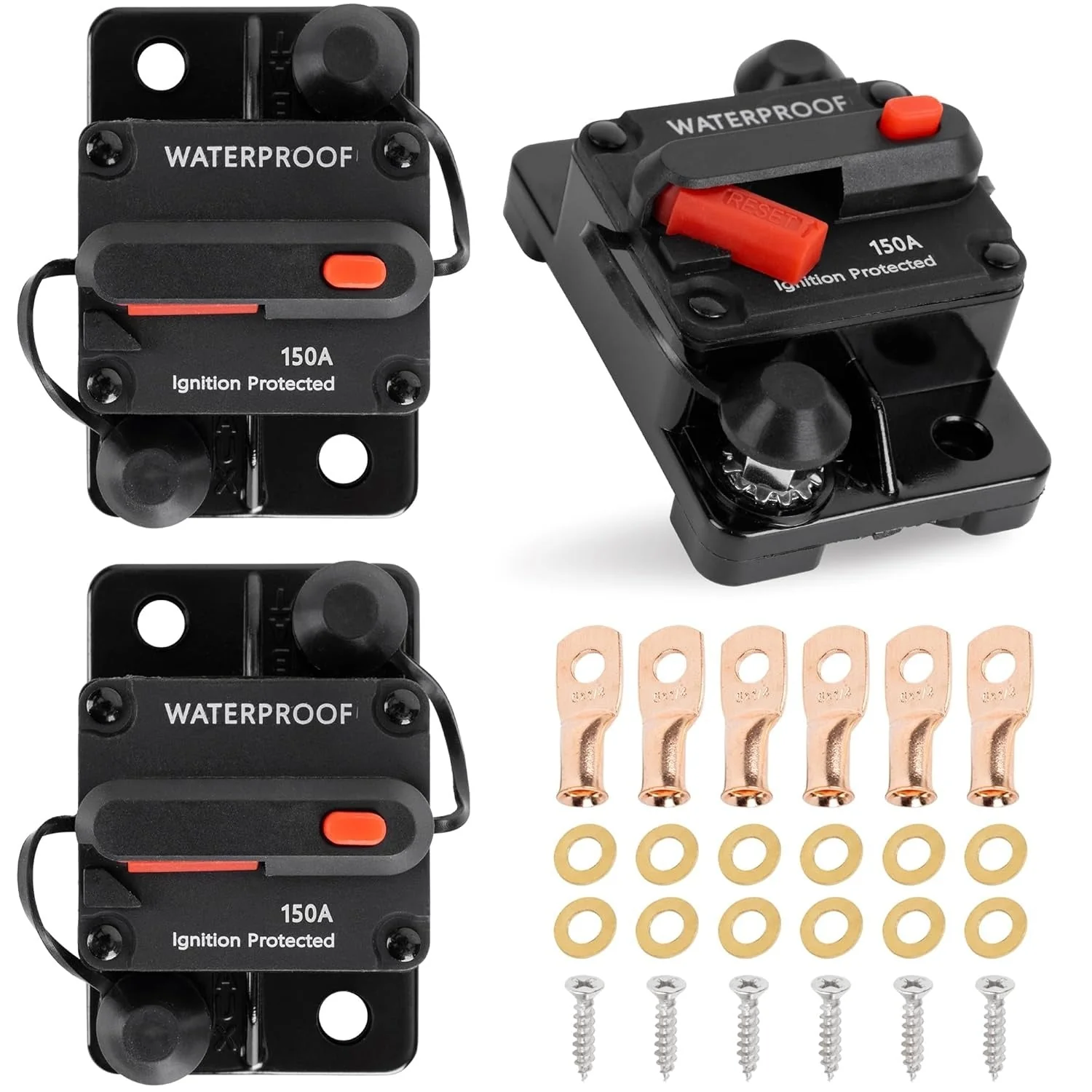

- Includes: Breakers, wire lugs, copper washers, and self-tapping mounting screws
Replaces / Cross-Reference Part Numbers
Serves as a reusable replacement for any standard 150A single-use fuse (such as ANL or MAXI style fuses) when used with an appropriate fuse holder. Direct replacement for surface-mount 150A circuit breakers with identical voltage ratings and stud terminal configuration.
Compatibility & Fitment
Designed for overcurrent protection in high-current 12V to 48V DC systems. Common applications include:
- Automotive and car audio amplifier systems
- Marine electrical systems, trolling motors, and winches
- Recreational vehicles (RV) and auxiliary battery setups
- Solar power systems and battery banks
- Heavy-duty industrial equipment
When to Replace
- Existing breaker fails to trip during an overload or short-circuit event.
- Nuisance tripping occurs under normal, rated current loads.
- The manual reset lever is broken, loose, or will not stay in the "ON" position.
- Visible signs of damage, such as a cracked housing or severe corrosion on terminals.
- As an upgrade from a standard 150A fuse to a resettable circuit protection device.

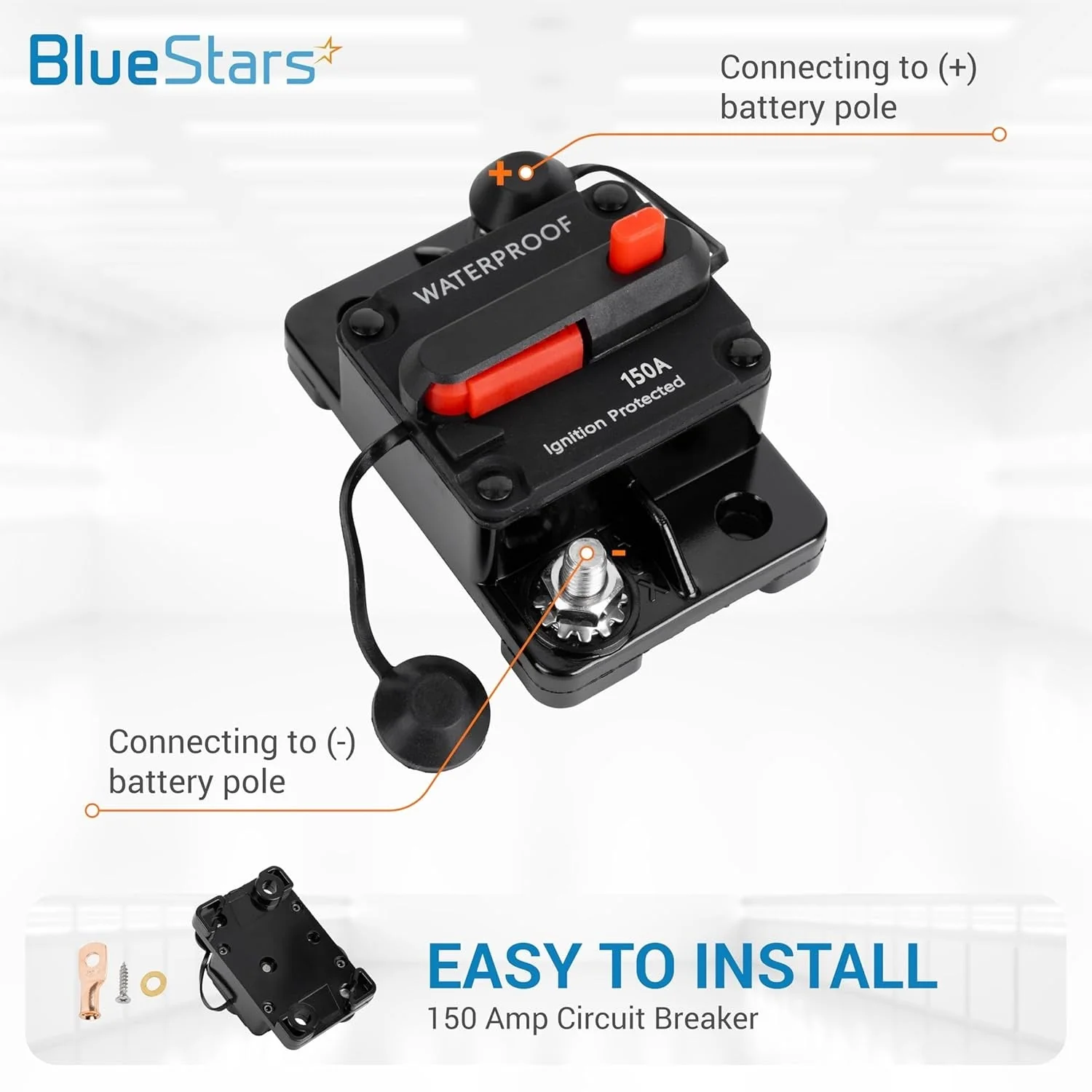

Installation Tips
- Always disconnect the battery or power source before starting installation.
- Install the breaker as close to the power source as possible to protect the main power wire.
- Ensure wire-to-terminal connections are secure using properly crimped ring terminals to prevent overheating.
- Use a wire gauge appropriately sized for a 150A load to avoid voltage drop and fire risk.
- Do not use the manual trip lever as a routine power switch.
