[Lifetime Warranty] 35 uF MFD ±5% 370/440 VAC Multi-Purpose Motor Run Round Capacitor - Fits AC Motor Run, Fan Start, Condenser

[Lifetime Warranty] 35 uF MFD ±5% 370/440 VAC Multi-Purpose Motor Run Round Capacitor - Fits AC Motor Run, Fan Start, Condenser

35 uF MFD ± 5% 370-440 VAC Volt Multi-Purpose Motor Run Round Capacitor

Key Features

  • Capacitance Rating: 35 Microfarad (uF/MFD)
  • Voltage Compatibility: 370V or 440V AC
  • Capacitance Tolerance: ±5%
  • Operating Frequency: 50/60 Hz
  • Case Shape: Round
  • Operating Temperature: -40°C to +70°C (-40°F to +158°F)
  • Construction: Oil-filled aluminum can for heat dissipation and longevity
  • Safety: Integrated pressure-sensitive interrupter

Replaces / Cross-Reference Part Numbers

This capacitor is a universal replacement for any brand's single-value round capacitor with the same 35 MFD capacitance and 370V or 440V rating. Verify physical dimensions for a proper fit.

  • Replaces capacitors with markings such as CBB65.
  • Direct substitute for parts from brands including Genteq, Packard, Titan, and Mars with matching specifications.

Compatibility & Fitment

  • Designed for continuous use in single-phase motor applications.
  • Commonly used in HVAC systems, air conditioners, heat pumps, condenser units, compressors, and other electric motors.
  • A 440V capacitor can safely replace a 370V unit with the same MFD rating.
  • Ensure the physical dimensions (diameter and height) match the available space in your equipment.

When to Replace

  • The motor hums but does not start or requires a manual push to start.
  • Visible damage to the old capacitor, such as a bulging or swollen case, or fluid leakage.
  • The fan or compressor in an HVAC unit fails to turn on.
  • Capacitance reading on the existing capacitor is outside its rated tolerance (e.g., below 33.25 MFD or above 36.75 MFD for a ±5% unit).

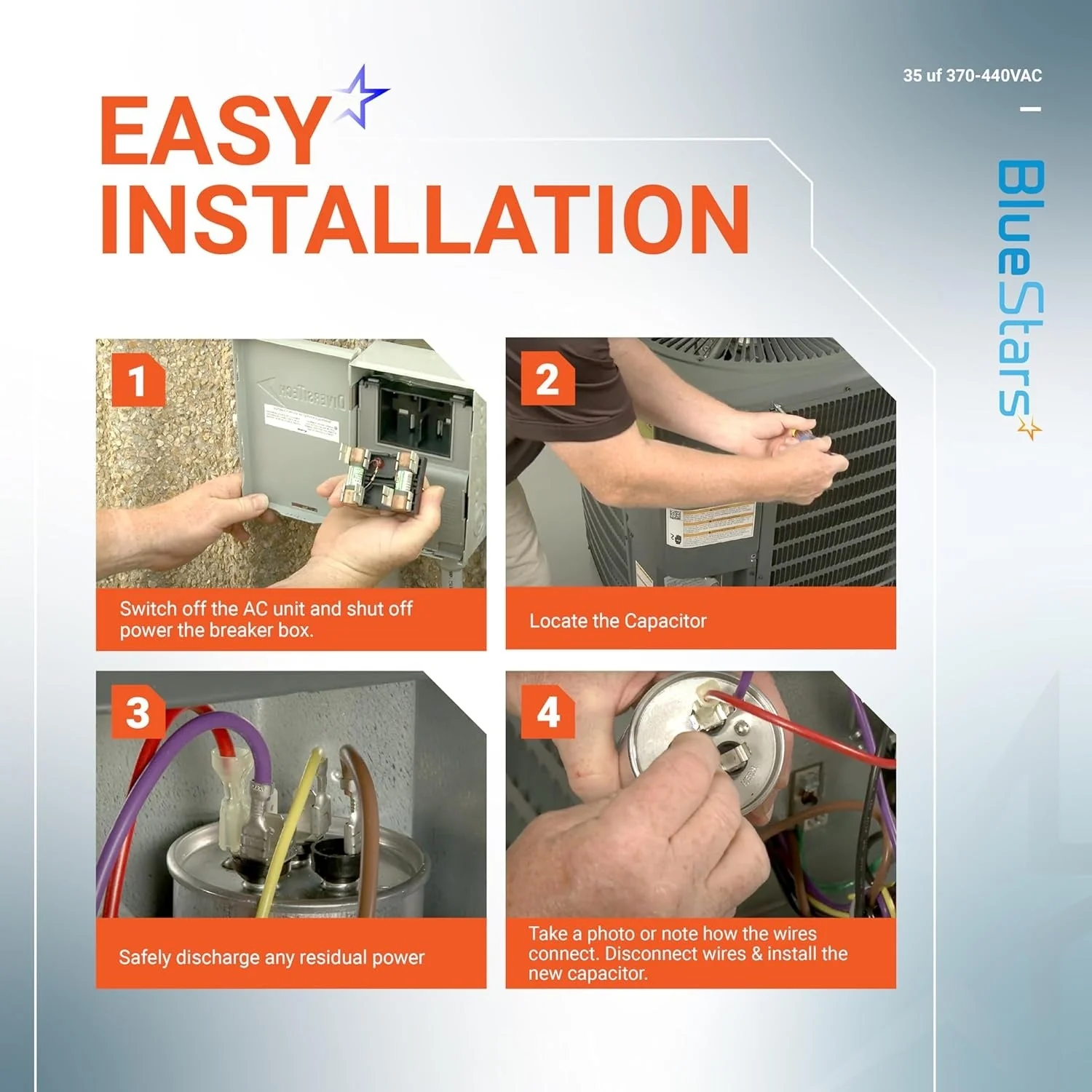

Installation Tips

  • Warning: Capacitors can store a dangerous electrical charge. Disconnect all power to the unit before servicing.
  • Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver.
  • Note or photograph the wire connections before removing the old capacitor to ensure correct installation.
  • Connect the wires to the corresponding terminals on the new capacitor. Polarity is not a concern for AC motor run capacitors.
  • Secure the new capacitor with the original mounting bracket.
$8.26

Original: $23.61

-65%
[Lifetime Warranty] 35 uF MFD ±5% 370/440 VAC Multi-Purpose Motor Run Round Capacitor - Fits AC Motor Run, Fan Start, Condenser—

$23.61

$8.26

Product Information

Shipping & Returns

Description

35 uF MFD ± 5% 370-440 VAC Volt Multi-Purpose Motor Run Round Capacitor

Key Features

  • Capacitance Rating: 35 Microfarad (uF/MFD)
  • Voltage Compatibility: 370V or 440V AC
  • Capacitance Tolerance: ±5%
  • Operating Frequency: 50/60 Hz
  • Case Shape: Round
  • Operating Temperature: -40°C to +70°C (-40°F to +158°F)
  • Construction: Oil-filled aluminum can for heat dissipation and longevity
  • Safety: Integrated pressure-sensitive interrupter

Replaces / Cross-Reference Part Numbers

This capacitor is a universal replacement for any brand's single-value round capacitor with the same 35 MFD capacitance and 370V or 440V rating. Verify physical dimensions for a proper fit.

  • Replaces capacitors with markings such as CBB65.
  • Direct substitute for parts from brands including Genteq, Packard, Titan, and Mars with matching specifications.

Compatibility & Fitment

  • Designed for continuous use in single-phase motor applications.
  • Commonly used in HVAC systems, air conditioners, heat pumps, condenser units, compressors, and other electric motors.
  • A 440V capacitor can safely replace a 370V unit with the same MFD rating.
  • Ensure the physical dimensions (diameter and height) match the available space in your equipment.

When to Replace

  • The motor hums but does not start or requires a manual push to start.
  • Visible damage to the old capacitor, such as a bulging or swollen case, or fluid leakage.
  • The fan or compressor in an HVAC unit fails to turn on.
  • Capacitance reading on the existing capacitor is outside its rated tolerance (e.g., below 33.25 MFD or above 36.75 MFD for a ±5% unit).

Installation Tips

  • Warning: Capacitors can store a dangerous electrical charge. Disconnect all power to the unit before servicing.
  • Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver.
  • Note or photograph the wire connections before removing the old capacitor to ensure correct installation.
  • Connect the wires to the corresponding terminals on the new capacitor. Polarity is not a concern for AC motor run capacitors.
  • Secure the new capacitor with the original mounting bracket.
