340-408 uF MFD 220-250 VAC ±20% Volts Round Start Capacitor 50/60 Hz AC Electric

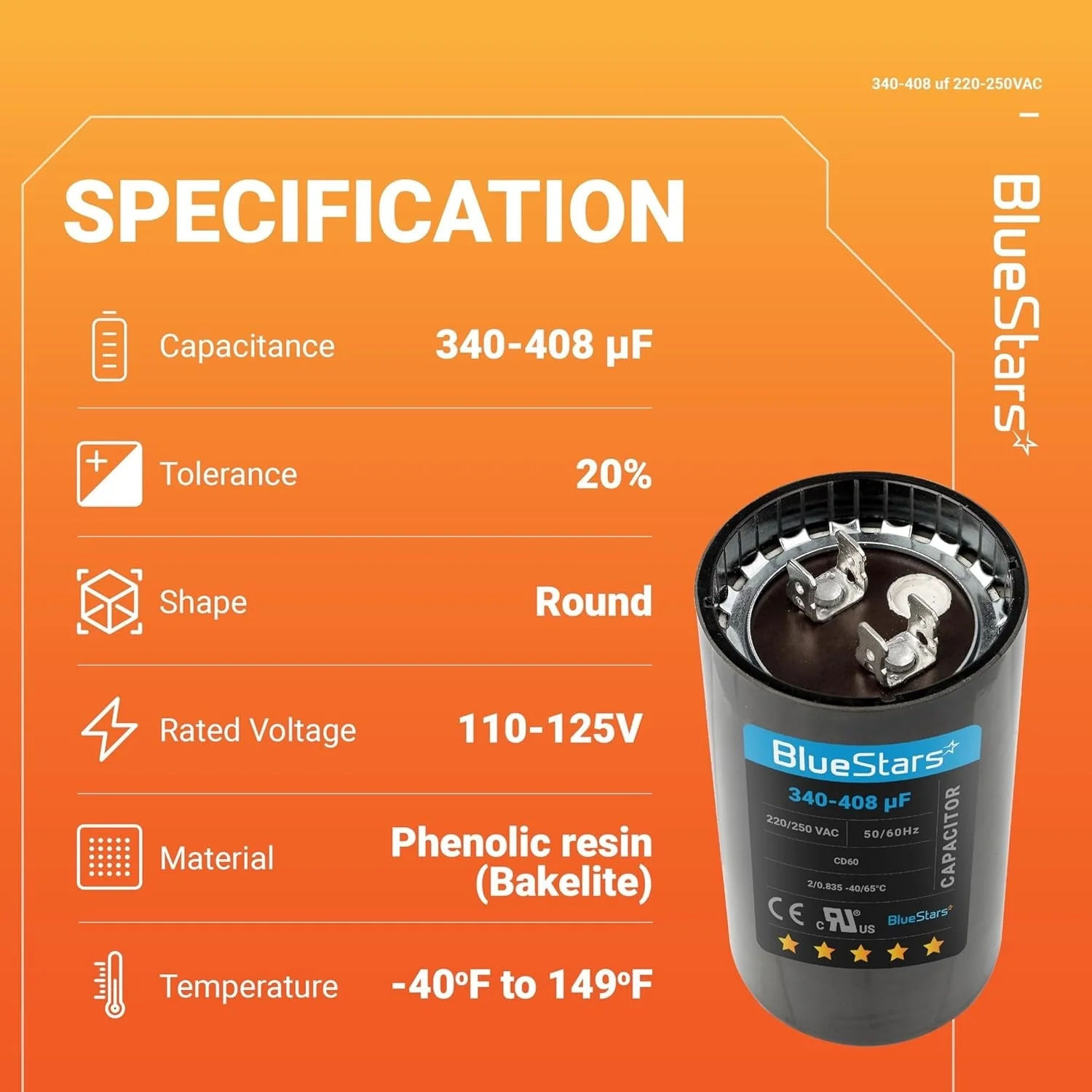

Key Features

• Capacitance: 340-408 Microfarads (uF/MFD)
• Voltage Rating: 220-250 Volts AC (VAC)
• Frequency: 50/60 Hertz (Hz)
• Capacitance Tolerance: ¬±20%
• Operating Temperature: -40¬∞C to +65¬∞C (-40¬∞F to +149¬∞F)
• Shape: Round
• Case Material: Moisture and oil-resistant plastic
• Terminals: 1/4 inch male quick-disconnect
• Dimensions: 1.75 in Diameter x 3.38 in Height (44.5 mm x 86 mm)

Replaces / Cross-Reference Part Numbers

• Universal replacement for any round motor start capacitor with matching capacitance and voltage specifications.
• Commonly designated as a CD60 type capacitor.

Compatibility & Fitment

• Designed for single-phase AC electric motors that require a start capacitor.
• Applications include HVAC units, air compressors, well pumps, and various other electric motors.
• To ensure compatibility, the replacement capacitor's uF/MFD range must match the original part's specification.
• The voltage rating of this capacitor (220-250 VAC) must be equal to or greater than the voltage rating of the capacitor being replaced.

When to Replace

• The motor hums but does not start.
• The motor starts slowly or requires manual assistance to turn over.
• The circuit breaker trips upon motor startup.
• The original capacitor shows physical signs of failure such as bulging, cracking, or leaking fluid.

Installation Tips

• Disconnect all electrical power to the unit before performing installation.
• Safely discharge the existing capacitor by carefully shorting its terminals with a resistor or an insulated-handle screwdriver.
• Note the wiring configuration before removing the old capacitor.
• As a non-polarized AC capacitor, wires can be connected to either terminal.
