[Lifetime Warranty] 30+7.5 uF MFD ±5% 370/440 VAC Dual Run Start Round Capacitor 50/60 Hz 10000AFC - Fits Condenser, Heat Pump

[Lifetime Warranty] 30+7.5 uF MFD ±5% 370/440 VAC Dual Run Start Round Capacitor 50/60 Hz 10000AFC - Fits Condenser, Heat Pump

30+7.5 uF ±5% 30/7.5 MFD 370/440 VAC Dual Run Start Round Capacitor 50/60Hz 10000AFC

Key Features

  • Capacitance: 30 + 7.5 Microfarad (MFD)
  • Capacitance Tolerance: ¬±5%
  • Voltage Rating: 370 or 440 VAC (dual rated)
  • Frequency: 50/60 Hz
  • Shape: Round

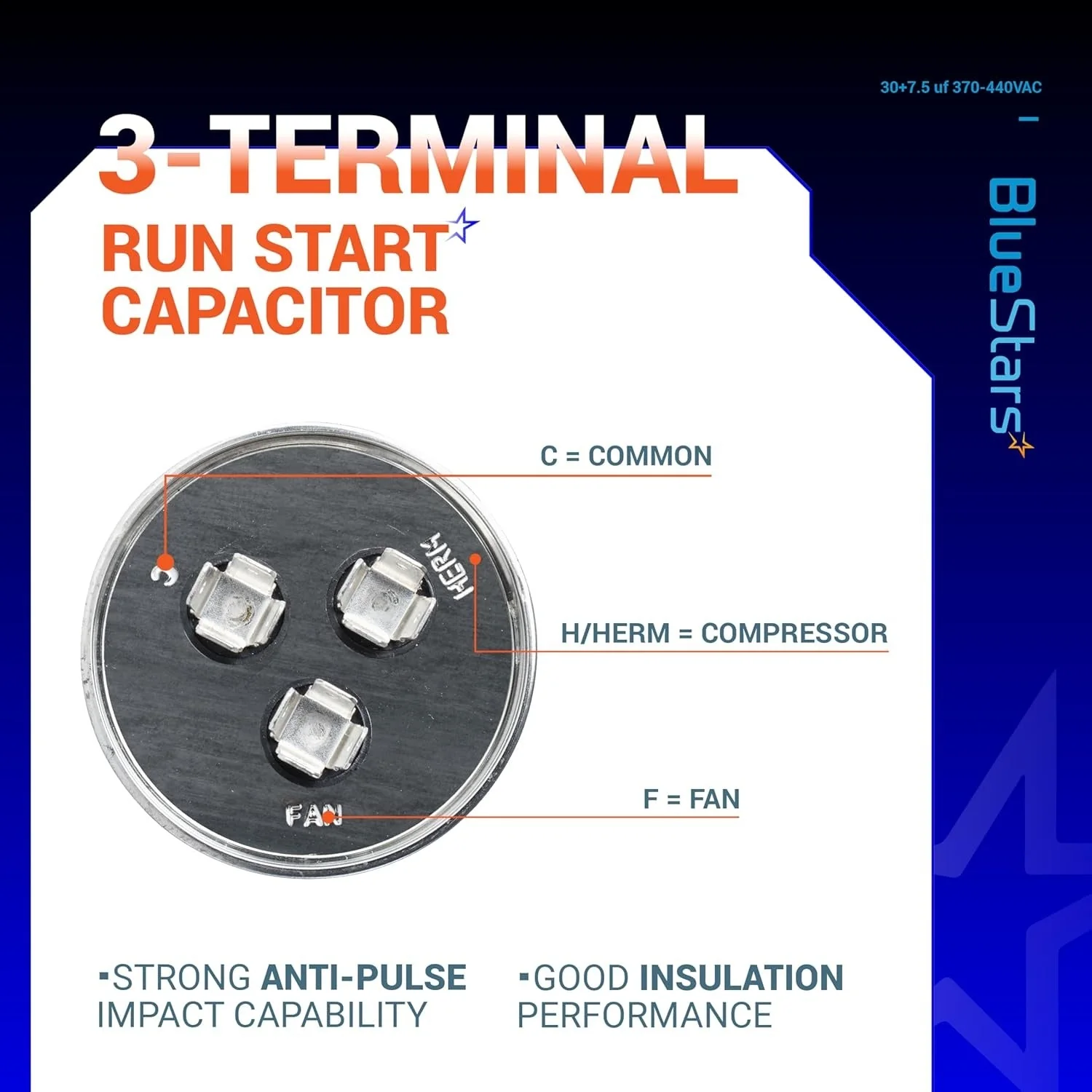

  • Terminals: 3 (Common, Fan, Hermetic Compressor)
  • Terminal Type: 0.250 in. quick-connect male blades
  • Operating Temperature: -40¬∞C to +70¬∞C (-104¬∞F to +158¬∞F)
  • Safety Rating: 10,000 AFC (Available Fault Current)
  • Construction: Aluminum case with steel cover

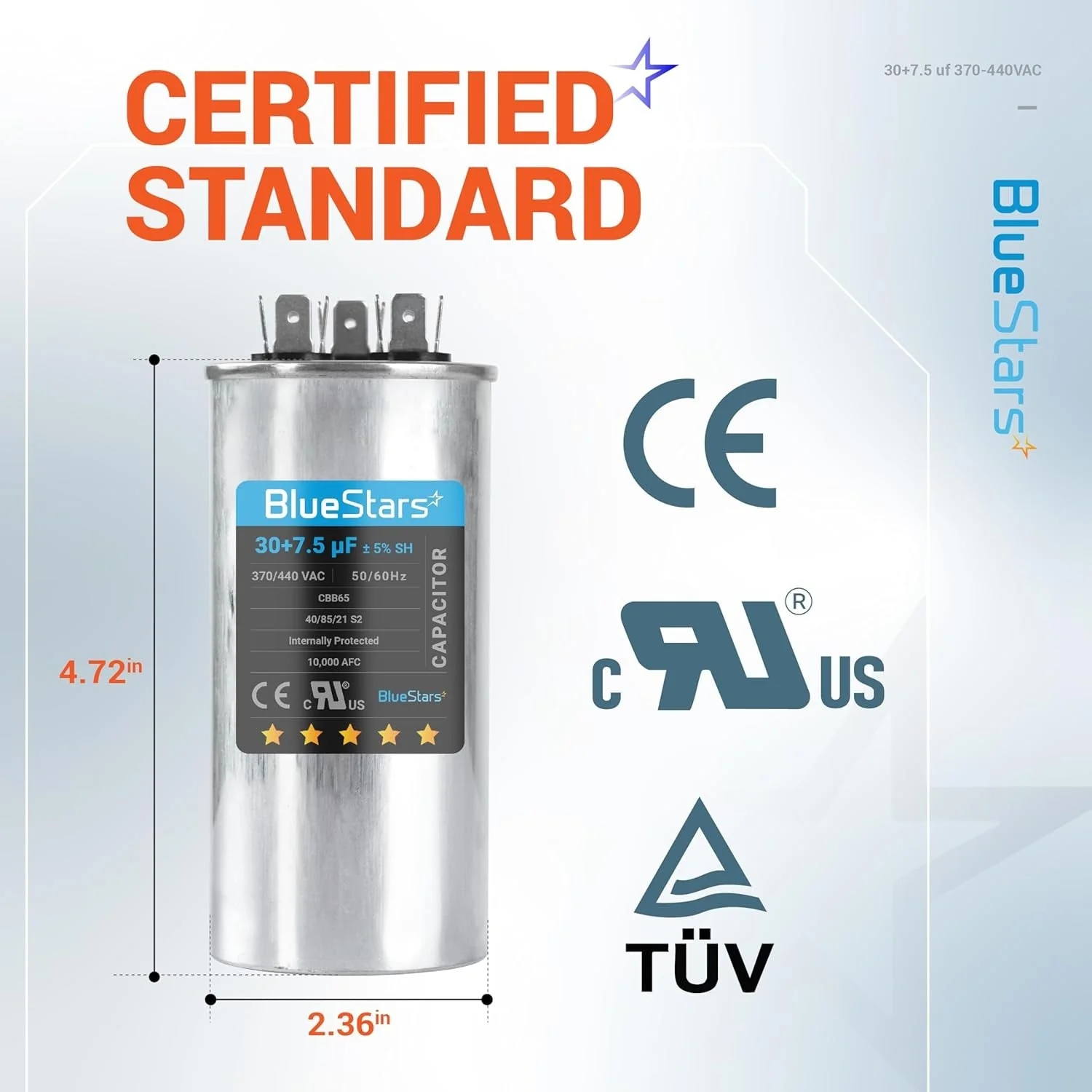

  • Dimensions: 2 in. Diameter x 4.6 in. Height

Replaces / Cross-Reference Part Numbers

This capacitor directly replaces any dual run capacitor with matching specifications. Verify the following ratings on your original capacitor:

  • Capacitance: 30/7.5 uF or 30+7.5 MFD
  • Voltage: 370V or 440V (this 370/440V unit can replace either)
  • Shape: Round (ensure physical dimensions allow for a secure fit)

Compatibility & Fitment

Designed for use in HVAC systems, including central air conditioners and heat pumps. This dual capacitor provides power to two electric motors simultaneously:

  • A higher capacitance terminal (30 uF) for the compressor motor (HERM).
  • A lower capacitance terminal (7.5 uF) for the condenser fan motor (FAN).

When to Replace

A capacitor may need replacement if you observe these symptoms:

  • Outdoor unit hums but the fan does not spin.
  • Compressor fails to start or struggles to turn on.
  • AC unit starts but then shuts down shortly after.
  • Visible signs of damage, such as a bulging or leaking top.
  • Capacitance measures outside the ¬±5% tolerance when tested with a multimeter.

Installation Tips

  • WARNING: Disconnect all electrical power to the HVAC unit before handling the capacitor.
  • Safely discharge the old capacitor by carefully shorting across the terminals with an insulated-handle screwdriver.
  • Document or photograph the wire connections to the C, FAN, and HERM terminals before removal.
  • Connect the wires to the corresponding terminals on the new capacitor.
  • Secure the new capacitor in the mounting bracket to prevent vibration.
