W69698 Pool Cleaner Long Life Diaphragm

Key Features

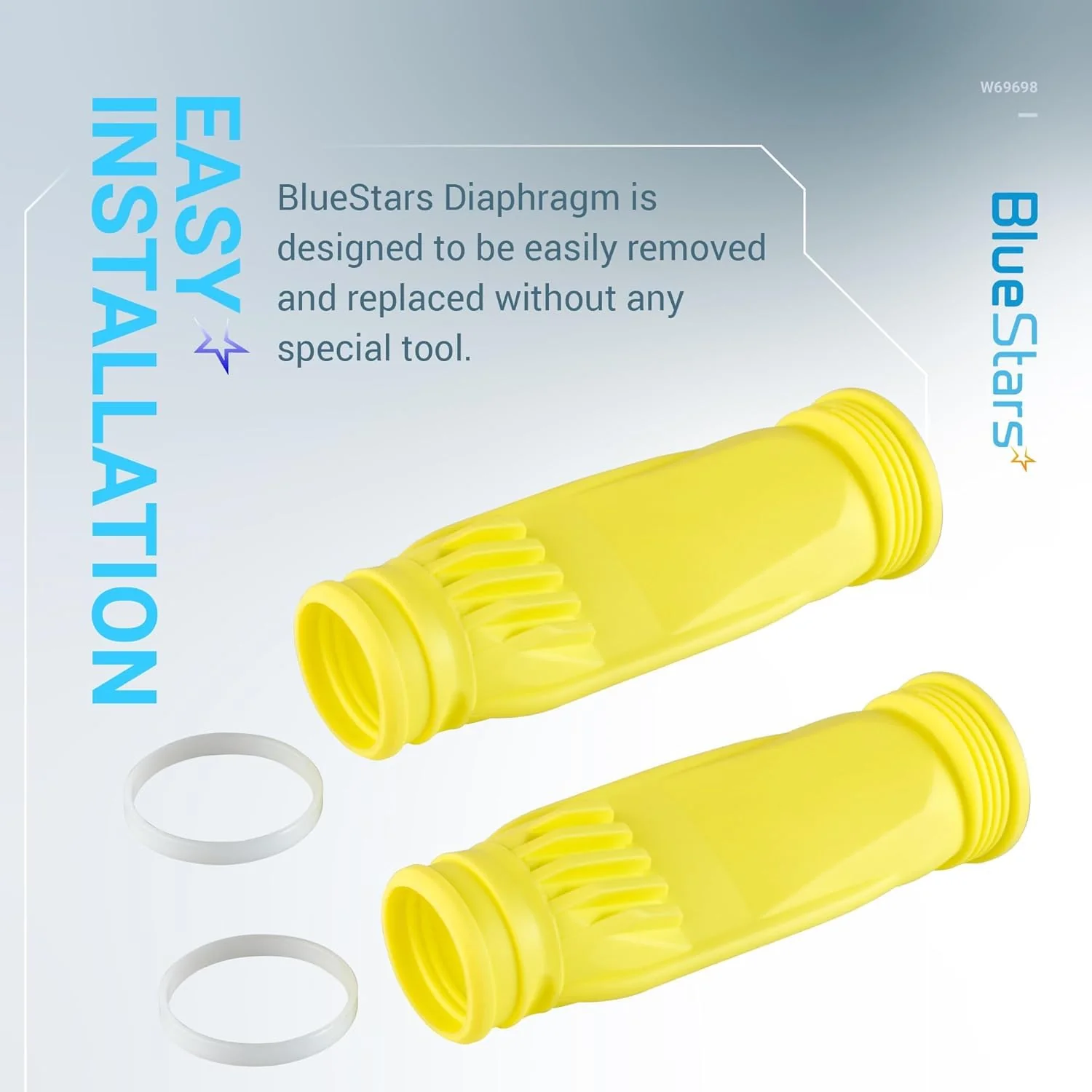

• Package includes two diaphragms and two retaining rings.
• Regulates water flow to enable cleaner movement and suction.

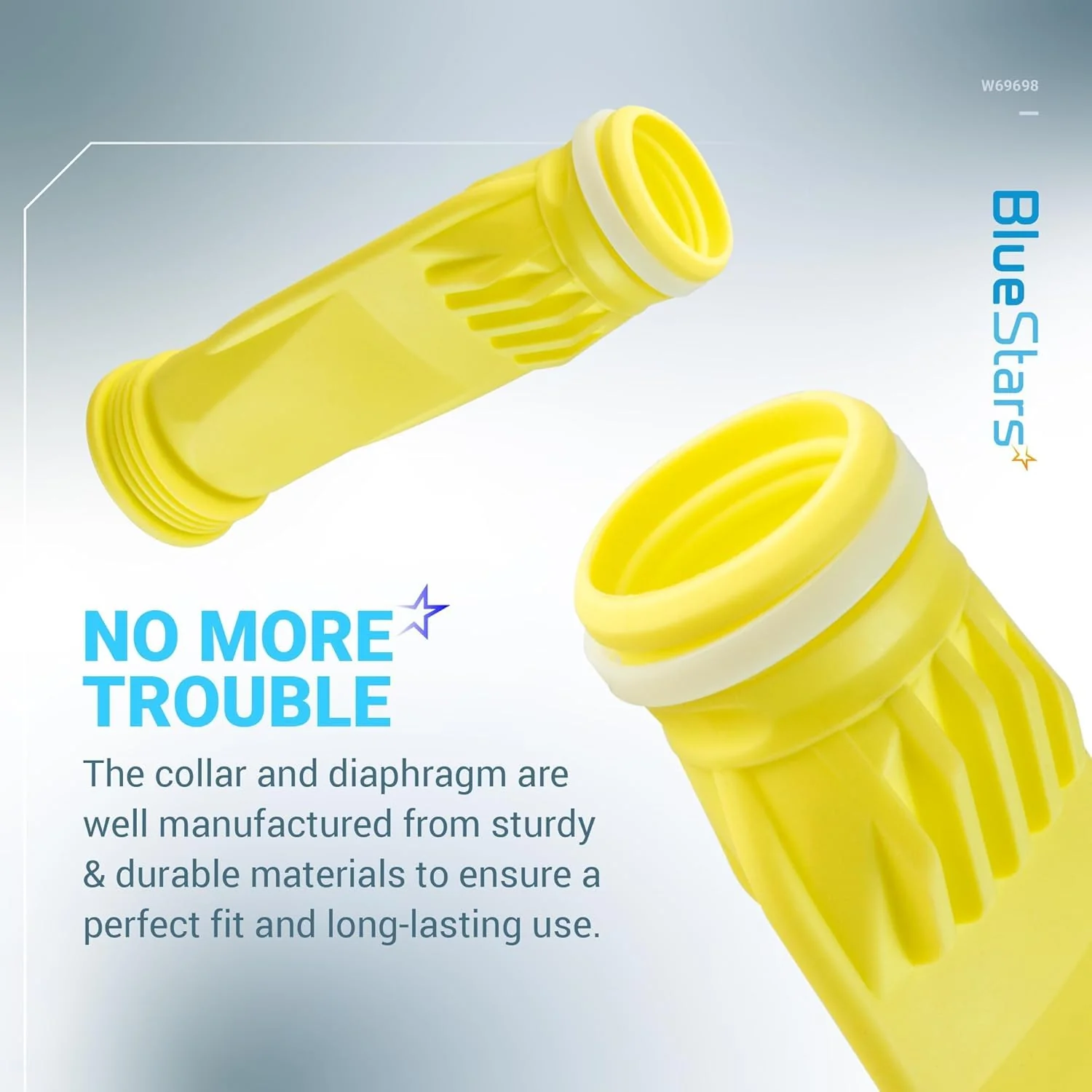

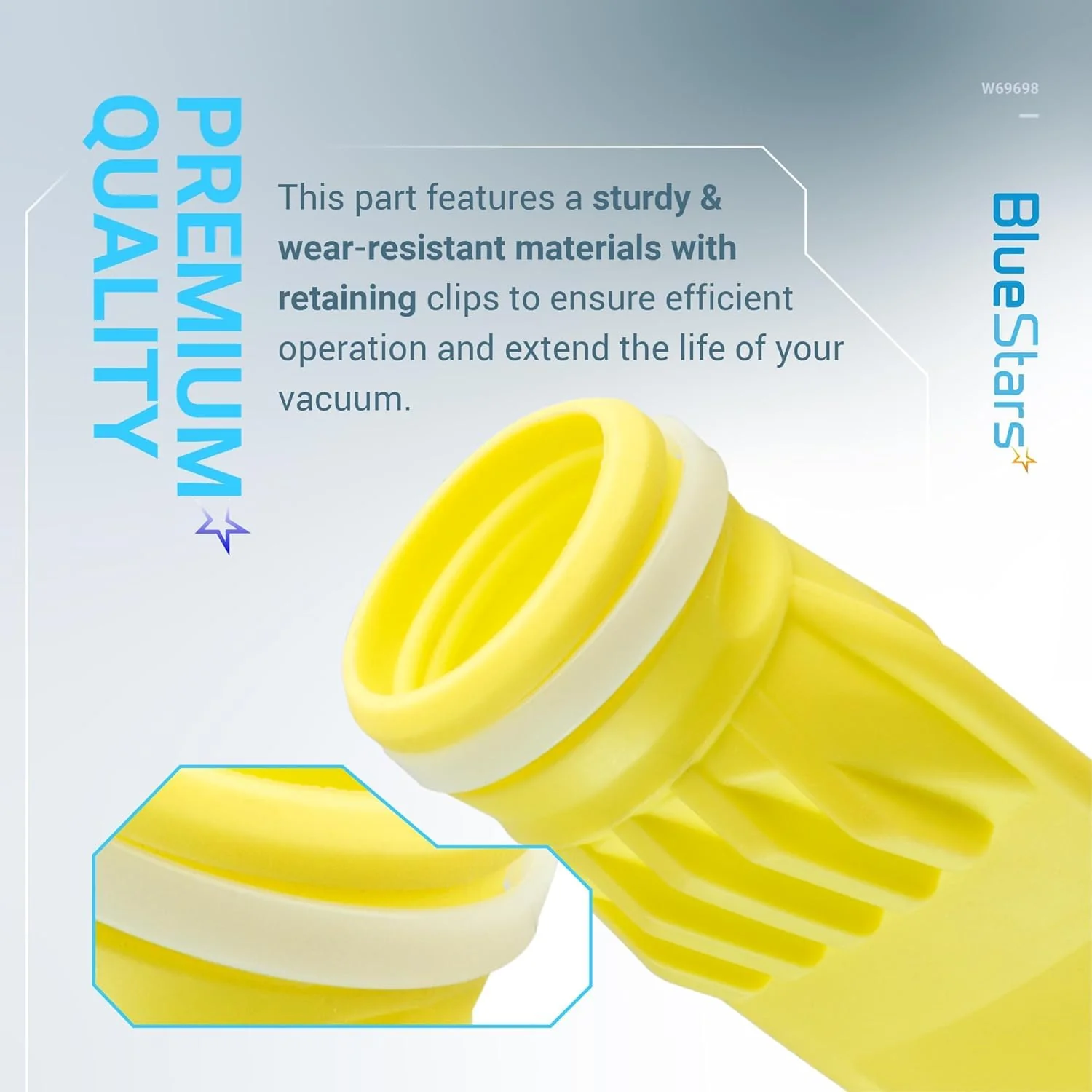

• Constructed from flexible, durable material for extended service life.
• Essential component for restoring pool cleaner operation.

Replaces / Cross-Reference Part Numbers

• W69698
• W81701
• W81700
• W81600

Compatibility & Fitment

• Fits Zodiac Baracuda G2, G3, G3 Pro, G4
• Fits Zodiac Baracuda Alpha 2, Alpha 3
• Fits Zodiac Baracuda Genius
• Fits Zodiac Baracuda Kontiki
• Fits Zodiac Baracuda Manta II
• Fits Zodiac Baracuda Pacer
• Fits Zodiac Baracuda Ranger, Ranger 1500
• Fits Zodiac Baracuda Wahoo
• Fits Zodiac Baracuda Zoom
• Fits Zodiac Creepy Crawler

When to Replace

• Cleaner has stopped moving or moves erratically.
• Noticeable reduction in suction or cleaning performance.
• Visible signs of damage, such as splits, cracks, or stretching on the diaphragm.
• Loud thumping or "hammering" noise during operation.

Installation Tips

• Turn off the pool pump before beginning installation.
• Remove the old diaphragm and retaining ring.
• Install the new diaphragm with the smooth side facing down towards the cleaner's foot.
• Secure the diaphragm in place with the new retaining ring.
• No special tools are required for replacement.
