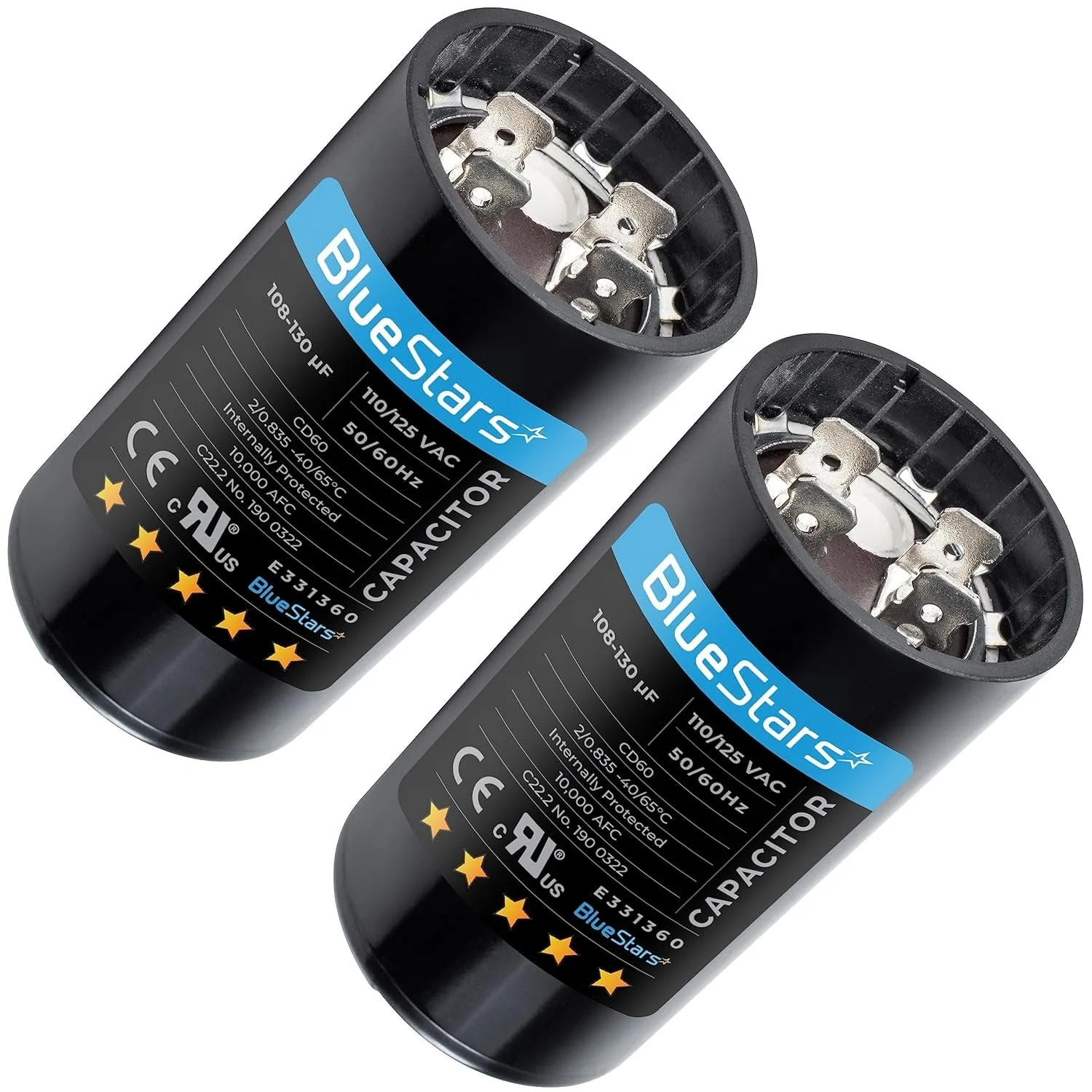

108-130 uF MFD 110-125 VAC Volts ±20% 50/60 Hz AC CD60 Round Start Capacitor - Pack of 2

Key Features

• Quantity: 2 Capacitors
• Capacitance: 108-130 uF/MFD
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Operating Temperature Range: -40°C to 65°C (-40°F to 149°F)
• Shape: Round
• Terminals: 1/4 inch male quick-connect
• Construction: Dry, non-polarized electrolytic type in a phenolic resin case
• Safety: Includes a built-in safety pressure switch

Replaces / Cross-Reference Part Numbers

• Replaces any round start capacitor with matching 108-130 uF/MFD capacitance and 110-125V voltage ratings.
• Compatible with start capacitors of the CD60 type.
• Ensure your original capacitor's specifications fall within this part's range before ordering.

Compatibility & Fitment

Designed for intermittent duty on single-phase AC induction motors. Common applications include:

• HVAC compressors and fan motors
• Air conditioner units
• Furnace blowers
• Well pumps and pool pumps
• Refrigeration units
• General purpose electric motors

When to Replace

A failing start capacitor may cause the following symptoms:

• Motor hums but does not start
• Motor requires a manual spin to begin operation
• Delayed motor start-up
• Visible damage to the old capacitor, such as bulging, cracking, or leaking fluid
• Circuit breaker trips when the motor attempts to start

Installation Tips

• WARNING: Disconnect all electrical power to the equipment before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver.
• Verify the uF/MFD rating of the new capacitor is within ±20% of the original part.
• The voltage rating of the new capacitor must be equal to or greater than the original.
• Note or photograph the wire connections before removing the old capacitor to ensure correct installation.
