270-324 uf/MFD 330 VAC Round Start Capacitor

Key Features

• Capacitance: 270-324 Microfarad
• Voltage Rating: 330 VAC
• Frequency: 50/60 Hz
• Terminals: 1/4 in Quick Disconnect
• Case Dimensions: 2 9/16 in Diameter x 4 3/8 in Height
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Duty Cycle: Rated for 20 starts per hour
• Construction: Moisture and oil-resistant plastic case
• Safety: UL Recognized and CUL Approved with a pressure-sensitive safety interrupter

Replaces / Cross-Reference Part Numbers

• 43-17075-07
• Dayton 2MEP6
• 18-1901-58
• CD60B-3CJ270324R-T1

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.
• Universal replacement for capacitors with a 270-324 MFD capacitance and a 330 VAC or higher voltage rating.
• Suitable for various motor-driven applications including HVAC, pumps, compressors, and machinery.

When to Replace

• Motor hums but does not start or struggles to start.
• Start cycle is slow or requires manual assistance.
• Circuit breaker trips repeatedly during motor startup.
• Visible damage to the existing capacitor, such as bulging, cracking, or fluid leakage.

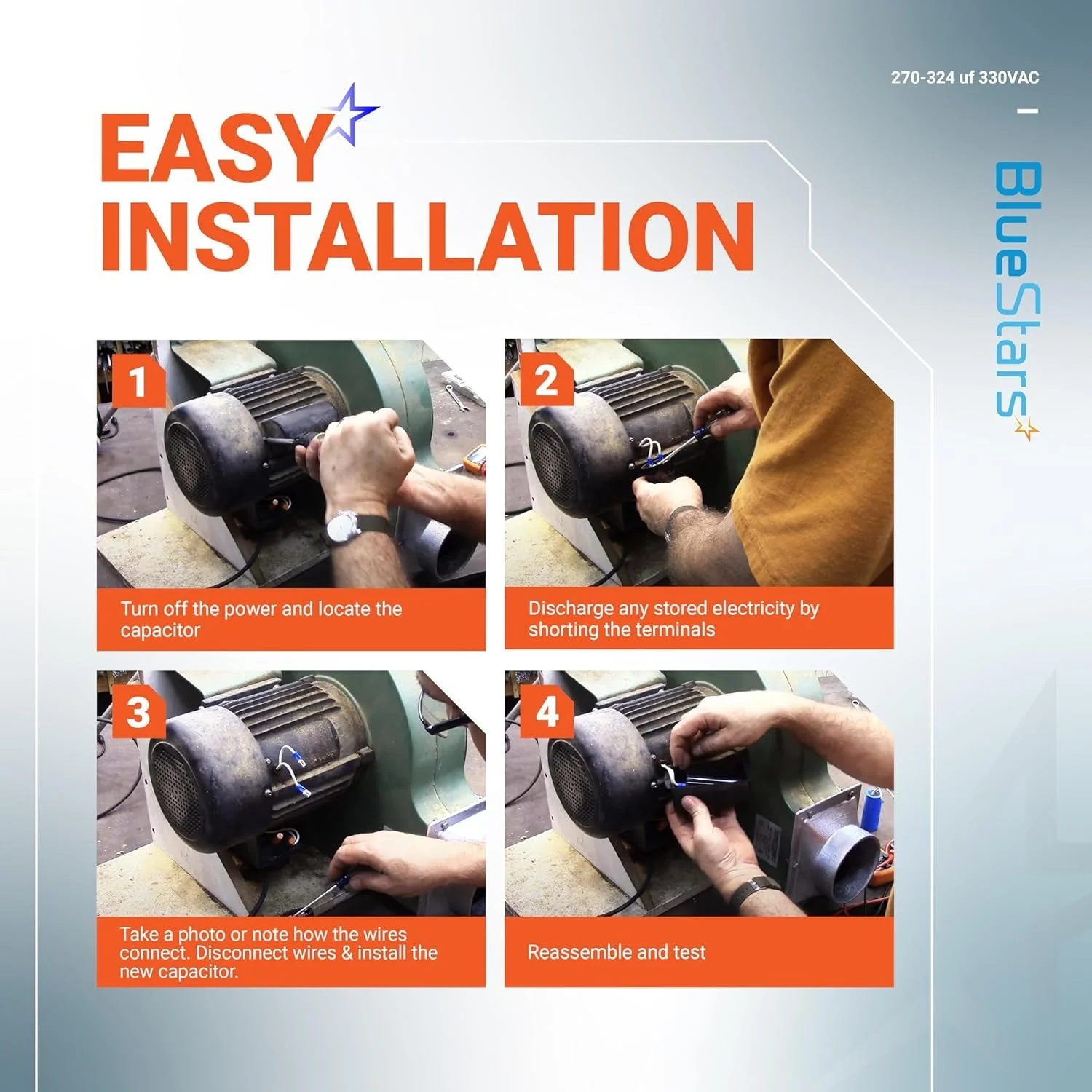

Installation Tips

• Disconnect all electrical power to the unit before performing any service.
• Safely discharge the existing capacitor by shorting the terminals with an insulated tool.
• Verify the uf/MFD and VAC ratings of the new capacitor match the component being replaced.
• Ensure connections are secure and the capacitor is mounted properly.
• Professional installation is recommended for those unfamiliar with electrical work.
