20 Pcs 738-04124A Shear Pins & 714-04040 Cotter Pin

Key Features

• Complete 20-piece maintenance kit
• Package includes: 10x Shear Pins and 10x Cotter Pins

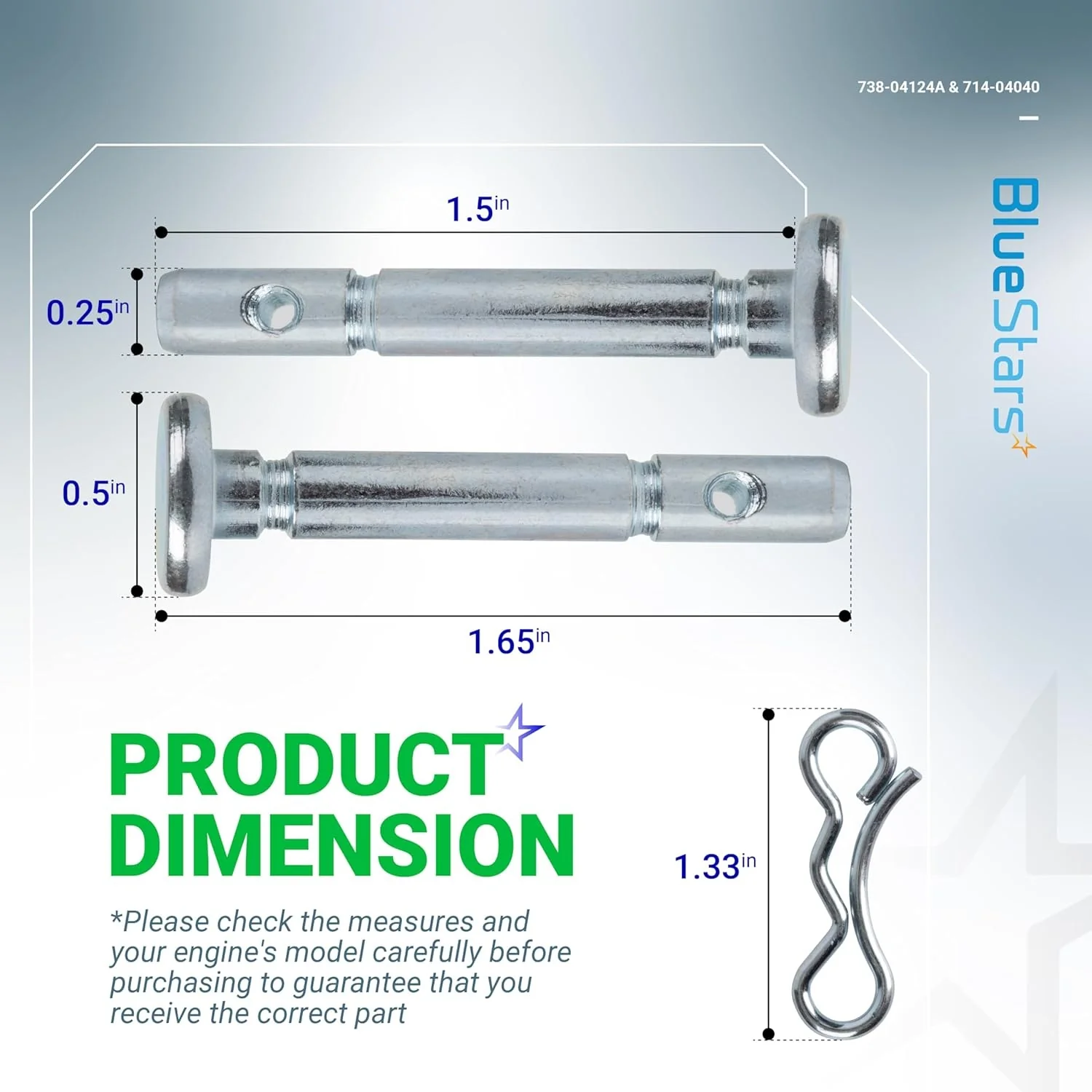

• Shear Pin Dimensions: 1/4 inch diameter x 1-1/2 inch length

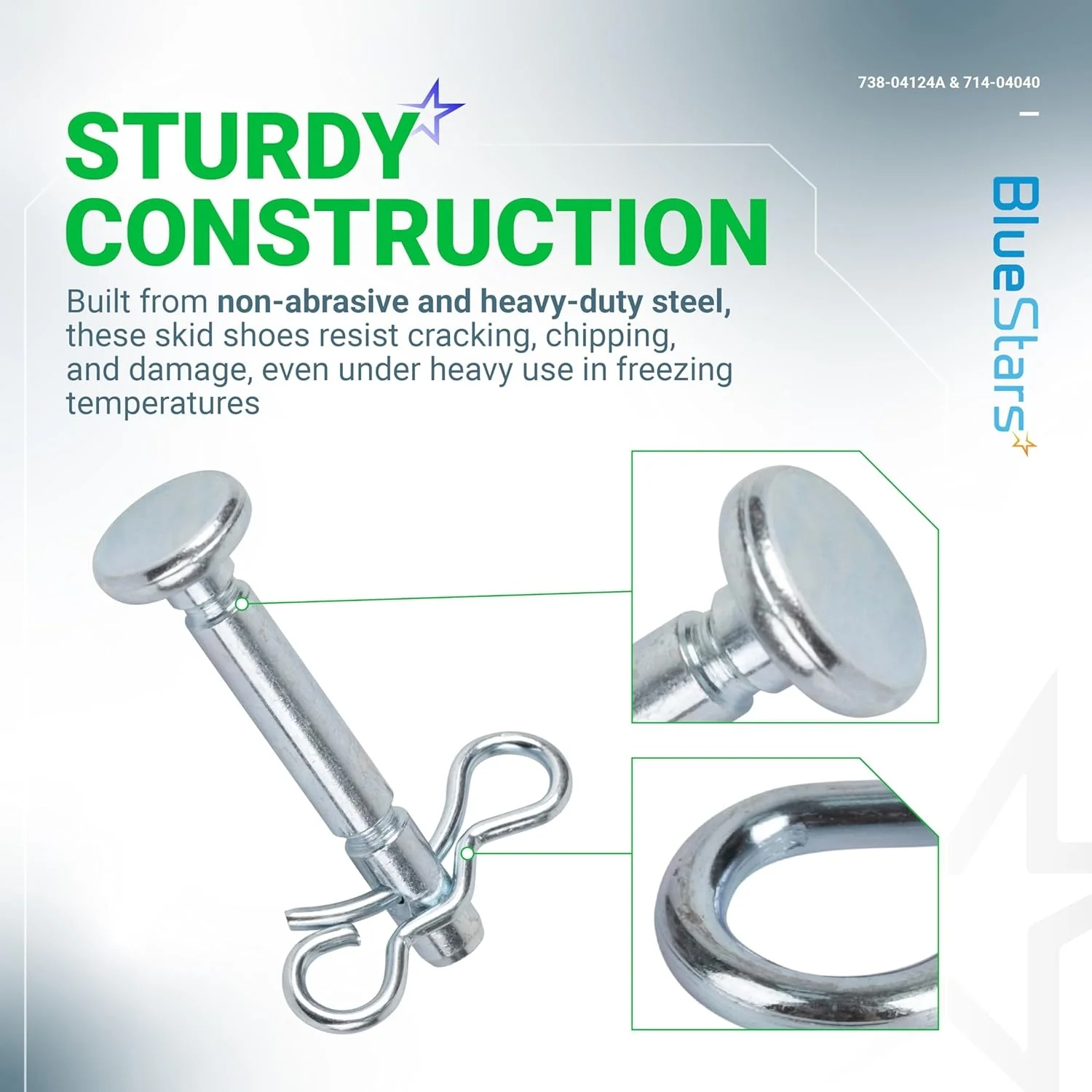

• Material: Metal construction

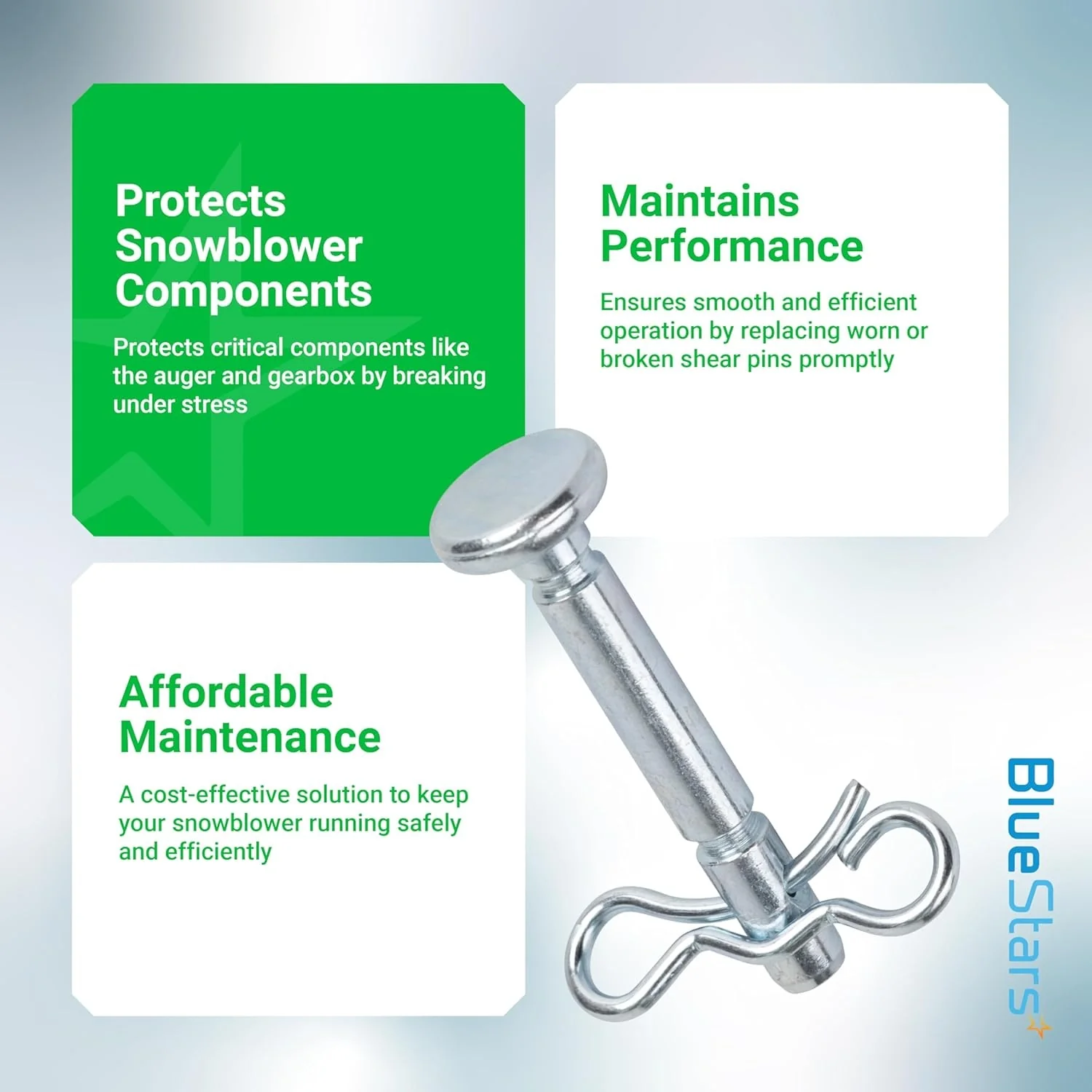

• Engineered to protect the auger gear box from damage

Replaces / Cross-Reference Part Numbers

• Shear Pin: Replaces 738-04124A, 738-04124, 738-05273
• Cotter Pin: Replaces 714-04040, YS-714-04040

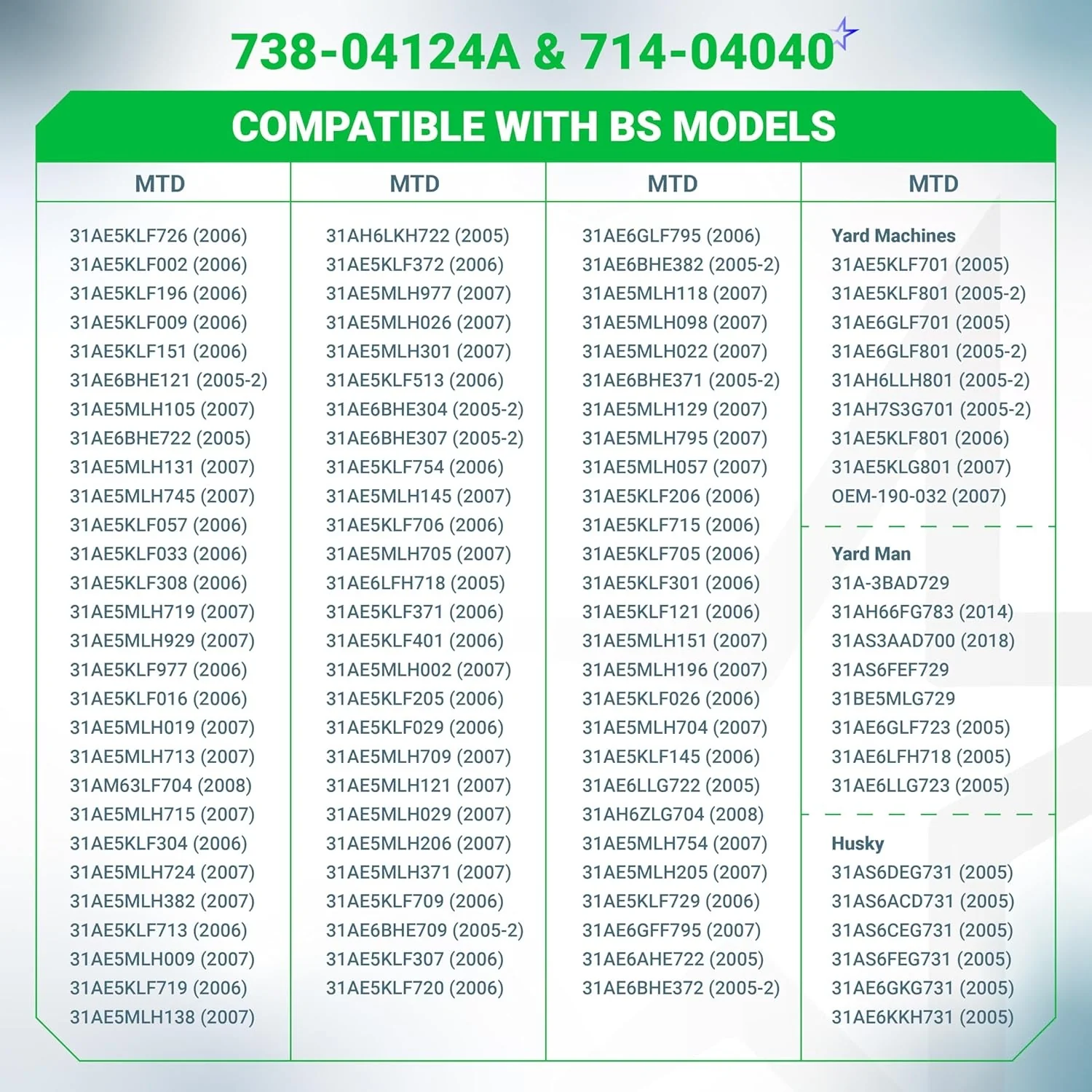

Compatibility & Fitment

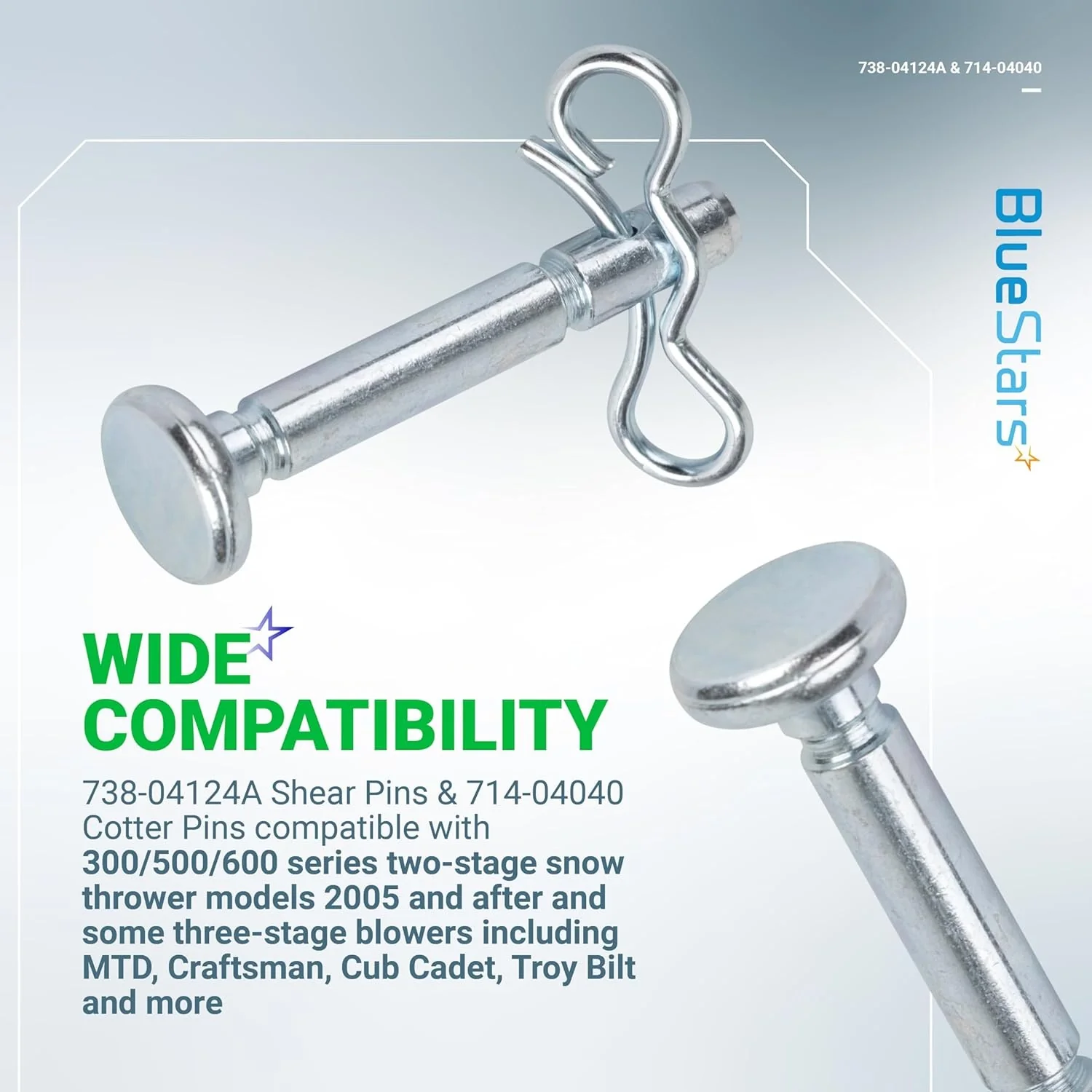

• Designed for various snowblower and snow thrower models
• Fits equipment from brands including MTD, Craftsman, Cub Cadet, Troy-Bilt, and Murray
• Verify the required part number in your owner's manual to ensure proper fitment

When to Replace

• Replace the shear pin immediately when it is broken or sheared. This occurs when the auger encounters a hard object, protecting the transmission.
• Replace the cotter pin whenever a shear pin is replaced, as they are not designed for reuse.

Installation Tips

• Disconnect the spark plug wire before performing any maintenance.
• Align the hole in the auger shaft with the hole in the gear shaft.
• Insert the new shear pin through the aligned holes.
• Secure the shear pin in place by inserting the cotter pin through the small hole at the end of the shear pin.
• Bend the legs of the cotter pin to lock it in place.
