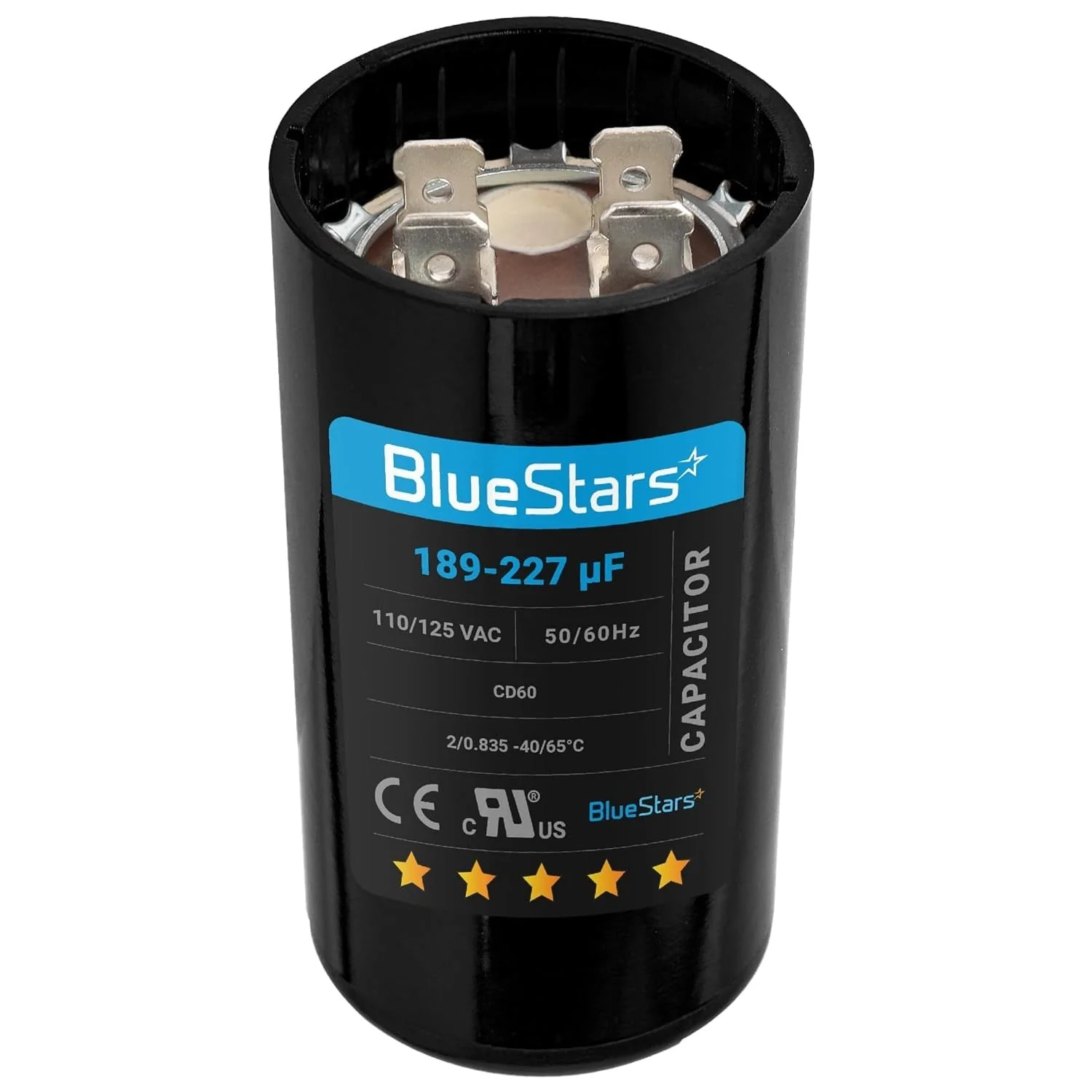

189-227 uf/MFD 125 VAC Volts Round Start Capacitor 50/60 Hz AC Electric

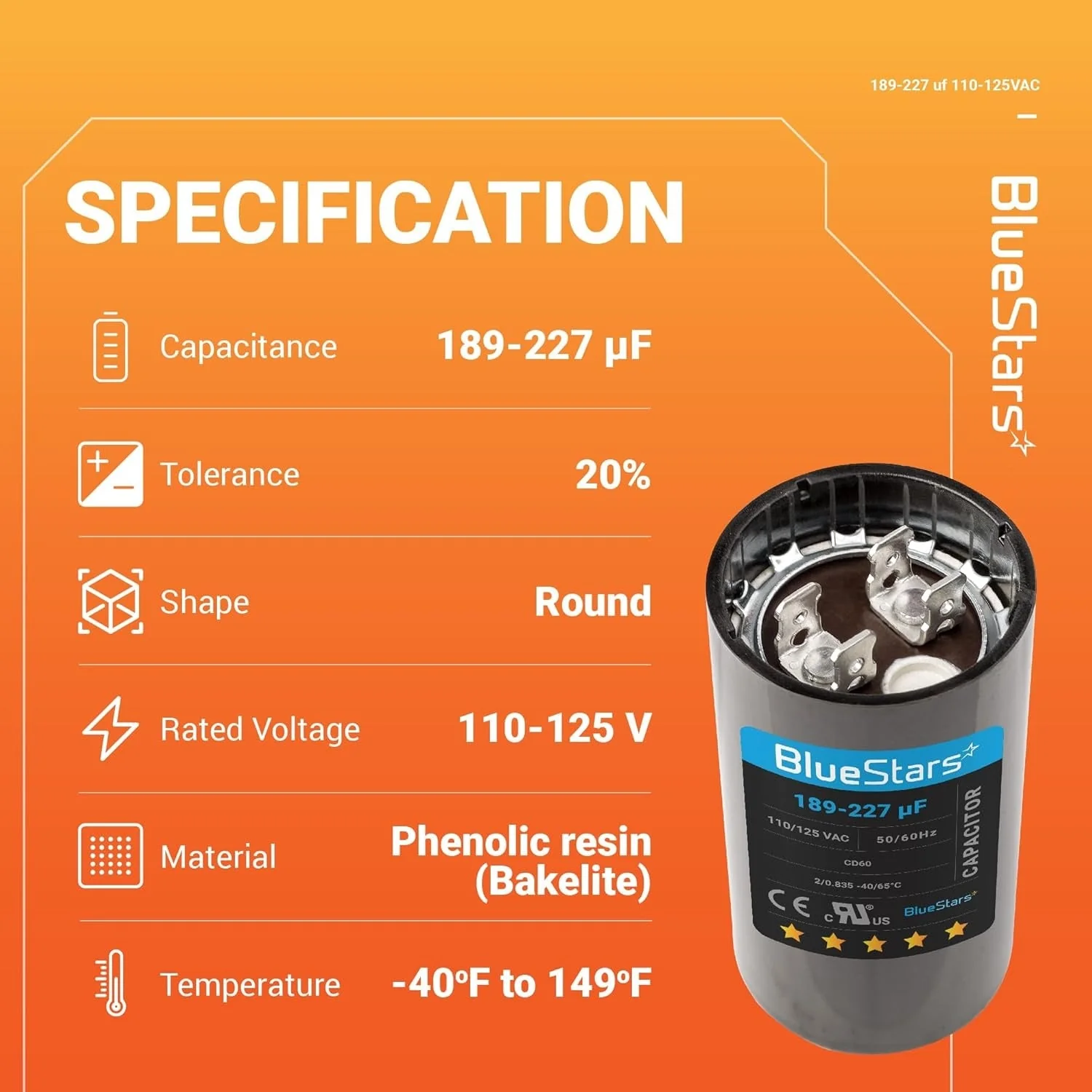

Key Features

• Capacitance: 189-227 uF/MFD
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Shape: Round
• Case Material: Aluminum, Plastic

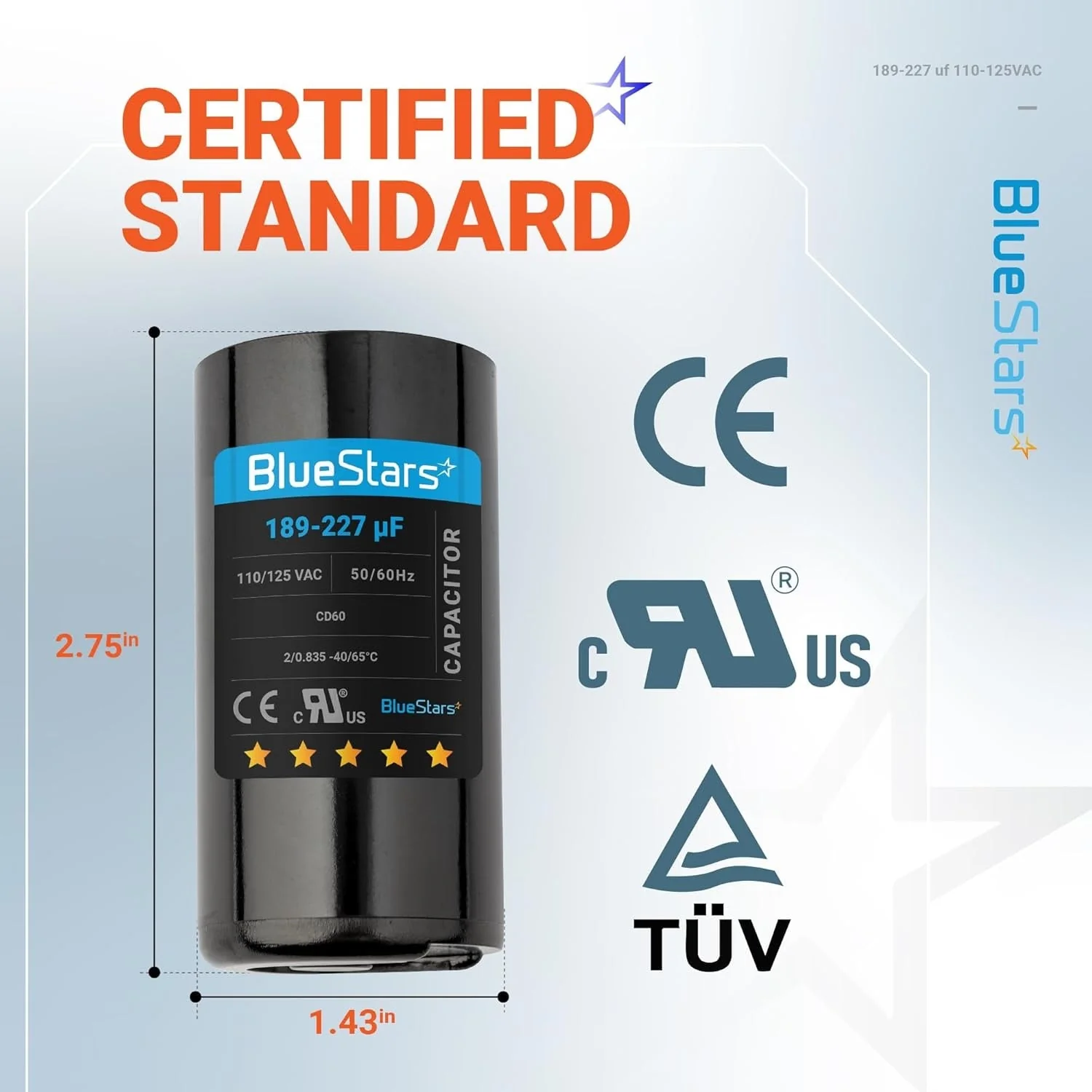

• Dimensions: 1.44 in. Diameter
• Dielectric Fluid: Non-PCB Oil Filled
• Terminals: 1/4 in. Male Quick Connect

Replaces / Cross-Reference Part Numbers

• Replaces any round motor start capacitor with matching capacitance and voltage specifications.
• Compatible with generic type CD60 capacitors.

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.
• Common applications include HVAC units, air compressors, well pumps, and other electric motors.

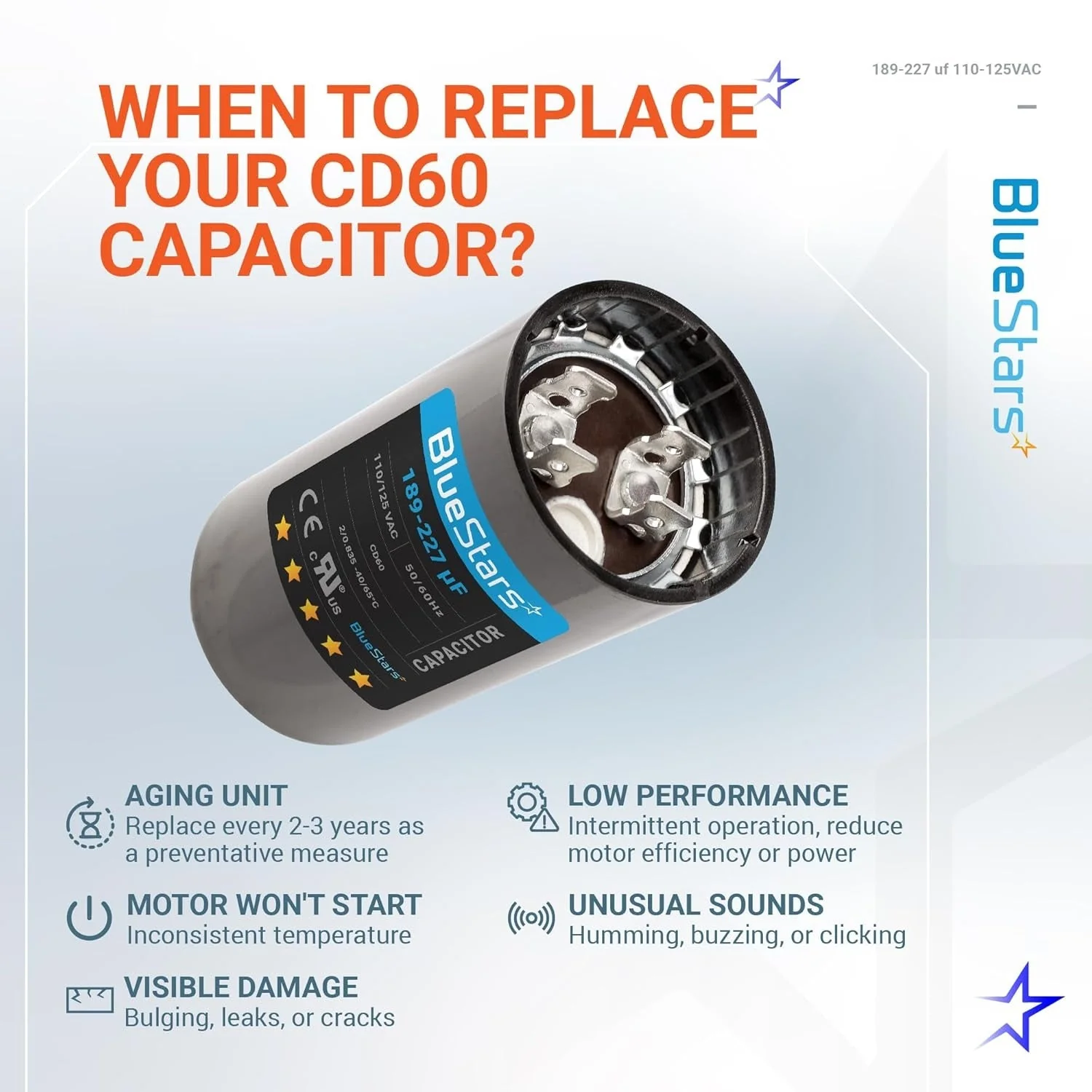

When to Replace

• Motor hums but fails to start or starts slowly.
• Circuit breaker trips at motor startup.
• Capacitor shows physical damage such as bulging, cracking, or leaking fluid.
• Capacitance measures outside of the 189-227 uF range when tested with a multimeter.

Installation Tips

• Disconnect all electrical power to the equipment before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver or appropriate tool.

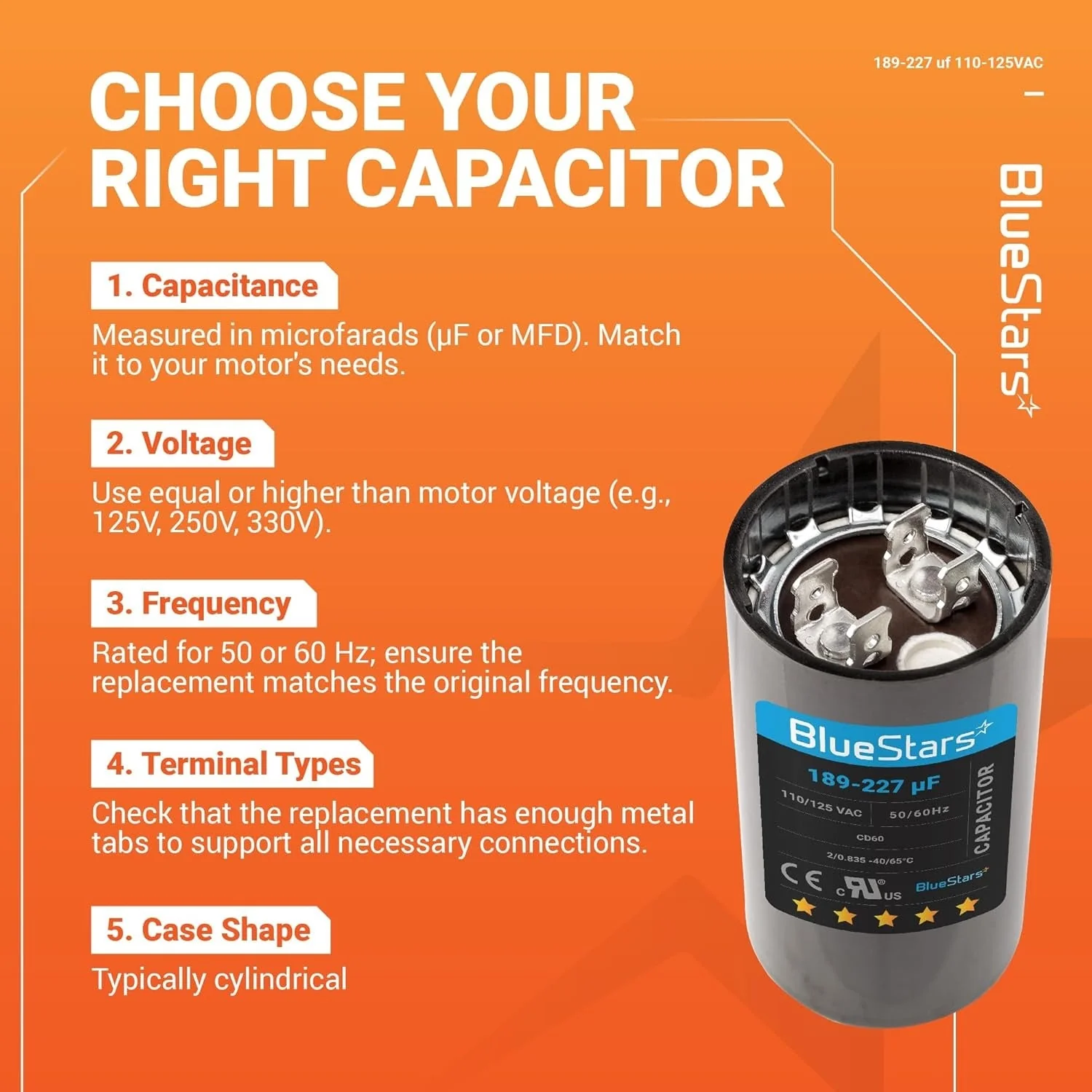

• Ensure the replacement capacitor's uF/MFD rating matches the original component.
• The voltage rating of the new capacitor must be equal to or greater than the original.
• This is a non-polarized capacitor; wires can be connected to either terminal.
