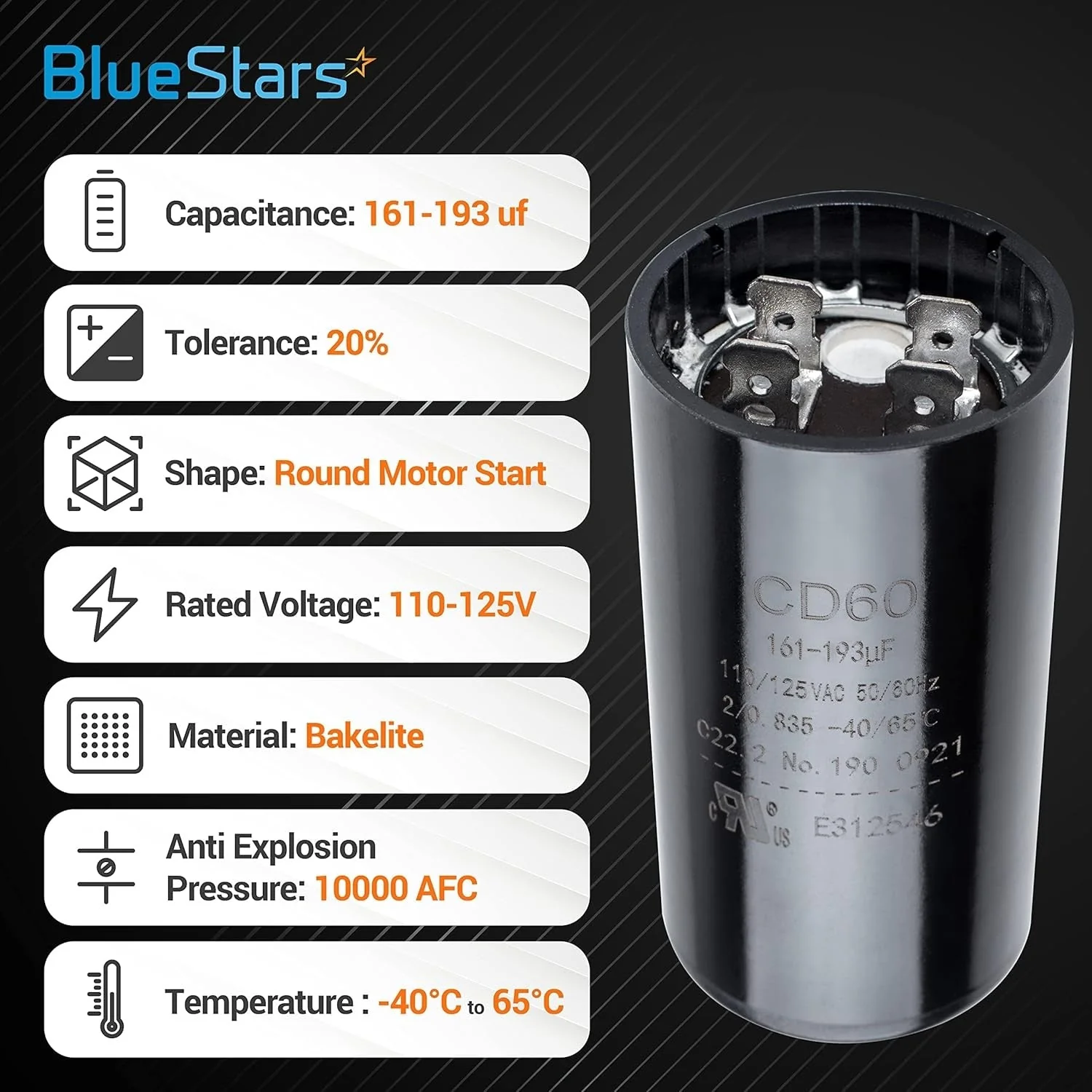

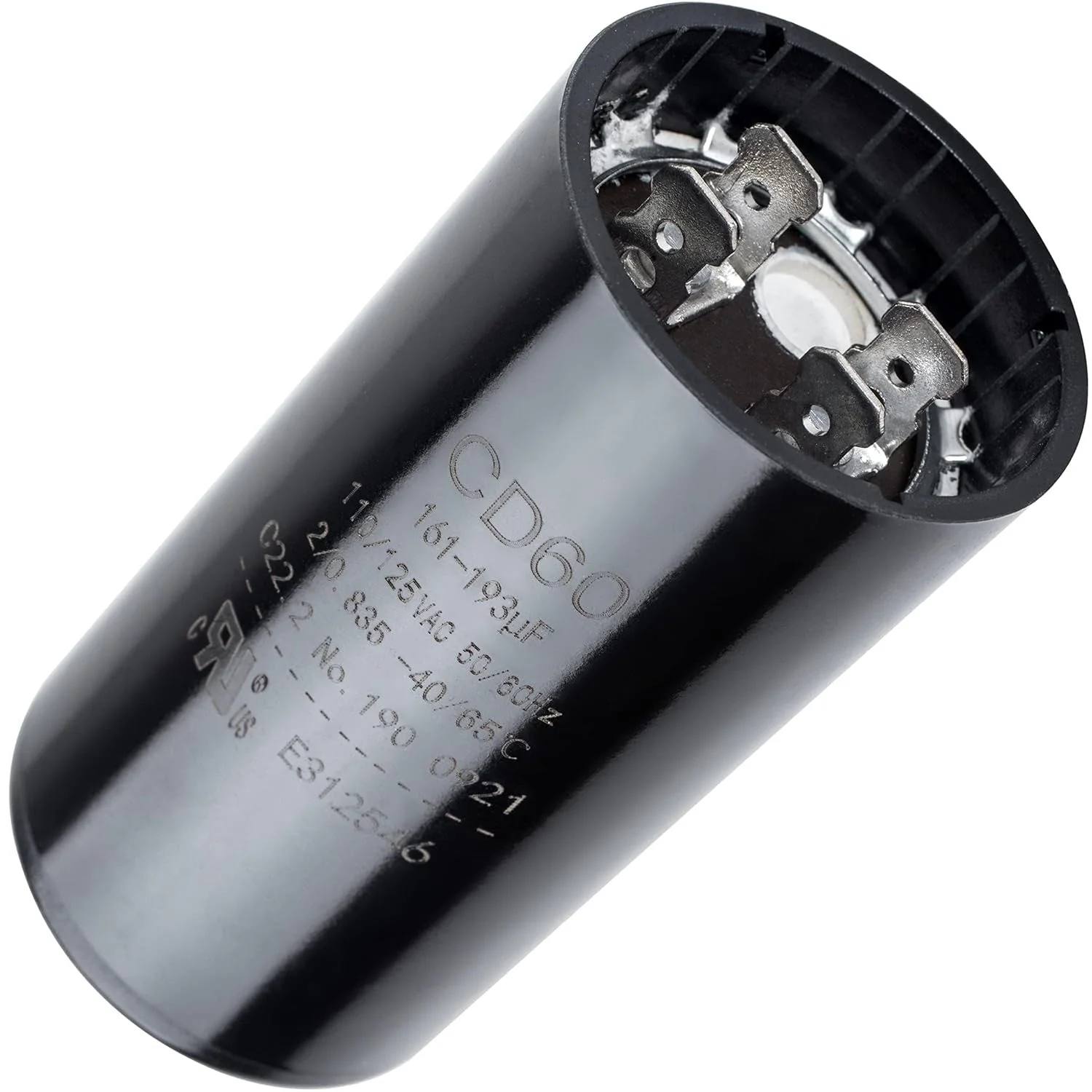

161-193 uf/MFD 125 VAC CD60 Round Motor Well Pump Start Capacitor

Key Features

• Model: CD60
• Capacitance: 161-193 Microfarad (uf/MFD)
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Shape: Round
• Case Material: Plastic
• Terminals: 2-post
• Operating Temperature Range: -40°C to +65°C (-40°F to +149°F)
• Capacitance Tolerance: ±20%

Replaces / Cross-Reference Part Numbers

• This capacitor serves as a universal replacement for any start capacitor with the same specifications.
• Ensure the replacement part matches the 161-193 uf/MFD capacitance range and 125 VAC or higher voltage rating.

Compatibility & Fitment

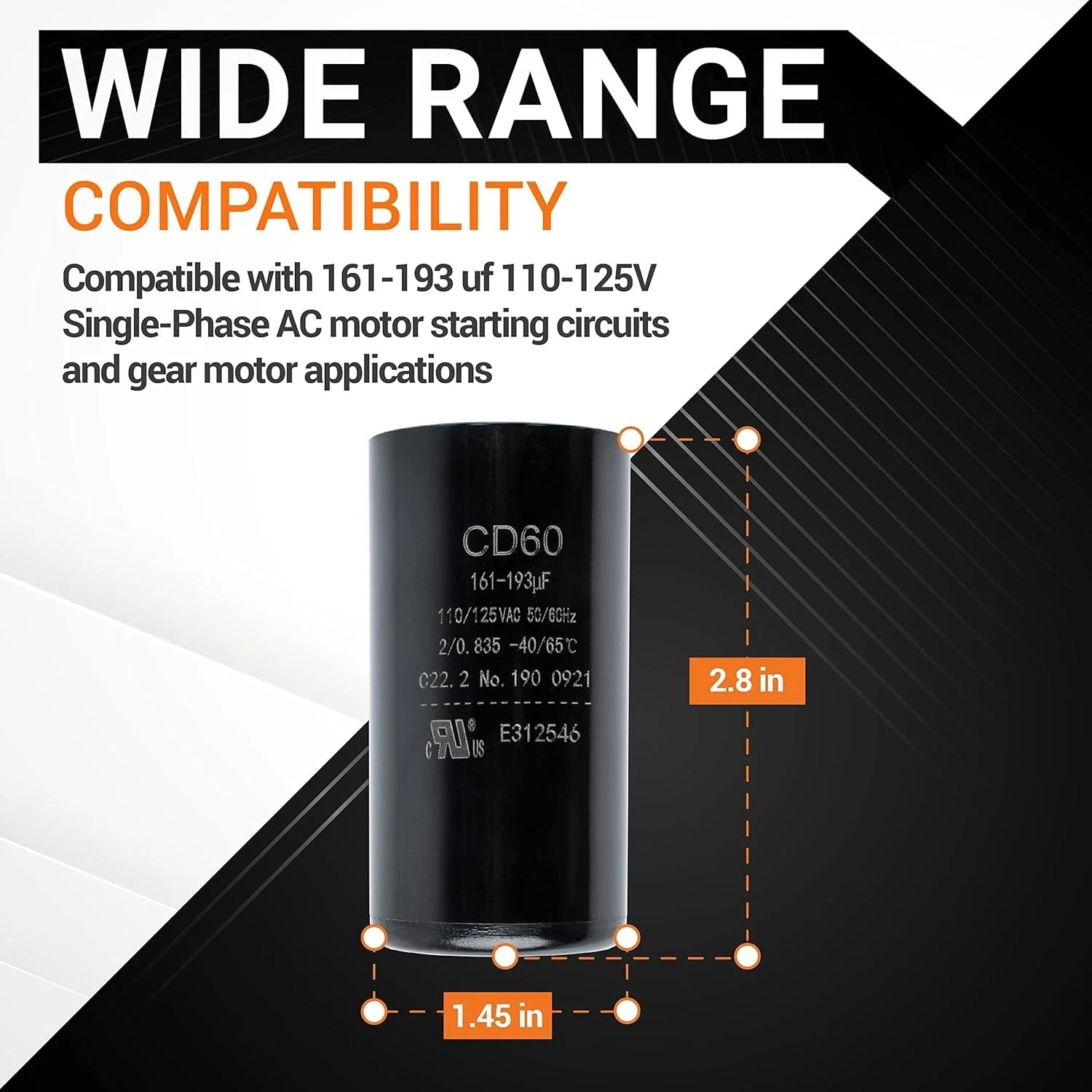

• Suitable for single-phase electric motors requiring a start capacitor.
• Common applications include:
  • Well pumps
  • HVAC systems
  • Air compressors
  • Central air conditioners
  • Heat pumps
  • Condenser fan motors

When to Replace

• Motor hums but fails to start or struggles to start.
• Motor starts slowly.
• Start-up sequence repeatedly trips the circuit breaker.
• Visible signs of damage to the existing capacitor, such as bulging, leaking, or cracks.

Installation Tips

• Disconnect all electrical power to the unit before servicing.

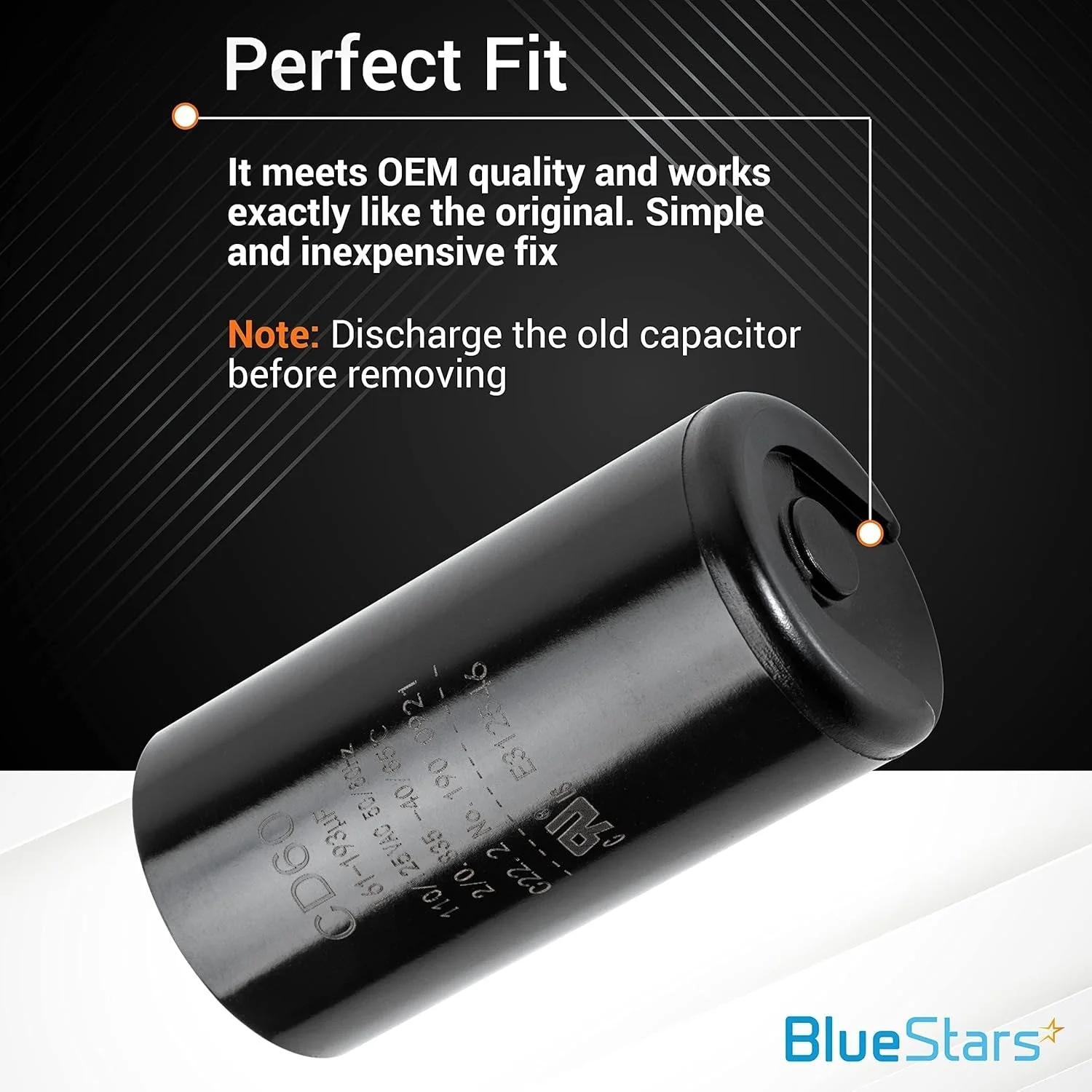

• Discharge the old capacitor by shorting the terminals with an insulated screwdriver to prevent electric shock.
• Verify the capacitance (uf/MFD) and voltage (VAC) ratings of the new capacitor match the original part. The voltage rating must be equal to or greater than the original.
• Note the wire connections before removing the old capacitor to ensure correct installation.
