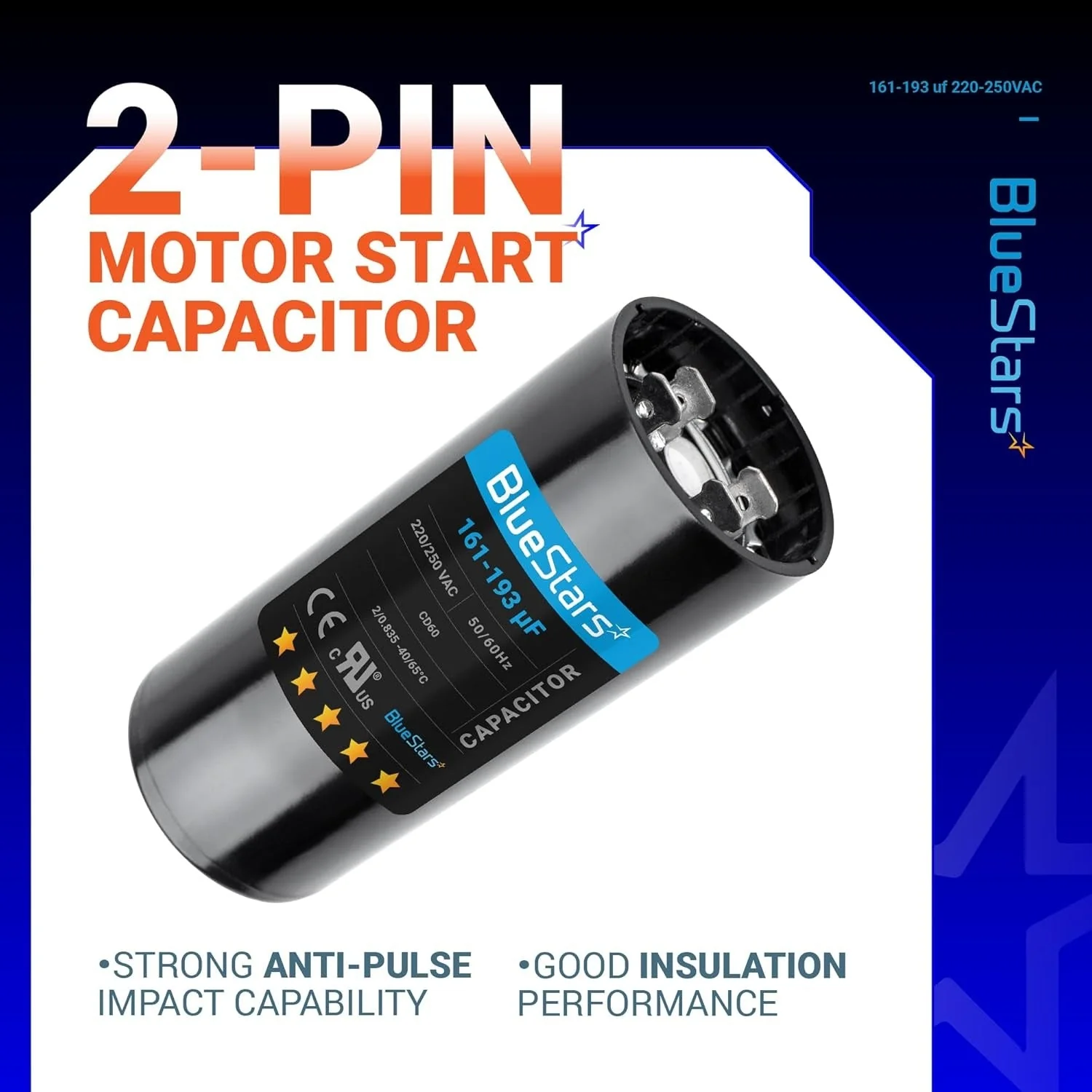

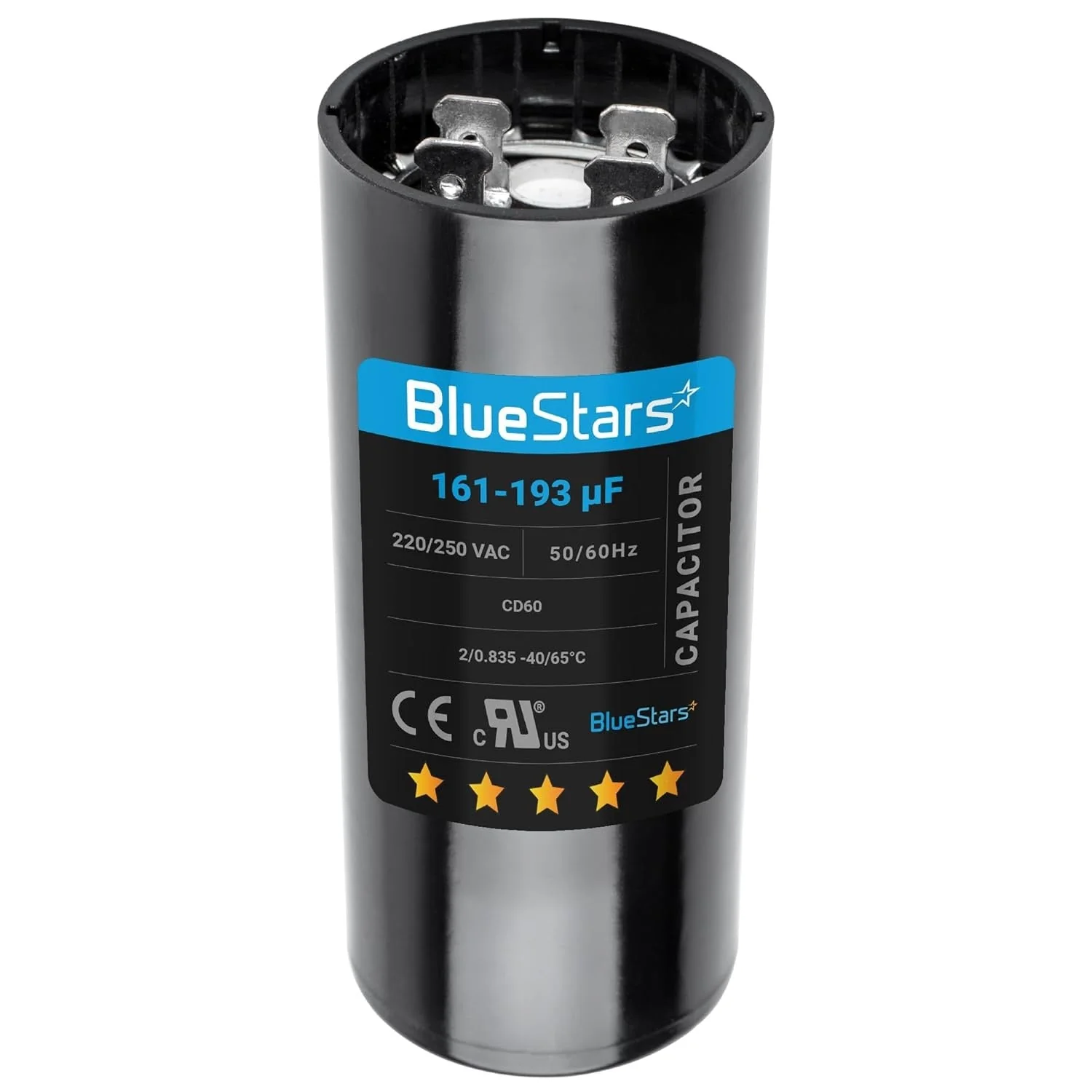

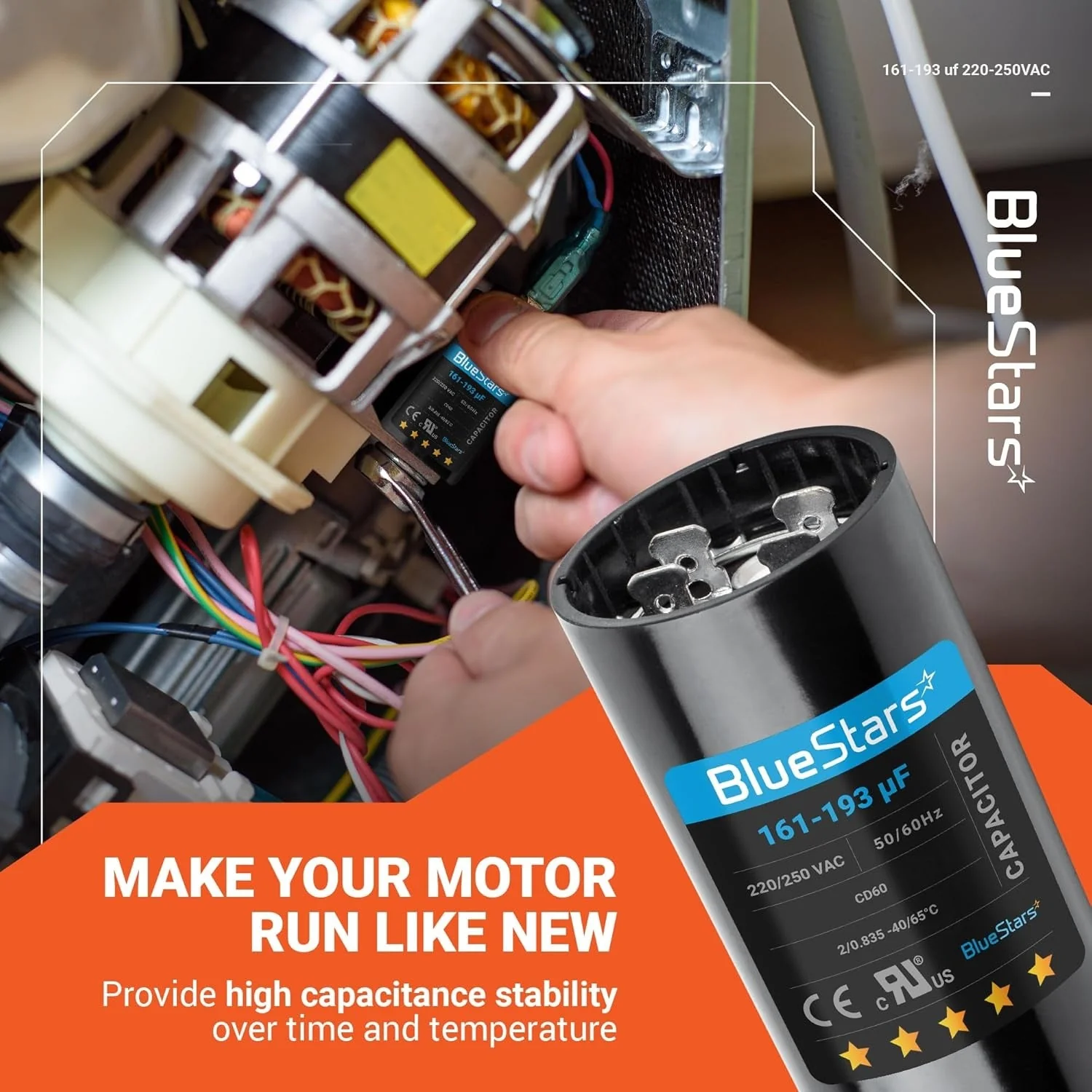

161-193 uf MFD 50/60 Hz 220-250 VAC Round Start Capacitor

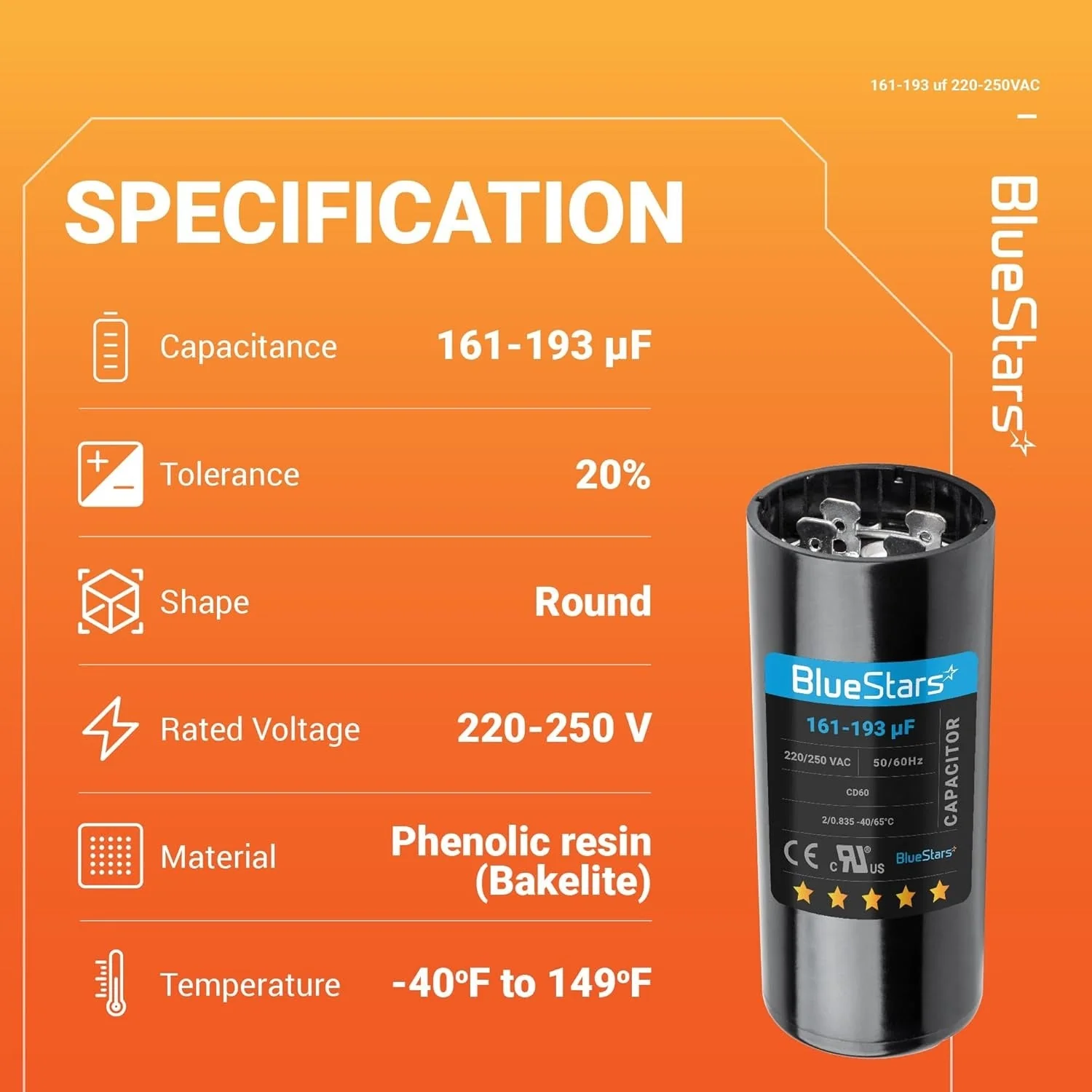

Key Features

• Capacitance: 161-193 µF (Microfarad)
• Voltage Rating: 220-250 VAC
• Frequency: 50/60 Hz
• Case Shape: Round

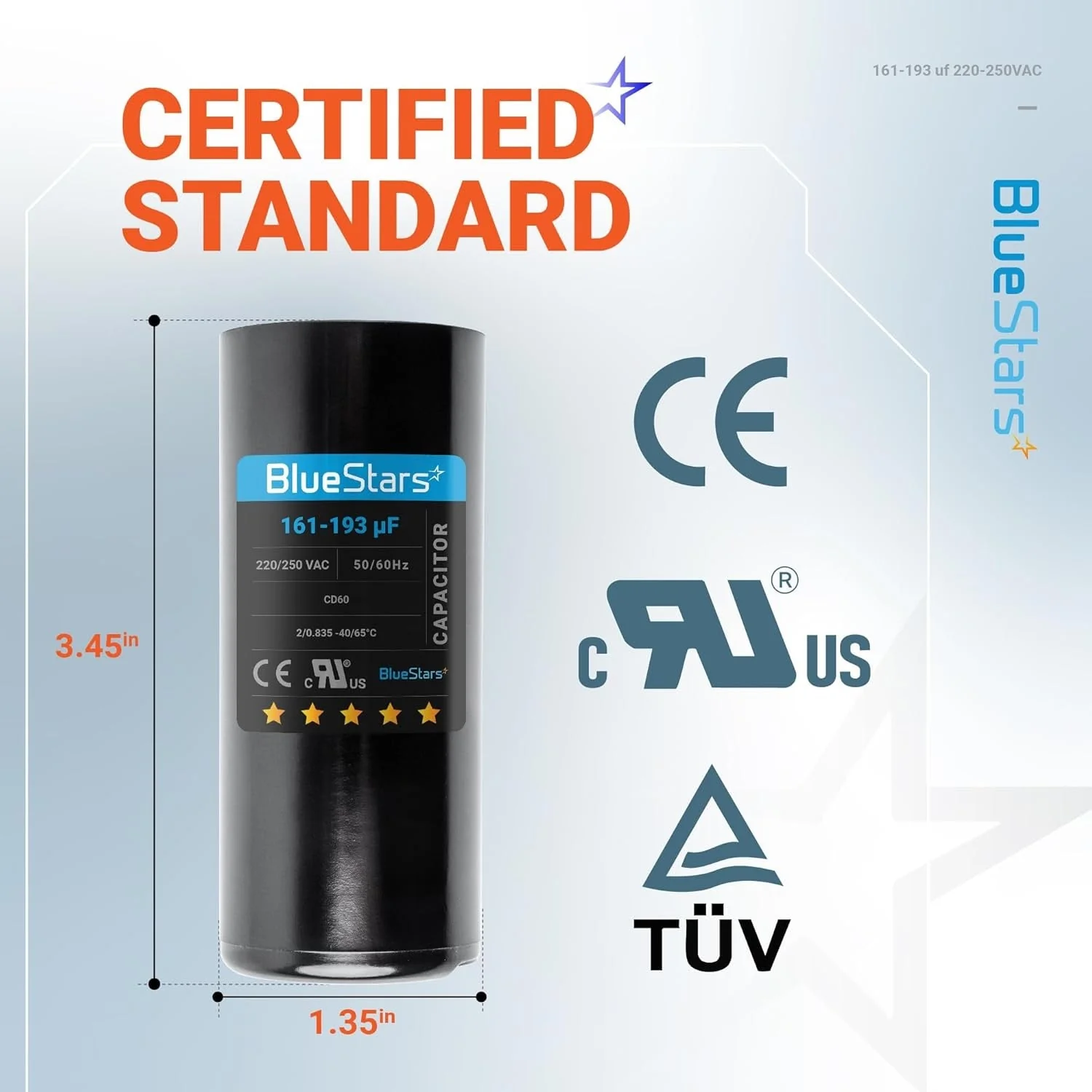

• Dimensions (Diameter x Height): 1.81 in x 3.35 in (46mm x 85.2mm)
• Terminals: 1/4 inch male quick-connect
• Operating Temperature: -40°C to +65°C

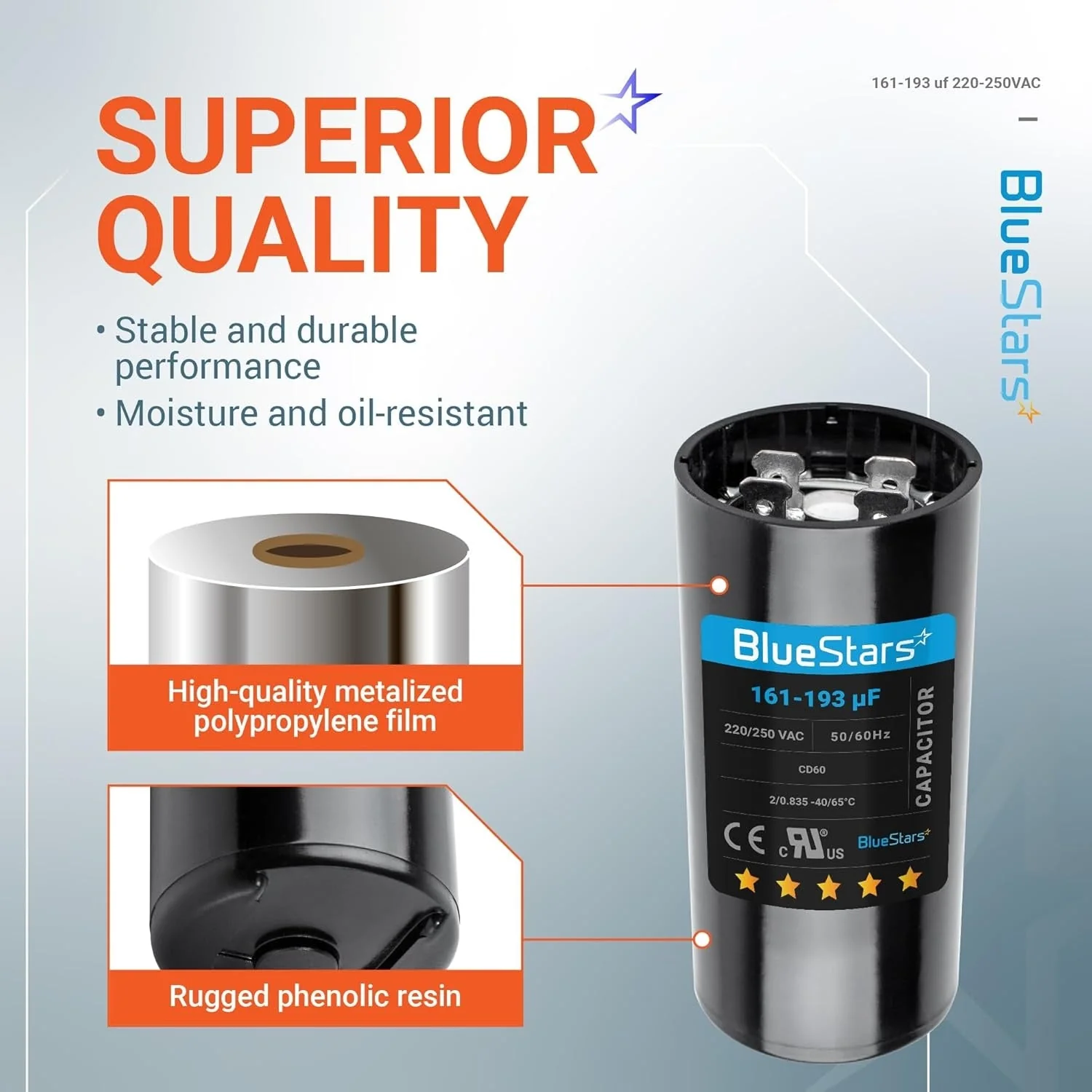

• Case Material: Moisture and oil-resistant molded plastic

Replaces / Cross-Reference Part Numbers

• Replaces any start capacitor with the same capacitance, voltage, and physical specifications.
• Generic Model Type: CD60
• Cross-references part numbers such as 6501038 and 7525353.

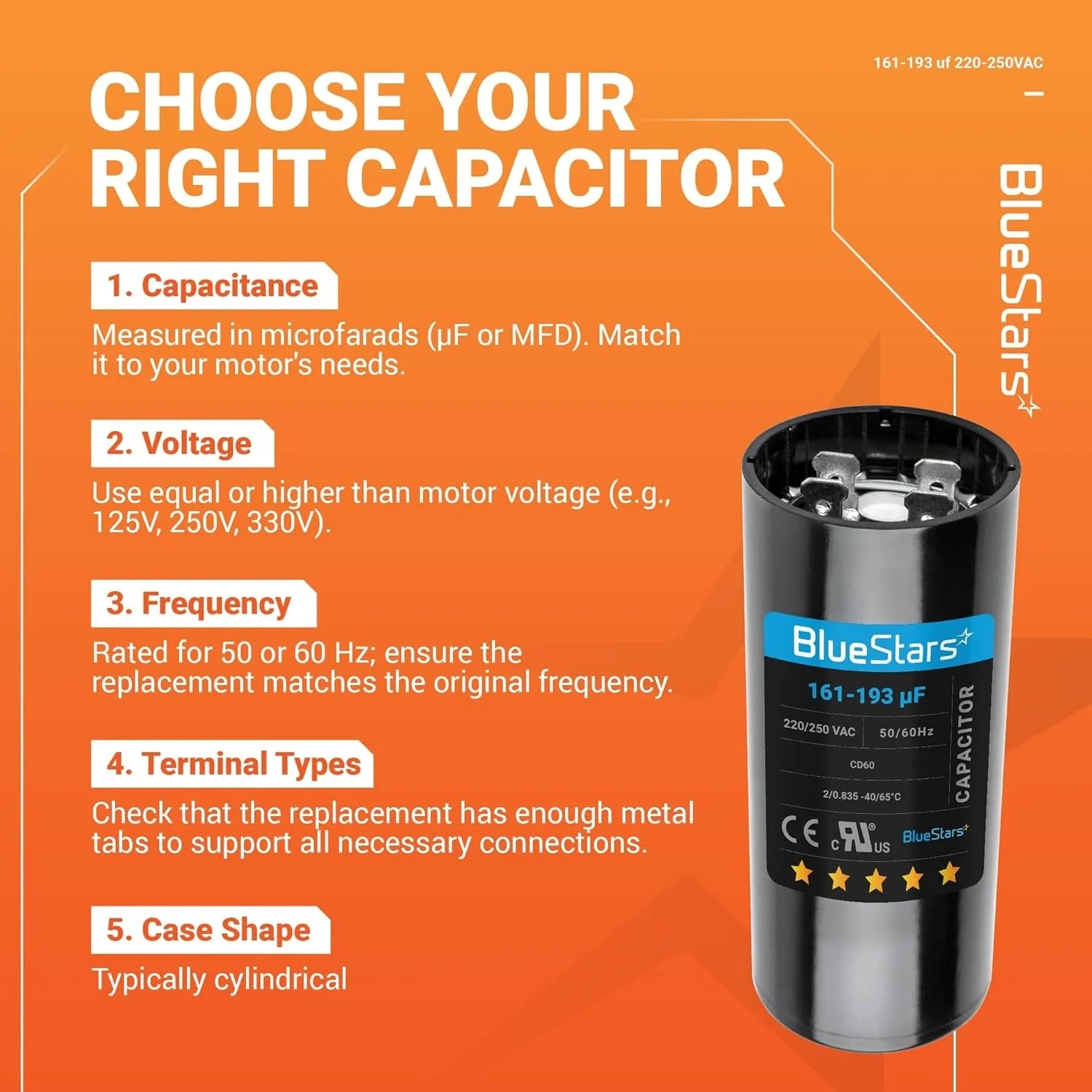

Compatibility & Fitment

• For use in single-phase electric motor starting circuits.

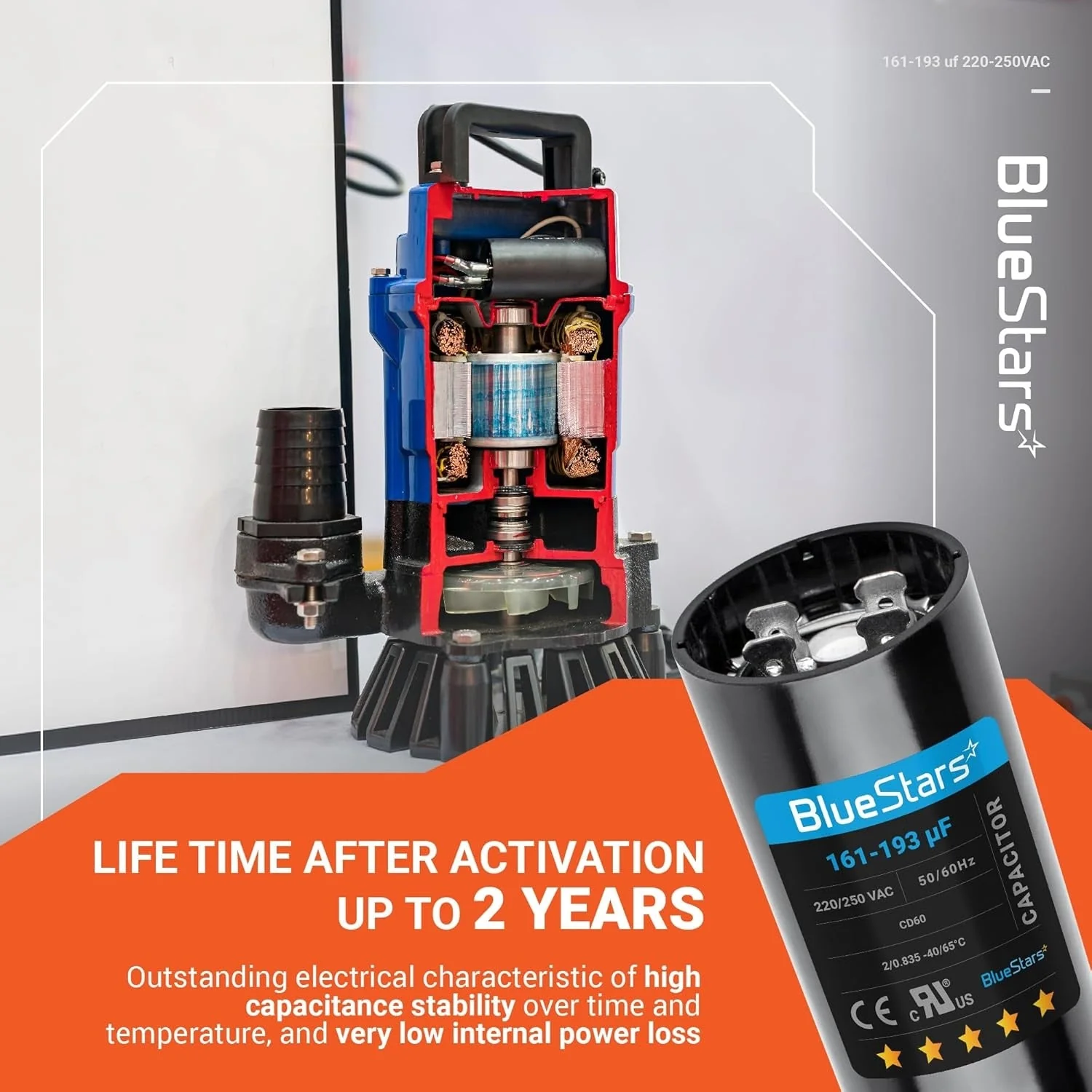

• Commonly used in HVAC units, air compressors, pool pumps, well pumps, and other electric motors.
• To ensure compatibility, the replacement capacitor's VAC rating must be equal to or greater than the original part.
• The capacitance (µF/MFD) rating must match the range specified for the motor.

When to Replace

• Motor hums or buzzes but does not start.
• Motor starts slowly or requires manual help to turn over.
• The original capacitor shows physical damage, such as bulging, cracking, or leaking fluid.
• A multimeter test shows the capacitor is outside its rated capacitance range.

Installation Tips

• Disconnect all power to the equipment before servicing.
• Discharge the old capacitor by safely shorting its terminals with an insulated screwdriver.
• Note the wire placement before removing the old capacitor.
• Confirm specifications of the new capacitor match the motor's requirements.
• Secure the new capacitor with the original mounting hardware.
