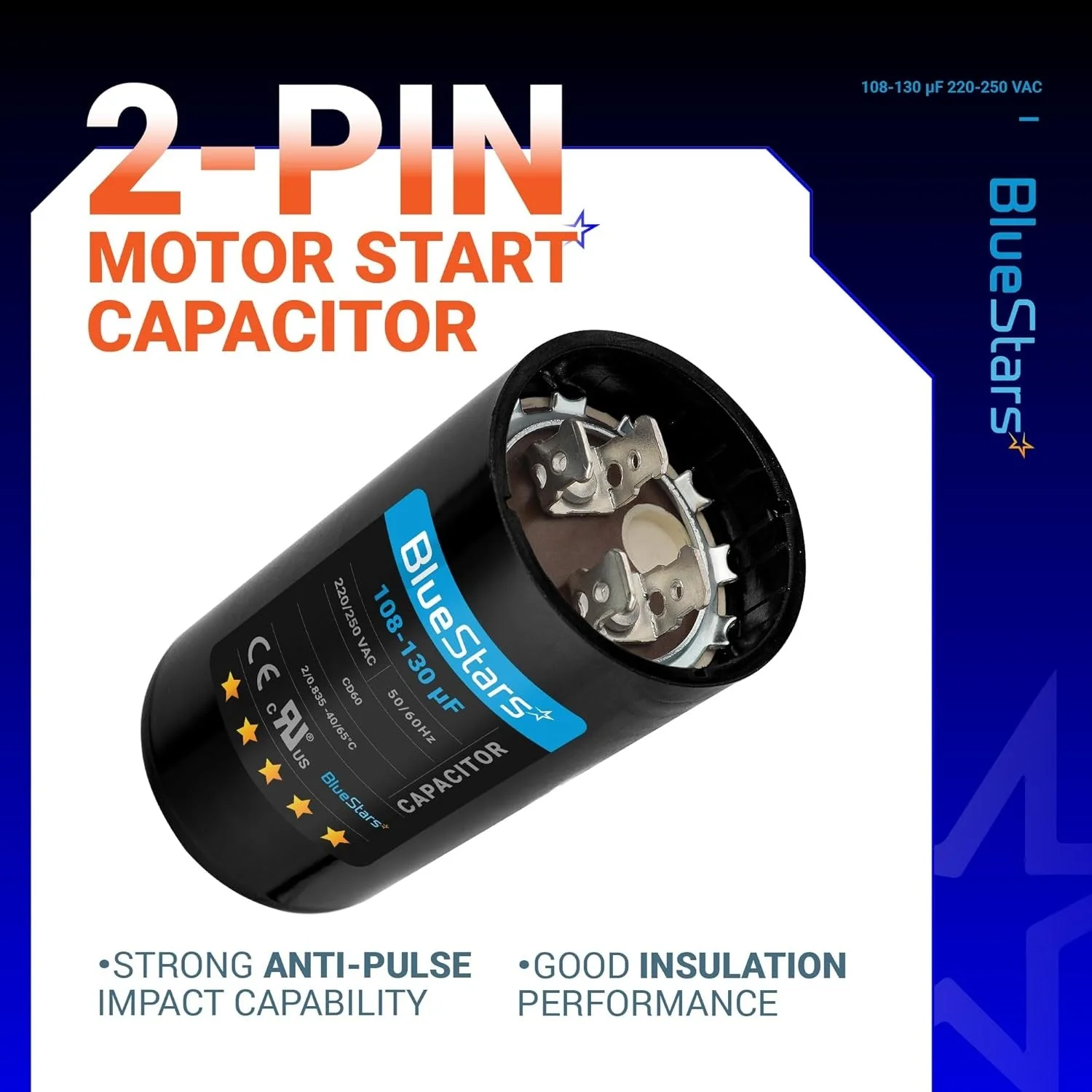

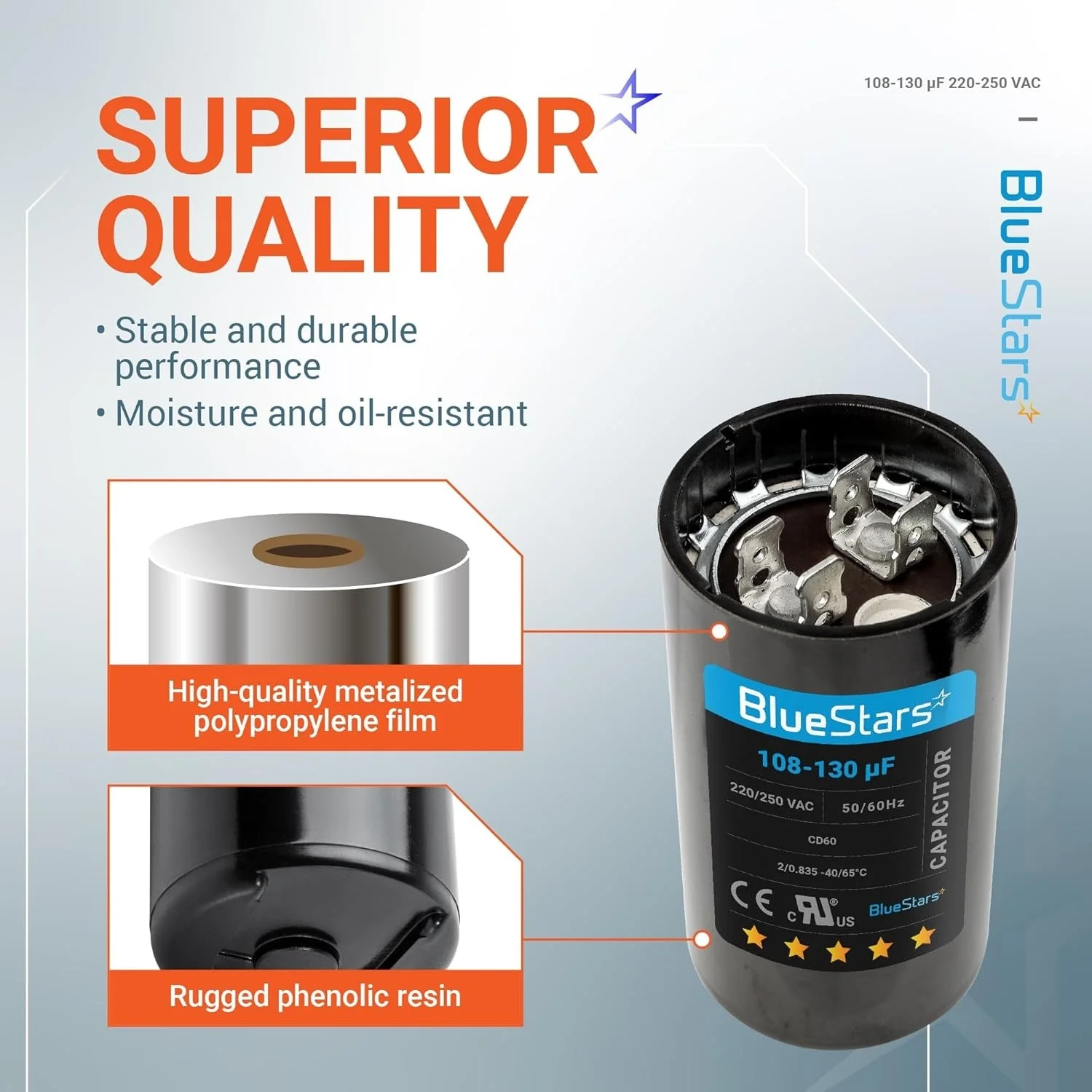

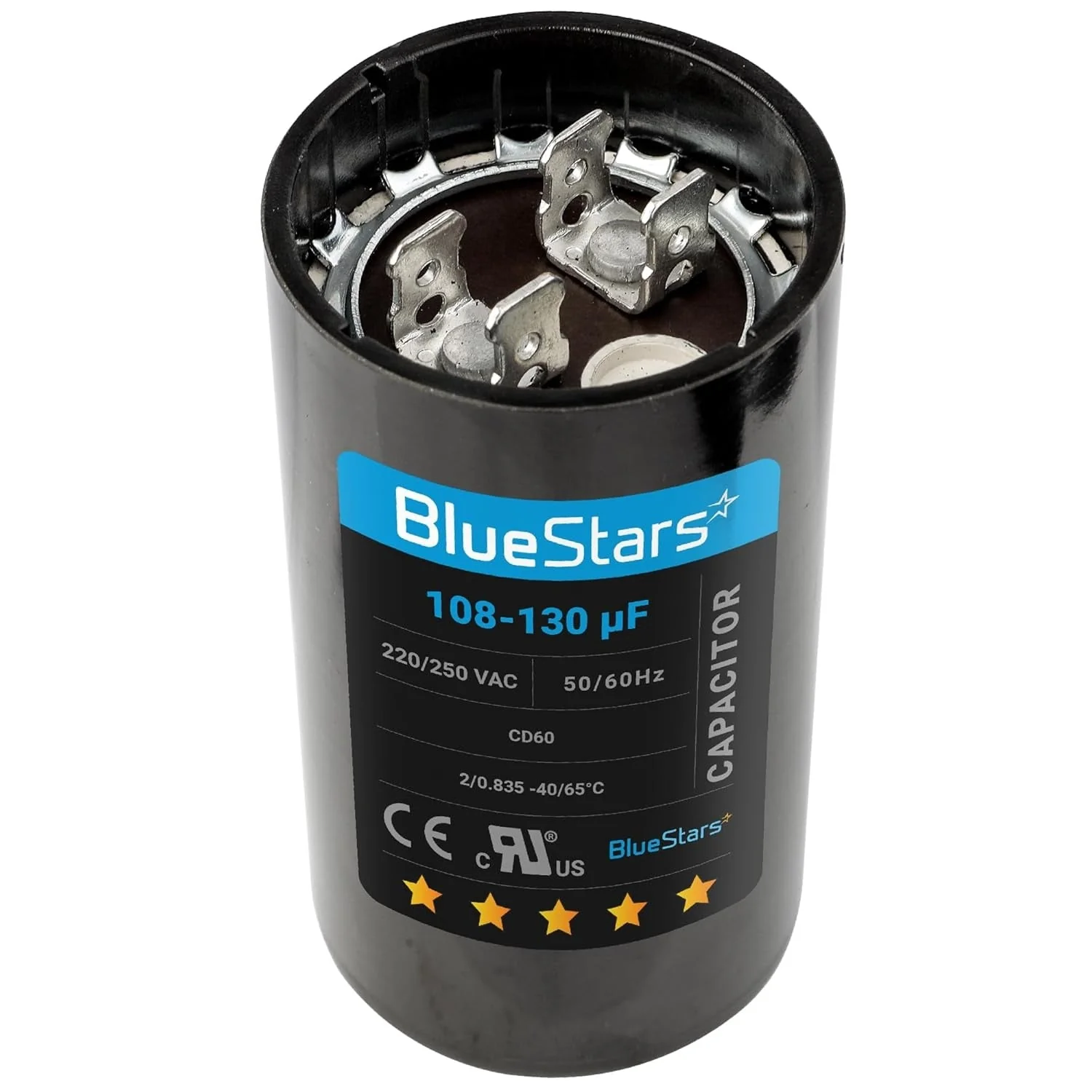

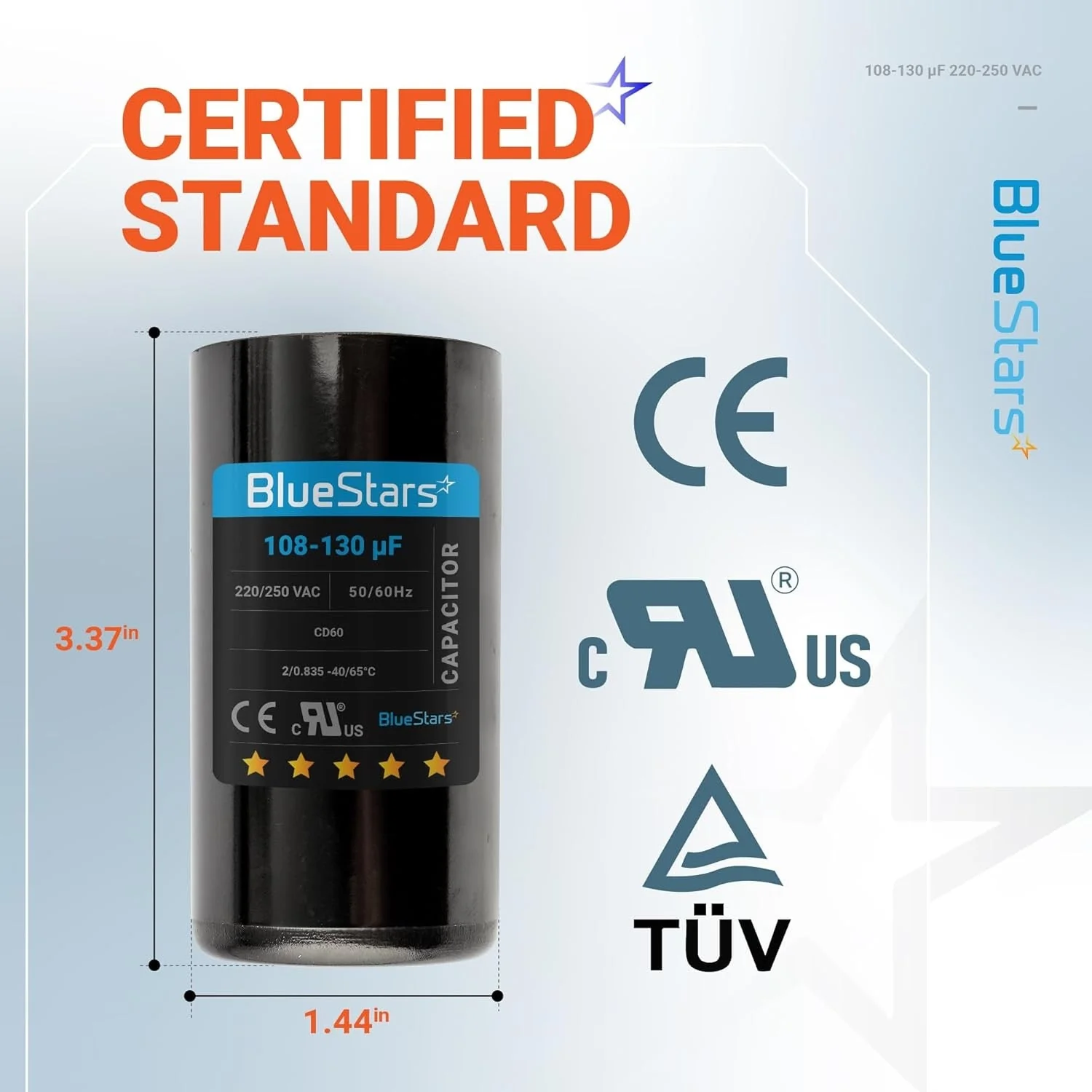

108-130 uf/MFD 220-250 VAC ±20% CD60 Volts Round Start Capacitor 50/60 Hz AC

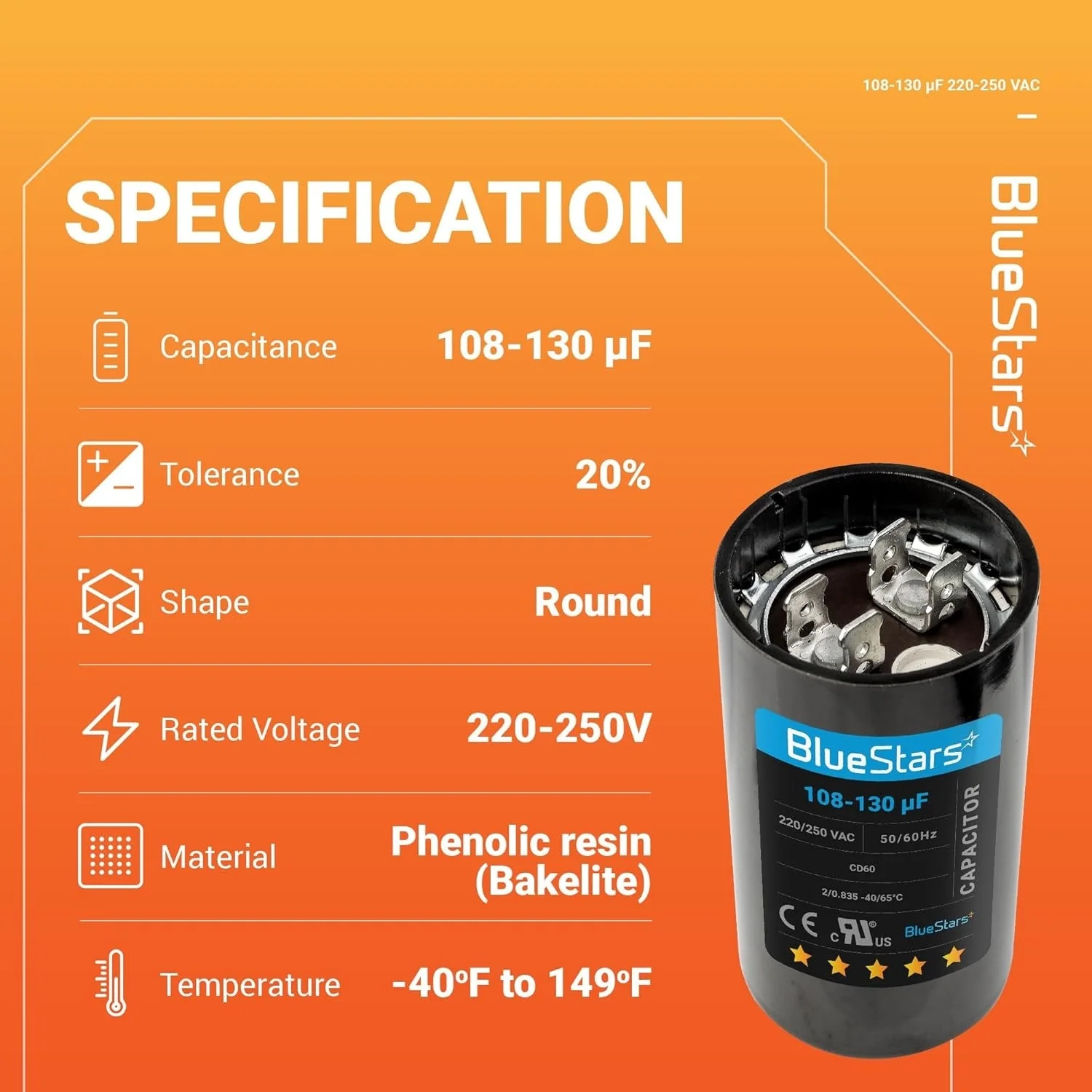

Key Features

• Capacitance: 108-130 uF/MFD
• Voltage Rating: 220-250 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Operating Temperature Range: -40°C to +65°C
• Shape: Round
• Contains no Polychlorinated Biphenyls (PCBs)

Replaces / Cross-Reference Part Numbers

• Replaces any round motor start capacitor with matching capacitance and voltage specifications.
• Cross-references to parts from brands such as BMI, TEMCo (SC0065), and other CD60 type capacitors.

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.
• Universal fit for applications requiring a 108-130 MFD capacitor at 220V, 230V, or 250V.
• Commonly used in electric motors, air conditioners, compressors, well pumps, and HVAC systems.

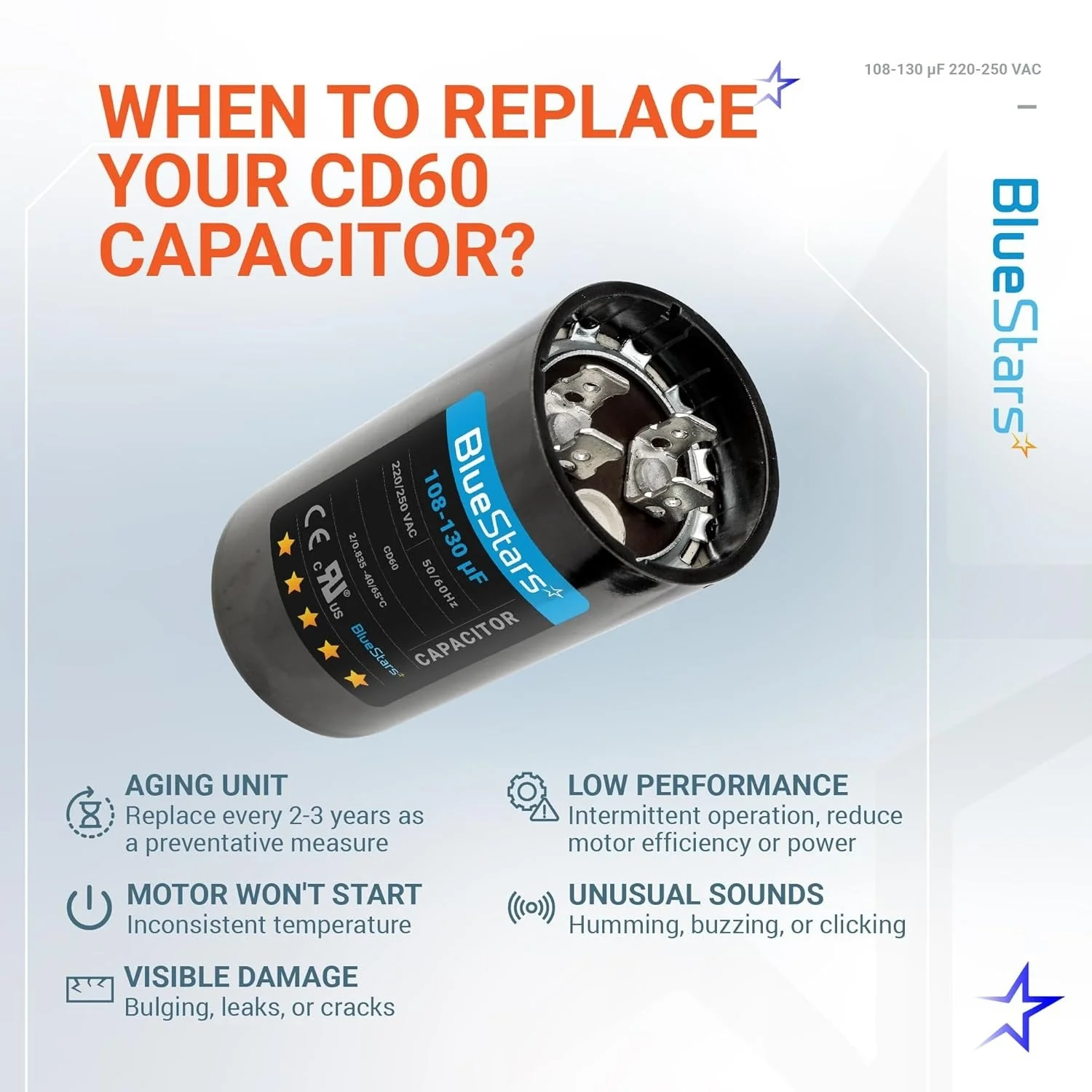

When to Replace

• Motor hums but fails to start or starts slowly.
• Circuit breaker trips or fuse blows during motor startup.
• Visible damage to the existing capacitor, such as bulging, cracking, leaking fluid, or burn marks.

Installation Tips

• Disconnect all electrical power to the unit before servicing.
• Safely discharge the existing capacitor before removal to prevent electric shock.

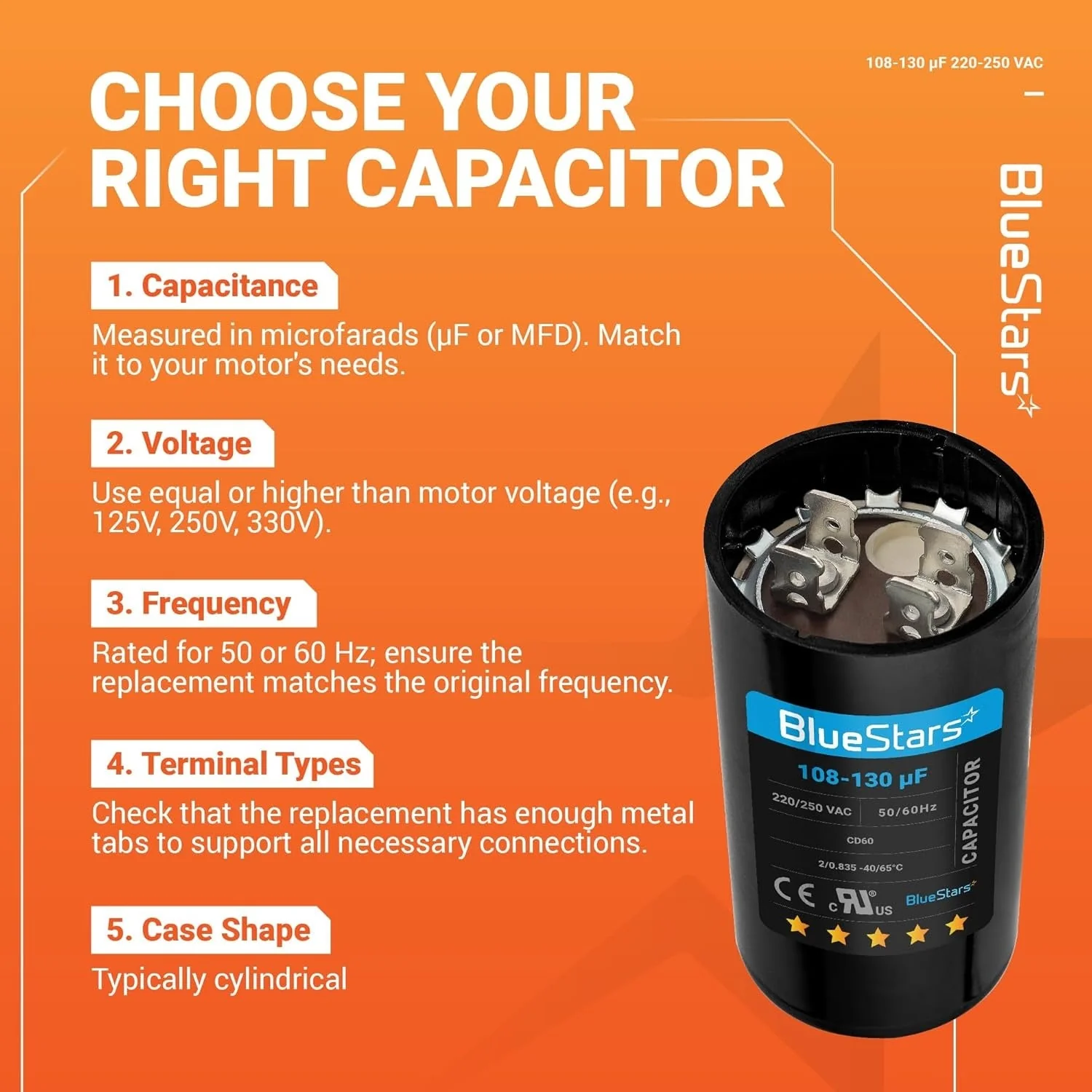

• Verify the capacitance (uF/MFD) rating matches the original component's specifications.
• The replacement capacitor's voltage rating must be equal to or greater than the original.
• Start capacitors are non-polarized and can be connected without regard to wire position.
