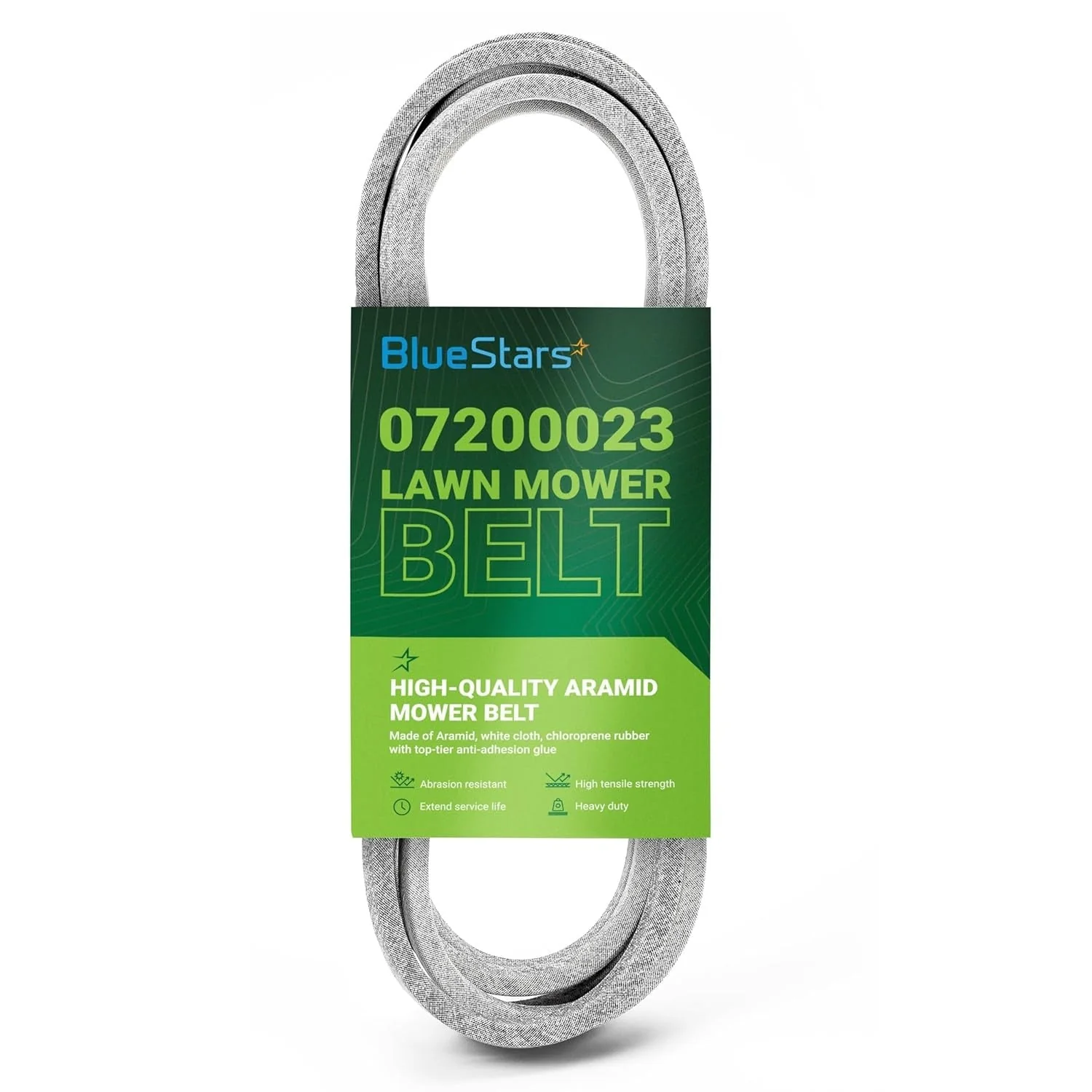

07200023 Mower Deck Belt (145" x 0.5")

Key Features

• Type: Deck Drive V-Belt
• Application: Transfers power from the engine pulley to the mower deck spindles

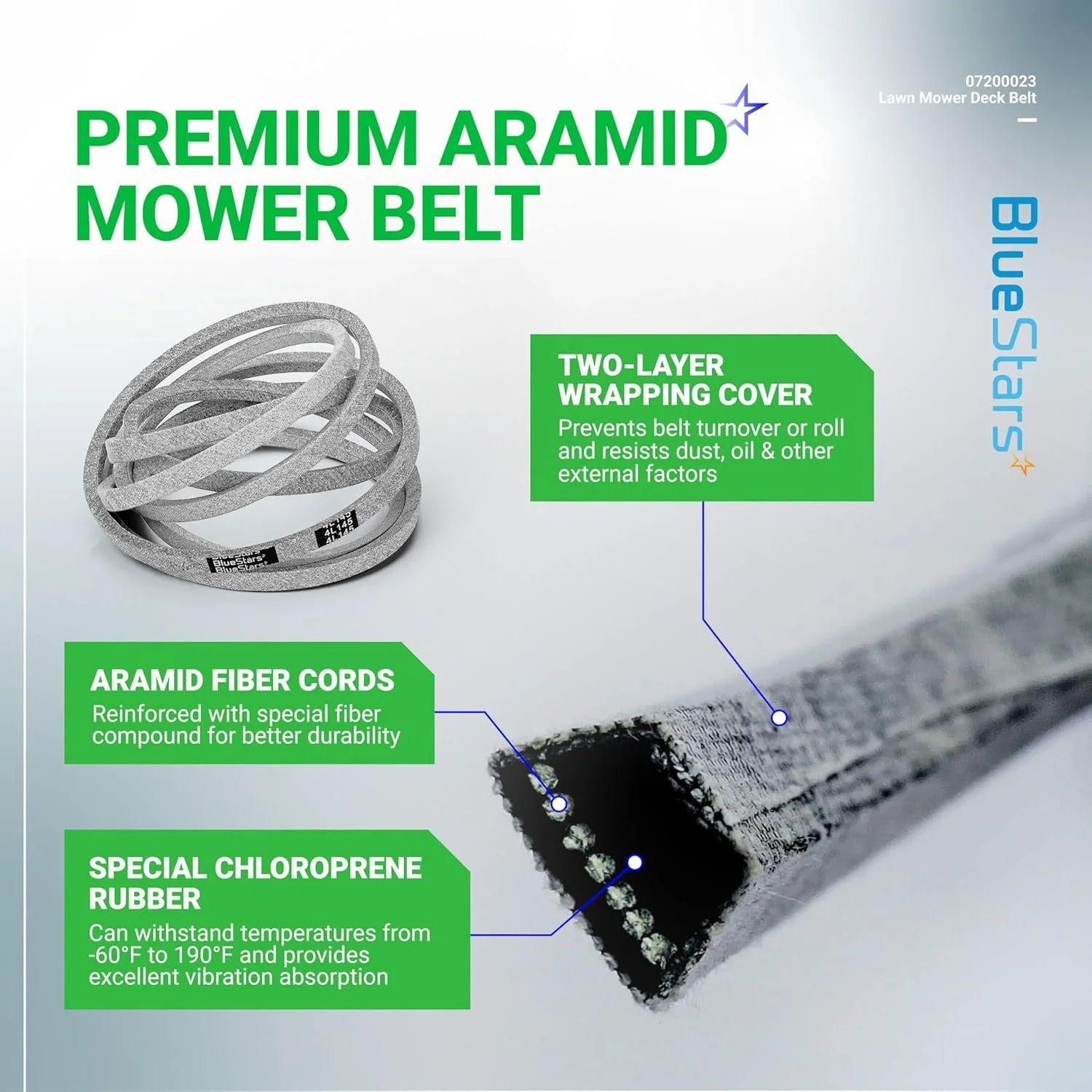

• Construction: Reinforced with aramid fiber cords for tensile strength and resistance to shock loads

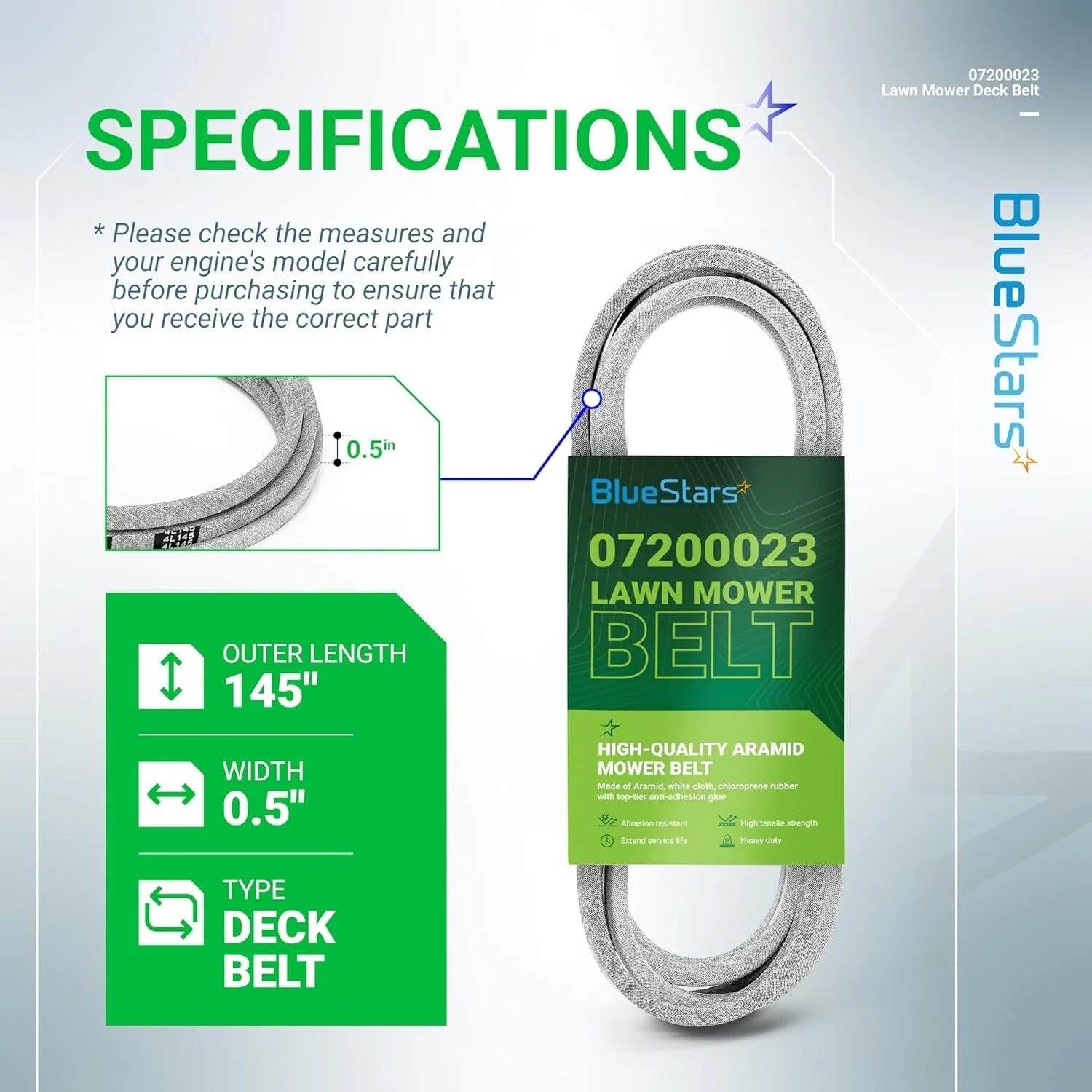

• Length: 145.5 inches
• Width: 1/2 inch

Replaces / Cross-Reference Part Numbers

• Ariens: 07200023
• Gravely: 07200023

Compatibility & Fitment

• Deck Size: 52 inches
• Fits select Ariens models including:
  • IKON X
  • IKON XL
  • IKON XD
  • Zoom XL
• Fits select Gravely models including:
  • ZT X
  • ZT XL
  • ZTX
  • ZTXL

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or separation.
• Noticeable decrease in blade speed or cutting performance.
• Belt slipping, squealing, or failing to stay on the pulleys.
• Scheduled maintenance as recommended by the equipment manufacturer.

Installation Tips

• Before starting, disconnect the spark plug wire for safety.
• Consult your mower's owner or service manual for the specific replacement procedure.
• Photograph or sketch the existing belt's routing path around pulleys before removal.
• Inspect all pulleys and tensioner springs for damage, wear, or debris.
• Ensure the new belt is properly seated in all pulley grooves and that tension is set to manufacturer specifications.
