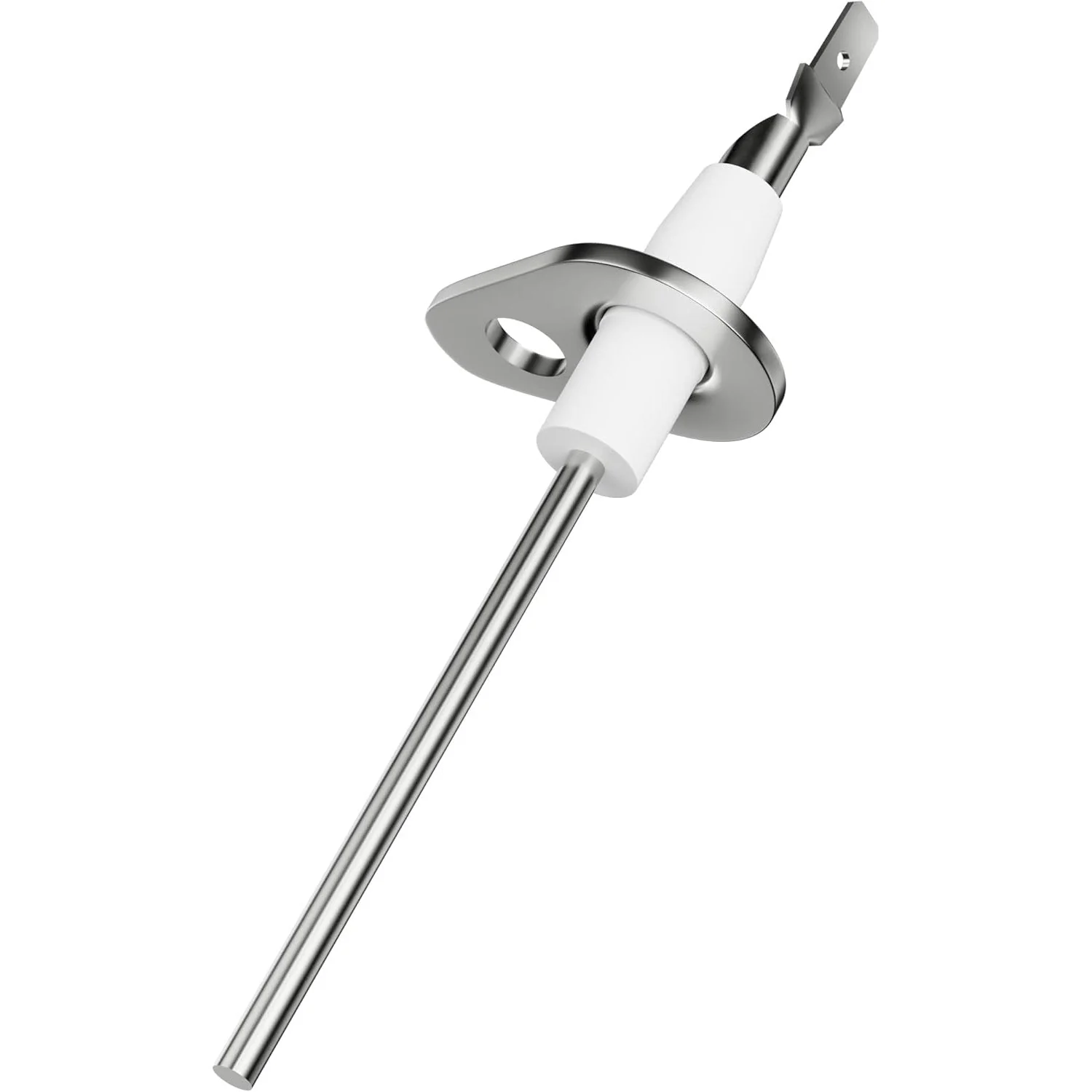

0130F00010 Flame Sensor - Pack of 5

Key Features

• Package contains five flame sensors.

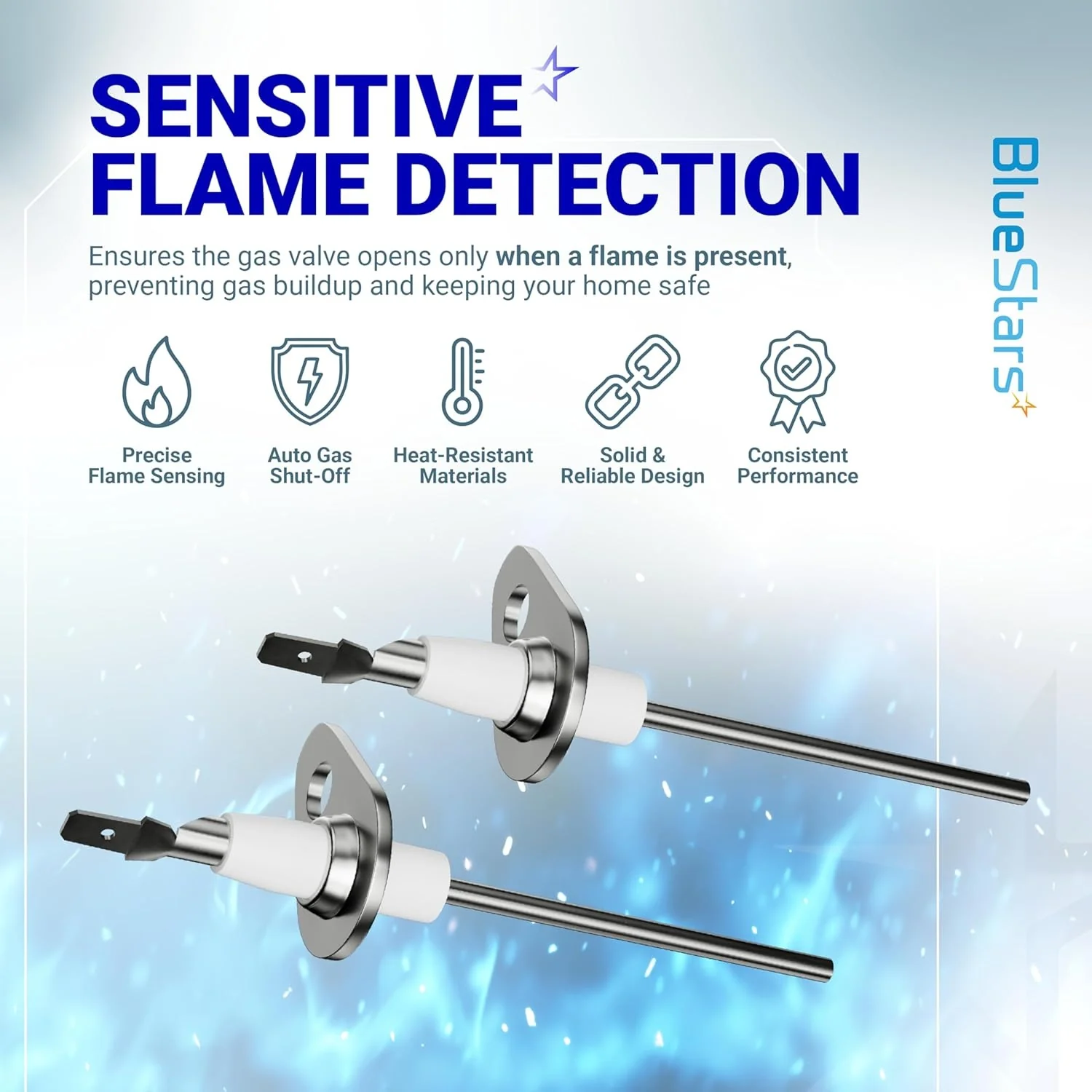

• Senses the presence of flame in the burner assembly.
• Direct replacement part designed for proper fit and function.
• Enables consistent furnace operation by sending a signal to the control board.

Replaces / Cross-Reference Part Numbers

• 0130F00010
• AP4513976
• B11726-06
• B1172606
• B1172806
• 20483501
• 20488501
• TJFLS013

Compatibility & Fitment

• Designed for use with various furnace models from Goodman, Amana, and Daikin.
• Fits specific models including GMHB and GDHB series.
• Verify compatibility by checking the part number on your original sensor or in your furnace's service manual.

When to Replace

• Furnace burners ignite for a few seconds and then shut off.
• Heating cycle starts but does not complete.
• Diagnostic codes indicate a flame sense or ignition failure.
• Existing sensor rod is corroded, cracked, or heavily coated in carbon buildup.

Installation Tips

• Always disconnect all electrical power to the furnace before servicing.
• Locate the sensor near the rear burner, typically secured with a single 1/4 inch hex screw.
• Remove the screw and wire to release the old sensor.

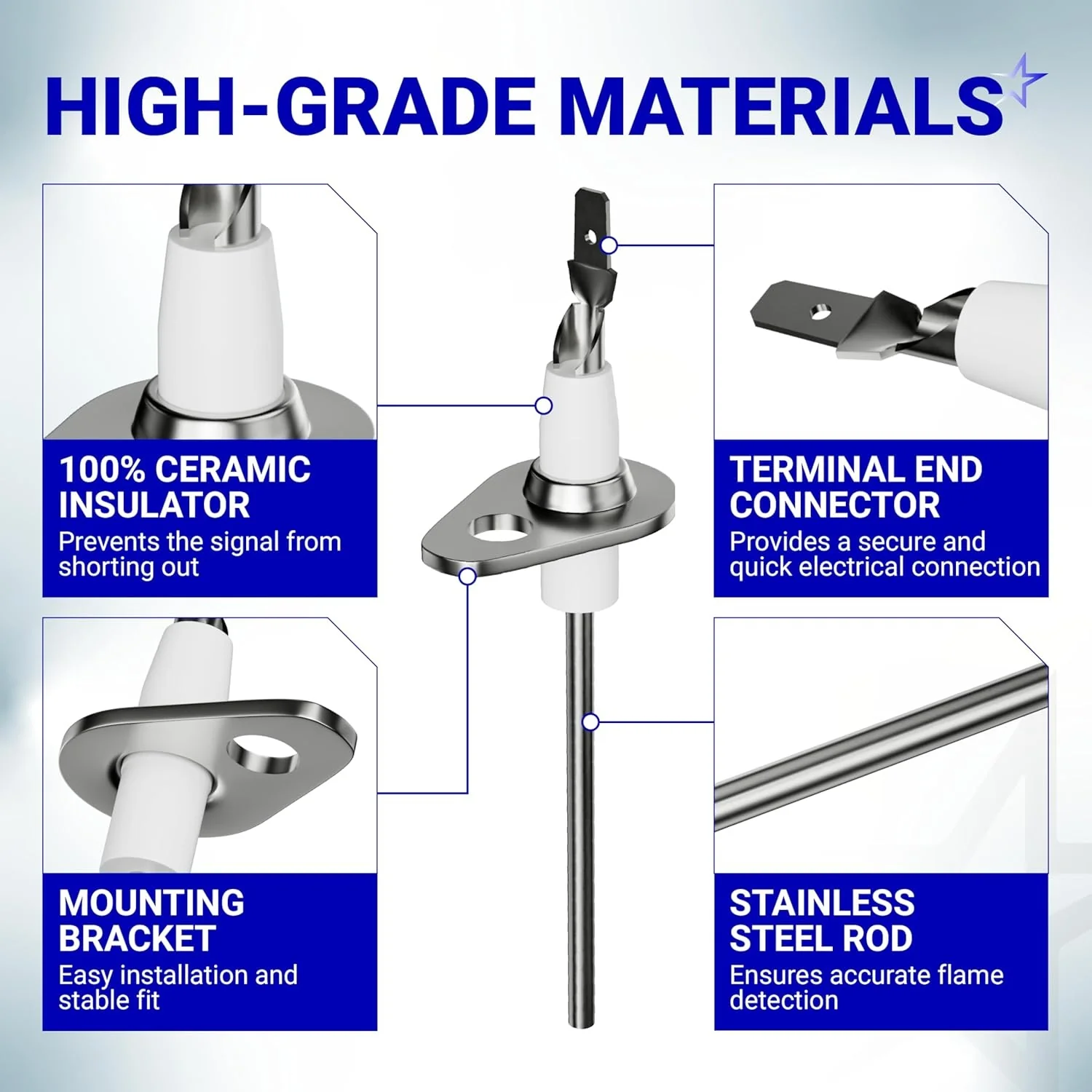

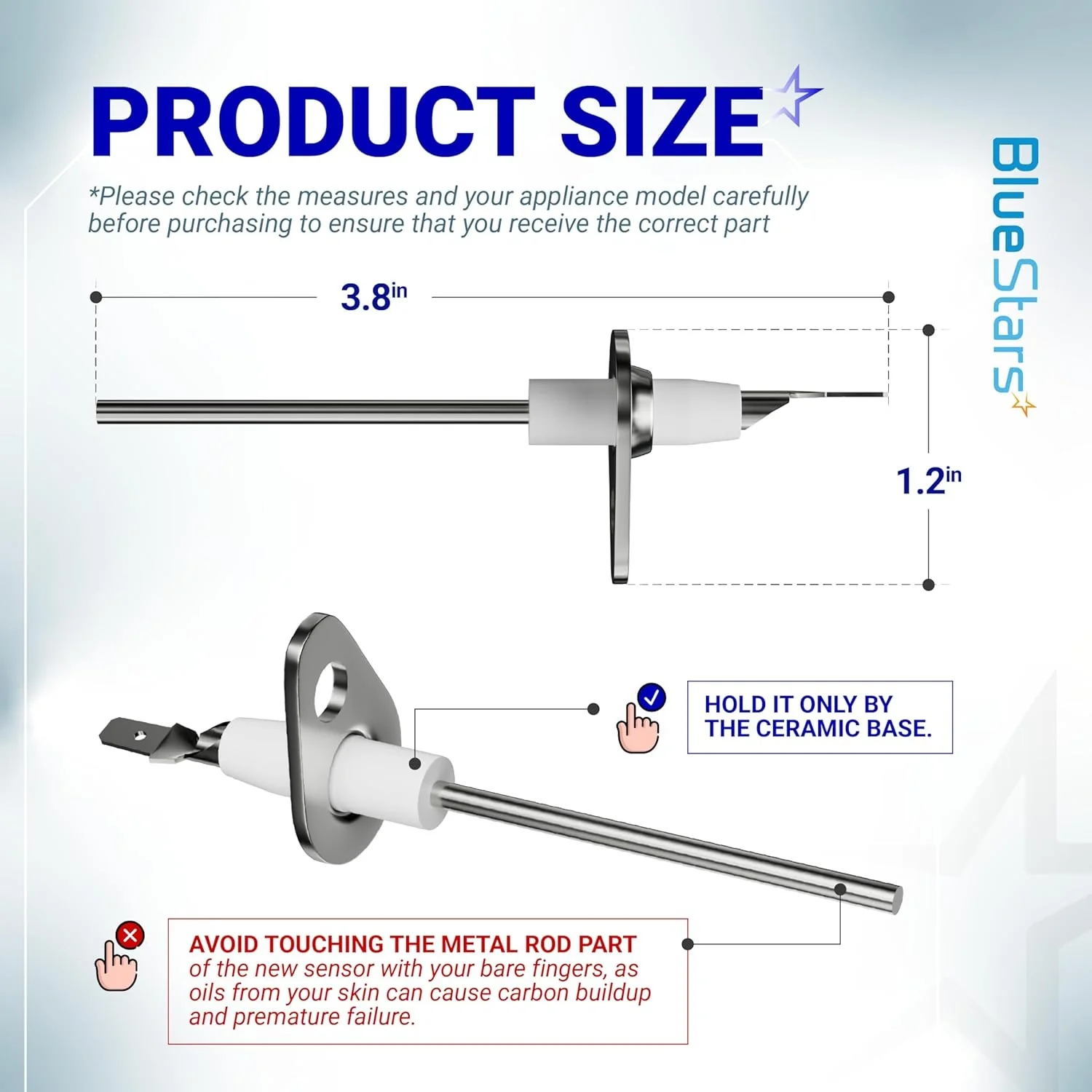

• Install the new sensor, ensuring the porcelain insulator is intact and the rod does not ground against any metal.
• Securely fasten the screw and reconnect the wire.
• Restore power and test the furnace through a full heating cycle.
