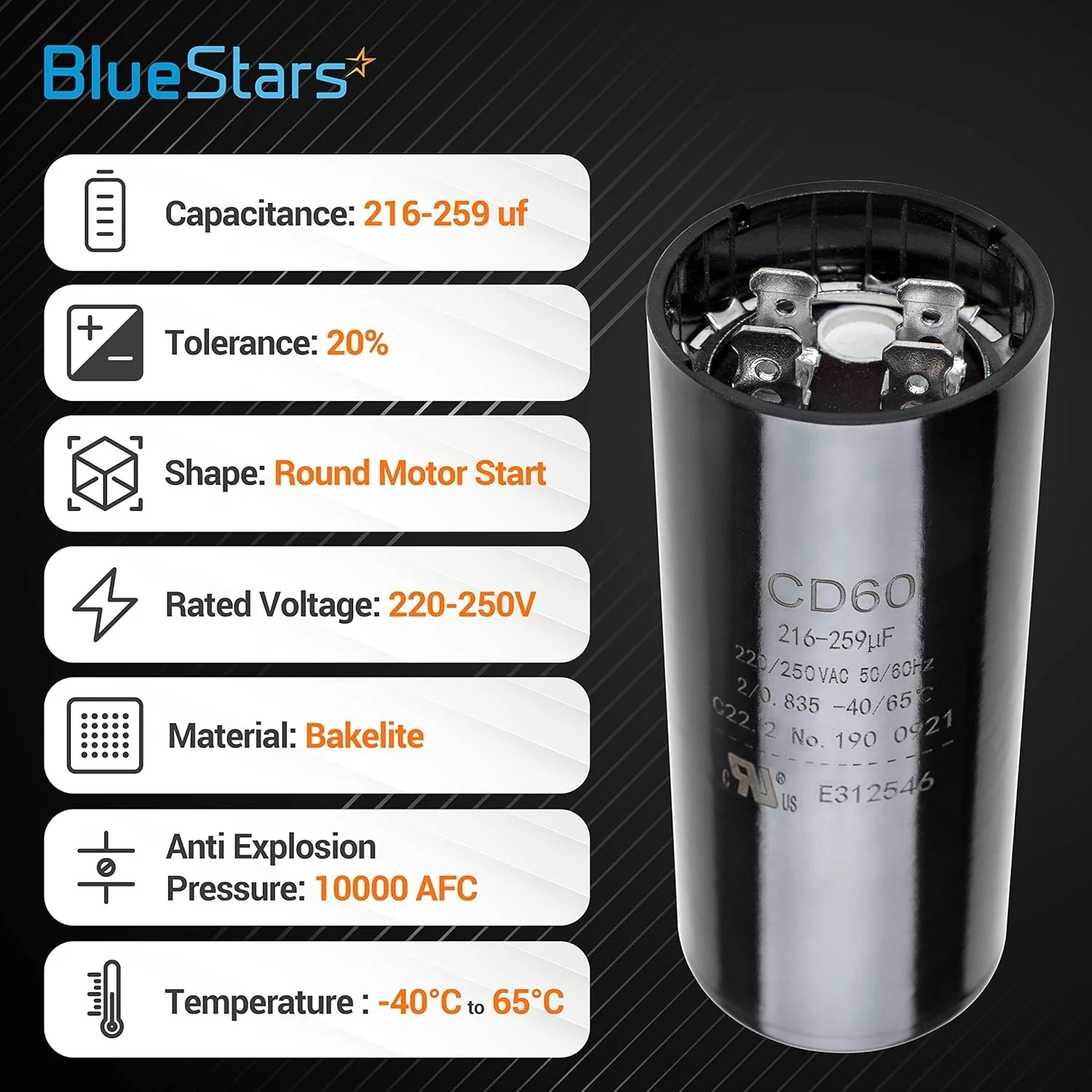

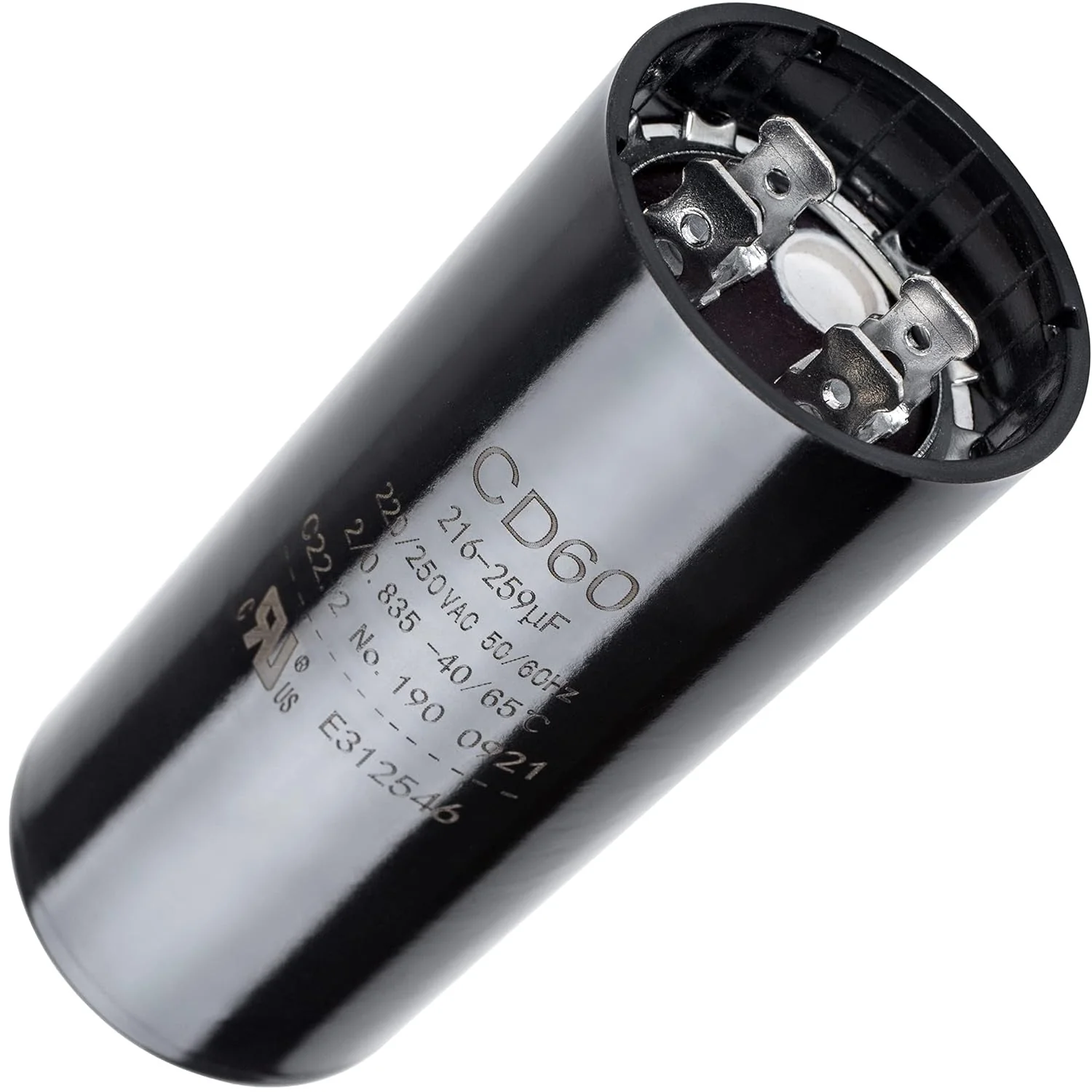

216-259 uF MFD 220-250 VAC 50/60 Hz SC0080 CD60 Round Motor Start Capacitor - Fit for AC Motor Run or Fan Start and Cool Heat Pump Air Conditioner

Key Features

Capacitance: 216-259 uF (Microfarad)
Voltage Rating: 220-250 Volts AC
Frequency: 50/60 Hz
Shape: Round
Duty Cycle: Intermittent, for motor starting circuits
Tolerance: ±20%

Replaces / Cross-Reference Part Numbers

CD60
SC0080

Compatibility & Fitment

Designed for the start-up of single-phase AC motors
Commonly used in HVAC units, air conditioners, and heat pumps
Suitable for air compressors, well pumps, and various electric motors requiring a start capacitor

When to Replace

The motor hums but fails to start
The motor starts slowly or with difficulty
The circuit breaker trips when the motor attempts to start
The existing capacitor shows physical damage like bulging, cracking, or leaking

Installation Tips

Disconnect all electrical power to the unit before servicing.
Safely dis
